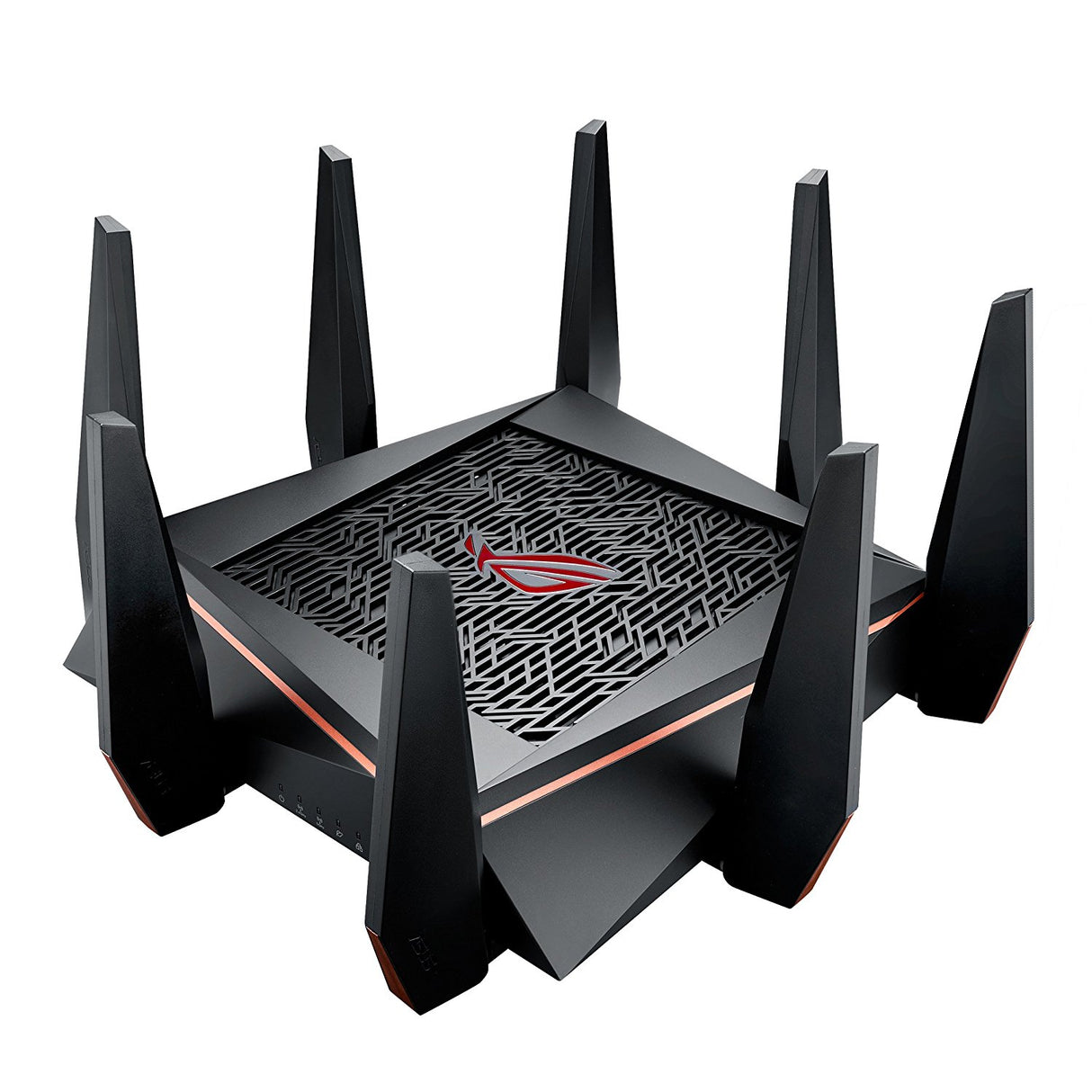

Asus ROG Rapture GT-AC5300 Cable Router

AC5300 Tri-band WiFi Gaming router for VR and 4K streaming, with quad-core processor, gaming port, AiMesh for mesh wifi system, WTFast, Adaptive QoS, and AiProtection network security

Max Wireless Transfer Rate

2167 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Signal Rate

5GHz: Up to 2167Mbps
5GHz: Up to 2167Mbps
2.4GHz: Up to 1000Mbps

Dual/Tri Band

Tri Band

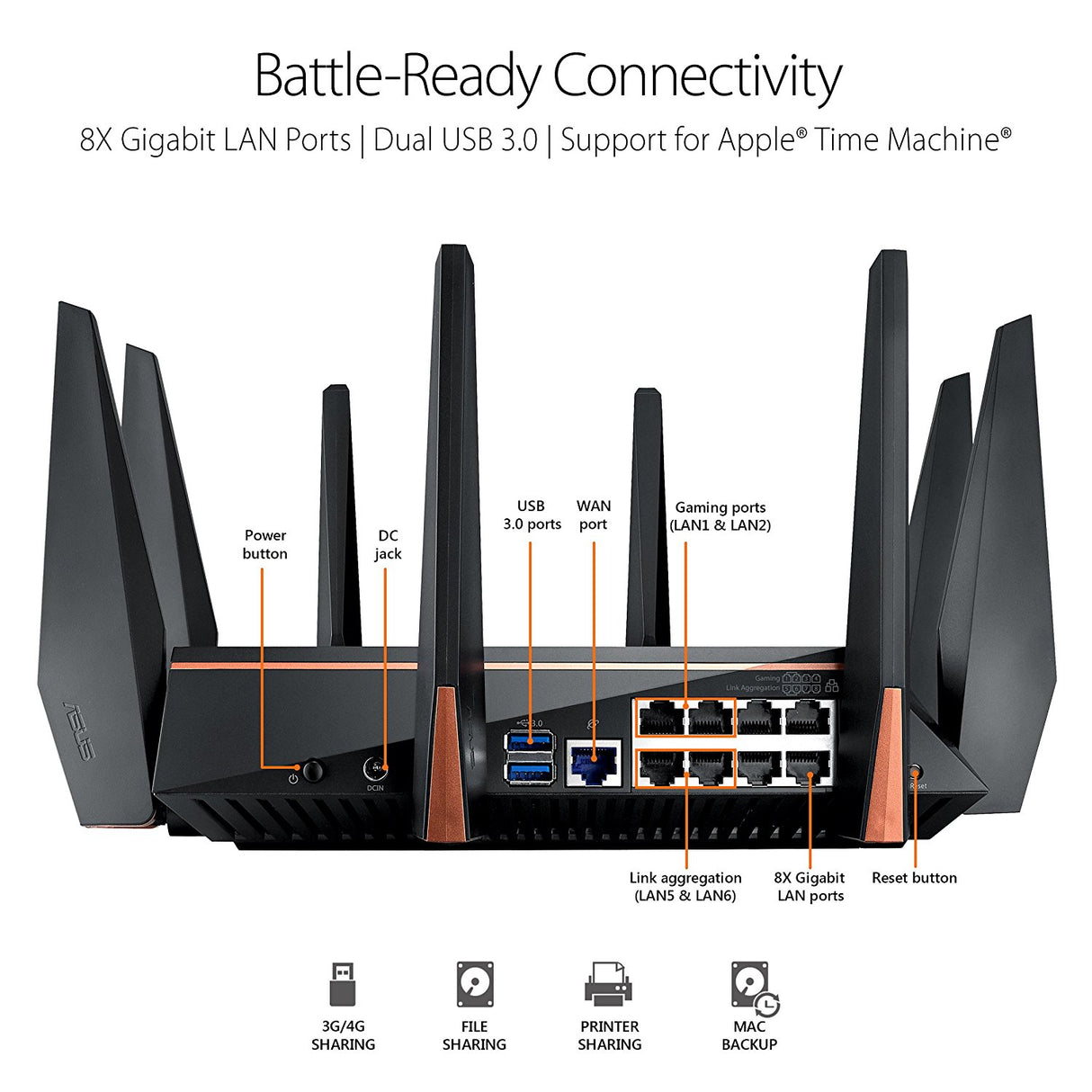

Interface(s)

1 x RJ45 for 10/100/1000/Gigabits BaseT for WAN
8 x RJ45 for 10/100/1000/Gigabits BaseT for LAN
2 x USB 3.0

Wireless Standards

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6

Frequency

2.4G Hz, 5 GHz-1, 5 GHz-2

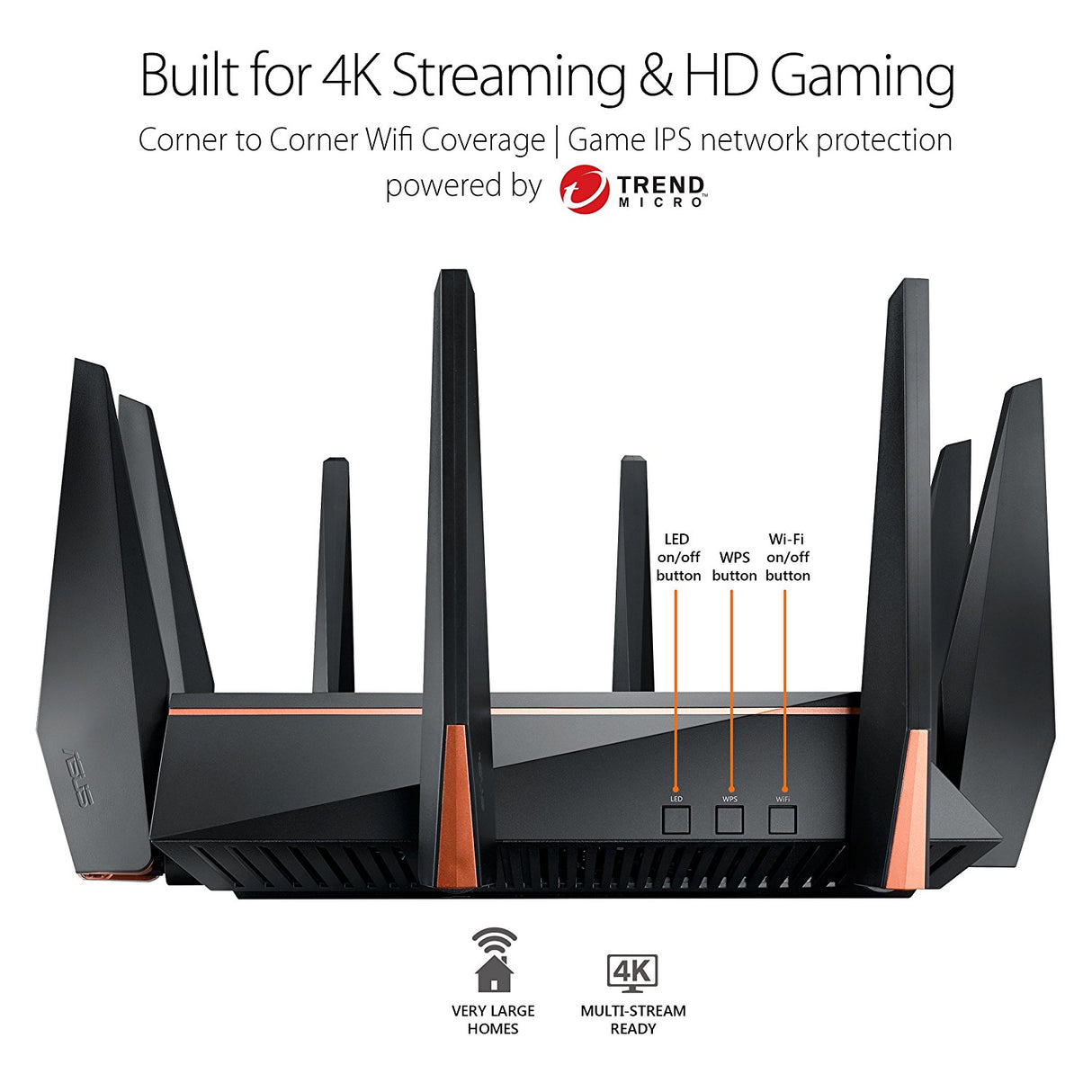

Button(s)

WPS Button
Reset Button
Power Button
Wireless on/off Button
LED on/off Button

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 3.42 A current

Antenna(s)

External antenna x 8

Dimensions (W x D x H)

9.64 x 9.64 x 2.55 inch (WxDxH) ~ cm (Without Bezel)

Wireless Functions

Wireless router mode
Access point mode

Security

UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log

Management

UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log

USB Sharing

Printer sharing
3G/4G dongle support
