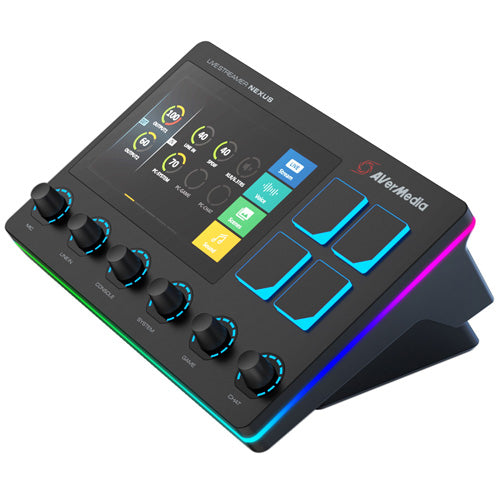

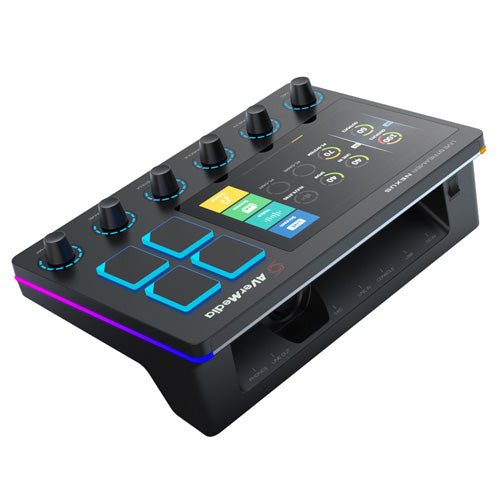

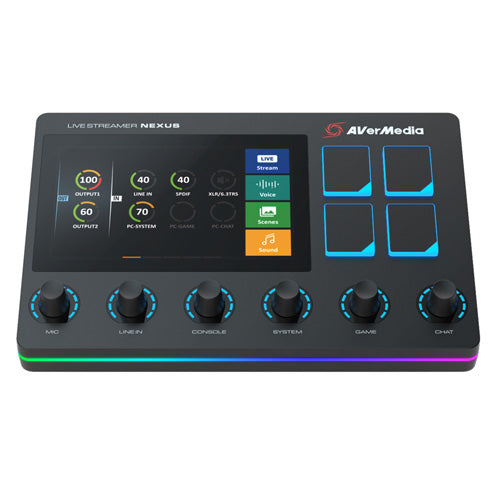

AVerMedia Live Streamer Nexus AX310 Creator's Control Centre
With a 6 track audio mixer and a fully customizable control panel, the Live Streamer AX310 will ensure you have full control over the live creation process. Be more productive, create more efficiently, master your content.
Creator's Control Centre
Find your Mastery
With a 6 track audio mixer and a fully customizable control panel, the Live Streamer AX310 will ensure you have full control over the live creation process. Be more productive, create more efficiently, master your content.
Your most important Tracks, Mixed.
Your voice, alerts, music, even game sound are a huge part of your content. Controlling and monitoring all 6 tracks with ease and in real-time.
Dual independent audio mixes
Keep your audio levels separate from your audience. With Dual Mix you and your stream can have different audio experiences, allowing each to focus on what’s most important.
Creator Mix: Headphones Audio
Audience Mix: Live Stream Audio
AX310 App
The AX310 app will have you up and in control in no time. Specially designed with content creators in mind, simply drag and drop widgets, add hotkeys, tune your mic, and more. Mastering your stream is only a few clicks away.
AX310 Widgets
Display follower, subscriber or viewer count, even real-time live chat! Widgets bring a whole new Features to the game.
Ongoing Development
The AX310 app integrates widely used streaming platforms and softwares and with its ongoing development, be sure that the AX310 will only keep getting better and better.
Switch ON. Switch OFF
We added a dedicated on/off switch to make it easier for you to power off your AX310 once you are done creating. Forget about looking for that USB port on the back, Switch ON, Switch OFF, done.
Interface: USB 2.0, Type B (Driver Required)
Mic In: XLR (Balanced) / 6.3mm (Single-End) x 1
Line In: 3.5mm TRS, Stereo x 1
Console In: Optical In (Toslink) x 1
Computer Inputs: Digital Tracks x 3
Headphone Out: 3.5mm TRS, Stereo
Line Out: 3.5mm TRS, Stereo
Output Mix (Independent Instances): Creator mix / Audience mix
Sampling Rate: Up to 96kHz, 24 bits
Microphone Effects: Noise Gate, Reverb, Compressor, Equalizer
Frequency Response: 10Hz to 20kHz
Dynamic Range: 114 dB
Screen Panel: 5" IPS Screen with CTP Touch Panel
Widgets: Interactive & Customizable Grid
Rotational Encoders: 6
Lighting: RGB
Function Buttons: 4
Power Switch: Yes
Power Input: Standard 12V DC, Center Negative, 1.5A
Power Consumption: <7W
Dimensions (W x D x H) Without Stand: 21.7 x 14.5 x 6.1 cm
Dimensions (W x D x H) With Stand: 21.7 x 14.5 x 9.4 cm
Weight Without Stand: 0.702 kg
Weight With Stand: 0.847 kg
- Phantom Power +48V, switchable via AX310 APP
- Optical output settings must be set to stereo, AX310 doesn’t support 5.1ch or 7.1ch
Mac: macOS 10.15 and above
Note: AX310 app is not compatible with M1 based MacBook.
Magnetic Kick Stand
USB 2.0 type B to Type A Cable (1.8 m)
3.5 mm TRS Audio Cable (1.8 m)
3.5 mm to 6.3 mm Adapter
Power Adapter
Quick Guide
