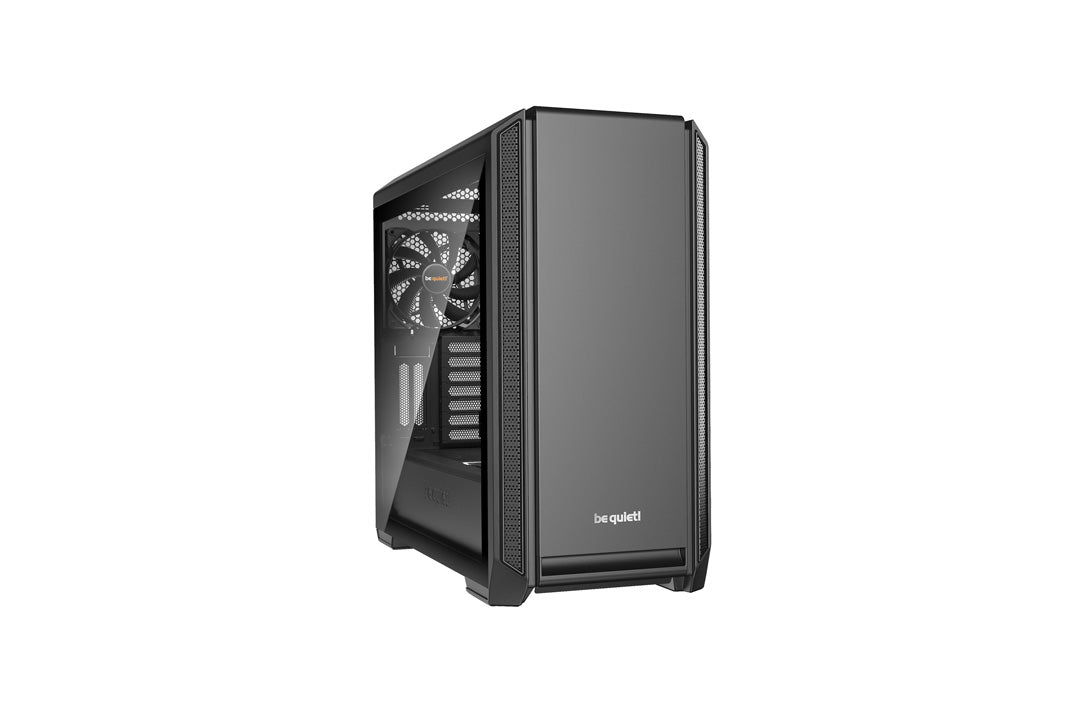

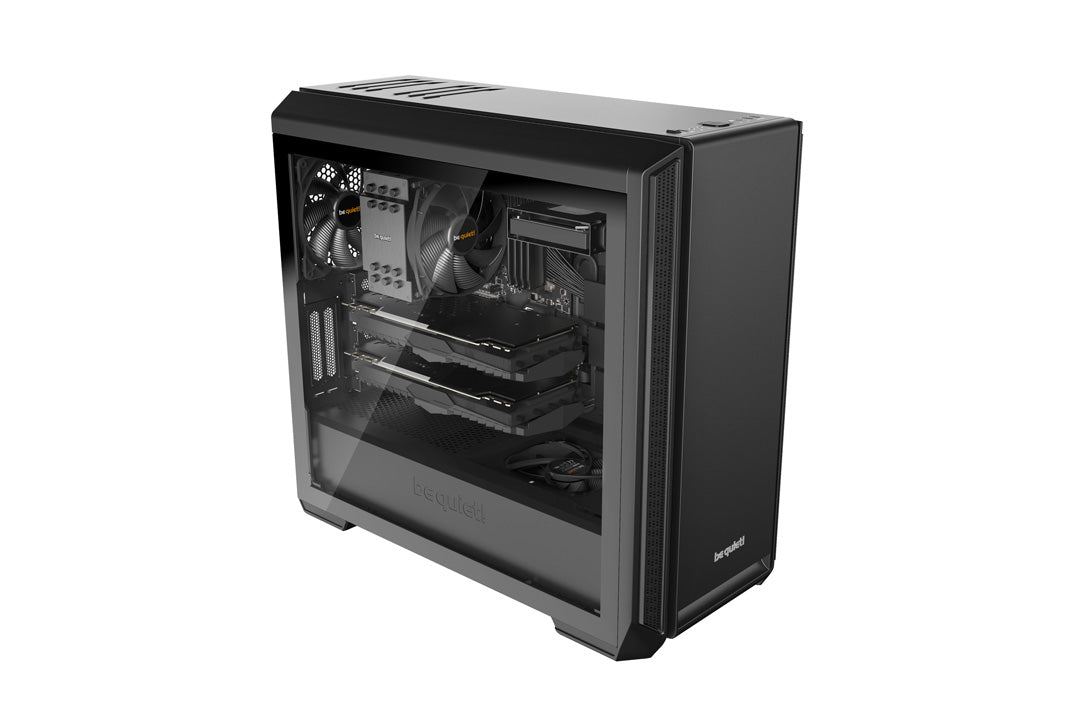

be quiet! Silent Base 601 Window Black - PC Case

Name: be quiet! Silent Base 601 Window Black - PC Case
Brand: Be Quiet
SKU: PJ-24872-BEQ
Price: 126.95 GBP
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Availability :

Available to Order

Out of stock

Manufacturer: be quiet!
Product Type: PC Case
Form Factor: Midi Tower
Motherboard Compatibility: E-ATX / ATX / Micro ATX / Mini-ITX

£126.95

Description
Specifications

Excellent silence and usability

be quiet! Silent Base 601 Window Black delivers the perfect combination of maximum silence and an excellent usability for remarkably quiet configurations.

Noise dampening vents provide excellent air permeability with maximum silence
Extra thick insulation mats of 10mm in the front, top and sides

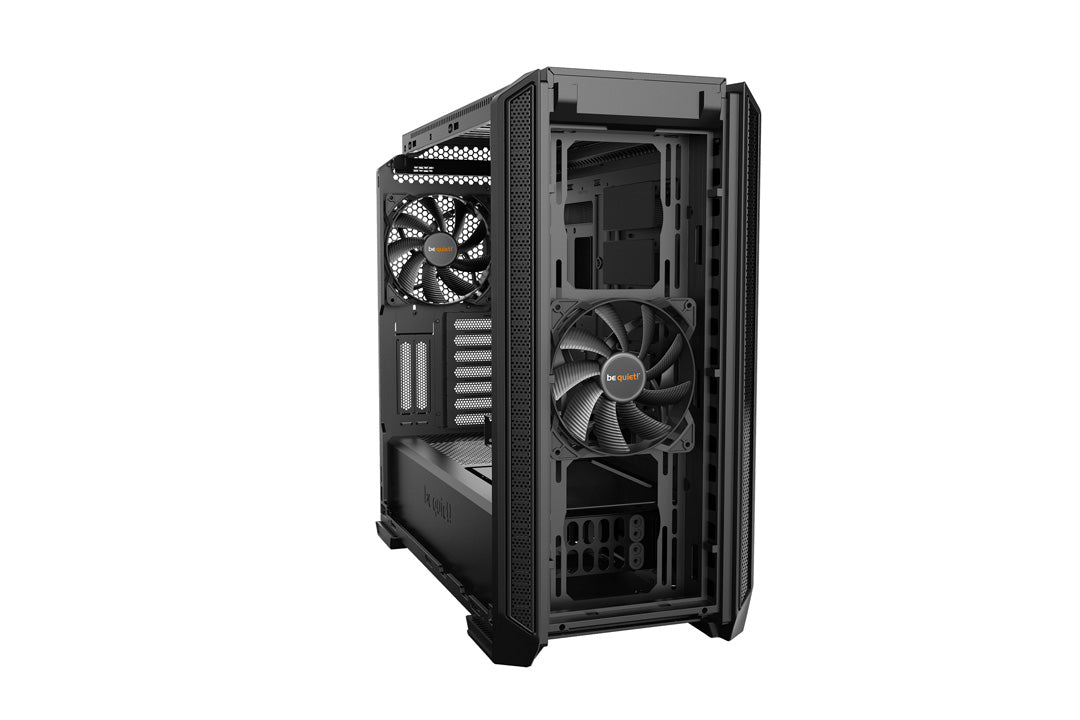

2 preinstalled Pure Wings 2 140mm fans ensure a silent airflow
3-step fan controller caters for up to 3 fans
PSU shroud and smart HDD slot covers provide a neat interior
Fast and secure detachment of the side panels with push pins
The power supply can be easily installed from the back of the case

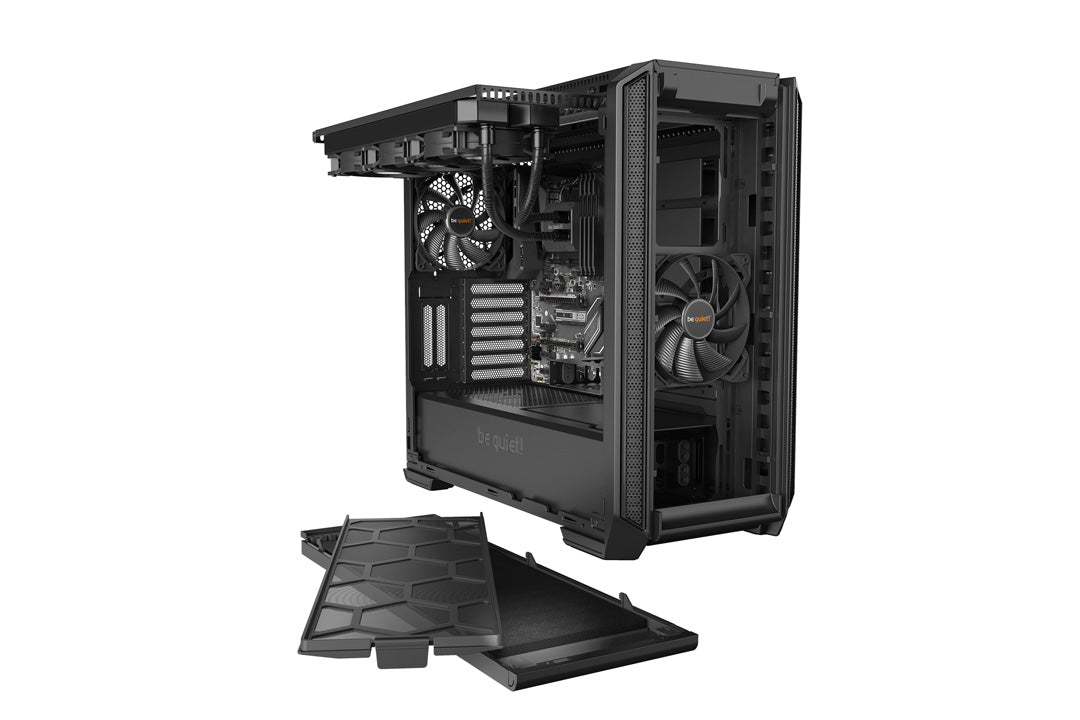

Detachable top bracket allows easy installation of radiators up to 360mm
Generous dimensions make sure even E-ATX motherboards, large coolers and graphics cards fit well
Side panel made of tinted and tempered glass
3 years manufacturer’s warranty
Product conception, design and quality control in Germany

Model	Silent Base 601 Window Black
Color option	Black
Motherboard compatibility	E-ATX (30.5 x 27.5cm) / ATX / M-ATX / Mini-ITX

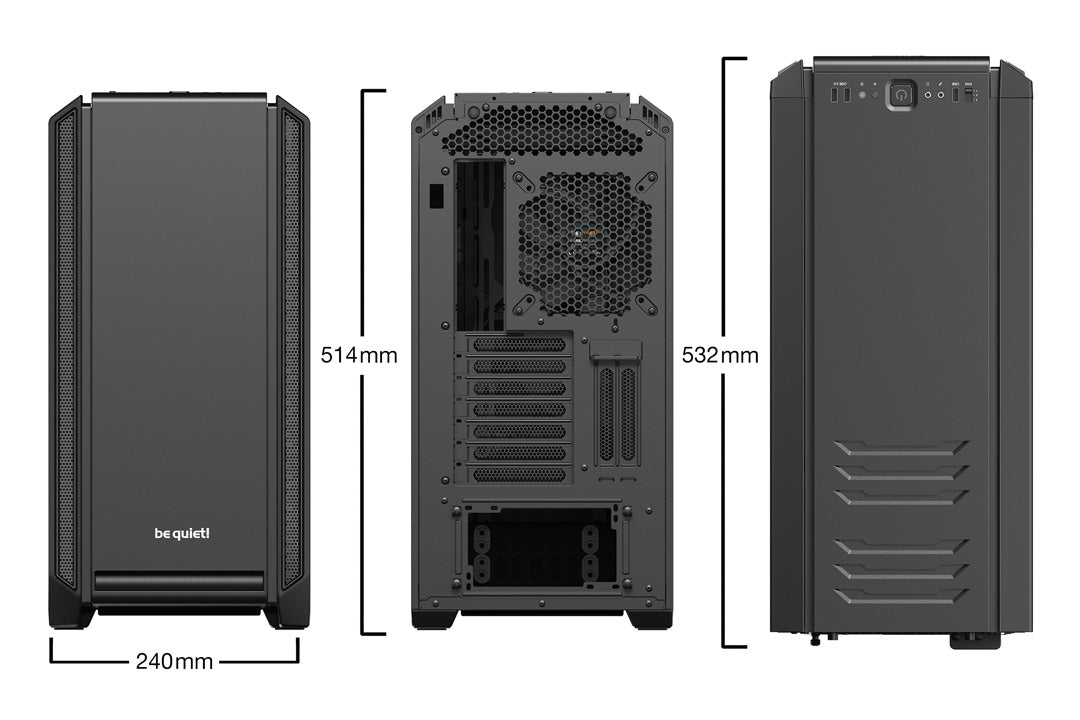

Case size excl. stands (L x W x H), (mm)	553 x 245 x 484
Case size incl. stands (L x W x H), (mm)	553 x 245 x 502
PSU form factor	ATX PS/2
Weight (kg)	11.22
Expansion slots	7 + 2

Pre-installed fans

Fan @ top	-
Fan @ front	1x Pure Wings 2 140mm
Fan @ rear	1x Pure Wings 2 140mm
Dimensions (L x W x H), (mm)	Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed @ 100% PWM / 12V (rpm)	1000
Airflow @ 100% PWM / 12V (cfm / m3/h)	61.2 / 104
Air pressure @ 100% PWM / 12V (mm H2O)	0.76
Noise level @ 100% PWM / 12V (dB(A))	18.8
Voltage range (V DC)	5 - 12
Input power (W)	1.44
Input current (A)	0.12
Connector	3-pin
Lifespan (h / 25°C)	80,000
Fan controller	3-step fan controller (3x 3-pin)

Maximum fan installation

Top (mm)	3x 120 / 3x 140
Front (mm)	3x 120 / 3x 140
Rear (mm)	1x 140
Bottom (mm)	-
Side panel (mm)	-
PSU shroud	1x 120

Optional radiator installation

Top (mm)	120 / 240 / 360
Front (mm)	120 / 140 / 240 / 280 / 360
Rear (mm)	120 / 140
Bottom (mm)	-

PSU compatibility

Maximum dimensions excl. bottom fan (mm)	288
Maximum dimensions incl. bottom fan (mm)	288

Graphics card

HDD cage (in height of graphics card) installed (mm)	287
HDD cage (in height of graphics card) removed (mm)	449

Drive bay capacity

5.25 bays	-
3.5 slots (max.)	7
3.5 slots (scope of delivery)	3
2.5 slots (max.)	14
2.5 slots (scope of delivery)	6

Cooling

Max.construction height of CPU cooler unit (mm)	185
Airflow channel	Front / Top / Rear

Lighting

RGB LED illumination	-
LEDs synchronizable with RGB controller/motherboard	-
Expandable RGB controller	-

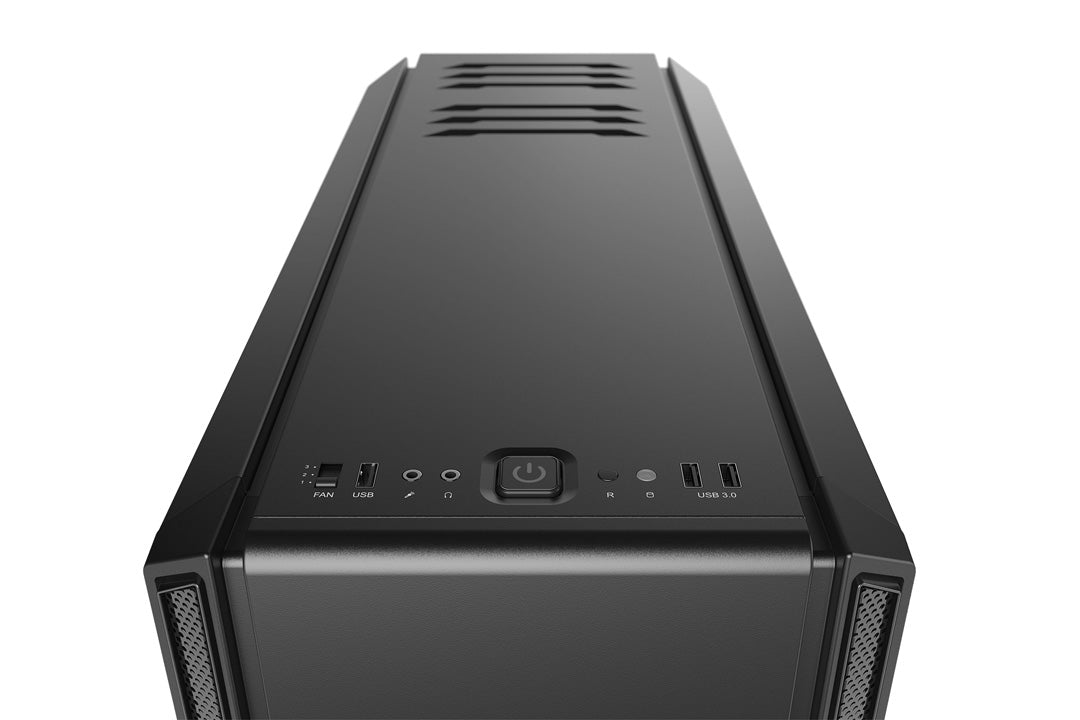

I/O Panel

USB 3.2 Gen. 2 Type C	-
USB 3.2 Gen. 1	2
USB 2.0	1
HD Audio I/O	Mic + Audio
Qi charger / Quick Charging Option	-

Insulation and damping

Top panel insulation mats	✓
Front panel insulation mats	✓
Side panel insulation mats	✓
Anti-vibration decoupled HDD	✓
Anti-vibration decoupled fan	✓
Anti-vibration decoupled PSU	✓
Anti-vibration decoupled motherboard-tray	✓

Removeable dust filters

Front	1
Bottom	1
Side panel	-

Material

Top cover	ABS / Steel
Front panel	ABS / Steel
Side panel	-
Side panel window	4mm tempered glass / Steel
Stands	ABS

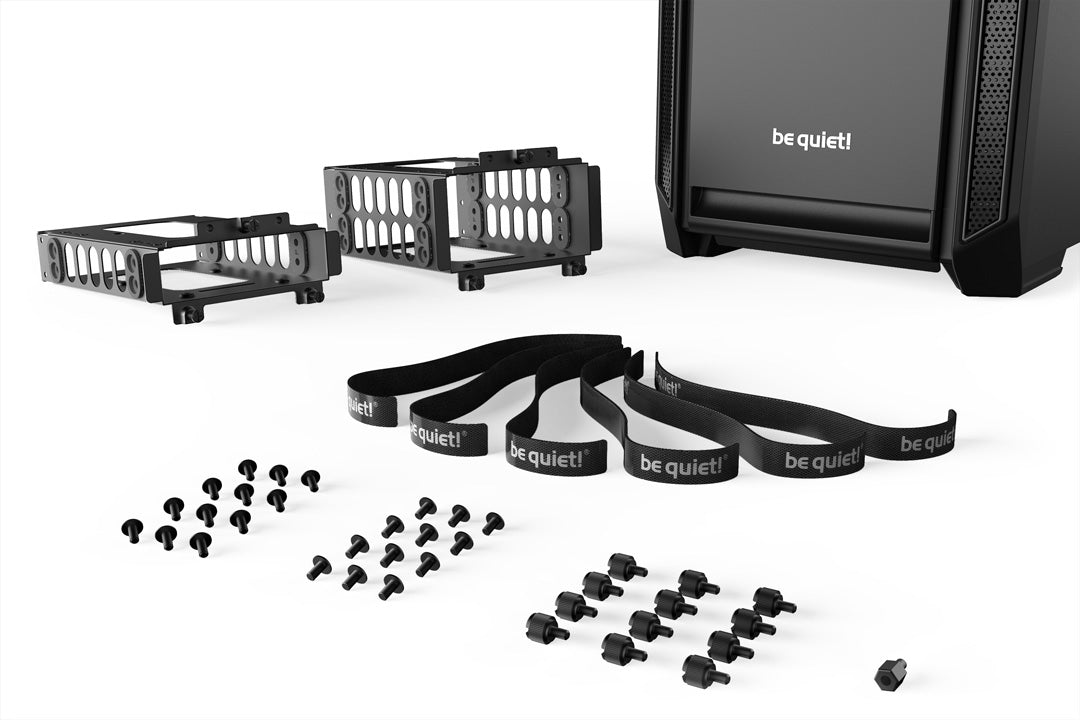

Scope of delivery

Screw set (Drives/Motherboard)	✓
Rubber rail (pcs.)	-
Standoff (pcs.)	1 (for E-ATX)
LCS bracket (pcs).	-
HDD slot cover (pcs.)	5
Upper fan bracket (pcs.)	-
HDD panel rubber grommet (pcs.)	-
SSD bracket for PSU shroud	-
LED strips (pcs.)	-
Cable ties (pcs.)	6 (Velcro)

Service

Warranty (Years)	3
International hotline / free of charge	✓ / DE, FR
