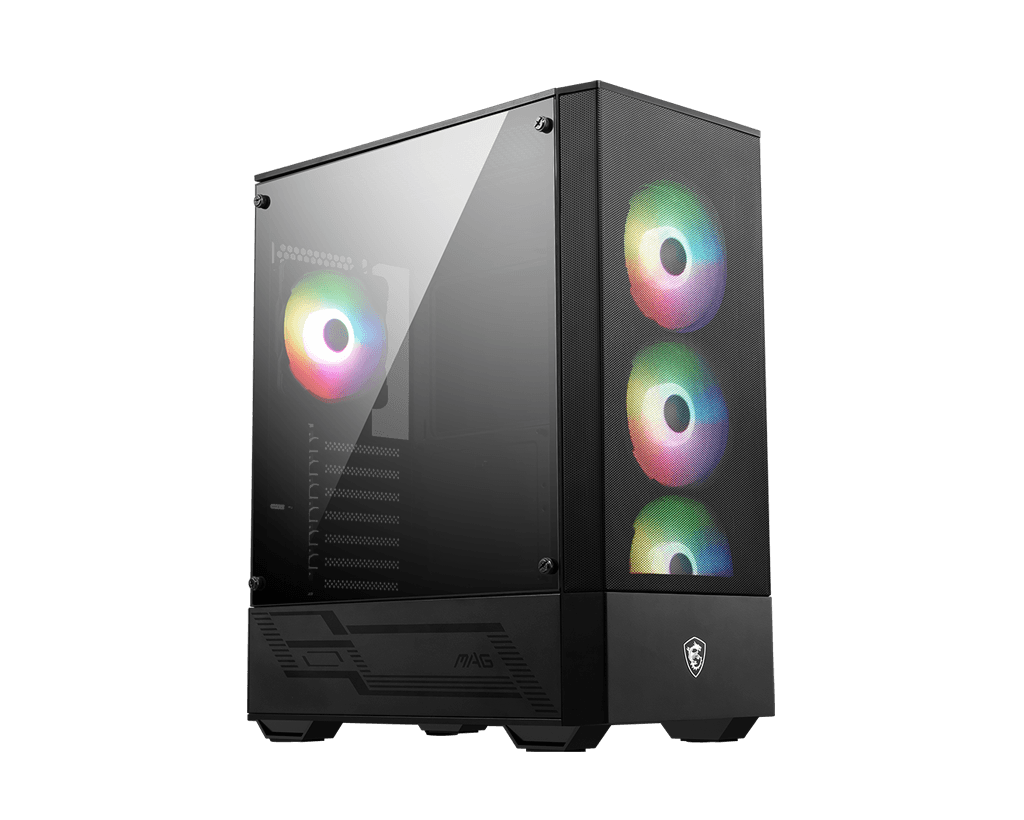

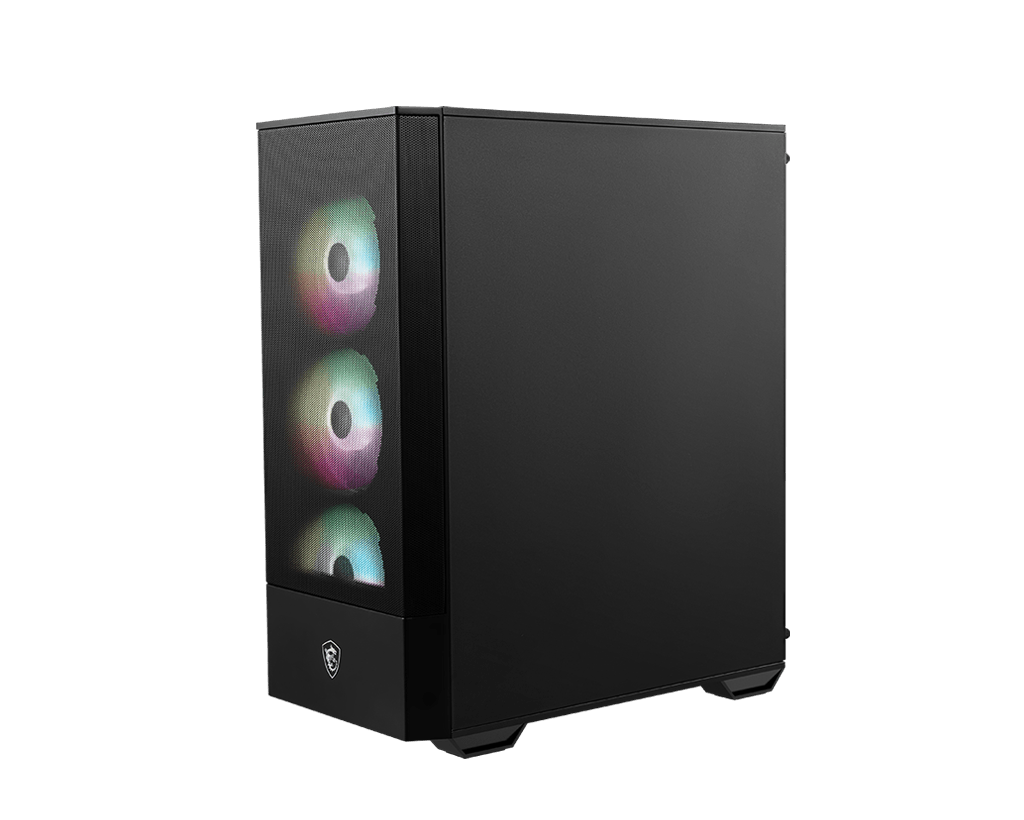

MSI MAG Forge 112R - Mid Tower PC Case

MAG FORGE 112R PC Case
Beyond the Power
The 112R is an extra-capacity variant of the MAG FORGE gaming PC case series, and an excellent choice for system builders looking to create a high-volume airflow RGB showpiece with ATX motherboard support.

• Mid-tower gaming PC case
• ATX, Micro-ATX & mini-ITX motherboard capacity
• 4 x 120mm ARGB fans pre-installed (Mystic Light compatible)
• Supports 2 x 240mm radiators (front & top panels)
• Front mesh & tempered-glass side panel
• Magnetic dust filter
• 2 x USB 3.2 Gen 1 Type-A ports (5Gbps)
• Insta-Light loop button with 26 pre-set ARGB lighting effects

COMPONENT SUPPORT
Motherboard support: ATX, Micro-ATX and Mini-ITX

Component clearances:
CPU Cooler Height: 160 mm
GPU Length: 330 mm (7 expansion slots)
PSU Length: up to 160 mm (with 3.5" tray) up to 200 mm (without 3.5” tray)

AIRFLOW OPTIMIZED
MAG FORGE 112R is well equipped to provide the high-volume airflow with 3 x 120mm ARGB fans pre-installed in the front panel, and 1 x 120mm ARGB fan in the rear panel.

Despite its compact mid-tower form, the chassis can house up to 6 x 120mm (or 4 x 140mm & 1 x 120mm) case fans for maximized cooling.

LIQUID COOLING READY
Liquid cooling options include space for 240mm radiators in the front & top panels.

The case also support a 120mm rear radiator if needed.

MESH & TEMPERED GLASS

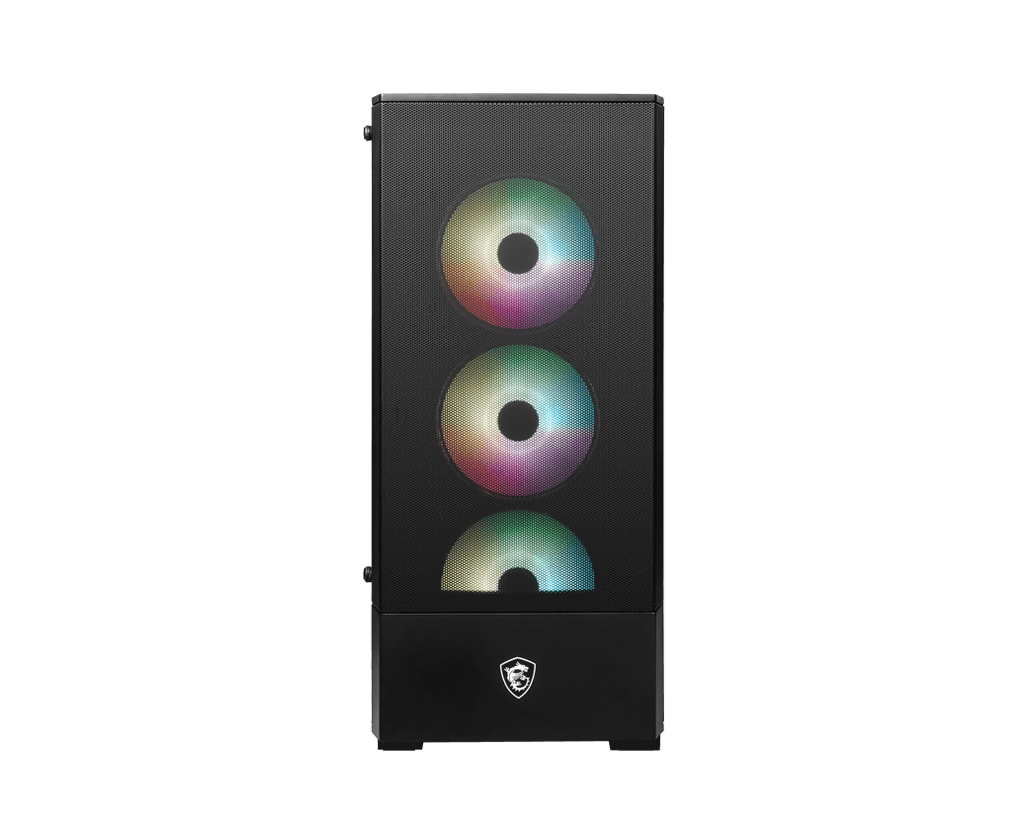

The large mesh front panel is designed to ensure ample air intake to keep components cool.

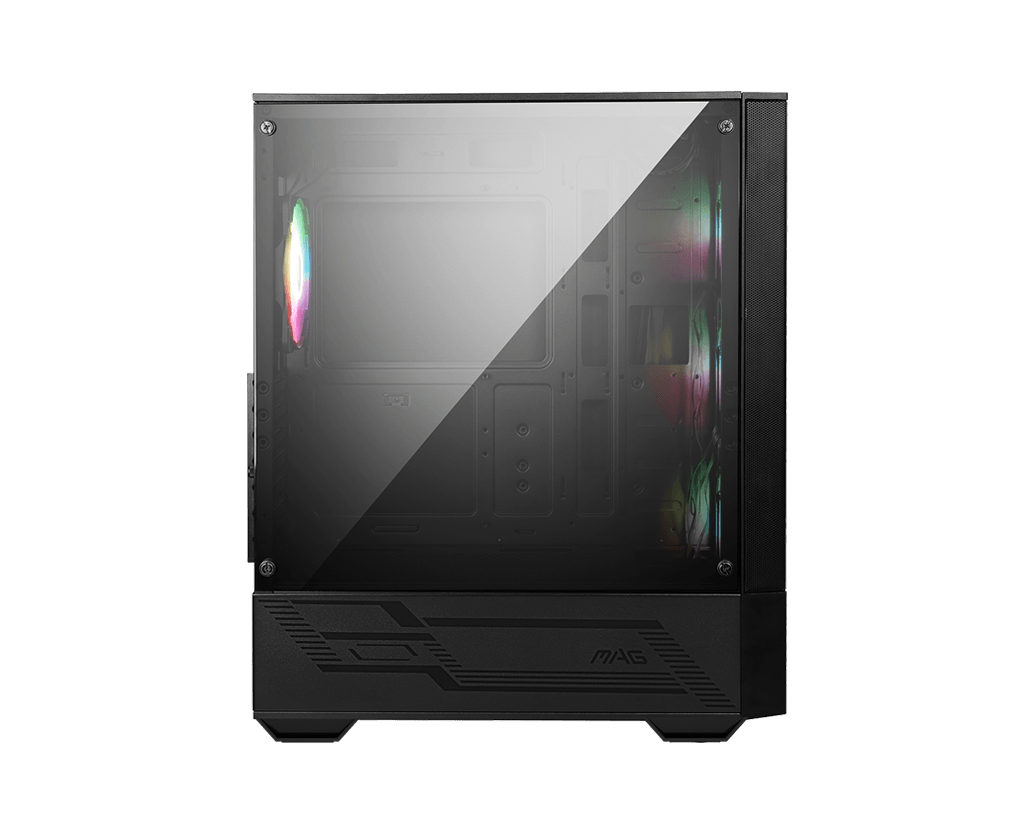

The 4mm tempered-glass side panel is ideal for displaying lighting effects with its premium finish.

Mystic Light Sync
The MAG FORGE 112R's ARGB lighting effects can be conveniently controlled via Mystic Light.

Simply connect the hub control board to a 3-Pin/5V ARGB motherboard connector.

ARGB Control Board
An included 1-to-6 ARGB control board (3-pin, DC5V Addressable RGB LED) connects directly to the the LED switch button on the I/O panel, and includes 26 cyclable lighting effects.
The case includes a 1-to-3 fan splitter cable.

MAGNETIC DUST FILTER
A magnetic dust filter prevents dust from falling inside, and can be easily removed for cleaning.

The bottom panel also includes a non-magnetic dust filter for the PSU.

TOP I/O INTERFACE
LED Switch Button
2 x USB 3.2 Gen 1 Type-A (5Gbps)
Mic-in / Audio-out
Reset Button
Power Button

PRODUCT NAME - MAG FORGE 112R
CASE FORM FACTOR - Mid Tower
MOTHERBOARD FORM FACTOR SUPPORT - ATX / M-ATX / ITX
I/O PORTS -
2 x USB 3.2 Gen1 Type-A (5 Gbps)
1 x Audio-out
1 x Mic-in
DRIVE MOUNT SUPPORT -
3 x 2.5”
2 x 2.5"/3.5”
EXPANSION SLOTS - 7
MAXIMUM GPU LENGTH - 330 mm / 13 inches
MAXIMUM CPU COOLER HEIGHT - 160 mm / 6.3 inches
POWER SUPPLY SUPPORT - ATX
MAXIMUM PSU LENGTH - 200 mm / 7.87 inches
FAN SIZE SUPPORT -
Front: 3 x 120 mm / 2 x 140 mm
Top: 2 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
PRE-INSTALLED FAN SIZE -
Front: 3 x 120 mm
Rear: 1 x 120 mm
PRE-INSTALLED FAN TYPE -
Front: 3 x ARGB Fan
Rear: 1 x ARGB Fan
RADIATOR SIZE SUPPORT -
Front: 120 / 140 / 240 mm
Top: 120 / 240 mm
Rear: 120 mm
DIMENSIONS (DXWXH) - 409 x 214 x 485 mm / 16.1 x 8.43 x 19.9 inches
NET WEIGHT - 5.26 kg / 11.6 lbs
GROSS WEIGHT - 6.24 kg / 13.76 lbs
