be quiet! Straight Power 11 850W Power supply

WORLD CLASS QUIET AND EFFICIENCY
be quiet! Straight Power 11 850W raises the bar for systems that demand virtually inaudible operation without power quality compromises.

Features
Virtually inaudible Silent Wings 3 135mm fan
Funnel-shaped fan opening of the PSU case for high airflow intake
Wire-free inside the PSU on the DC side for enhanced cooling and longevity
Modular cables for maximum build flexibility
80 PLUS Gold efficiency (up to 93%)
4 PCIe connectors for overclocked high-end GPUs
Japanese 105°C-rated capacitors ensure stability and reliability
ErP and Energy Star 6.1 ready
5-year manufacturer’s warranty

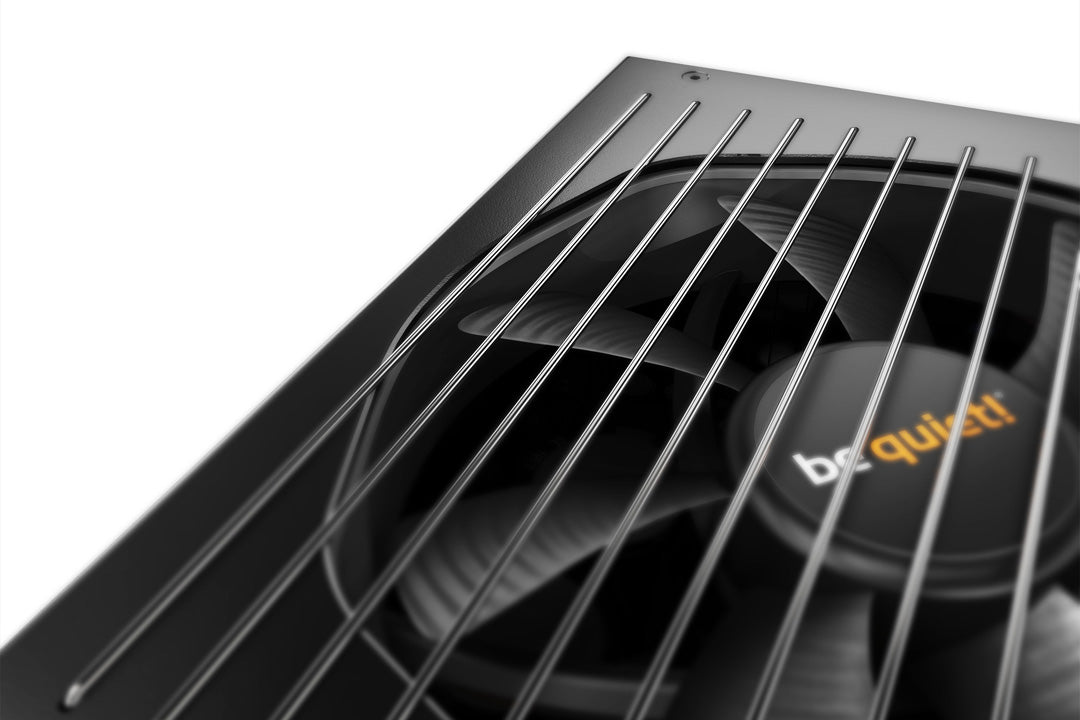

SILENT WINGS 3 FAN
Provides virtually inaudible operation

The high-end Silent Wings 3 fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.

FUNNEL-SHAPED FAN OPENING
Higher cooling performance

The fan inlet of the Straight Power 11 850W is funnel-shaped. It causes an increased throughput of air which benefits to a higher cooling performance.

WIRE-FREE DESIGN INSIDE THE PSU
Pushing the longevity of components to a maximum

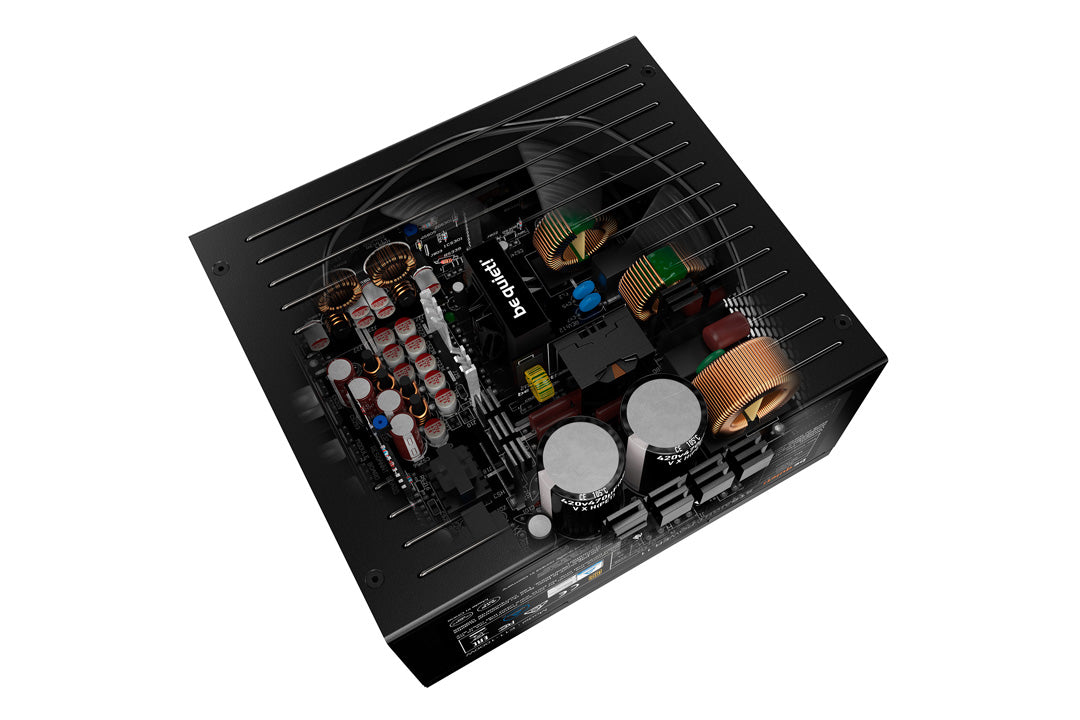

An absolute innovation: The Straight Power 11 850W is wire-free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum.

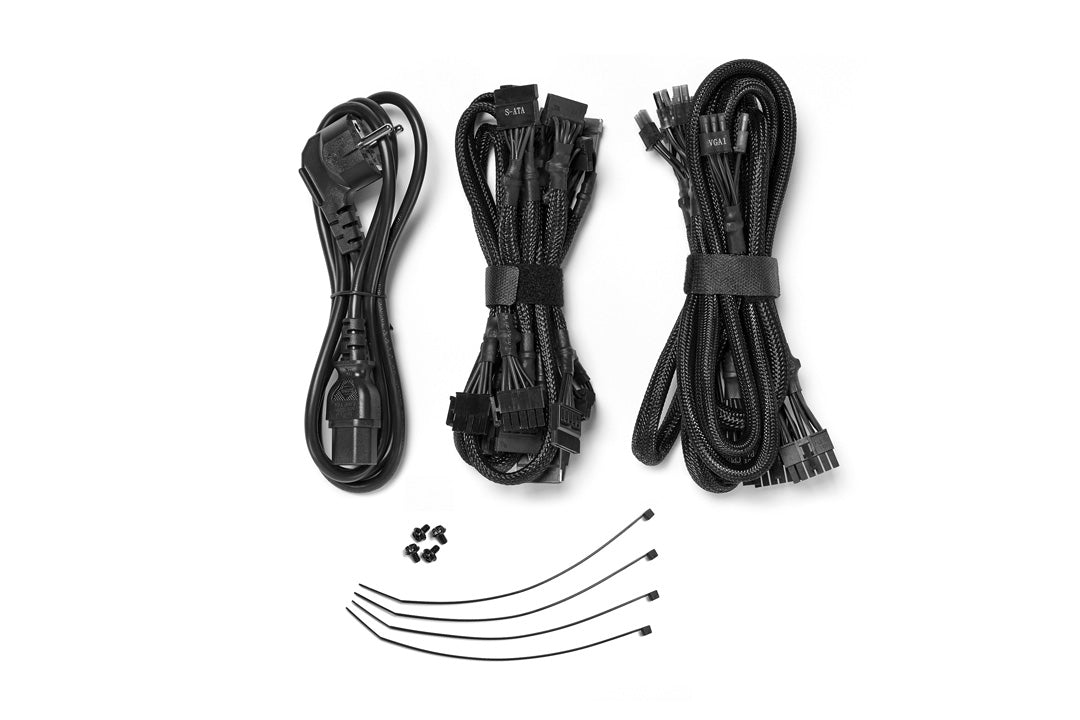

MODULAR CABLES
Utmost convenience and compatibility

Thanks to the modular cables, all cables that serve no purpose in the system are left out. For this reason, systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case.

80 PLUS GOLD CERTIFIED
Impressively high efficiency

Straight Power 11 850W is certified with 80 PLUS Gold efficiency, reaching up to 93%. This gives less power consumption and a cooler and quieter operation. Truly a benefit for any system.

HIGH-CLASS TECHNOLOGIES
Compatibility for the systems of tomorrow

The use of LLC and Synchronous Rectifier (SR) provides very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions. This ensures reliable operation with the next generation of processors and graphics cards.

JAPANESE 105° CAPACITORS
A testament to high quality

Only the best components are used in Straight Power 11 850W. That is why we have built only high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C, ensuring stability, reliability and a long operating life.

Model
Straight Power 11 850W

Continuous Power (W)
850

Peak Power (W)
920

Form Factor
Version 2.4

Form Factor EPS 12V
Version 2.92

Topology
LLC + SR + DC/DC

Digitally Controlled
No

Voltage (VAC)
100-240

Frequency (Hz)
50 - 60

Input Current (A)
10 / 5

Power Factor at 100% Load
>0.99

Modern Standby
No

Power Consumption in Standby (w)
<0.12

Average Life Time (h / 25°C)
100,000

Operating Temperature up to (°C)
40

Dimensions without cable (L x W x H) (mm)
170 x 150 x 86

Modular cables
Yes

Sleeved cables
All

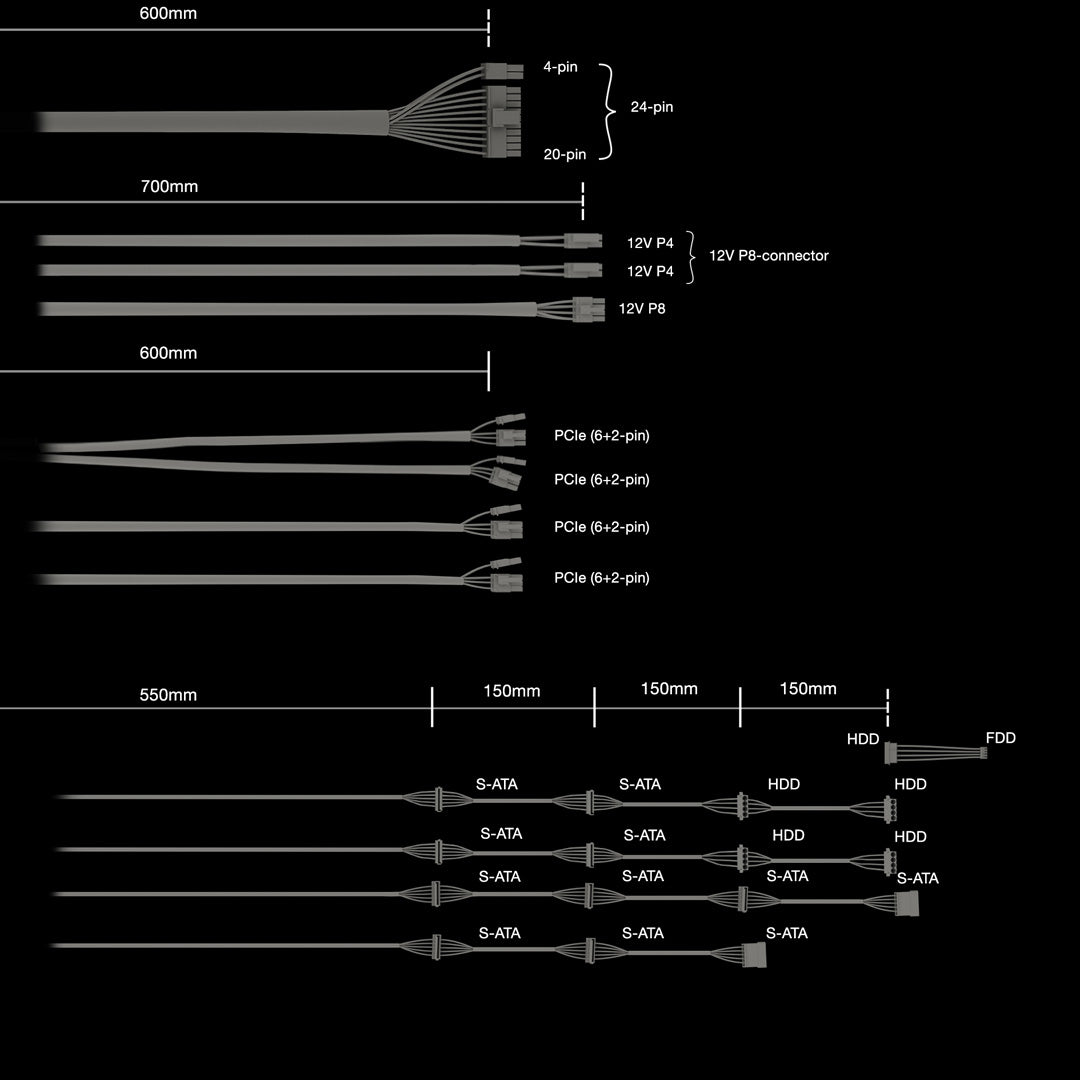

Maximum cable length (cm)
115

Cable length to motherboard (cm)
60

No. of cables
11

ATX-Motherboard (20+4-pin)
1

P4+4 (CPU)
1

P8 (CPU)
1

PCI-e 6+2-pin (GPU)
4

SATA
11

PATA
4

FDD (Floppy)
1
