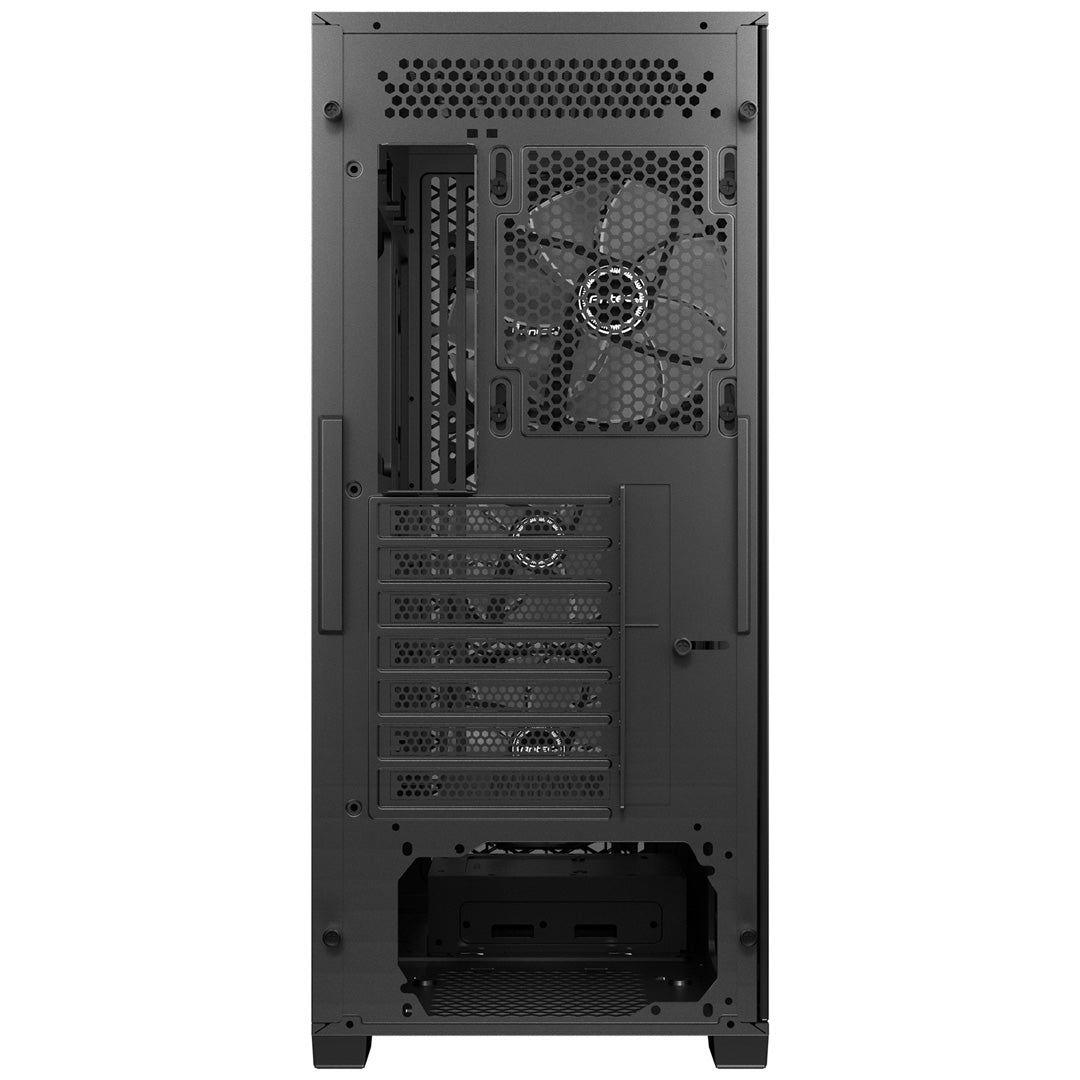

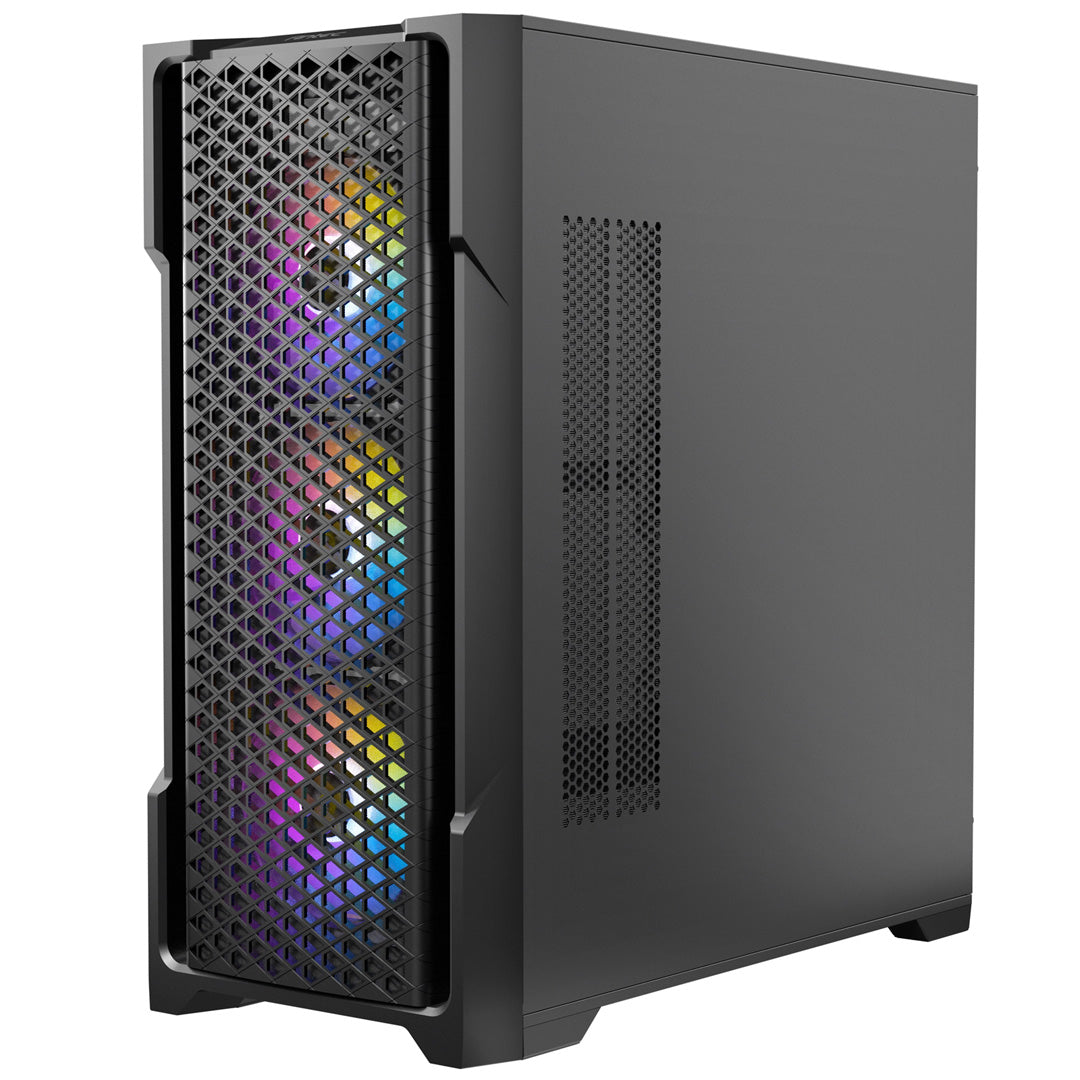

Antec AX90 Mid Tower PC Case

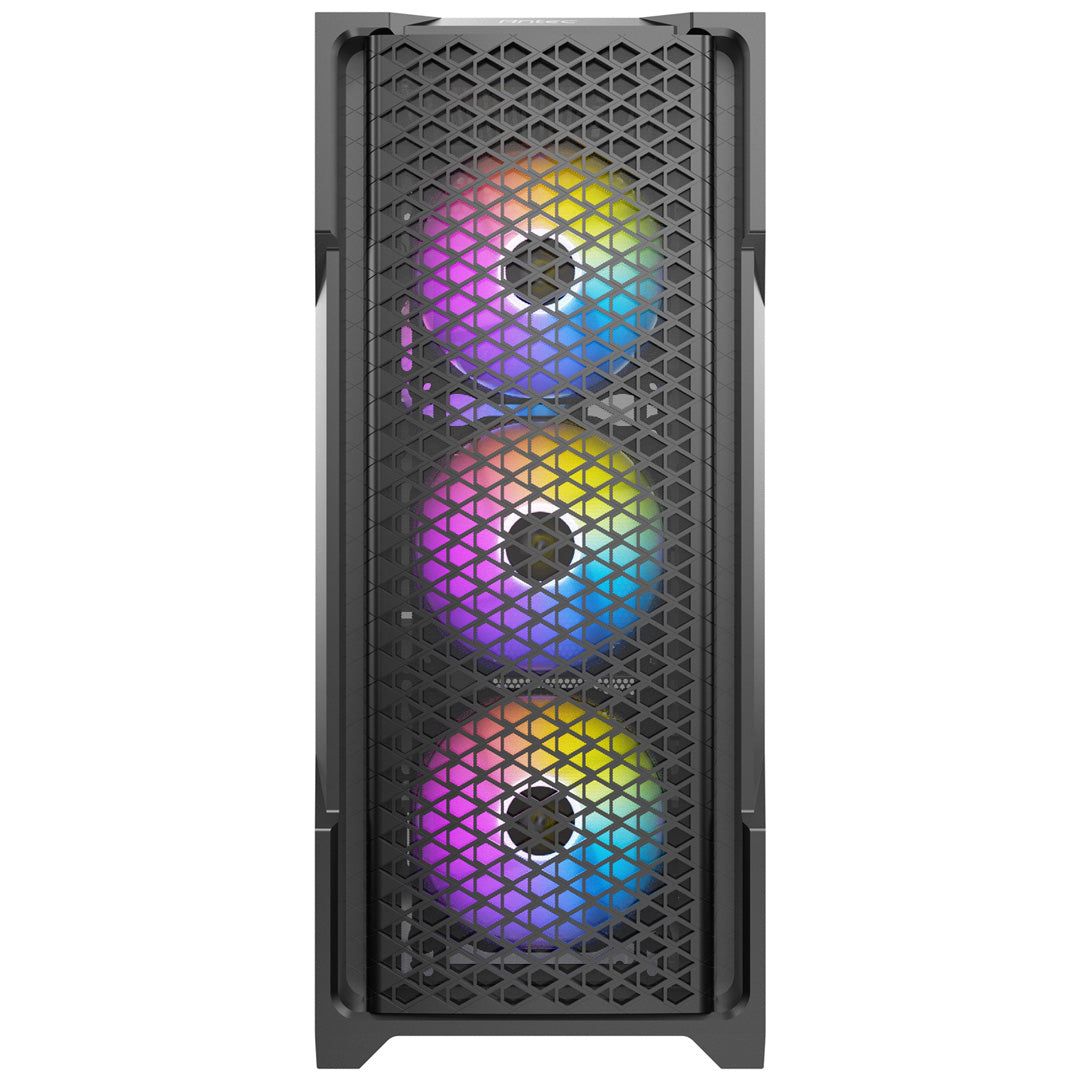

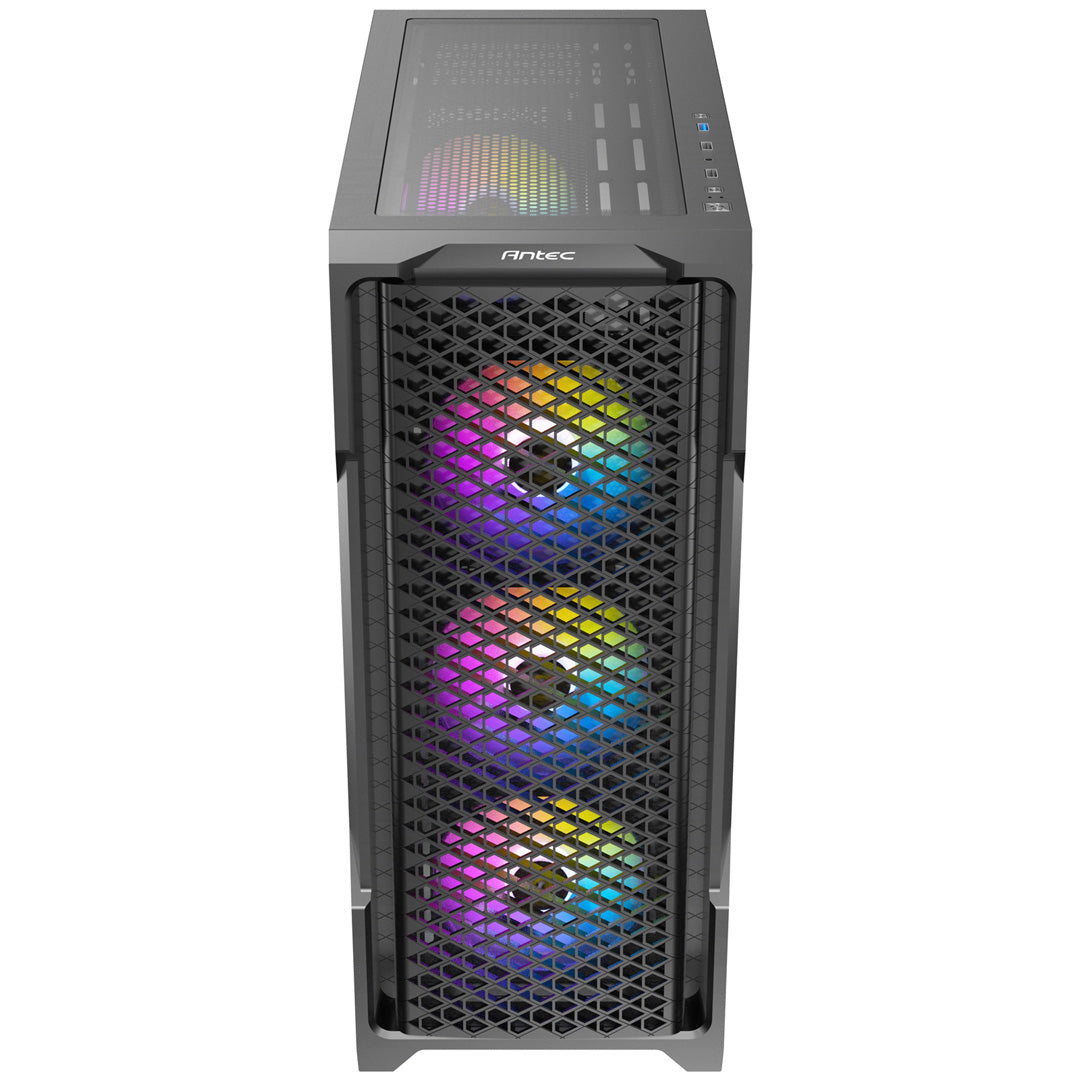

Diamond-Shaped Mesh Front Panel
The diamond-shaped mesh front panel is ready to provide massive airflow for your system and the dust filtering function.

MAXIMUM COOLING POTENTIAL
The spacious interior can accommodate both front and upper radiators up to 360mm.

Powerful Cooling
Supporting 1 x 240mm radiator or 2 x 120mm fans side-mounted.

High-Airflow Mesh Front Panel
Enlarged mesh front panel provides massive airflow.

Pre-Installed 4 x 120mm Fans
Pull in massive air for cooling.
- Front: 3 x 120mm ARGB Fans
- Rear: 1 x 120mm ARGB Fans

In Sync with Motherboard for ARGB Lighting
The built-in control hub can sync with the motherboard or switch the ARGB lighting modes with the ARGB control button for your personalized setup.

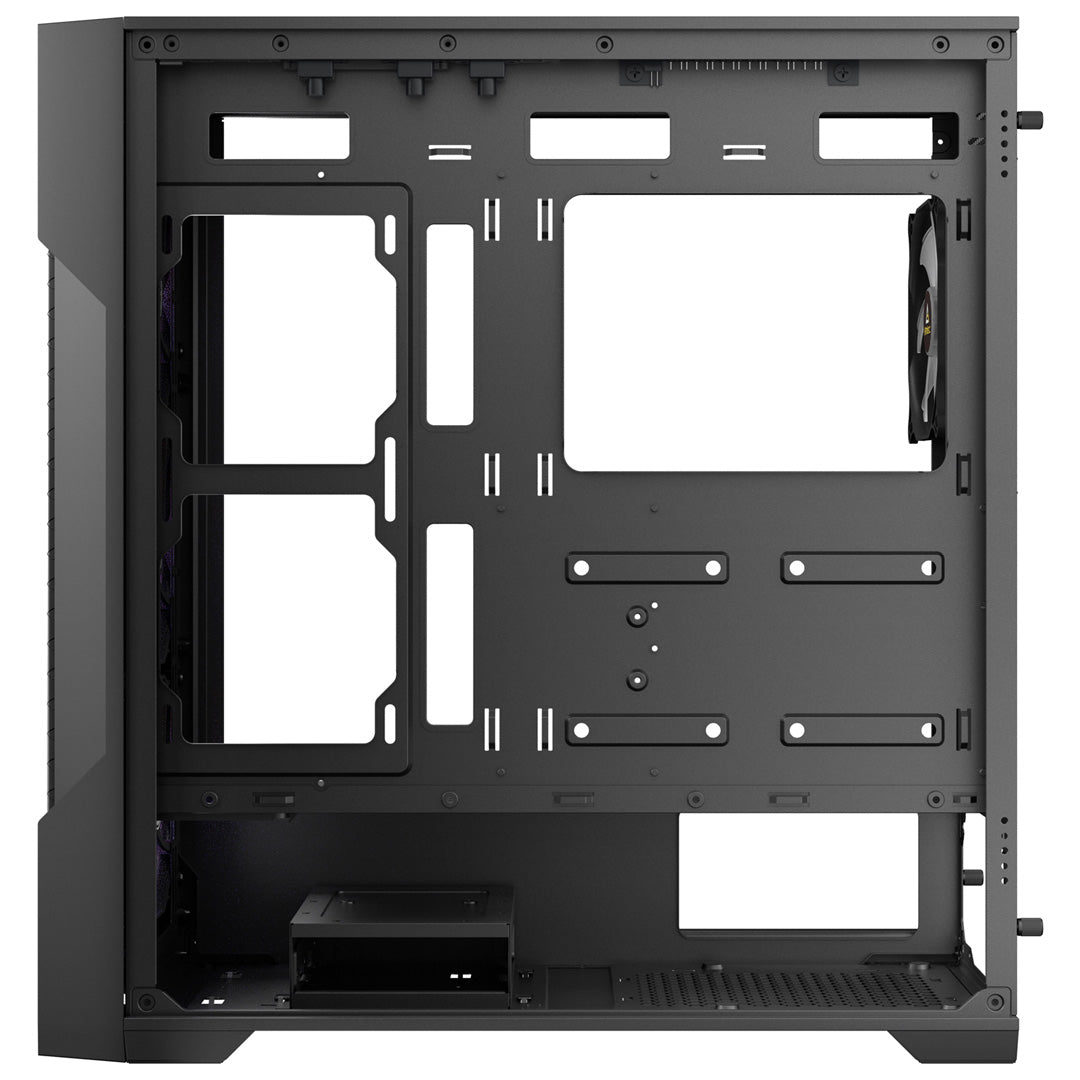

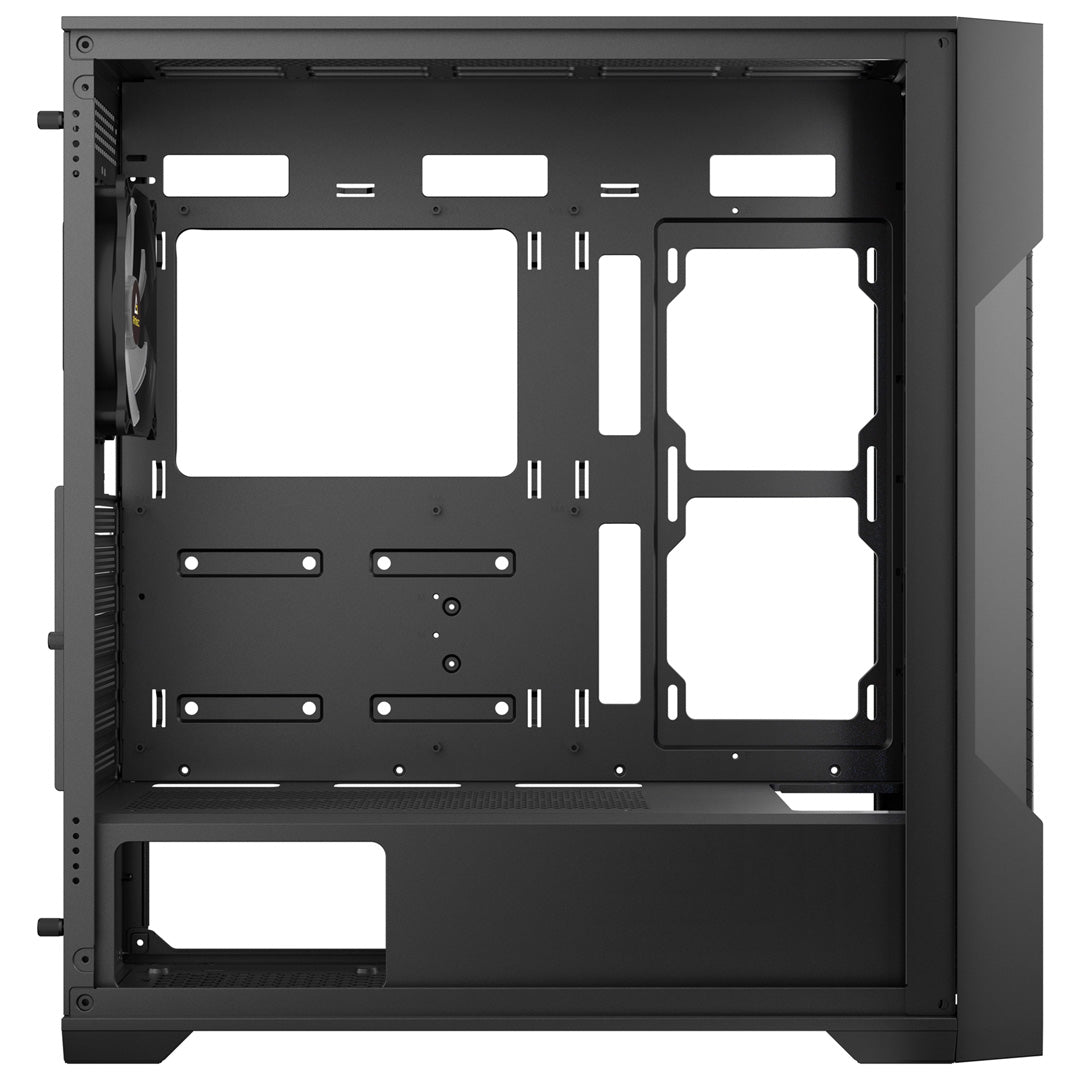

Neat Build within Reach
23mm space for cable management ensures your PC build looks neat.

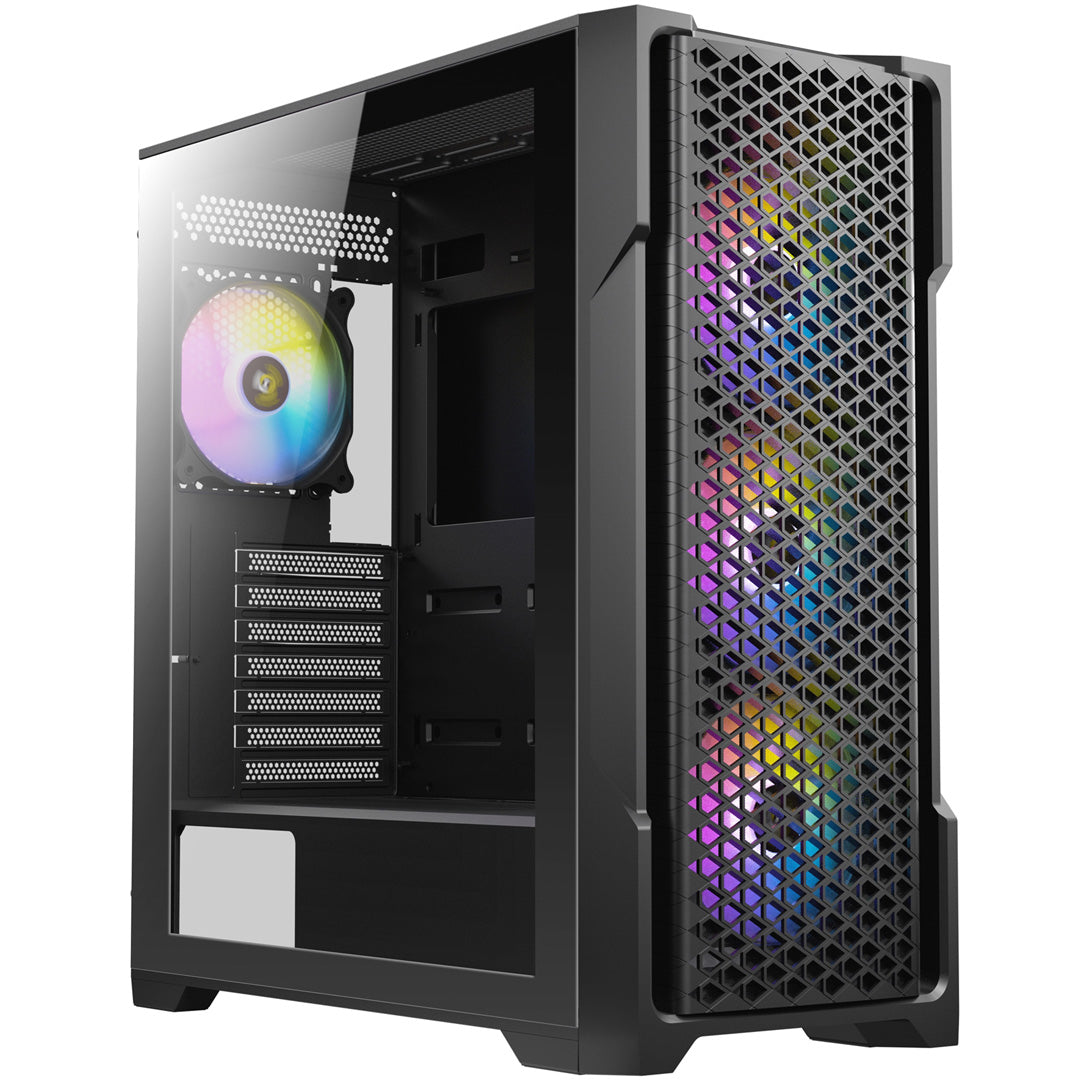

Tempered Glass Side Panel
Showcase your personalized hardware and custom water-cooling system

Form Factor
Mid Tower

Materials
Steel, Plastic

Mainboard Support
ATX, Micro ATX & Mini-ITX

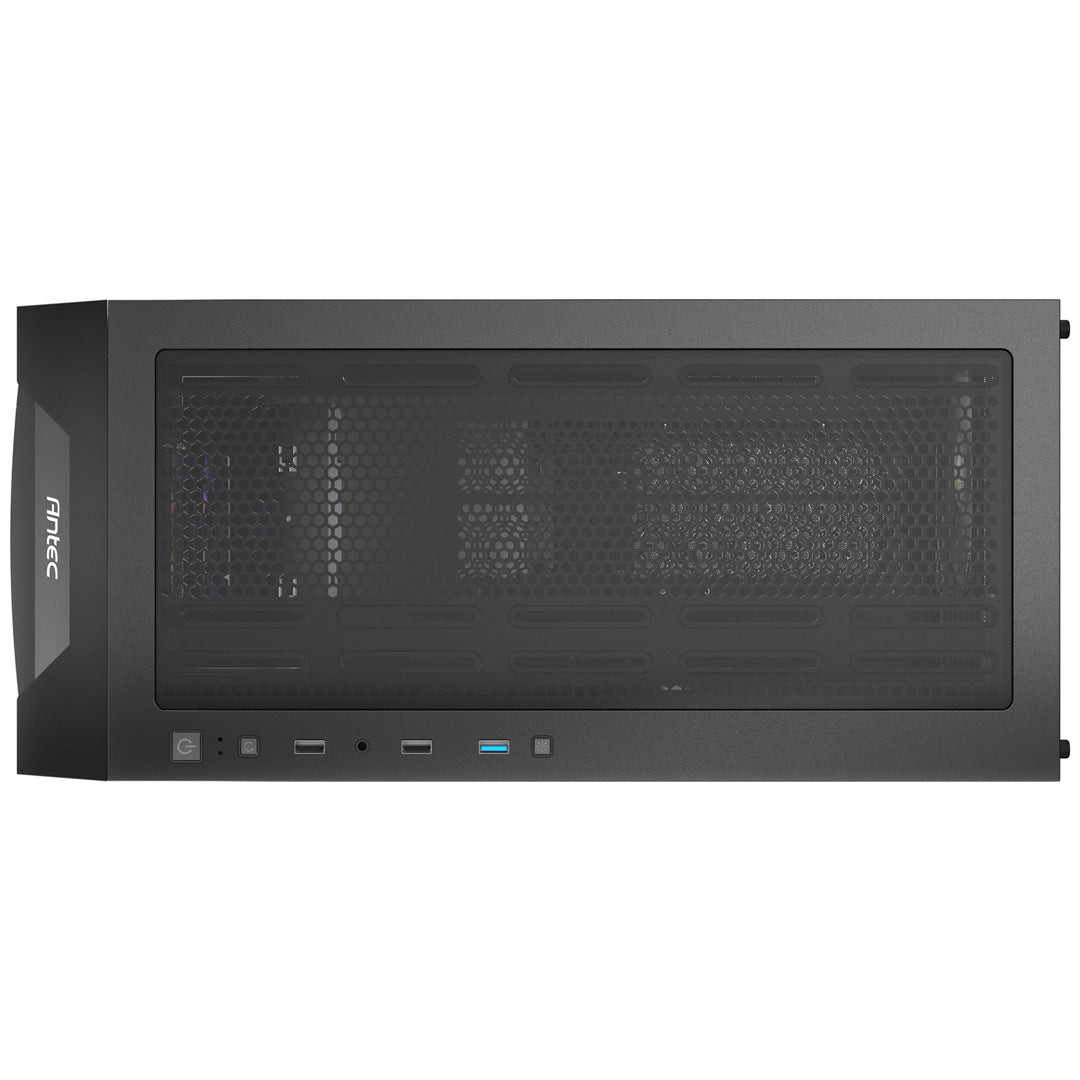

I/O Panel
Power
Reset
LED Control Button
2 x USB 2.0
1 x USB 3.0
MIC / HD-AUDIO

Side Panel
4mm Tempered glass

Drive Bays
3.5" / 2.5": 2 / 1
2.5": 2

Expansion
Slots: 7

Fan Support
Front: 3 x 120mm / 3 x 140mm
Top: 3 x 120mm / 2 x 140mm
Power Supply Shroud: 2 x 120mm
Side: 2 x 120mm
Rear: 1 x 120mm

Included Fans
Front: 3 x 120mm ARGB fans
Rear: 1 x 120mm ARGB fan

Radiator Support
Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 140 / 240 / 280 / 360mm
Side: 120 / 240mm
Rear: 120mm

Clearance
Max GPU Length: = 385mm
Max CPU Cooler Height: = 160mm
Max PSU Length (Include cable) = 220mm (with HDD) / (Include cable) = 410mm (without HDD)

Dust Filters
Front
Top
Bottom
Right Hand Side

Dimensions ( D x W x H )
473 x 210 x 486mm

Weight
Net: 6.77 Kgs
Gross: 7.93 Kgs
