Antec DF600 Flux Case

The Ultimate Thermal Performance for Gaming Cases.

The DF600 FLUX mid tower gaming case is well equipped with an industry-leading design of advanced ventilation, taking the Antec Dark series to the next generation.

Why the New Cooling Solution?
When Intel announced their latest 10th Gen CPU and AMD announced their new Ryzen 3 and 4 CPUs, they all deliver remarkable performance upgrades and better productivity, it also means the functional requirement of PC equipment needs to be taken to the next level, especially the thermal performance.

To cope with the stress of enhanced heat dissipation, Antec developed a revolutionary structure for airflow, providing an improved and powerful cooling solution for your system. The F-LUX Platform.

F-LUX Platform - Antec's Original Cooling Solution
What is the F-LUX Platform?
The definition of FLUX is Flow Luxary.
The F-LUX Platform is a new industry-leading and highly efficient design by Antec featuring an advanced case structure for excellent airflow combined with 5 x pre-installed 120mm fans.
A core element of the design ethos was to enhance GPU cooling performance.
F-LUX Platform will provide massive airflow when the GPU is functioning, enhancing the head dissipation, and gaming performance.

F-LUX Platform - Antec's Original Cooling Solution
5 x 120mm Fans Included.
Case fans with 3-pin connectors and the speed of 1400RPM.

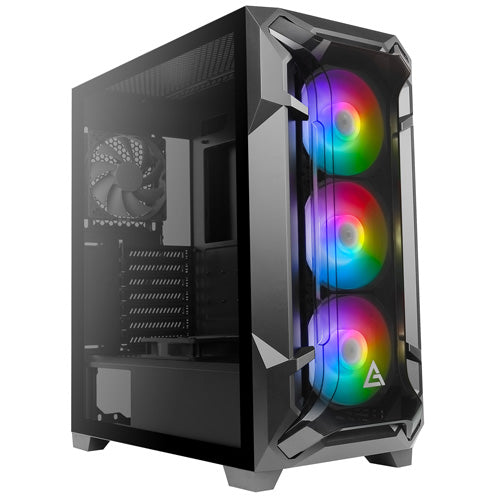

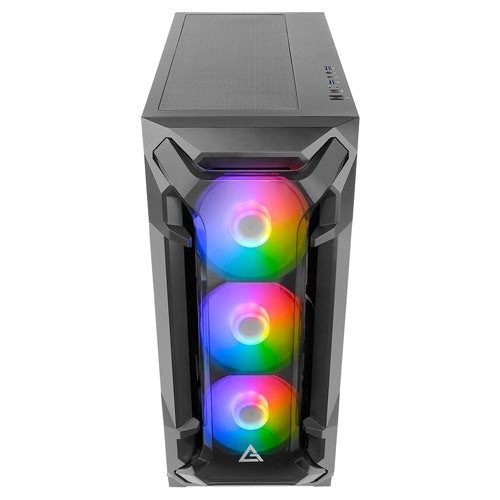

Front: 3 x 120mm ARGB Fans
Transparent front panel design with considerable ventilation at both sides presents abundant light effects and cooling functionality.

Rear: 1 x 120mm Black Fan
Plenty of heat is drawn out from the interior, which helps the CPU to cool down.

On the Top of the PSU Chamber: 1 x 120mm Reverse Fan
The 120mm reverse fan is pre-stalled on the top of the PSU chamber, which pulls cool air into the case via the ventilation at the right-side panel and the bottom, providing heightened GPU cooling performance.

Colour Your System by Built-In LED Controller
You only need the LED mode button to control all the addressable LEDs. Or you can sync it with the motherboard to enjoy more custom light effects. With 3-pin connectors for the ARGB signal and power connectors for the fans
- Sync with LED control button which supports up to 6 ARGB fans.
- Sync with the motherboard for 16.8 million possible light effects.

Keep It Clean
All the hubs had a dust plug preventing them from damage.
- Power
- HD Audio
- LED Control Button
- 2 x USB 3.0

4mm Tempered Glass Side Panel
Tool-free thumbscrew design at the rear of the tempered glass side panel, which gives you quick access to the interior, and enhances the solidity.

Make It Cooler
DF600 FLUX keeps your gear cool with room for up to 360mm radiator in the front and top as well as support for up to 9 fans.

Easy to Clean
Front: Magnetic large dust filter
Bottom: Removable large dust filter
Top: Magnetic large dust filter
Side: Magnetic large dust filter

Form Factor
Mid Tower

Motherboard Support
ATX
Micro ATX
Mini-ITX

Materials
Steel
Plastic

I/O Panel
Power
LED Control Button
2 x USB 3.0
HD Audio

Side Panel
4mm Tempered Glass Side Panel

Expansion
Slots: 7

Drive Bays
3.5" / 2.5" Convertible: 3 / 2
2.5": 3

Fan Support
Front: 3 x 120mm / 3 x 140mm (3 x 120mm ARGB fans included)
Top: 3 x 120mm / 2 x 140mm
PSU Shroud: 2 x 120mm (1 x 120mm reverse fan included)
Rear: 1 x 120mm (1 x 120mm fan included)

Radiator Support
Front: 120mm / 240mm / 280mm / 360mm
(< 55mm thickness when fans are installed outside of front panel)
(< 30mm thickness when fans are installed inside of front panel)
Top: 120mm / 240mm / 280mm / 360mm
Rear: 120mm

Clearances
Max GPU Length: < 405mm
Max CPU Cooler Height: < 175mm
Max PSU Length: < 205mm

Dust Filters
Front / Top / Bottom / Right Hand Side

Product Dimensions ( D x W x H )
467 x 220 x 486 mm

Weight
Net: 7.38 KG
Gross: 8.51 KG
