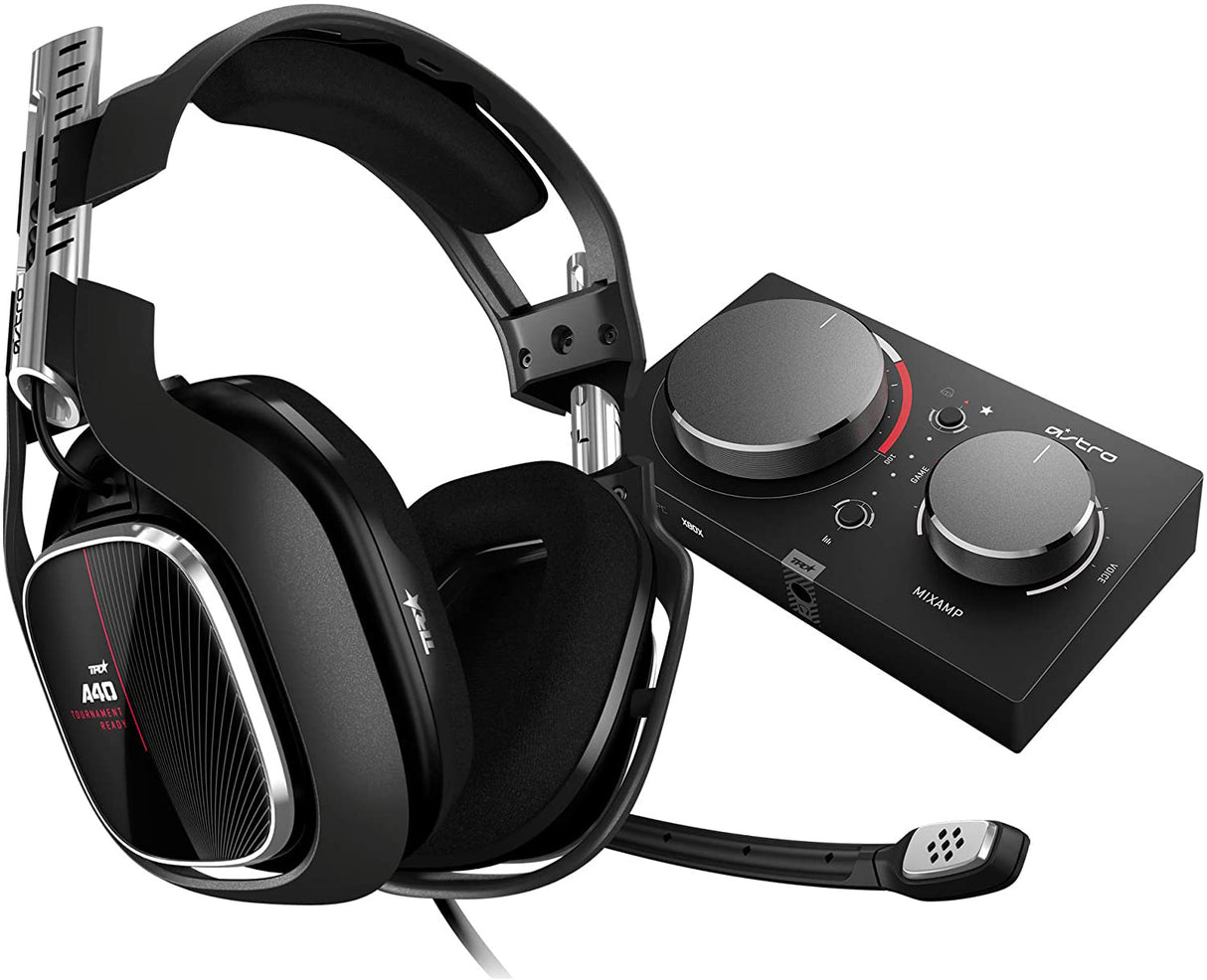

Astro A40 TR Headset & Gaming MixAmp Pro TR - Xbox / PC

The ASTRO A40 TR Headset + MixAmp Pro TR for Xbox, PC and Mac is the premier audio solution for esports athletes, content creators and streamers. It meets esports athletes’ rigorous standards for audio fidelity, comfort and durability.

The MixAmp Pro TR features Dolby® Digital Surround Sound processing and enables lag and interference-free delivery of game sound and voice communication.

The A40 TR arrives as an open-back headset featuring a swappable precision mic and customizable Speaker Tags. For loud tournament environments, the headset transforms into a closed-back, noise-isolating headset by adding a Mod Kit (sold separately) with sealed Speaker Tags, synthetic leather ear cushions and a voice-isolating microphone.

All current ASTRO Gaming products designed for Xbox will offer continuous compatibility on Xbox: Series X|S.

Tuned With  Astro Audio V2
ASTRO headsets are specifically tuned for gaming. We work closely with developers, pro gamers and streamers to deliver dialogue, music and in-game sounds as they were intended to be heard. ASTRO Audio V2 provides a neutral, smooth and extended frequency spectrum for detailed, true-to-life imaging. This means non-fatiguing highs, clear mids and tight distortion-free bass for balanced resolution.

Superior Fit and Finish
Designed for marathon gaming sessions, the A40 TR Headset is lightweight, comfortable and built to last.

Swappable Boom Microphone
Highly sensitive uni-directional mic that focuses on your voice and minimizes background noise.

Customizable Speaker Tags
The magnetic Speaker Tag system lets you personalize your pair. Buy special editions or design your own using the Speaker Tag Customizer.

USB Soundcard Functionality
USB soundcard functionality with game:voice balancing, game and voice streaming. No Optical needed.

MOD Kit Ready
Features synthetic leather noise-cancelling ear cushions, voice isolating mic, padded headband and closed back Speaker Tags.

Dolby® Audio
Dolby® Audio delivers cinematic, 3D gaming audio experience, and broadcasts Dolby® out to streaming audiences.

Game: Voice Balance
A feature that ASTRO pioneered, game:voice balancing allows easy adjustment of the ratio of game audio to voice chat players experience.

Digital Daisy Chain
Faster than the speed of sound, this fully digital connection enables interference and lag-free local voice communications.

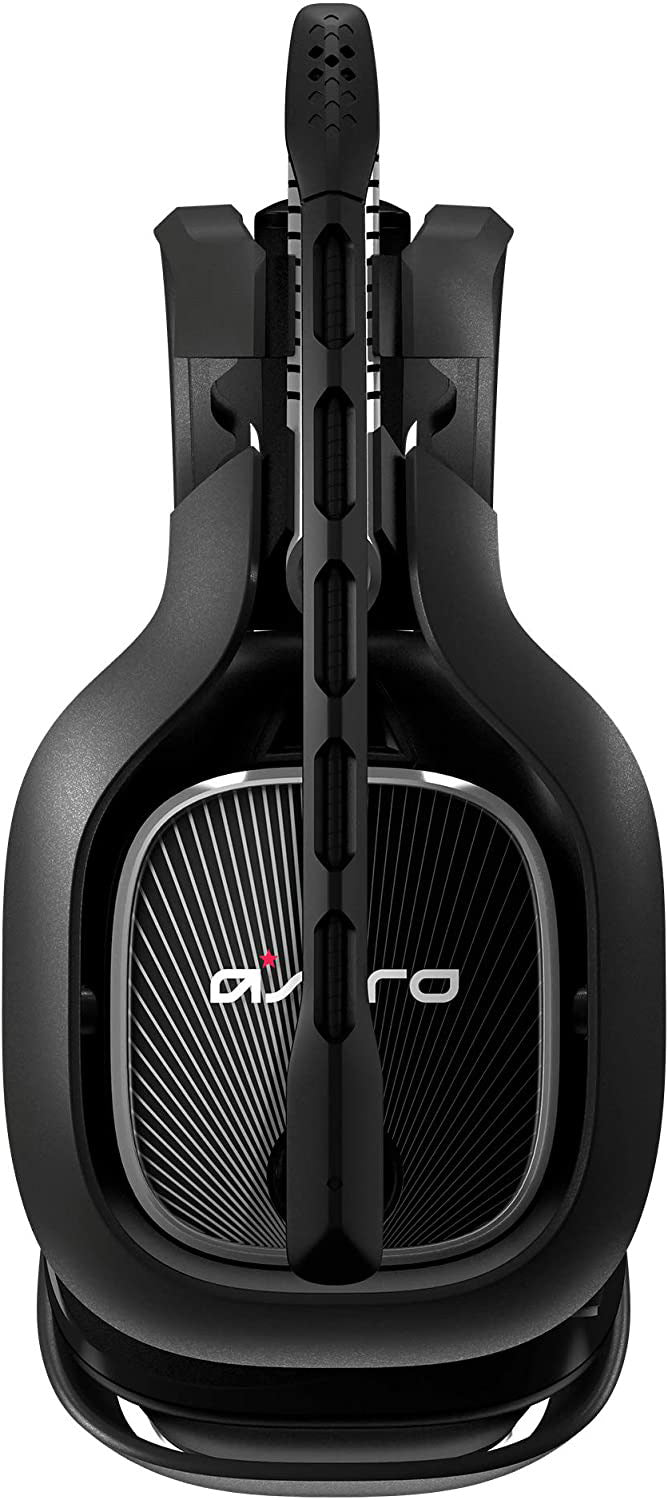

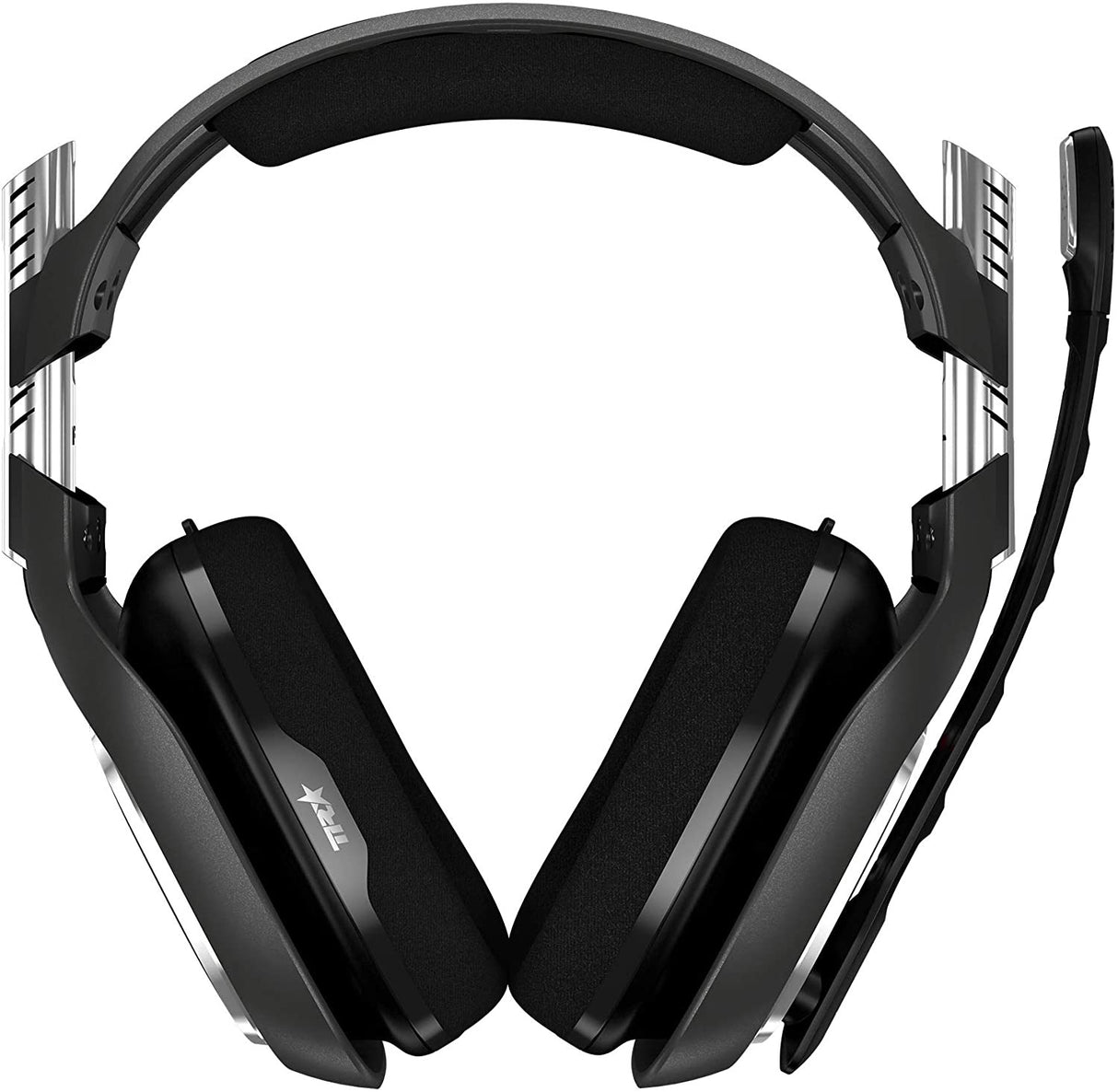

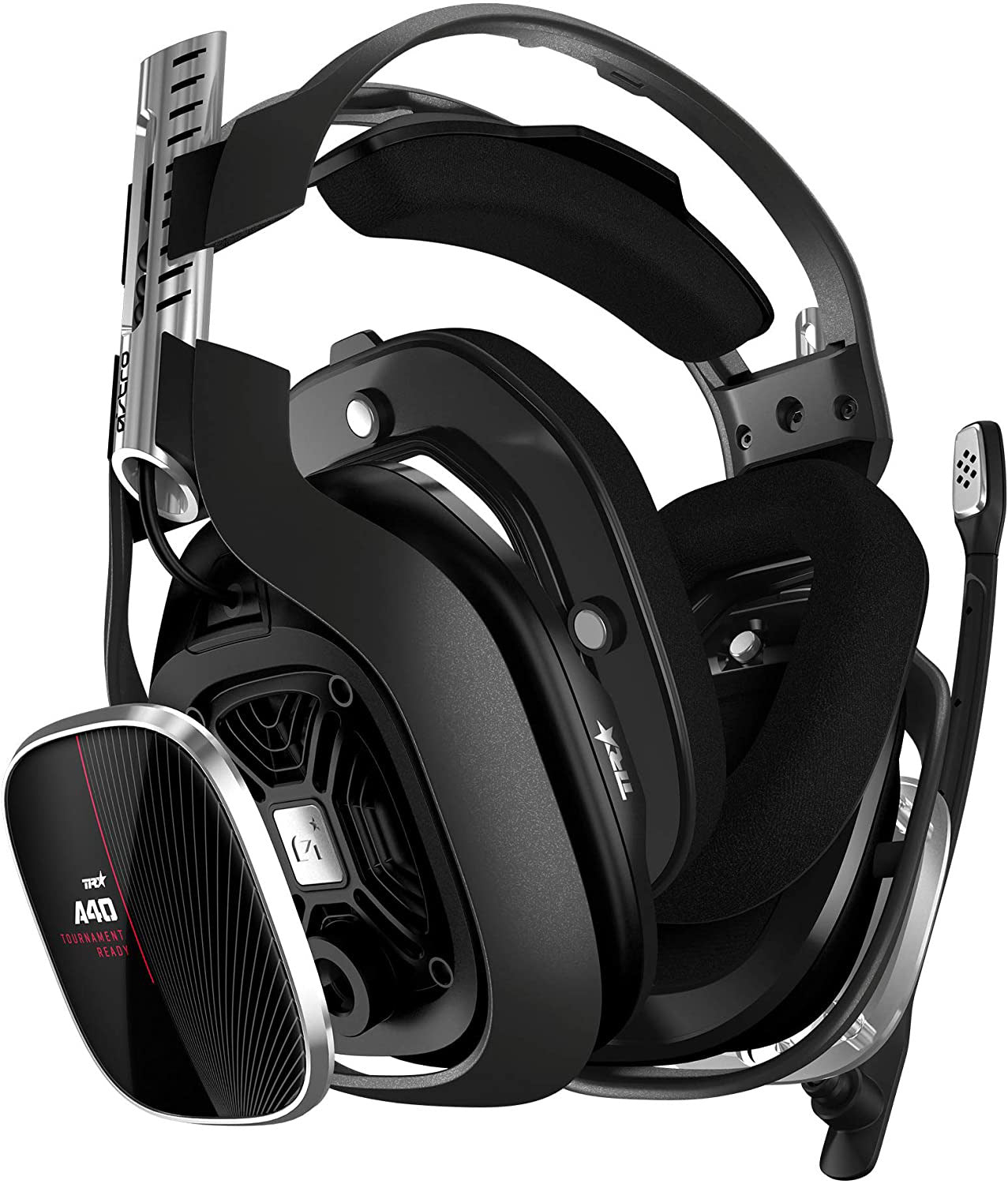

A40 TR HEADSET
Primary Specifications
Connector: 3.5mm Mini-stereo and PC Splitter
Boom Mic: 6.0mm Uni-directional
Physical Specifications
Weight w/o Cable: 369g
Technical Specifications
Transducer Principle: Dynamic, Open 40mm Sound Driver tuned for Gaming
Frequency Response: 20 - 20,000 Hz
Nominal Impedance: 48 ohms
Distortion: THD < 0.1%
Requirements
Xbox
Mixamp Pro TR Gen 4

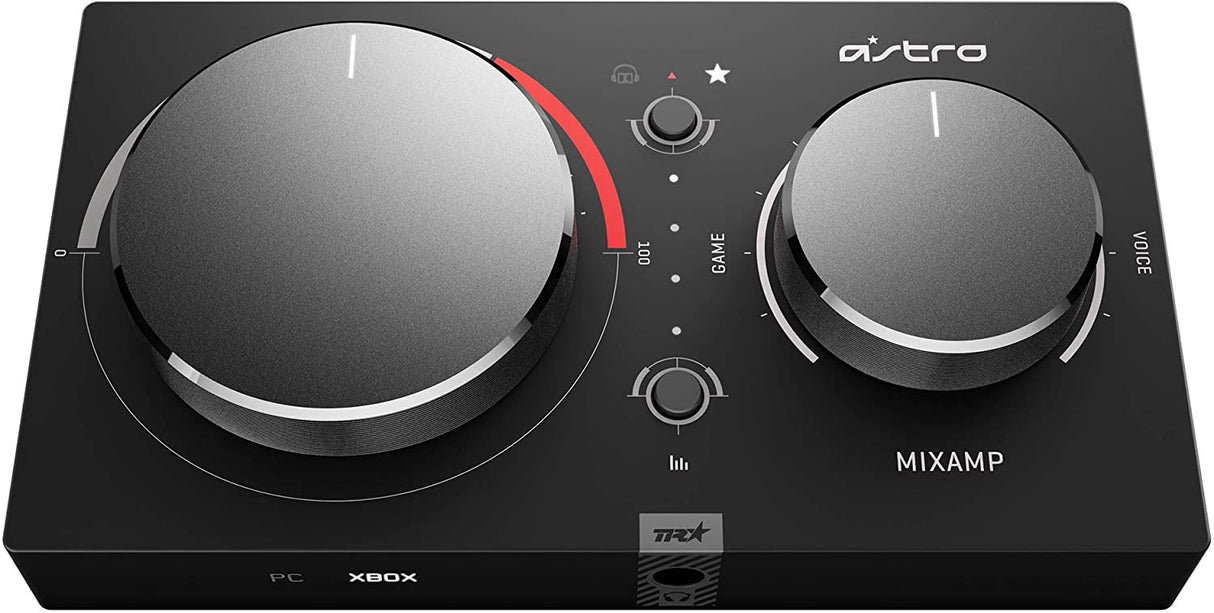

MIXAMP PRO TR
Primary Specifications

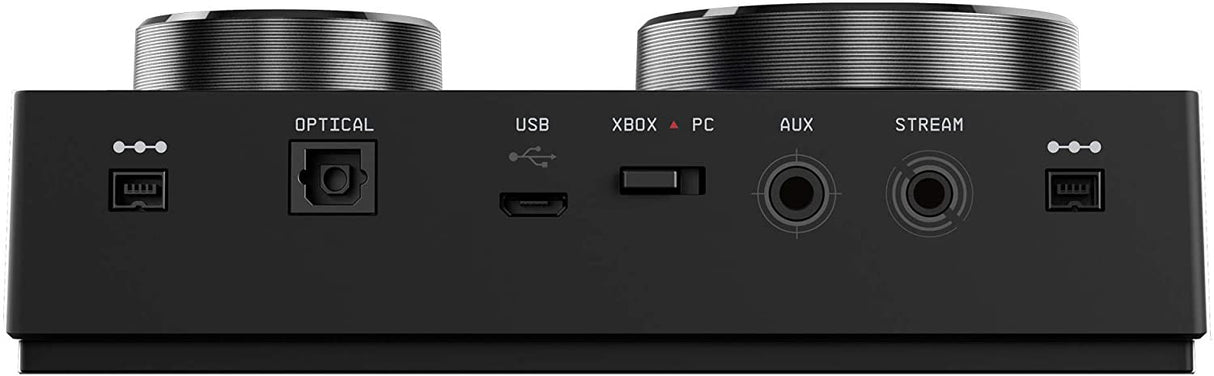

Inputs Rear: TOSLINK Optical Cable, USB micro-B (audio/power), 3.5mm Stream Output (3 pole TRS, with internal ground loop filter), 3.5 mm Aux Out/In (4 pole TRRS, for mobile phones),Two digital daisy chain ports

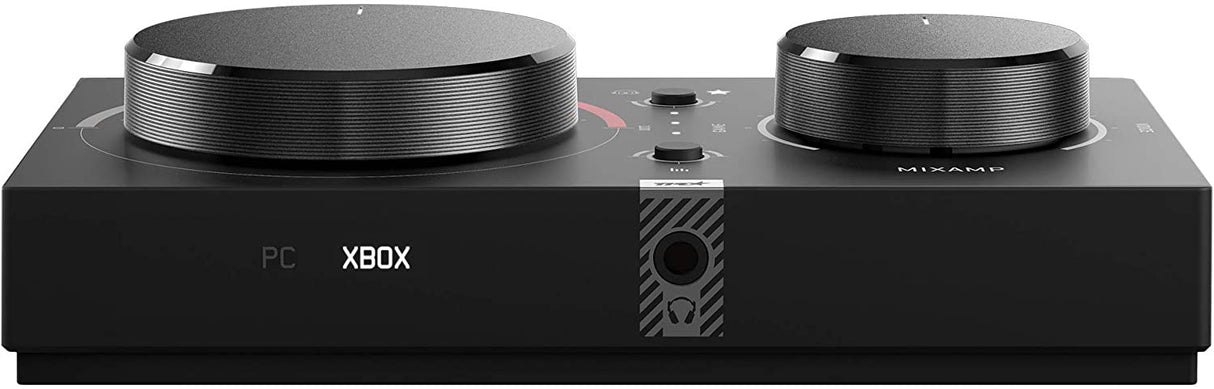

Inputs Front: Headset connector (3.5 mm TRRS)

Physical Specifications
Weight: 296 g
Dimensions: 137 mm x 80 mm x 38 mm
Technical Specifications
Sound Power Out: 100 dBSPL
Sample rates:
Game audio: 48 kHz @ 16 bit
Chat audio: 16 kHz @ 16 Bit
USB Standard: USB 2.0 Full Speed and USB Audio 1.0 Stream Port (Line out)
Frequency response 20 - 24 kHz
USB Game and USB Voice (Chat), Aux port line out
Frequency response 20 - 8 kHz
Audio inputs
Optical In, USB Game and USB Voice, Aux port line in
Frequency response: 20 - 24 kHz
Total Harmonic Distortion: < 0.05% @ 0 dBFS
Signal to Noise Ratio: > 70 dB
Requirements
Xbox, PC or MAC

• A40 TR Headset
• MixAmp Pro TR
• 2.0m A40 Inline Mute Cable
• 3.0m TOSlink Optical Cable
• 3.0m Micro-USB Cable
• Quickstart Guide
• 0.5M Daisy Chain Cable
• Dolby® Atmos Subscription
