DARK ROCK 4
NO COMPROMISE SILENCE AND PERFORMANCE
Dark Rock 4 offers an extreme cooling performance of 200W TDP and virtually inaudible operation. Perfect for overclocked systems and demanding workstations.
- Virtually inaudible Silent Wings 135mm PWM fan
- Achieves only 21.4dB(A) at maximum fan speed
- 6 high-performance copper heat pipes
- Airflow-optimized, wave-contoured cooling fins
- Easily installable black installation kit can be mounted from above
- Supports an additional 120mm fan; clips are included in scope of delivery
- Brushed aluminum top cover with diamond cut finish
- 3-year manufacturer's warranty
- German product conception, design and quality control
More
VIRTUALLY INAUDIBLE OPERATION
Even at 100% PWM fan speed noise is an insignificant 21.4dB(A)
The Silent Wings 135mm PWM fan features 9 airflow-optimized fan blades, a 6-pole motor for less vibration and a durable fluid-dynamic bearing. Decoupled fan mounting with vibration-isolating elements on the heat sink.
EXTREME COOLING POWER
Achieving an incredible performance-to-noise ratio
No compromise in silence and performance for overclocked systems and demanding graphics applications! Dark Rock 4 provides an impressive rating of 200W TDP and achieves low temperatures even during periods of peak CPU performance.
HIGHLY ADVANCED DESIGN
The core features that result in high-end cooling

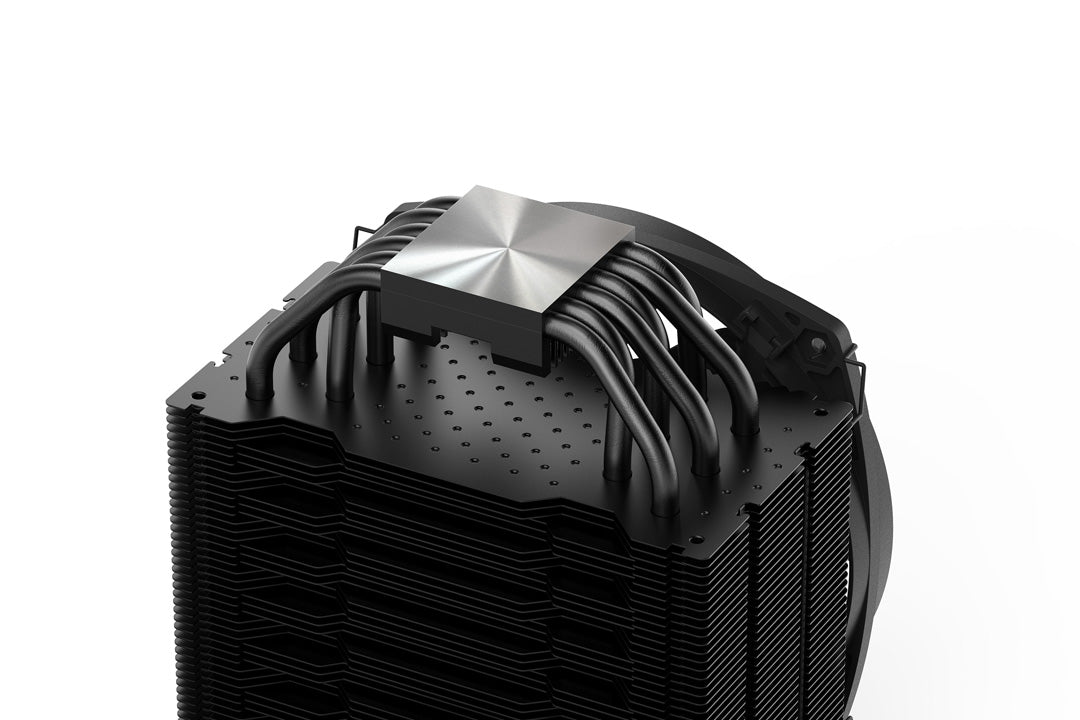

Dark Rock 4 is equipped with six advanced technology 6mm copper heat pipes that maximize the heat conductance. Airflow-optimized, wave-contoured cooling fins with small dots on their surfaces increase the air circulation. The special black coating with ceramic particles makes a perfect transfer of heat possible.

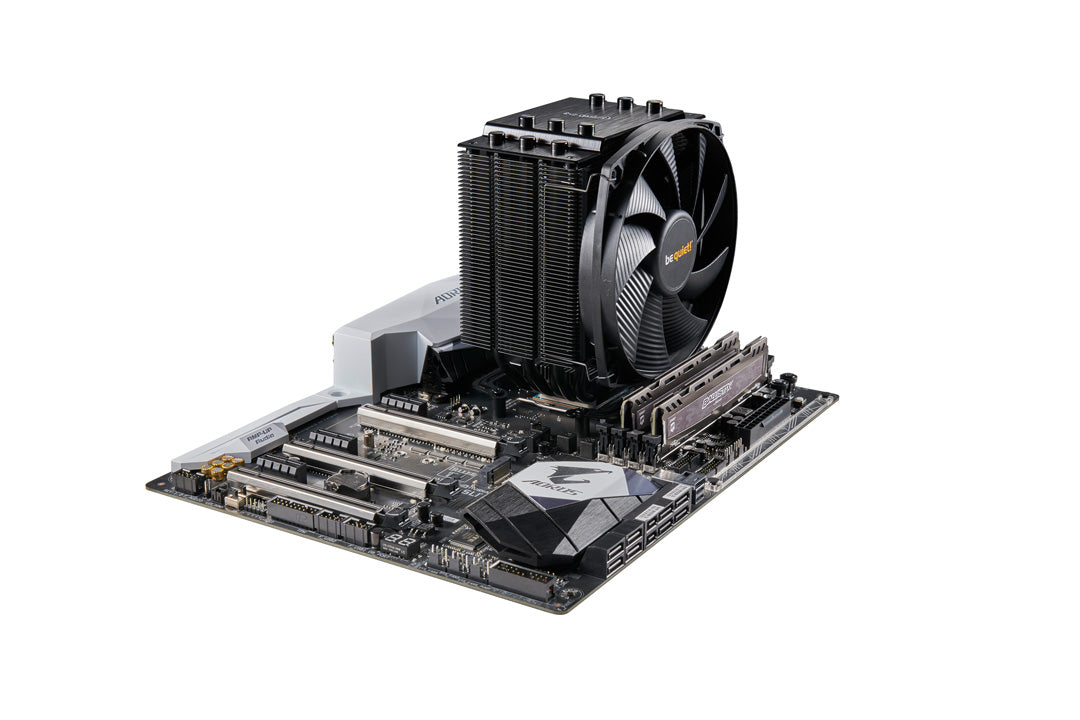

SINGLE-TOWER LAYOUT
Powerful cooling for your components
The compact single-tower design achieves excellent heat dissipation in small spaces. One fan is pre-installed. It is also possible to add another 120mm fan for even better cooling.
USER-FRIENDLY ELEGANCE
Stylish and easy to install

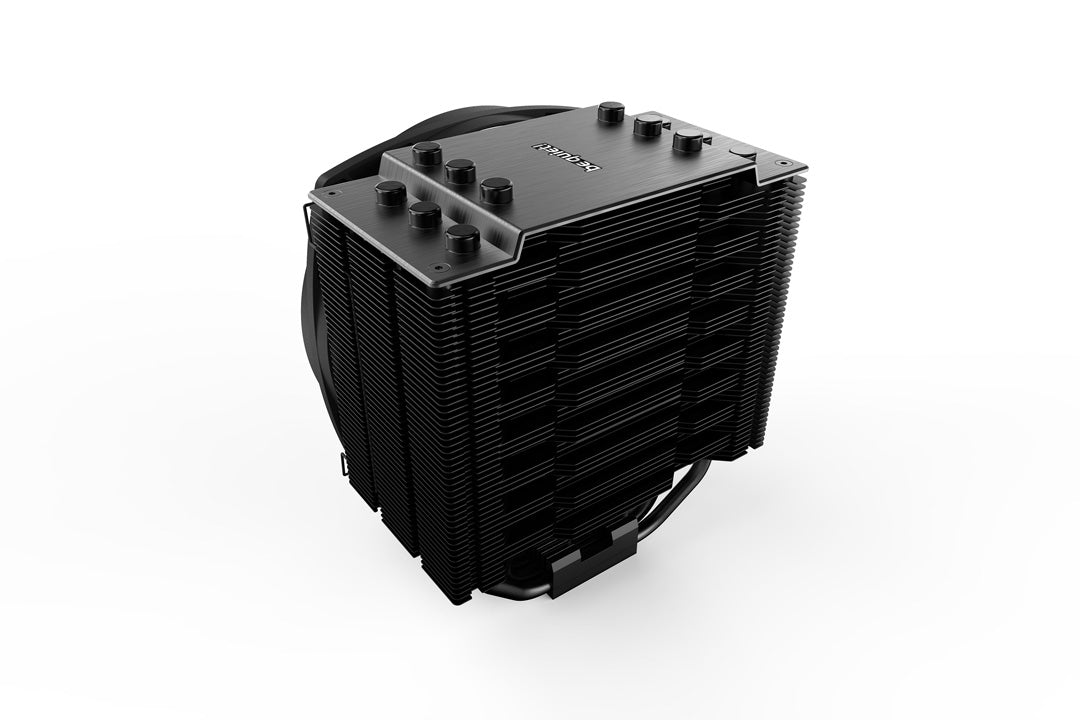

The mounting kit for the Dark Rock 4 cooler is completely black, perfectly matching the black design of the cooler itself. You can conveniently install the cooler on the motherboard from above. The brushed aluminum top cover with its diamond cut finish adds a touch of elegance to this high-end cooler.
Specifications
General Data
Model: Dark Rock 4
TDP (W): 200
Color option: Black

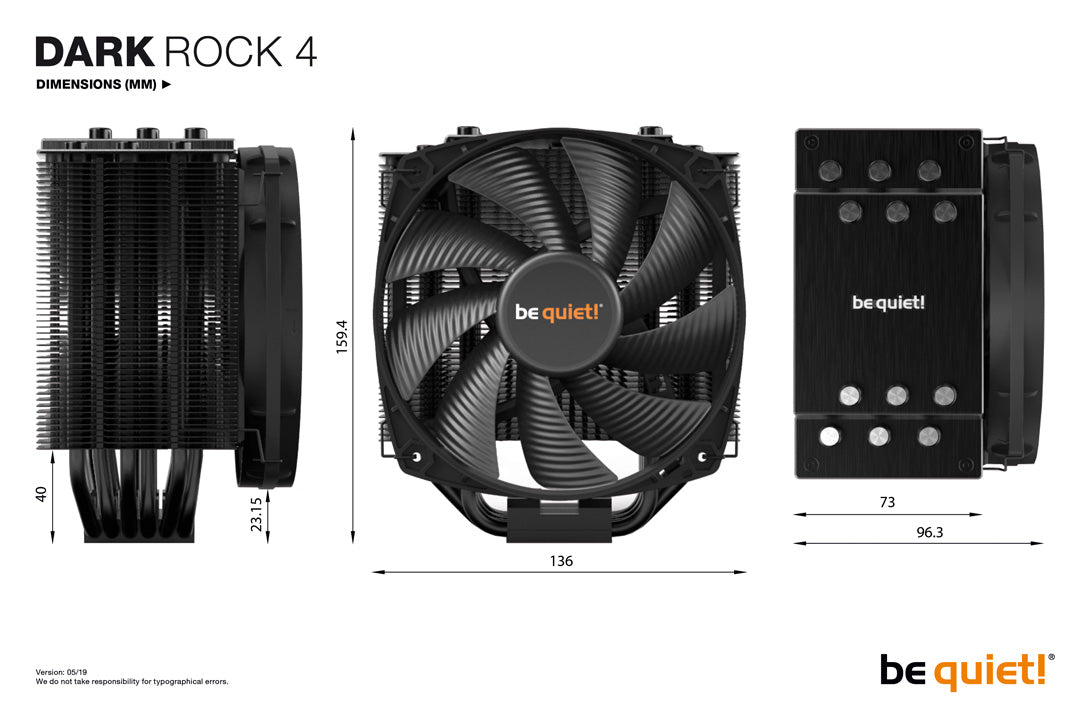

Overall dimensions without mounting material (L x W x H), (mm): 74 x 136 x 160
Total weight (kg): 0.92
Socket compatibility Intel: 1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM
Socket compatibility AMD: AM5 / AM4
Overall noise level (dB(A)) @ 50/75/100% (rpm): 10.5 / 15.6 / 21.4
Number of fans: 1
Decoupled fan mounting: Yes
Heatsink Specifications
Dimensions (L x W x H), (mm): 96 x 136 x 159
Fin material: Aluminum
Surface treatment: Ceramic coating
Base material: Copper
CPU contact surface: CNC machined
Heatpipe number / Diameter (mm): 6 / 6
Fan Specifications
Fan model: Silent Wings 135mm PWM
Fan dimensions (mm): 135 x 135 x 22
Speed @ 100% PWM /12V (rpm): 1400
Bearing technology: Fluid Dynamic Bearing
Motor technology: 6-pole fan motor
Rated Voltage (V): 12
Input current (A): 0.11
Input power (W): 1.32
Connector: 4-pin PWM
Lighting connector: -
Cable length (mm): 220
Lifespan (h / 25°C): 300,000

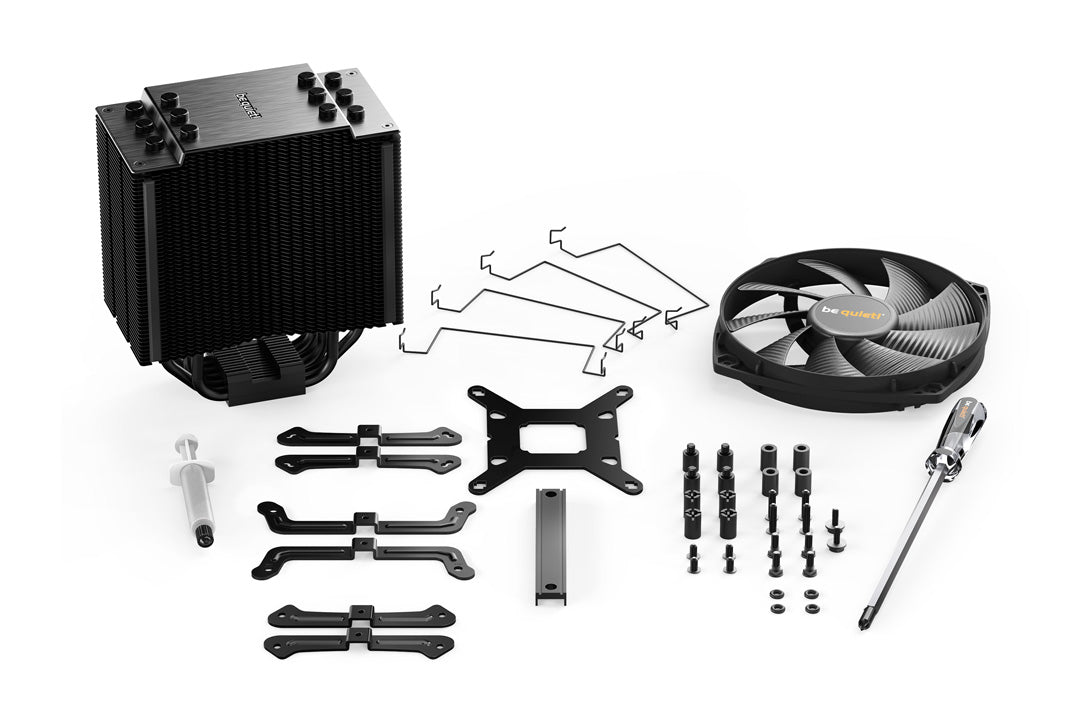

Accessories
Thermal grease (Type): Included
Mounting set: Intel & AMD
Y-Cable: -
User manual languages: DE, EN, ES, FR, PL, RU
Environmental directives
RoHs: -
Triman: -
Logistics Data
Article number: BK021
Dimensions, package (L x W x H), (mm): 149 x 205 x 214
Gross weight, package (kg): 1.17
