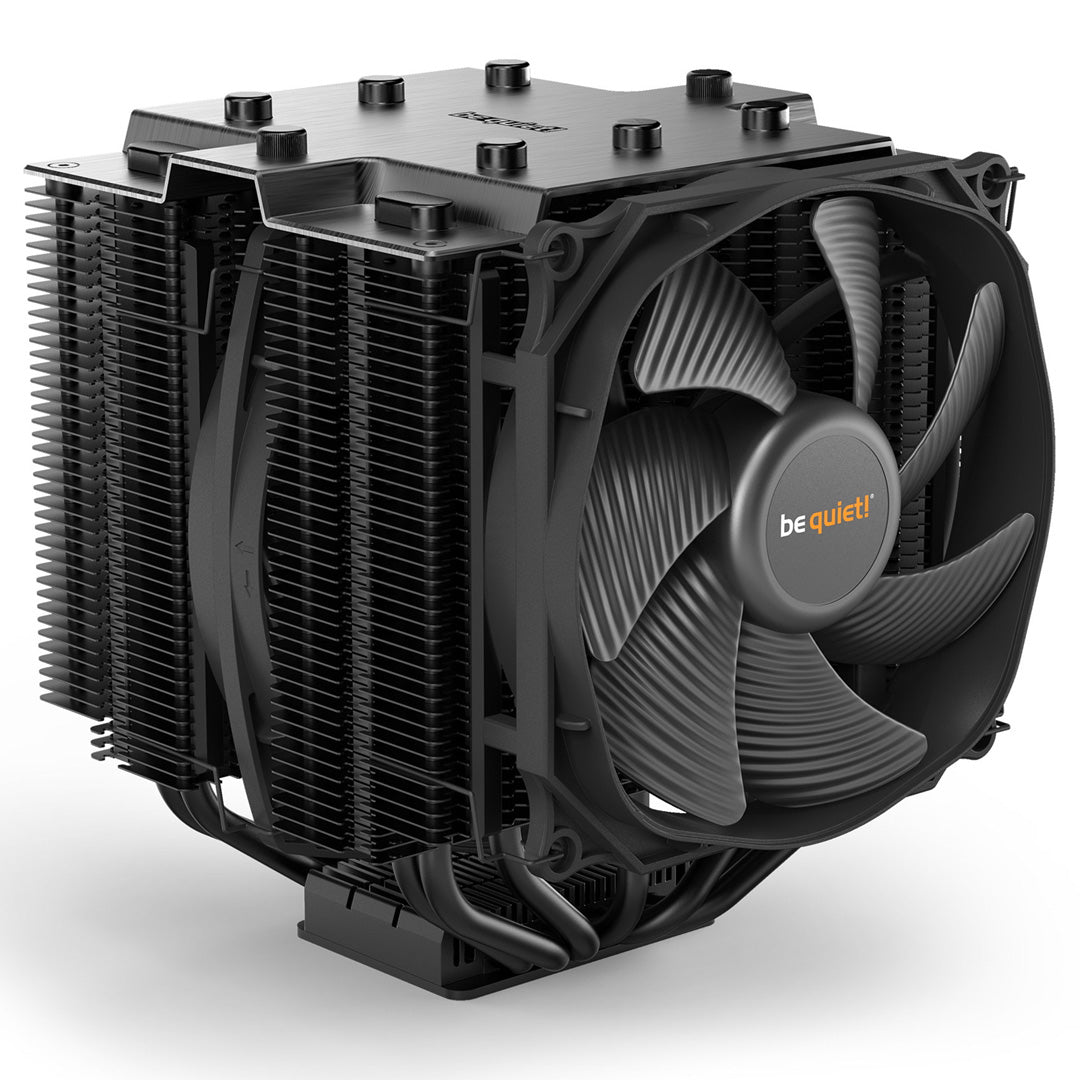

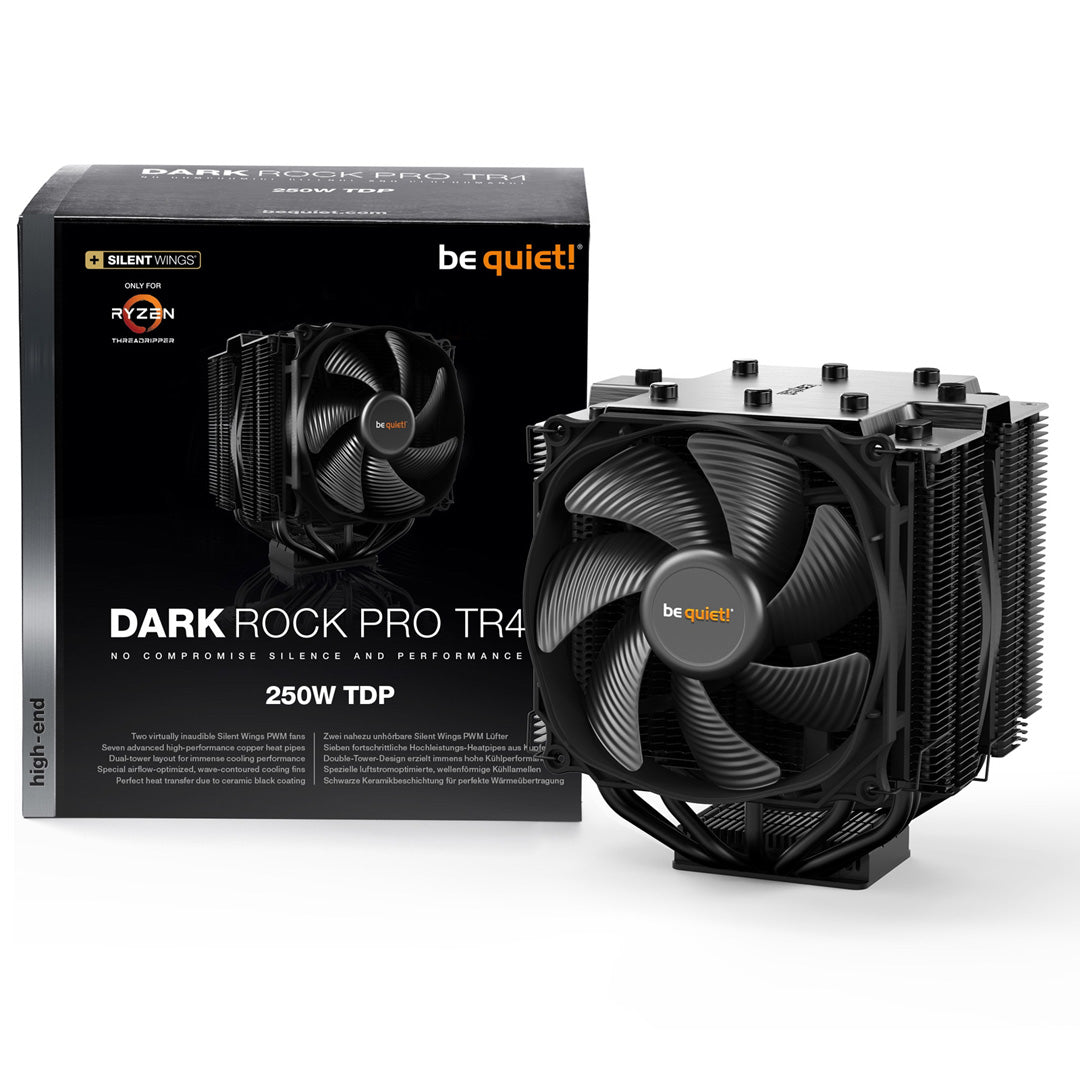

be quiet! Dark Rock Pro TR4 - Fan CPU Cooler

DARK ROCK PRO TR4
NO COMPROMISE SILENCE AND PERFORMANCE

Dark Rock Pro TR4 offers an immense cooling performance of 250W TDP and virtually inaudible operation. Excellent for high-end systems and demanding workstations.

- Designed for AMD sTRX4 and TR4 with up to 32 cores
- 2 virtually inaudible Silent Wings PWM fans
- Funnel-shaped frame of the front fan for high air pressure
- Achieves only 24.3dB(A) at maximum fan speed
- 7 high-performance copper heat pipes
- Airflow-optimized cooling fins; cutouts enhance the RAM compatibility
- Easily installable black installation kit can be mounted from above
- Brushed aluminum top cover with diamond cut finish
- 3-year manufacturer’s warranty

IMMENSE COOLING POWER
For AMD TR4 motherboards
No compromise in silence and performance for overclocked systems and demanding graphics applications! Dark Rock Pro TR4 is designed for AMD TR4 only and provides an impressive rating of 250W TDP.

VIRTUALLY INAUDIBLE OPERATION
Even at 100% PWM fan speed noise is an insignificant 24.3dB(A)
The 2 Silent Wings PWM fans feature advanced fluid-dynamic bearings, smooth 6-pole motors and airflow-optimized fan blades. The front Silent Wings 3 fan provides extremely high air pressure, thanks to a funnel-shaped air inlet in the frame. Decoupled fan mounting with vibration-isolating elements on the heat sink.

HIGHLY ADVANCED DESIGN
The core features that result in high-end cooling

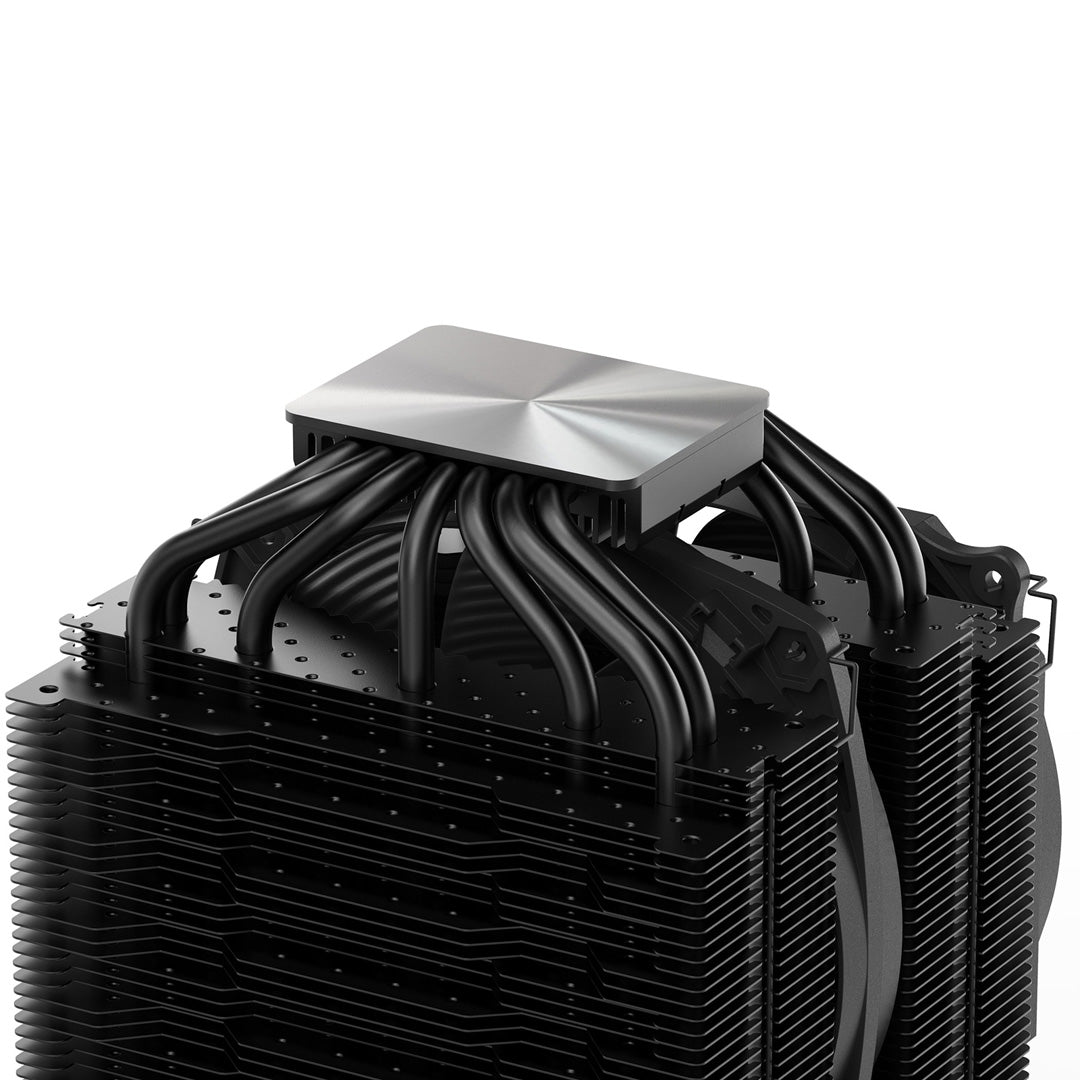

Dark Rock Pro TR4 is equipped with 7 advanced technology 6mm copper heat pipes that maximize the heat conductance. Airflow-optimized, wave-contoured cooling fins with small dots on their surfaces increase the air circulation. The special black coating with ceramic particles makes a perfect transfer of heat possible.

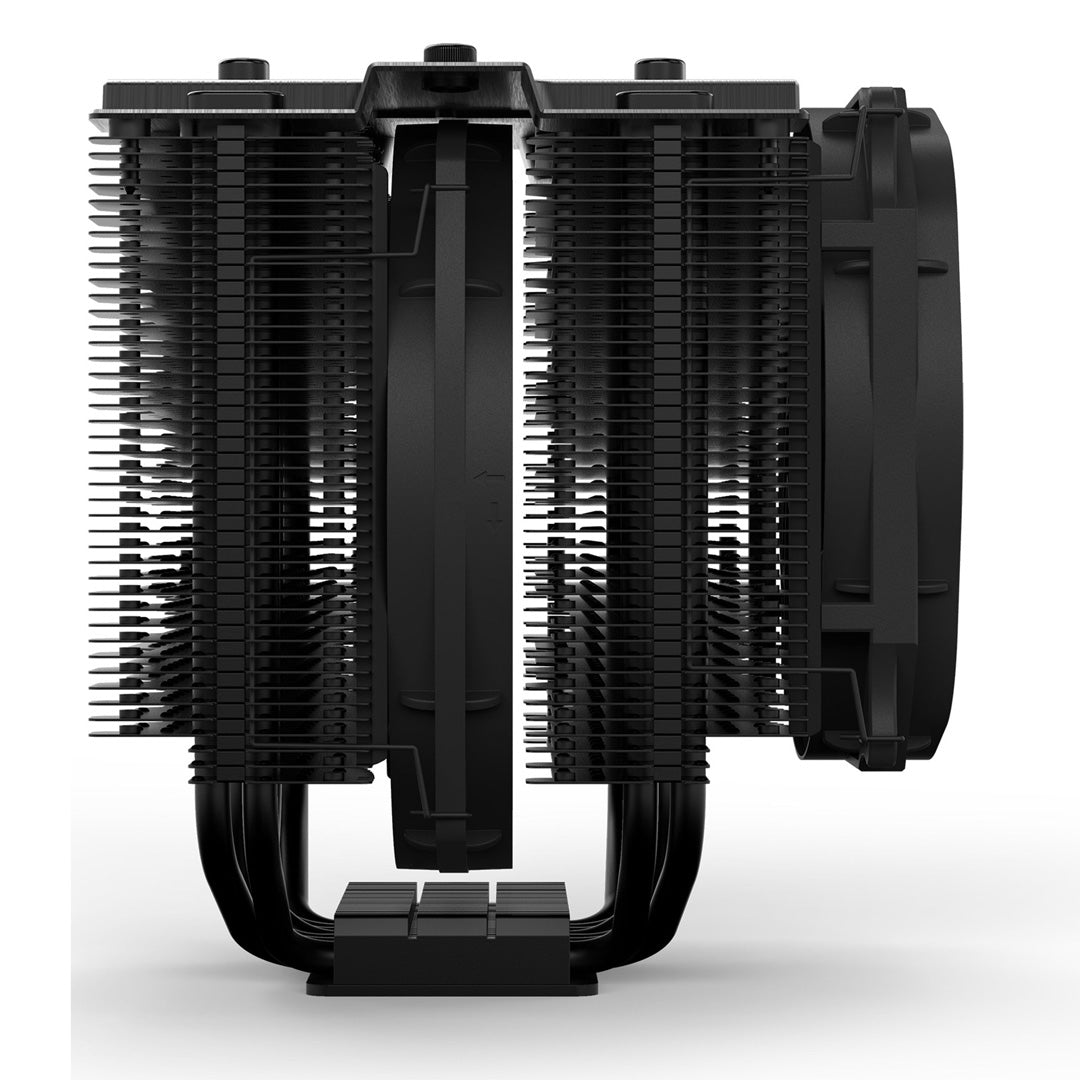

DOUBLE-TOWER LAYOUT
Powerful cooling for your components

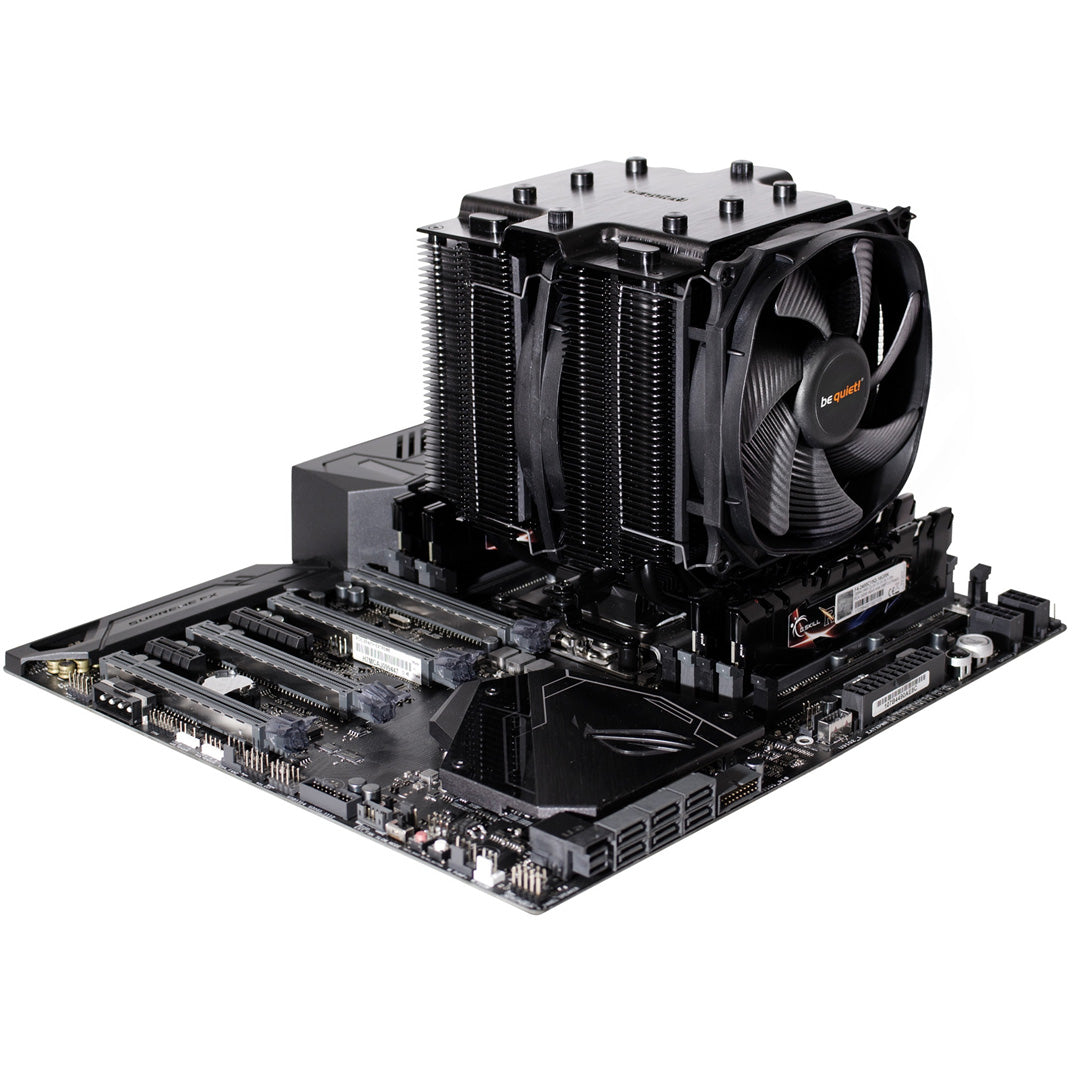

Dark Rock Pro TR4 contains 2 aluminum heat sinks. The cutouts provided enhance its RAM compatibility. 2 fans are pre-installed. It is also possible to add another 120mm fan for even better cooling.

USER-FRIENDLY ELEGANCE
Stylish and easy to install

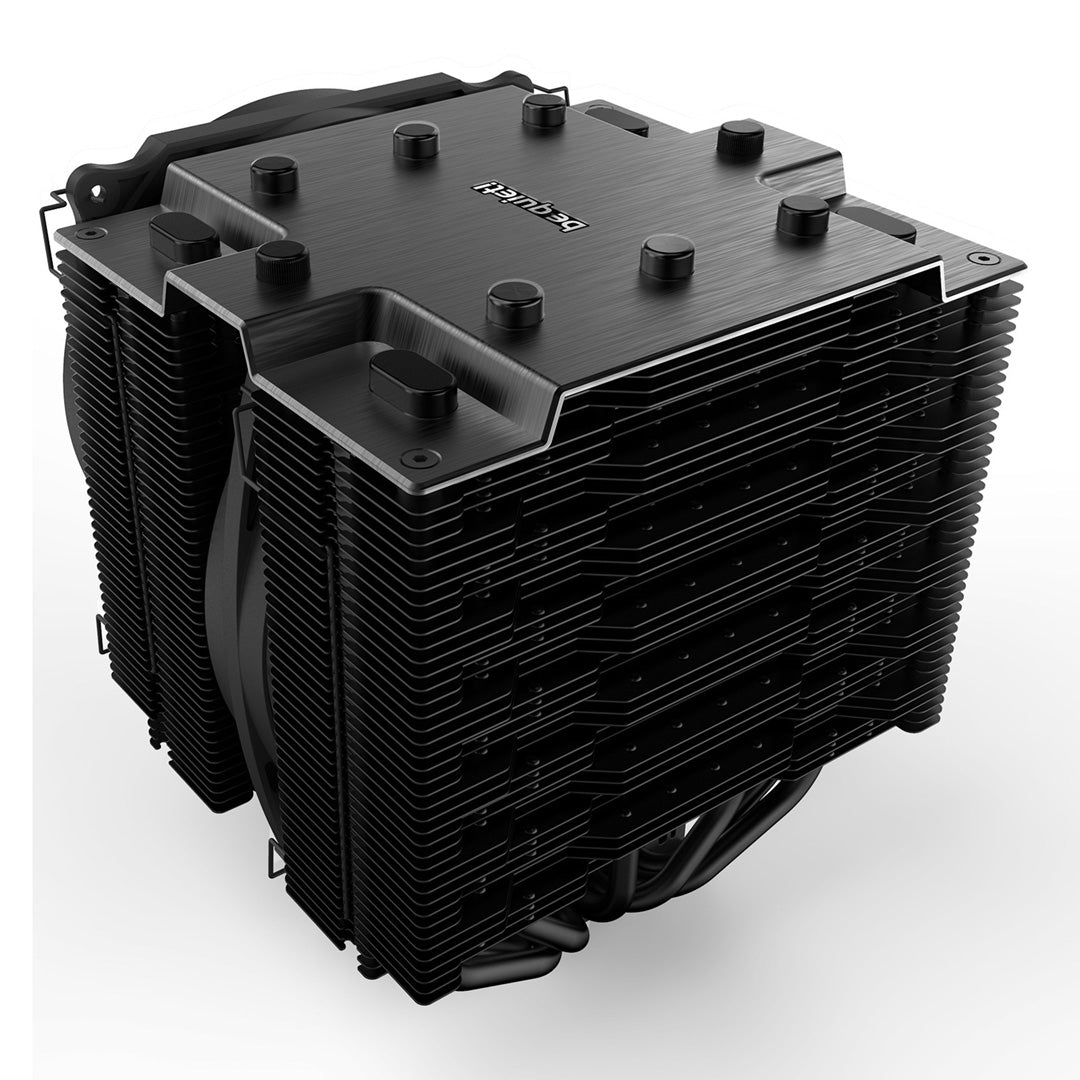

The mounting kit for the Dark Rock Pro TR4 cooler is completely black, perfectly matching the black design of the cooler itself. You can conveniently install the cooler on the motherboard from above. The brushed aluminum top cover with its diamond cut finish adds a touch of elegance to this high-end cooler.

General Data
Model: Dark Rock Pro TR4
TDP (W): 250
Color option: Black

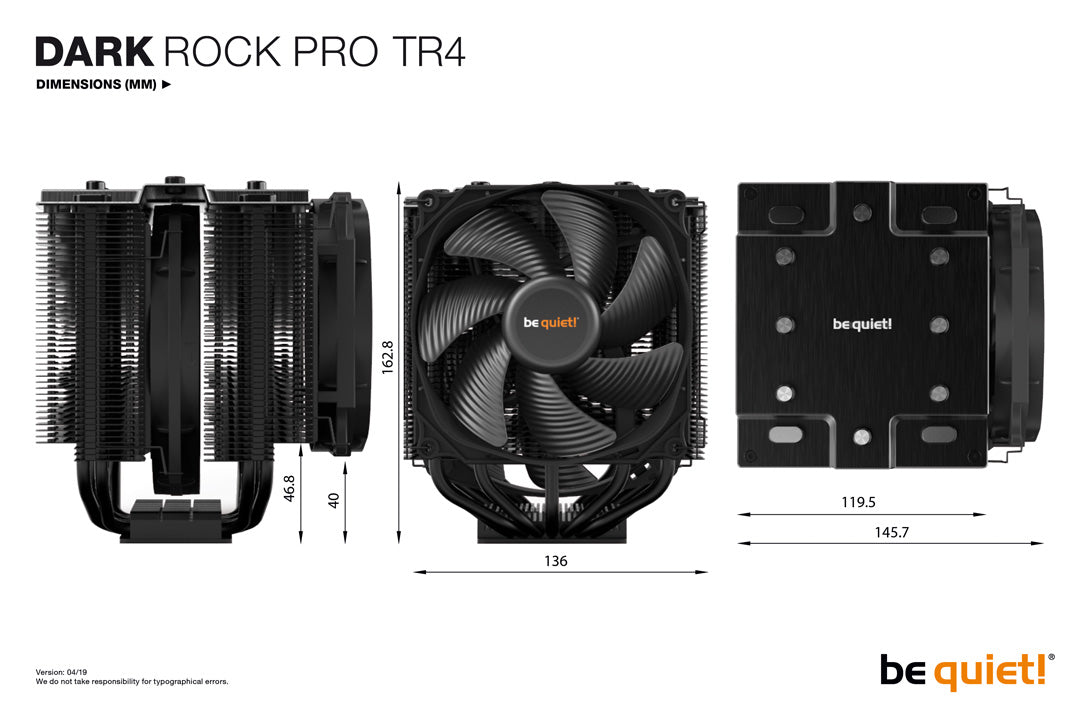

Overall dimensions without mounting material (L x W x H), (mm): 146 x 136 x 163
Total weight (kg): 1.18
Socket compatibility Intel: -
Socket compatibility AMD: sTRX4 / TR4
Overall noise level (dB(A)) @ 50/75/100% (rpm): 12.8 / 17.9 / 24.3
Number of fans: 2
Decoupled fan mounting: Yes

Heatsink Specifications
Dimensions (L x W x H), (mm): 121 x 136 x 163
Fin material: Aluminum
Surface treatment: Ceramic coating
Base material: Copper
CPU contact surface: CNC machined
Heatpipe number / Diameter (mm): 7 / 6

Fan Specifications
Fan model: Silent Wings 3 120mm PWM / Silent Wings 135mm PWM
Fan dimensions (mm): 135 x 135 x 22 / 120 x 120 x 25
Speed @ 100% PWM /12V (rpm): 1200 / 1500
Bearing technology: Fluid Dynamic Bearing
Motor technology: 6-pole fan motor
Rated Voltage (V): 12
Input current (A): 0.08 / 0.08
Input power (W): 0.96 / 0.96
Connector: 4-pin PWM
Lighting connector: -
Cable length (mm): 220 / 220
Lifespan (h / 25°C): 300,000

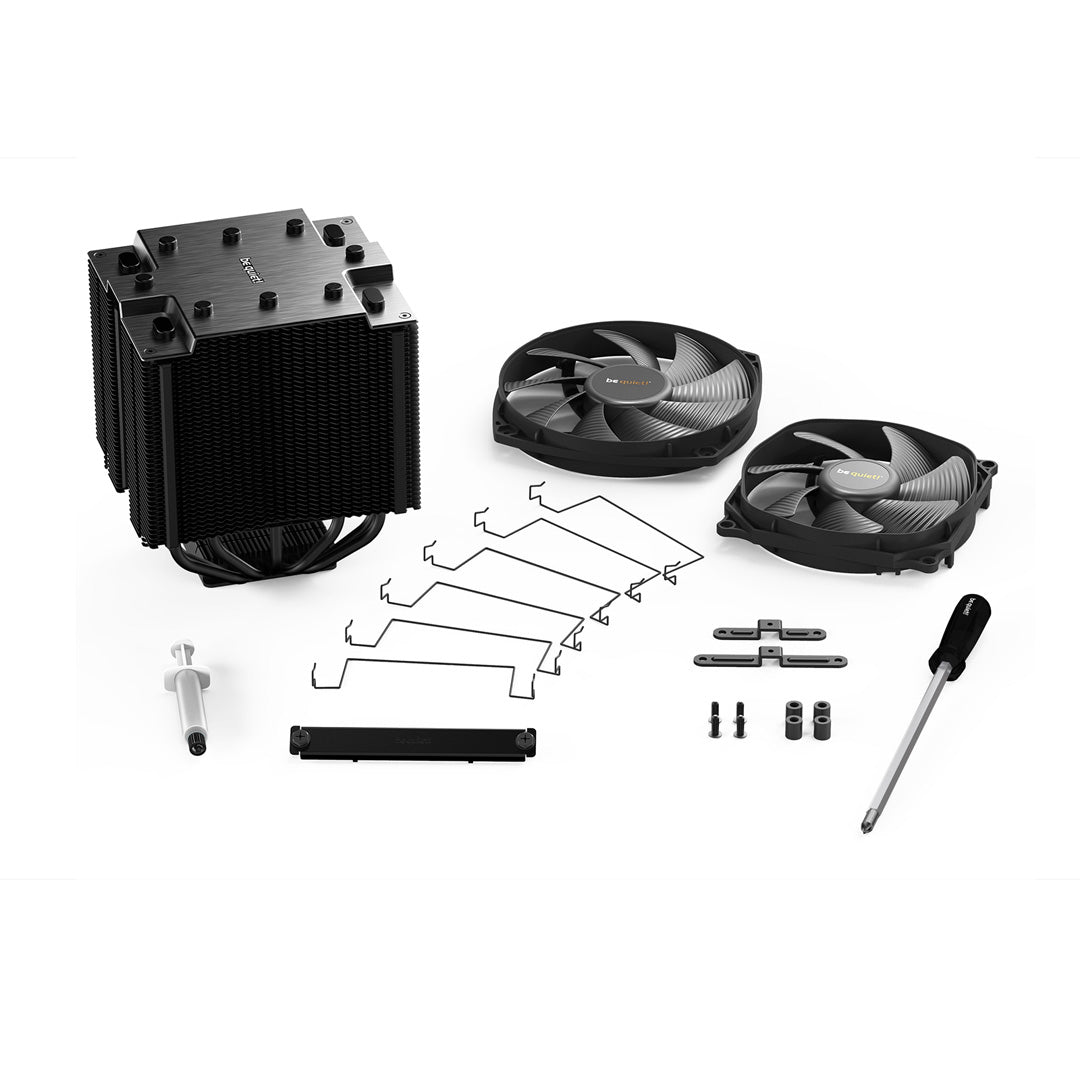

Accessories
Thermal grease (Type): Included
Mounting set: AMD TR4
Y-Cable: Yes
User manual languages: DE, EN, ES, FR, PL, RU

Environmental directives
RoHs: -
Triman: -

Logistics Data
Article number: BK023
Dimensions, package (L x W x H), (mm): 181 x 205 x 212
Gross weight, package (kg): 1.58
