Outstanding price-performance ratio

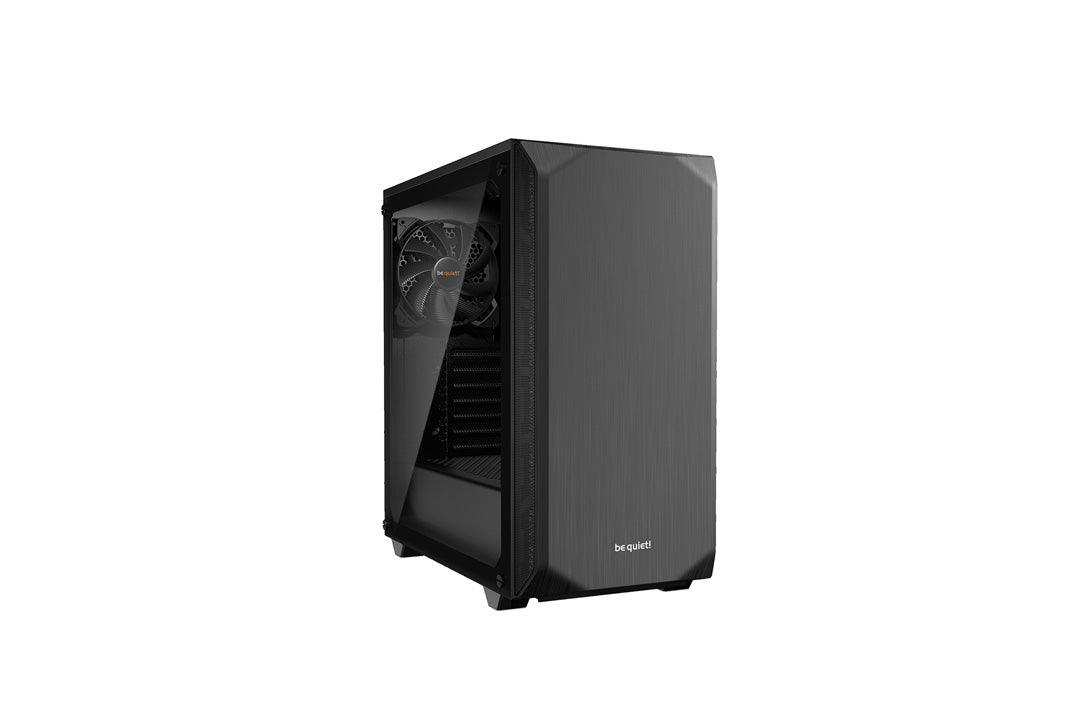

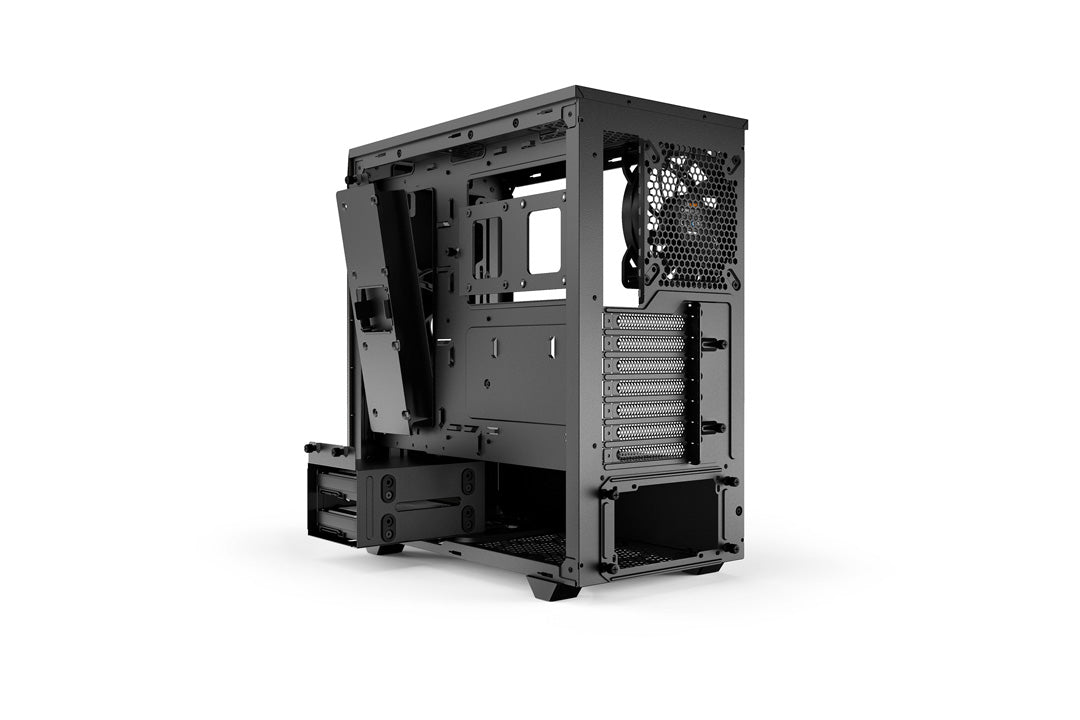

be quiet! Pure Base 500 Window Black combines customizable and silence features with a compact and sophisticated design. It is the perfect case for all who value compactness and highly functional features.
Model | Pure Base 500 Window Black |
Color option | Black |
Motherboard compatibility | ATX / M-ATX / Mini-ITX |

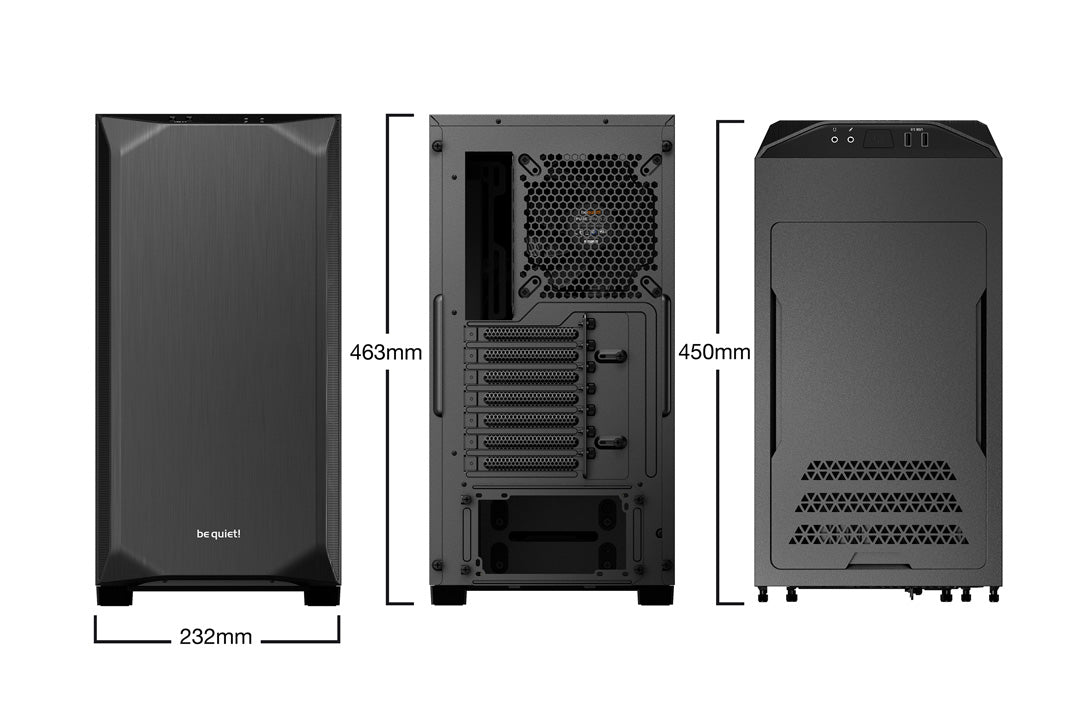

Case size excl. stands (L x W x H), (mm) | 450 x 232 x 443 |
Case size incl. stands (L x W x H), (mm) | 450 x 232 x 463 |
PSU form factor | ATX PS/2 |
Weight (kg) | 7.53 |
Expansion slots | 7 |
Fan @ top | - |

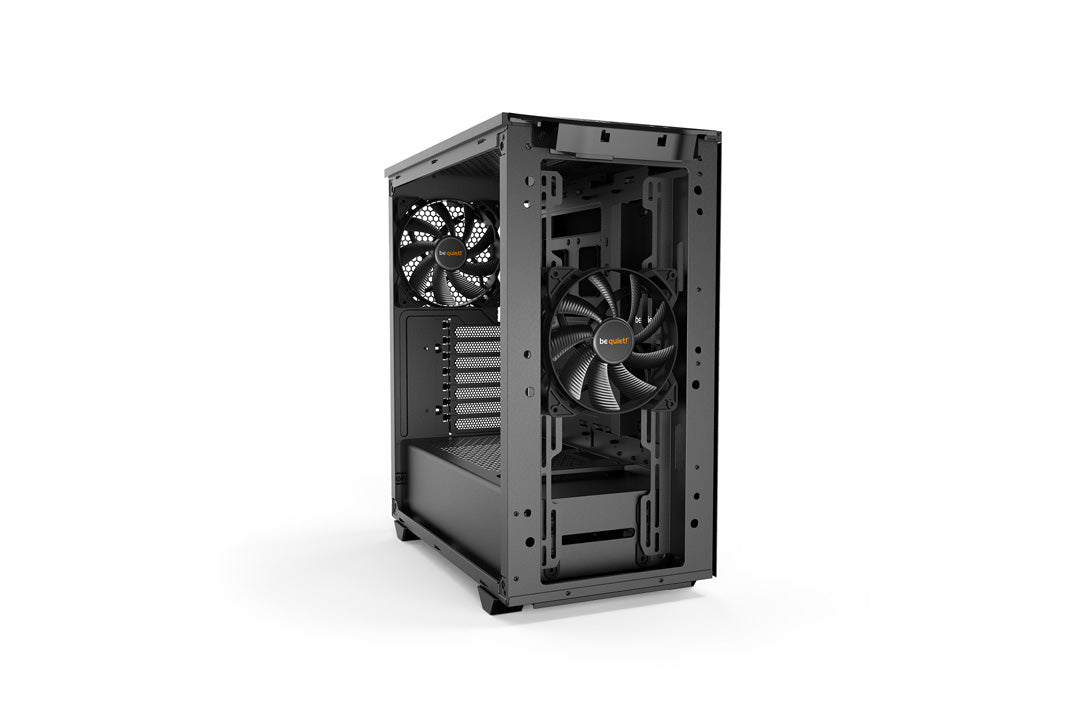

Fan @ front | 1x Pure Wings 2 140mm |
Fan @ rear | 1x Pure Wings 2 140mm |
Dimensions (L x W x H), (mm) | Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 |
Fan speed @ 100% PWM / 12V (rpm) | 900 |
Airflow @ 100% PWM / 12V (cfm / m3/h) | 55.8 / 94.8 |
Air pressure @ 100% PWM / 12V (mm H2O) | 0.6 |
Noise level @ 100% PWM / 12V (dB(A)) | 17.1 |
Voltage range (V DC) | 12 |
Input power (W) | 1.08 |
Input current (A) | 0.09 |
Connector | 3-Pin |
Lifespan (h / 25°C) | 80,000 |
Fan controller | - |
Top (mm) | 2x 120 / 2x 140 |
Front (mm) | 3x 120 / 2x 140 |
Rear (mm) | 1x 140 |
Bottom (mm) | - |
Side panel (mm) | - |
PSU shroud | - |
Top (mm) | 120 / 240 |
Front (mm) | 120 / 140 / 240 / 280 / 360 |
Rear (mm) | 120 / 140 |
Bottom (mm) | - |
Maximum dimensions excl. bottom fan (mm) | 258 |
Maximum dimensions incl. bottom fan (mm) | 225 |
HDD cage (in height of graphics card) installed (mm) | 369 |
HDD cage (in height of graphics card) removed (mm) | 369 |
5.25 bays | - |
3.5 slots (max.) | 2 |
3.5 slots (scope of delivery) | 2 |
2.5 slots (max.) | 5 |
2.5 slots (scope of delivery) | 5 |
Max.construction height of CPU cooler unit (mm) | 190 |
Airflow channel | Front / Top / Rear |
RGB LED illumination | - |
LEDs synchronizable with RGB controller/motherboard | - |
Expandable RGB controller | - |
USB 3.2 Gen. 2 Type C | - |

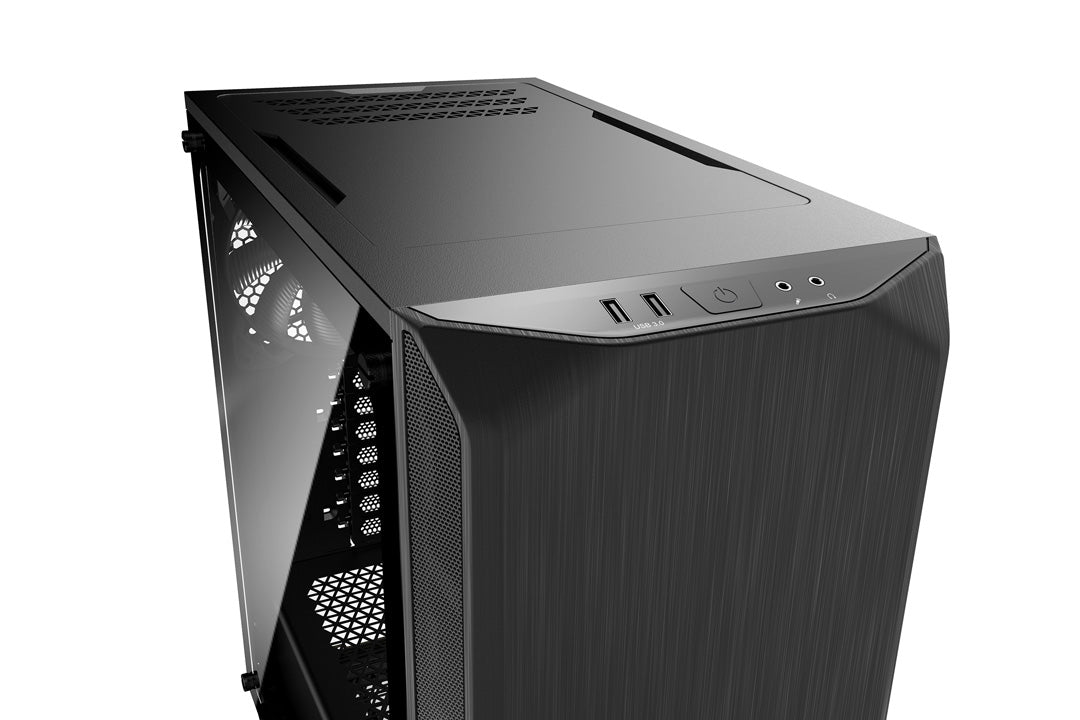

USB 3.2 Gen. 1 | 2 |
USB 2.0 | - |
HD Audio I/O | Mic + Audio |
Qi charger / Quick Charging Option | - |
Top panel insulation mats | ✓ |
Front panel insulation mats | ✓ |
Side panel insulation mats | ✓ |
Anti-vibration decoupled HDD | ✓ |
Anti-vibration decoupled fan | - |
Anti-vibration decoupled PSU | ✓ |
Anti-vibration decoupled motherboard-tray | - |
Front | 1 |
Bottom | 1 |
Side panel | - |
Top cover | ABS |
Front panel | ABS |
Side panel | Steel |

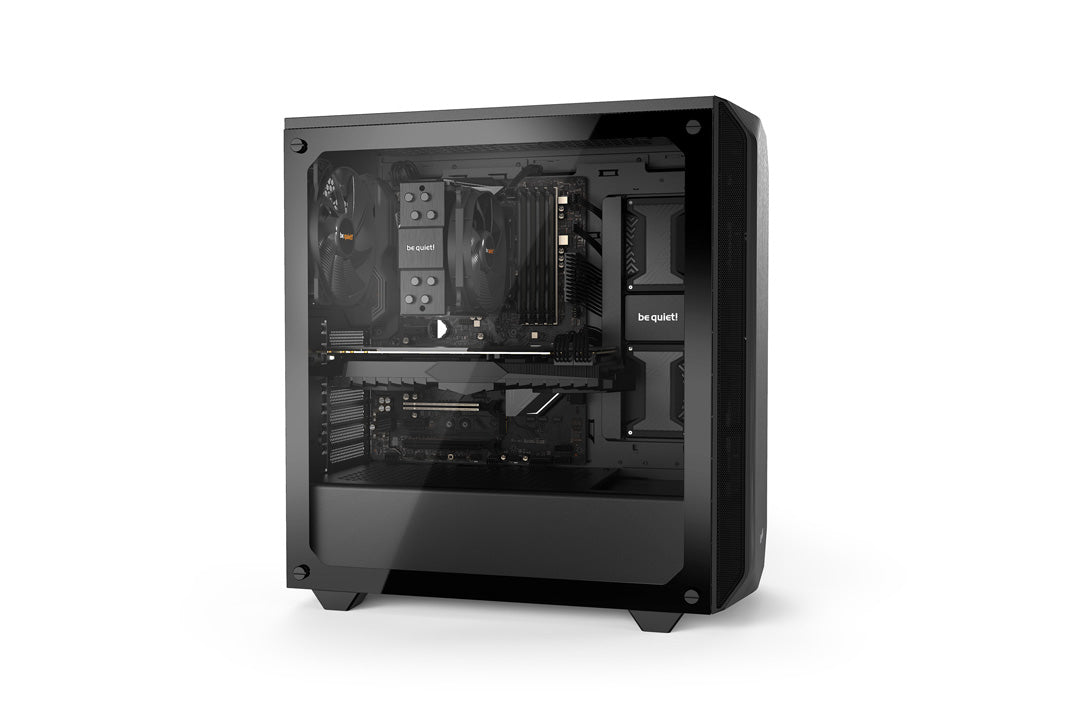

Side panel window | 4mm tempered glass |
Stands | ABS |

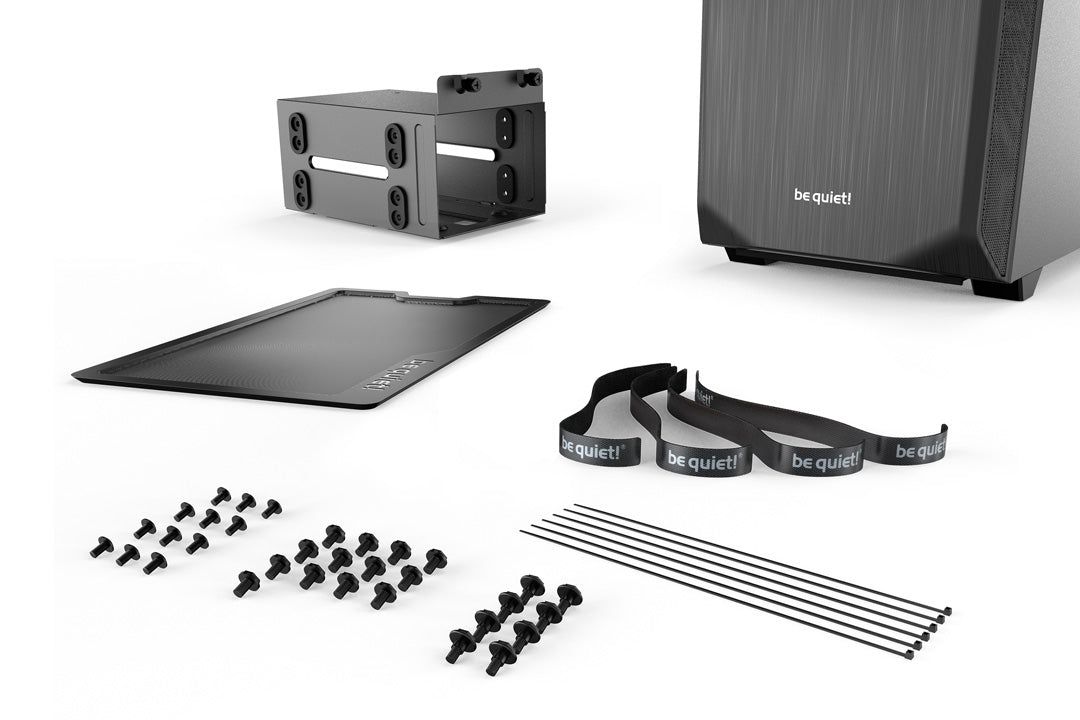

Screw set (Drives/Motherboard) | ✓ |
Rubber rail (pcs.) | - |
Standoff (pcs.) | - |
LCS bracket (pcs). | - |
HDD slot cover (pcs.) | - |
Upper fan bracket (pcs.) | - |
HDD panel rubber grommet (pcs.) | - |
SSD bracket for PSU shroud | - |
LED strips (pcs.) | - |
Cable ties (pcs.) | 6 / 4 (Velcro) |
Warranty (Years) | 3 |
International hotline / free of charge | ✓ / DE, FR |
