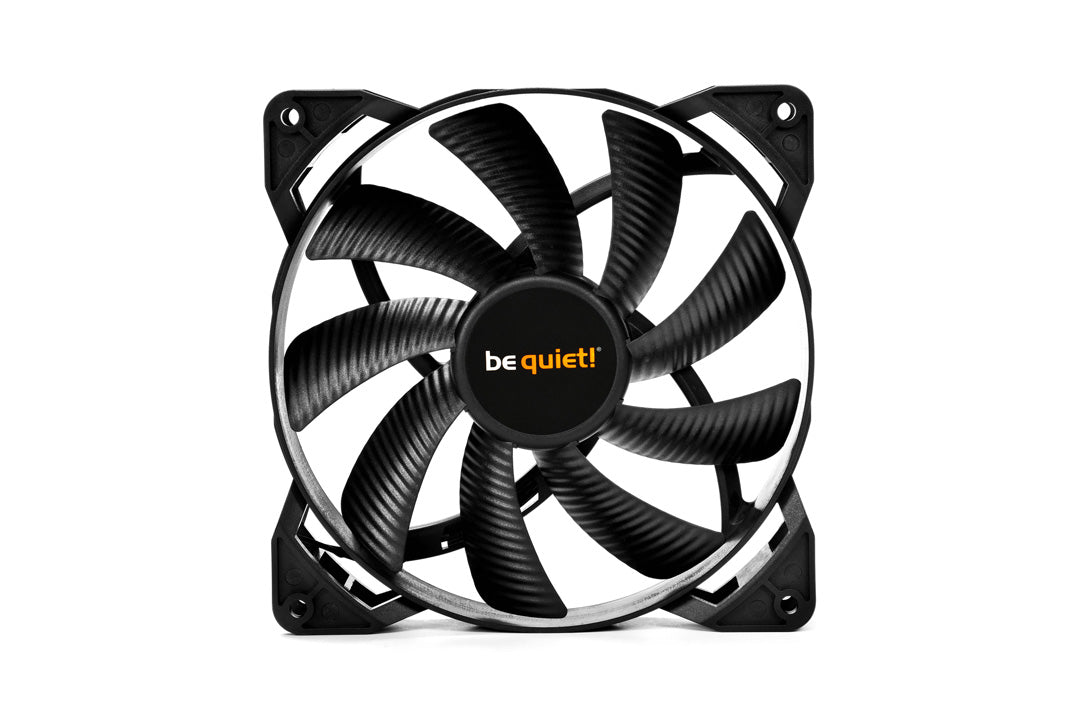

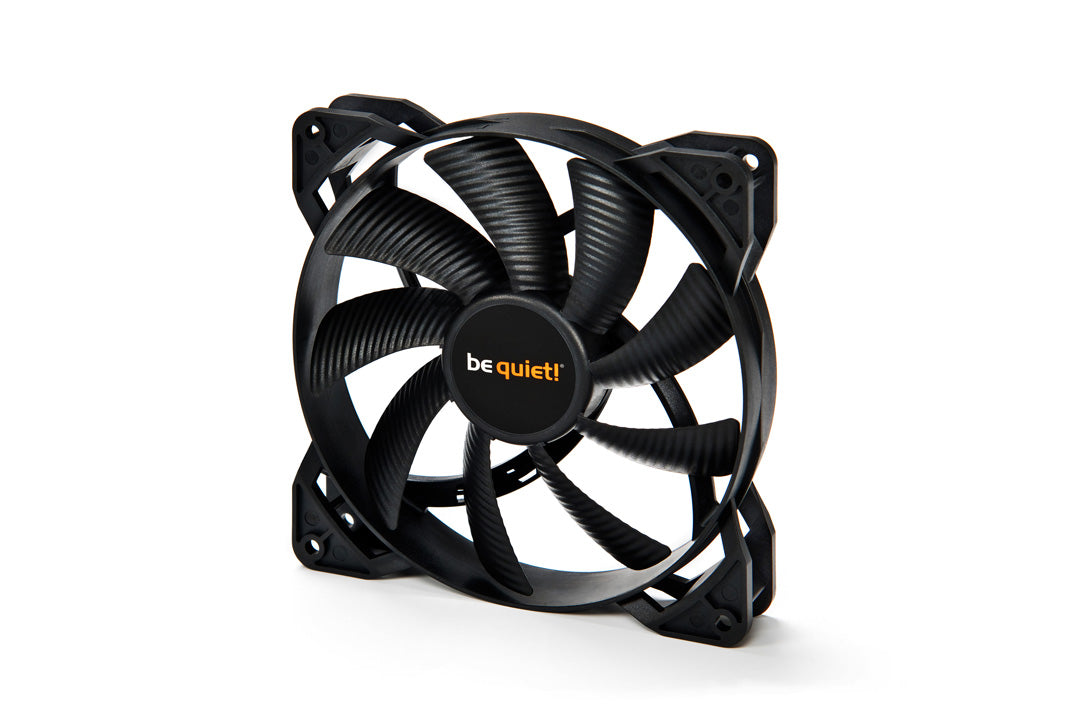

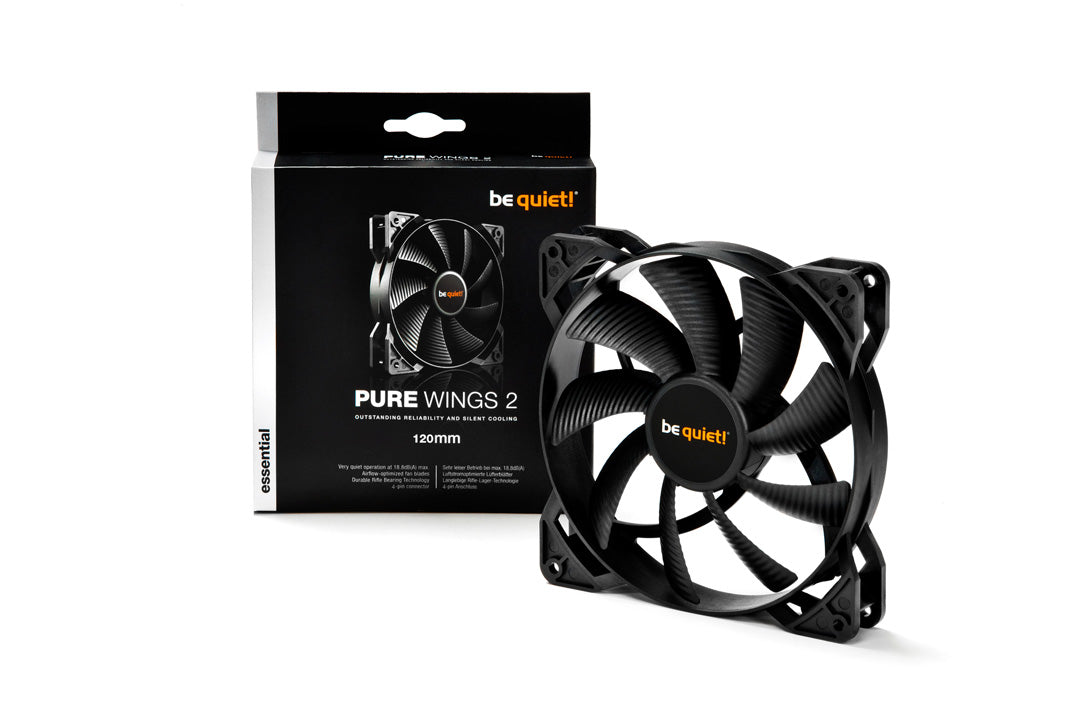

PURE WINGS 2 - 120mm
OUTSTANDING PRICE-PERFORMANCE RATIO
The Pure Wings 2 fans bring famous be quiet! silent cooling to entry level computing, yet are also appropriate for gaming and multimedia systems.
The most important features include:
- 9 airflow-optimized fan blades that reduce noise-generating turbulence
- Long life rifle bearing gives an operating lifetime of 80,000 hours
- Even at maximum speed, operates at only 19.2 dB(A)
- Product conception, design and quality control in Germany
- 3 year warranty
Pure Wings 2 offer outstanding reliability and quiet operation at great price-for-performance ratio. They are the ultimate reason to put the well-known be quiet! silent cooling in your PC.
More
VERY QUIET OPERATION
Achieves a great price-for-performance ratio
The Pure Wings 2 120mm fan operates at only 19.2dB(A) even at maximum speed. The perfect choice for silent home and office PCs as well as gaming and multimedia systems.
SILENCE-OPTIMIZED FAN BLADES
For even better cooling
Thanks to its surface-optimized fan blades the airflow is enhanced, noise-generating turbulences are minimized and the air pressure is increased. This feature is the key to effective cooling.
RIFLE BEARING TECHNOLOGY
Gives the fan a very long lifespan
The Pure Wings 2 120mm is the hallmark of outstanding reliability. This is achieved by its high-quality rifle bearing technology, which assures a very long lifespan of up to 80,000 hours.
Specifications
General Data
Model: Pure Wings 2 120mm
Dimensions (mm): 120
Colour option: Black
Lighting: -

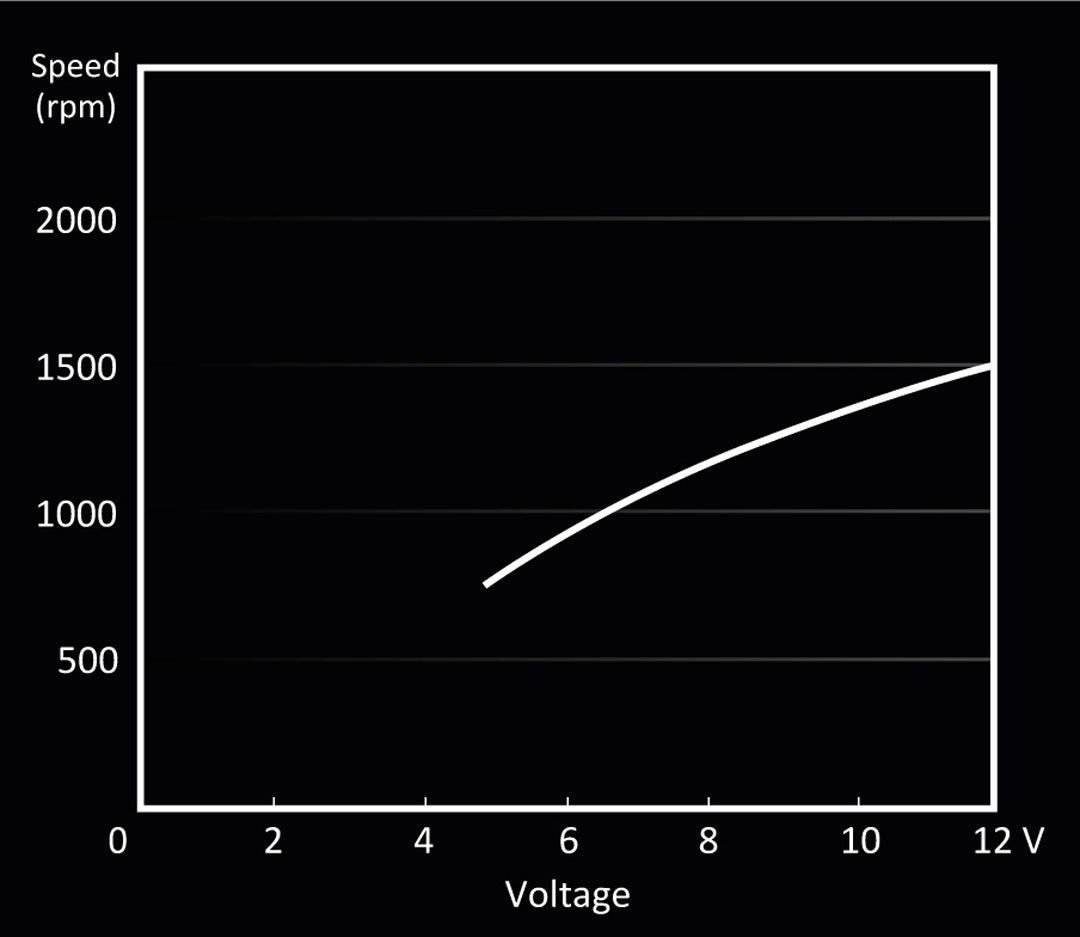

Fan speed @ 100% PWM / 12V (rpm): 1500
Noise level @ 100% PWM / 12V (dB(A)): 19.2
Air Flow @ 100% PWM / 12V (CFM / m3/h): 51.4 / 87
Air Pressure @ 100% PWM / 12V (mm H2O): 1.25
Mechanical Specifications

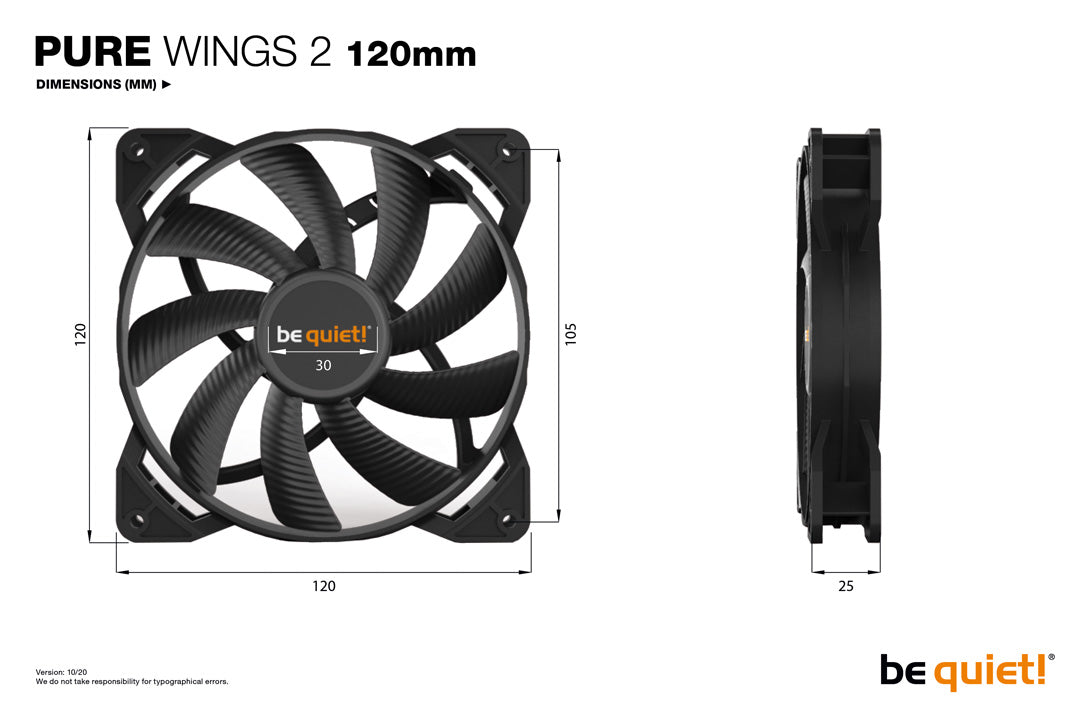

Dimensions (L x W x H), (mm): 120 x 120 x 25
Weight incl. fixed cables (g): 130
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Push pin fixing: -
Screw fixing: Yes
Cables / Connectors
Daisy chain for lighting signal: -
Lighting connector: -
Connector: 3-pin
Cable length (mm): 460
Cable sleeve: -
Performance / Noise
Air Flow @ 100% PWM / 12V (CFM / m3/h): 51.4 / 87
Air Pressure @ 100% PWM / 12V (mm H2O): 1.25
Noise level @ 100% PWM / 12V (dB(A)): 19.2
Lifespan (h / 25°C): 80,000
Electrical Specifications
Rated Voltage DC (V): 12
Operating Voltage DC (V): 5 - 12
Current consumption (A): 0.12
Safety current (A): 0.2
Input power (W): 2.4
Rated Current LED (A): -
Accessories
3-pin to 4-pin 12V-connector: -
12V to 7V adapter: -
12V to 5V adapter: -
Screws: 4
Push pins: -
hard plastic washer: -
Others: -
Safety Certification
Approvals: CE / TUV / UL
Environmental Directives
RoHs: -
Triman: -
Logistics Data
Article number: BL046
Dimensions, package (L x W x H), (mm): 155 x 120 x 28
Gross weight, package (kg): 0.158
