be quiet! Silent Base 802 Black - PC Case

Add Your Review

Availability: Currently Out of Stock

Manufacturer: be quiet!
Product Type: PC Case
Form Factor: Midi Tower
Motherboard Compatibility: E-ATX / ATX / Micro ATX / Mini-ITX

£166.95

Description
Specifications

Description

EXCELLENT VERSATILITY, PERFORMANCE AND SILENCE

The be quiet! Silent Base 802 Black is the perfect solution for sophisticated users who strive for whisper-quiet operation and maximum performance alike.

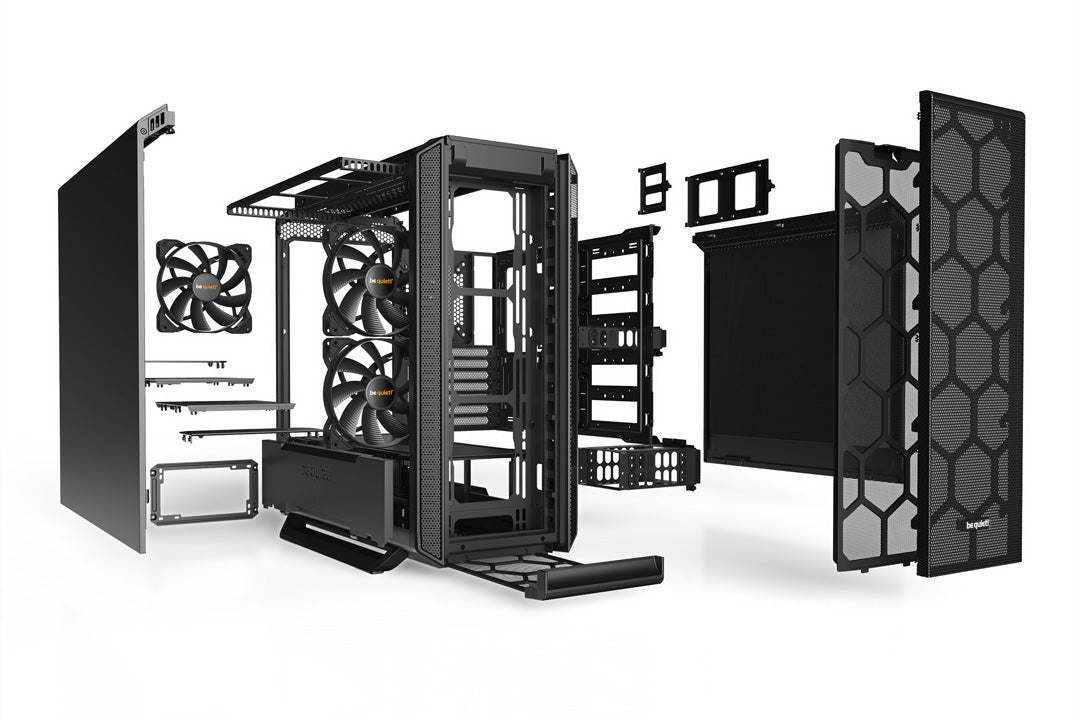

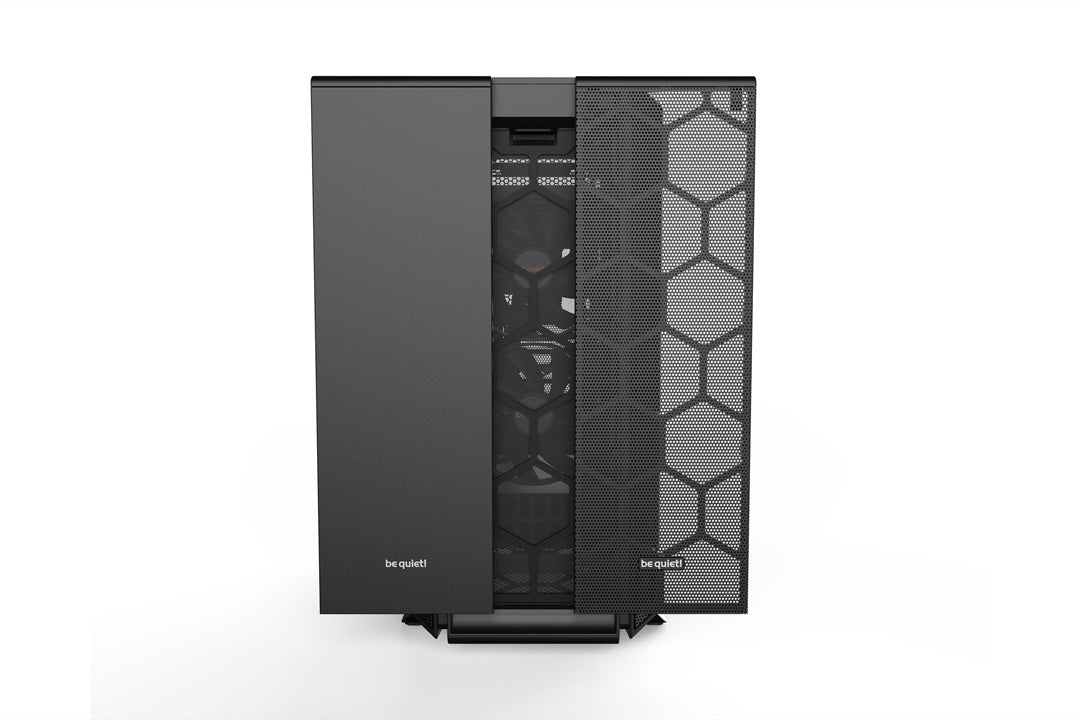

Interchangeable top cover and front panel for either maximum airflow or silent operation

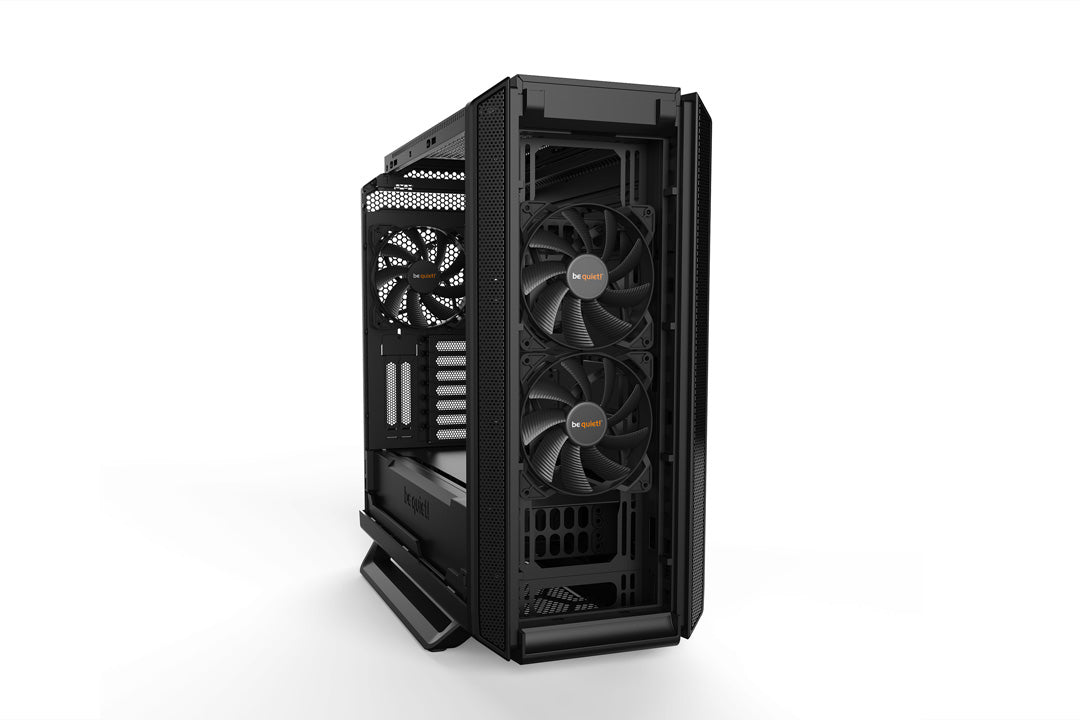

3 Pure Wings 2 140mm fans guarantee a perfect airflow
Extra thick insulation mats for improved noise reduction

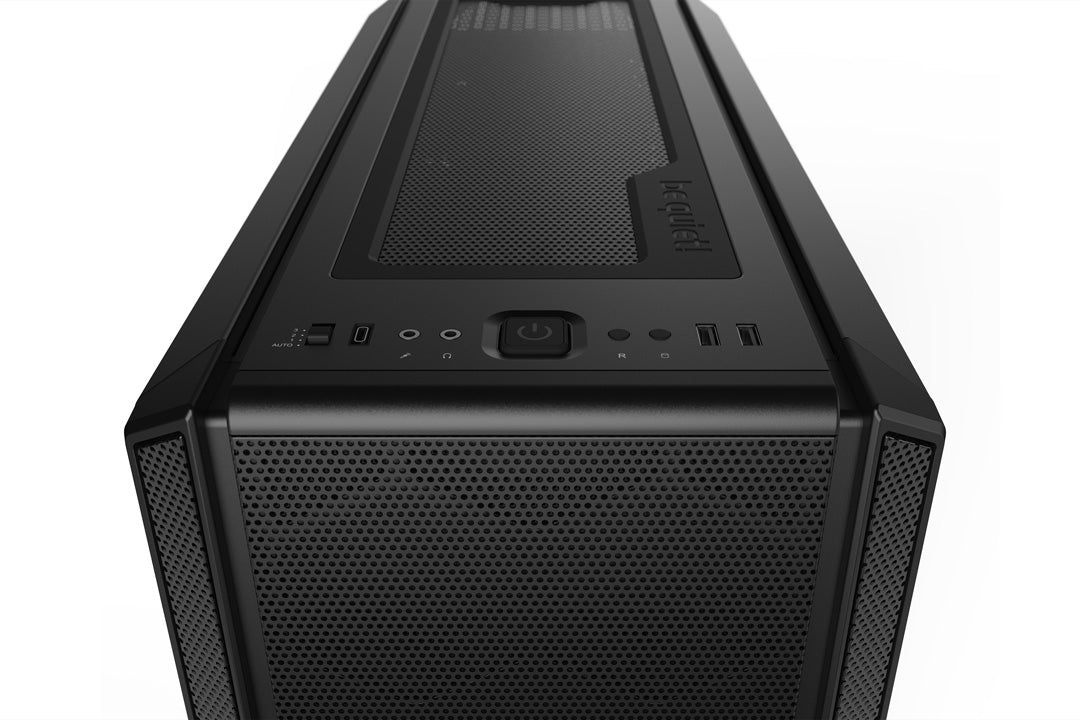

State-of-the-art I/O-panel with fan controller and USB 3.2 Gen. 2 Type C connector for usage of latest hardware
Fast and secure detachment of the side panels with push pins
PSU shroud provides a neat interior

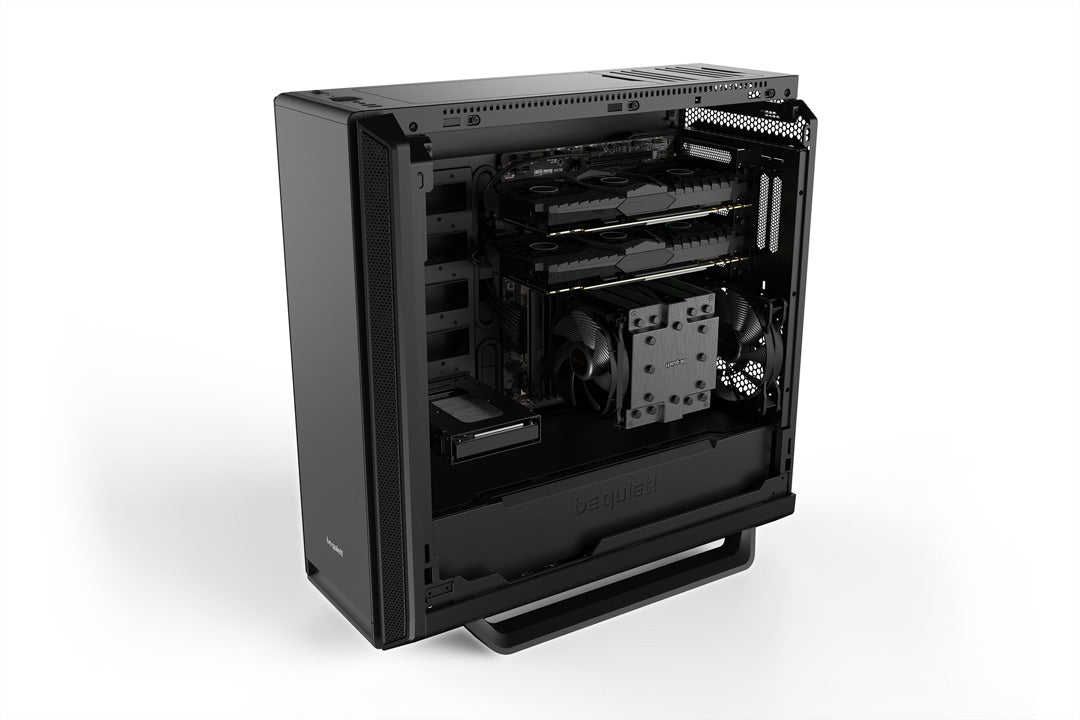

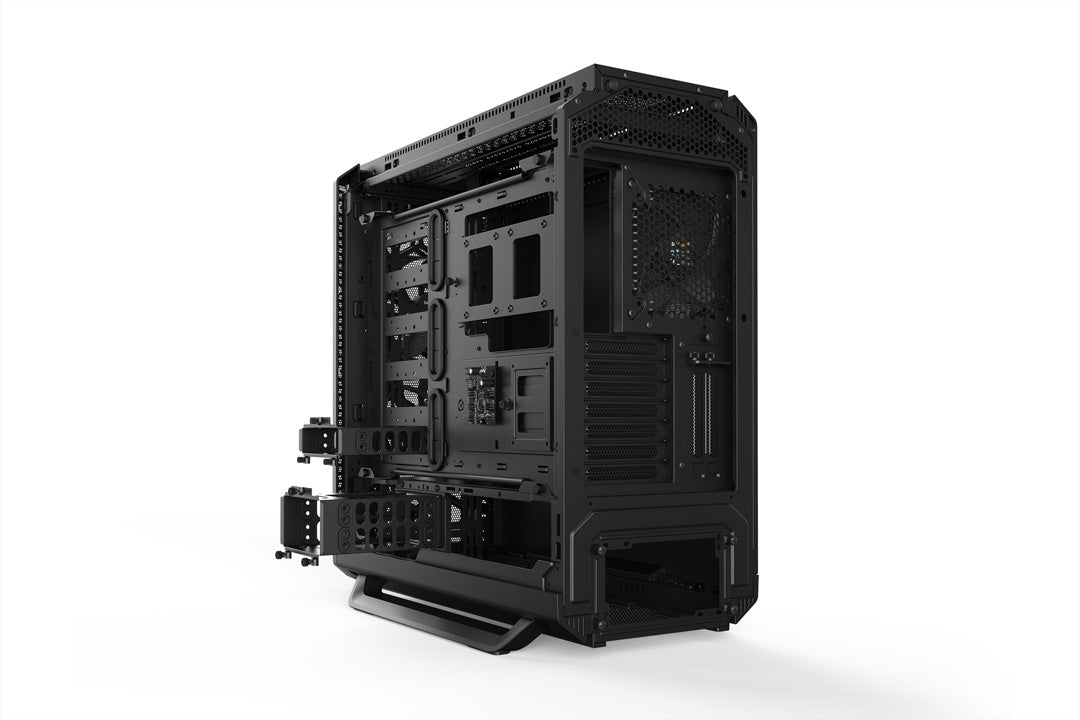

Decoupled motherboard tray can be relocated for an inverted layout
The power supply can be easily installed from the back of the case

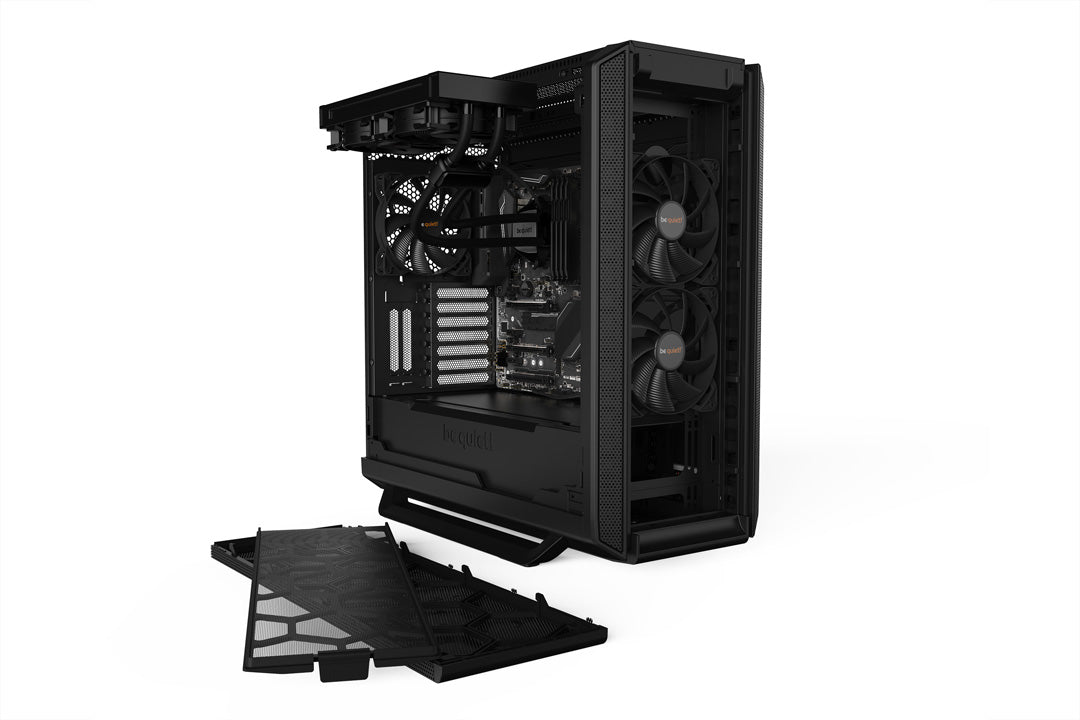

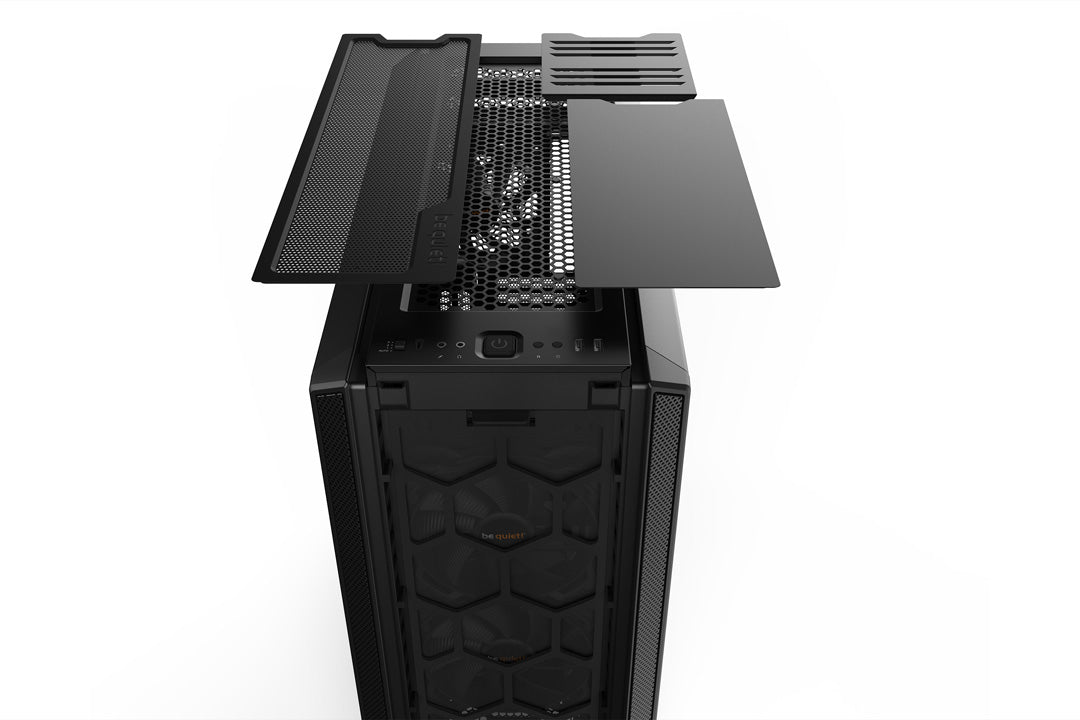

Detachable top bracket allows easy fan and radiator installation
Generous dimensions for radiators up to 420mm
Full metal body provides stability and a great haptic
3 year manufacturer’s warranty

Specifications

General data

Model	Silent Base 802 Black
Color option	Black
Motherboard compatibility	E-ATX (30.5 x 27.5cm) / ATX / M-ATX / Mini-ITX

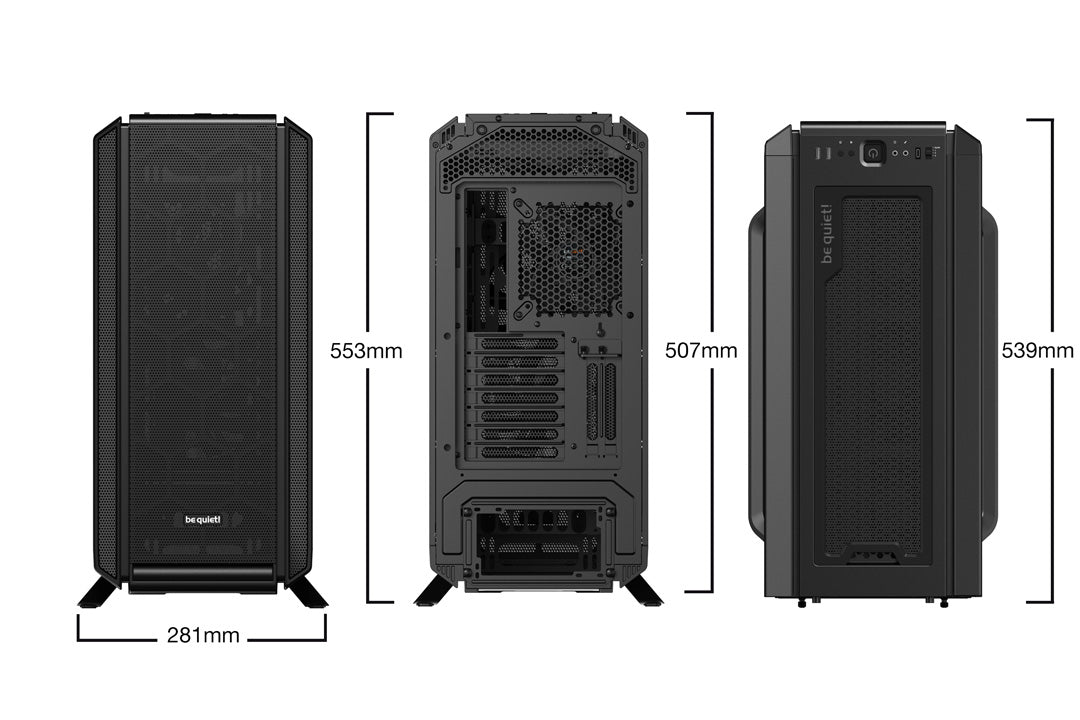

Case size excl. stands (L x W x H), (mm)	539 x 245 x 537
Case size incl. stands (L x W x H), (mm)	539 x 281 x 553
PSU form factor	ATX PS/2
Weight (kg)	12.59
Expansion slots	7 + 2

Pre-installed fans

Fan @ top	-
Fan @ front	2x Pure Wings 2 140mm
Fan @ rear	1x Pure Wings 2 140mm
Dimensions (L x W x H), (mm)	Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed @ 100% PWM / 12V (rpm)	1000
Airflow @ 100% PWM / 12V (cfm / m3/h)	61.2 / 104
Air pressure @ 100% PWM / 12V (mm H2O)	0.76
Noise level @ 100% PWM / 12V (dB(A))	18.8
Voltage range (V DC)	5 - 12
Input power (W)	1.44
Input current (A)	0.12
Connector	3-pin
Lifespan (h / 25°C)	80,000
Fan controller	4-step fan controller (6x 3-pin) with PWM Hub

Maximum fan installation

Top (mm)	3x 120 / 3x 140
Front (mm)	3x 120 / 3x 140
Rear (mm)	1x 140
Bottom (mm)	-
Side panel (mm)	-
PSU shroud	1x 120 / 1x 140

Optional radiator installation

Top (mm)	120 / 240 / 360
Front (mm)	120 / 140 / 240 / 280 / 360 / 420
Rear (mm)	120 / 140
Bottom (mm)	-

PSU compatibility

Maximum dimensions excl. bottom fan (mm)	288
Maximum dimensions incl. bottom fan (mm)	288

Graphics card

HDD cage (in height of graphics card) installed (mm)	287
HDD cage (in height of graphics card) removed (mm)	432

Drive bay capacity

5.25 bays	-
3.5 slots (max.)	7
3.5 slots (scope of delivery)	3
2.5 slots (max.)	15
2.5 slots (scope of delivery)	7

Cooling

Max.construction height of CPU cooler unit (mm)	185
Airflow channel	Front / Top / Rear

Lighting

RGB LED illumination	-
LEDs synchronizable with RGB controller/motherboard	-
Expandable RGB controller	-

I/O Panel

USB 3.2 Gen. 2 Type C	1
USB 3.2 Gen. 1	2
USB 2.0	-
HD Audio I/O	Mic + Audio
Qi charger / Quick Charging Option	-

Insulation and damping

Top panel insulation mats	✓
Front panel insulation mats	✓
Side panel insulation mats	✓
Anti-vibration decoupled HDD	✓
Anti-vibration decoupled fan	✓
Anti-vibration decoupled PSU	✓
Anti-vibration decoupled motherboard-tray	✓

Removeable dust filters

Front	1
Bottom	1
Side panel	-

Material

Top cover	ABS
Front panel	ABS
Side panel	Steel
Side panel window	-
Stands	ABS

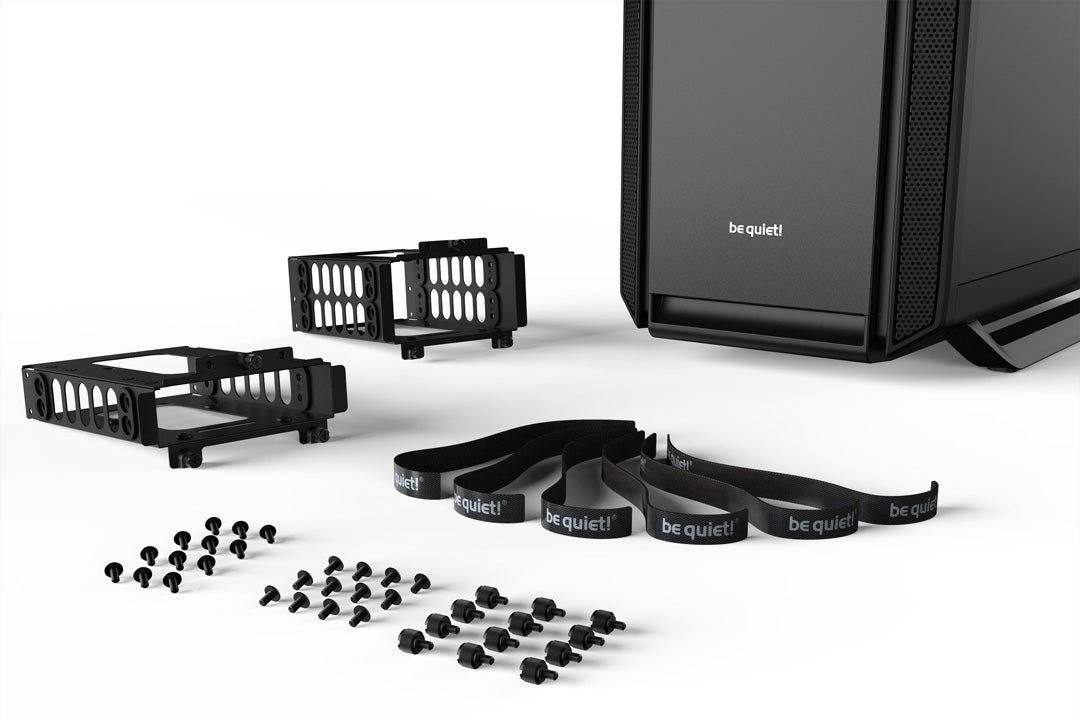

Scope of delivery

Screw set (Drives/Motherboard)	✓
Rubber rail (pcs.)	-
Standoff (pcs.)	1 (for E-ATX)
LCS bracket (pcs).	-
HDD slot cover (pcs.)	-
Upper fan bracket (pcs.)	-
HDD panel rubber grommet (pcs.)	-
SSD bracket for PSU shroud	-
LED strips (pcs.)	-
Cable ties (pcs.)	6 (Velcro)
