Gigabyte Nvidia RTX 4090 GAMING OC 24GB Triple Fan Graphics Card

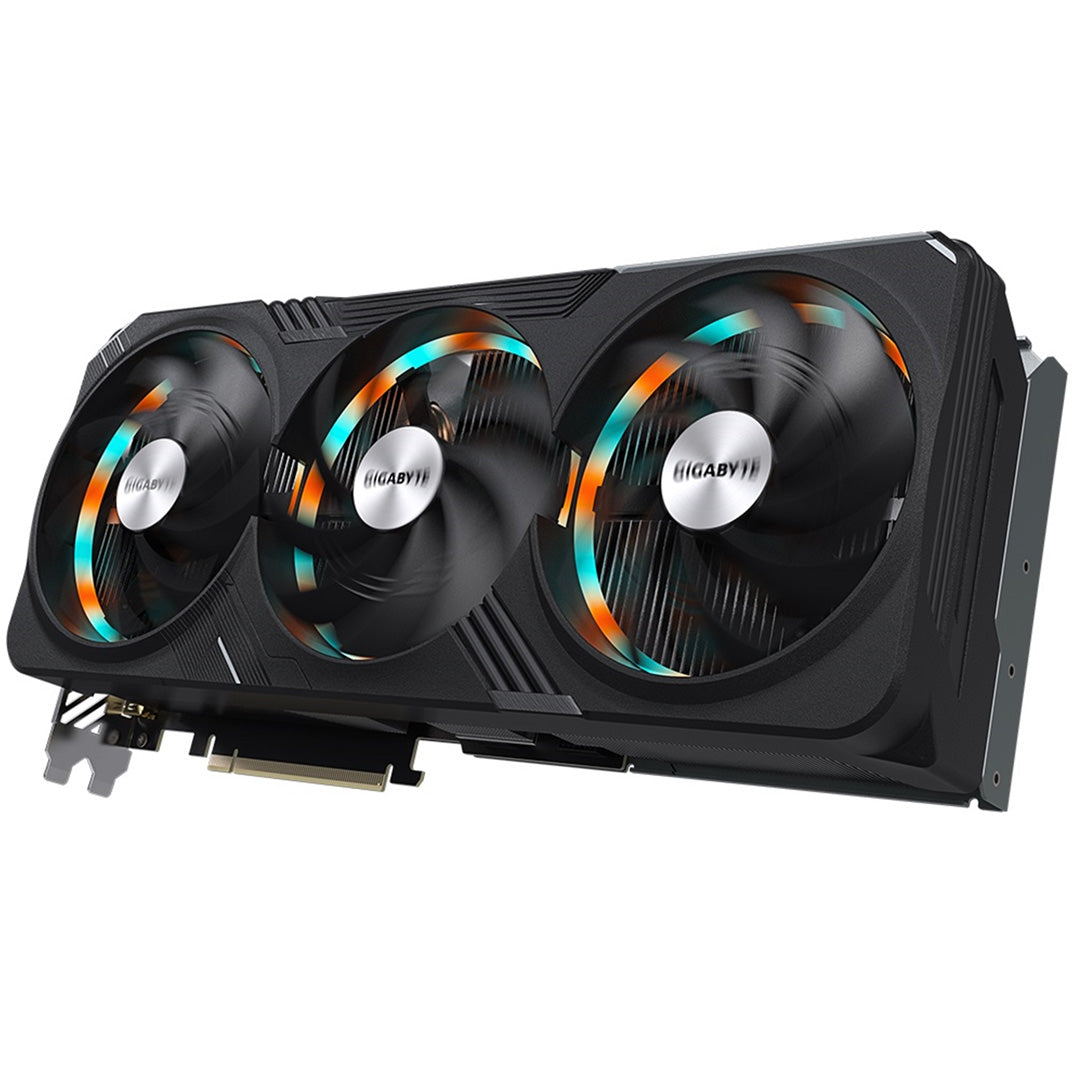

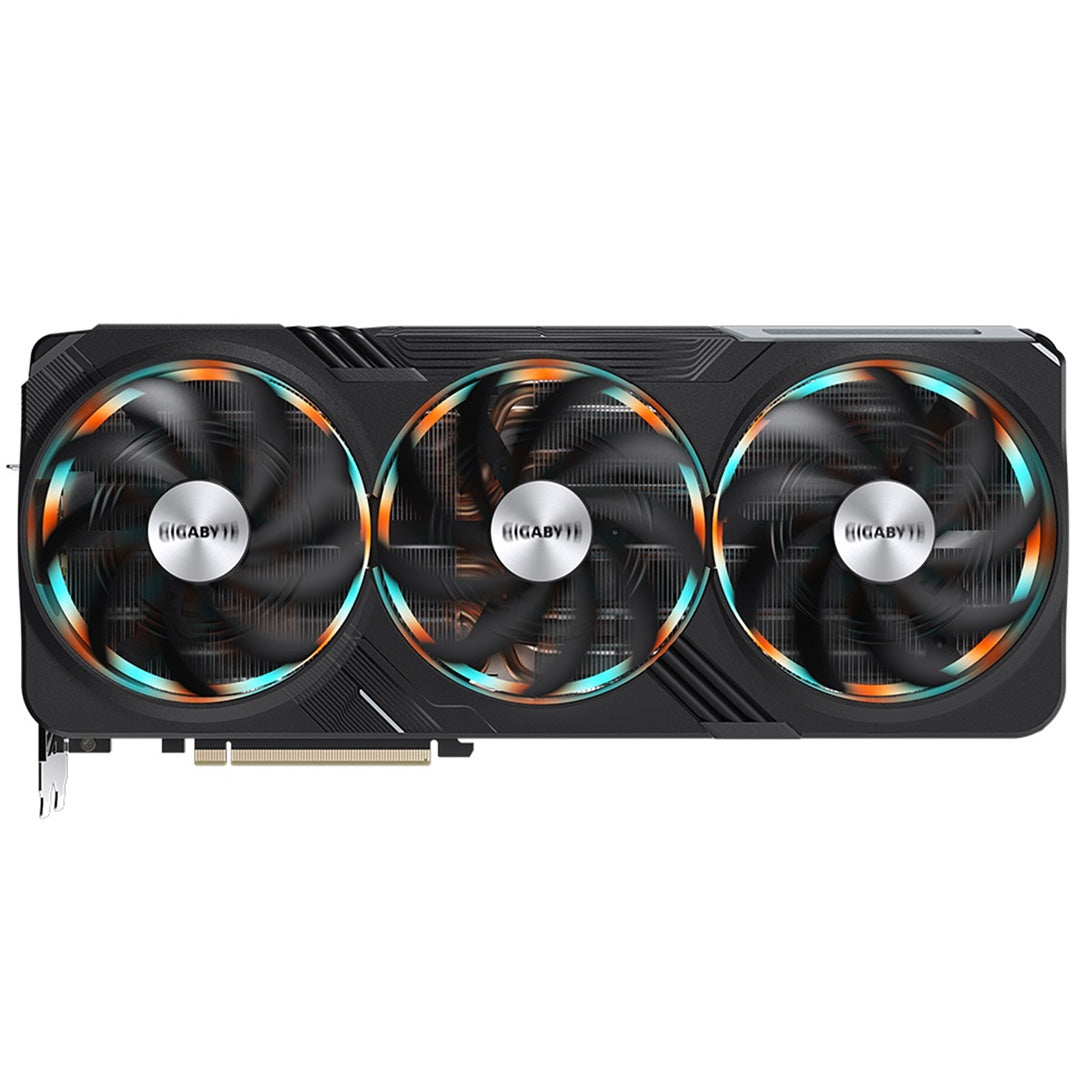

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

RGB FUSION
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Graphics Processing
GeForce RTX 4090

Core Clock
2535 MHz (Reference Card: 2520 MHz)

CUDA Cores
16384

Memory Clock
21 Gbps

Memory Size
24 GB

Memory Type
GDDR6X

Memory Bus
384 bit

Card Bus
PCI-E 4.0 x 16

Digital max resolution
7680x4320

Multi-view
4

Card size
L=340 W=150.2 H=75.2 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
1000W

Power Connectors
16 pin*1

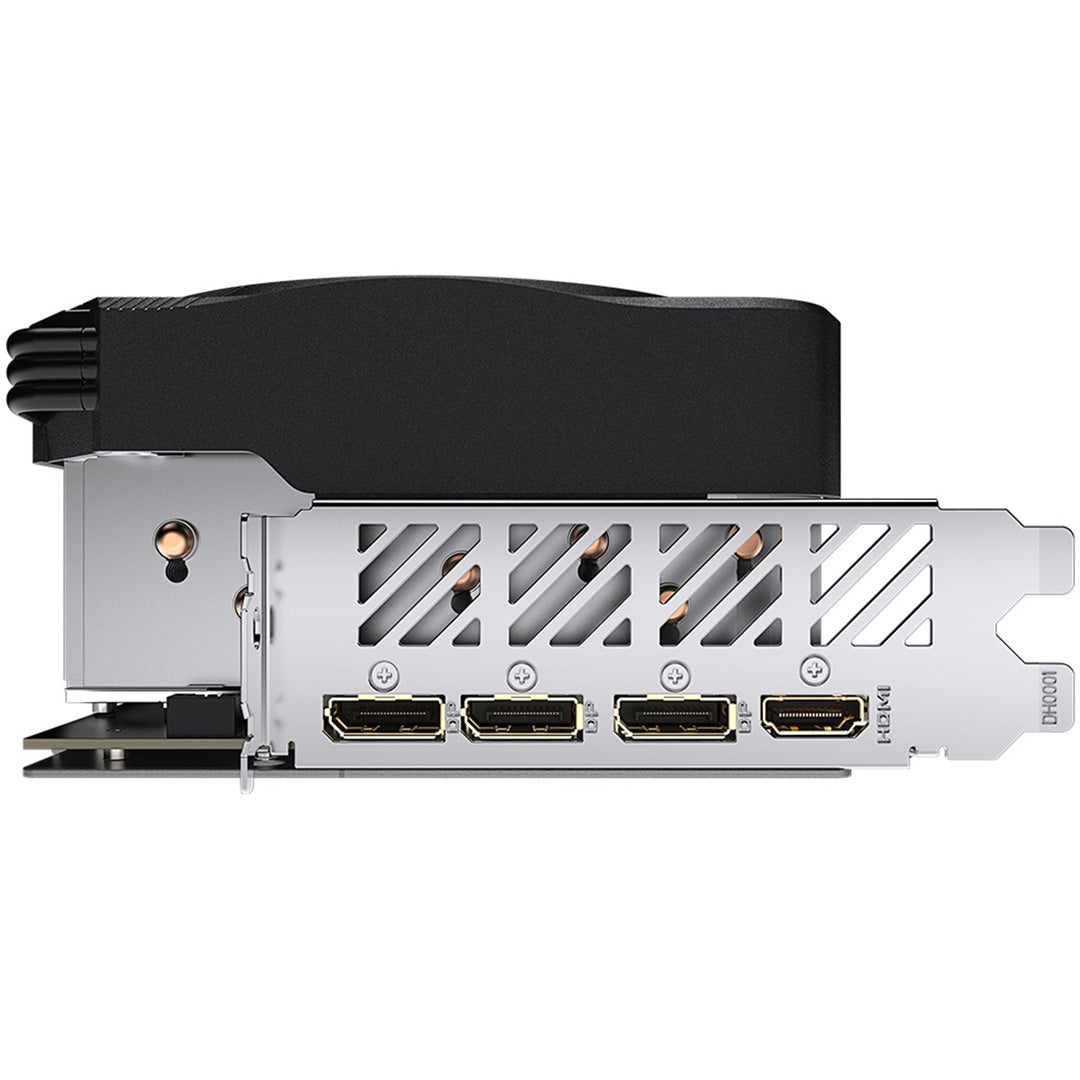

Output
DisplayPort 1.4 *3
HDMI 2.1 *1

Accessories
Quick guide
Warranty registration
Anti-sag bracket
Anti-sag bracket installation guide
One 16-pin to four 8-pin power adaptor
