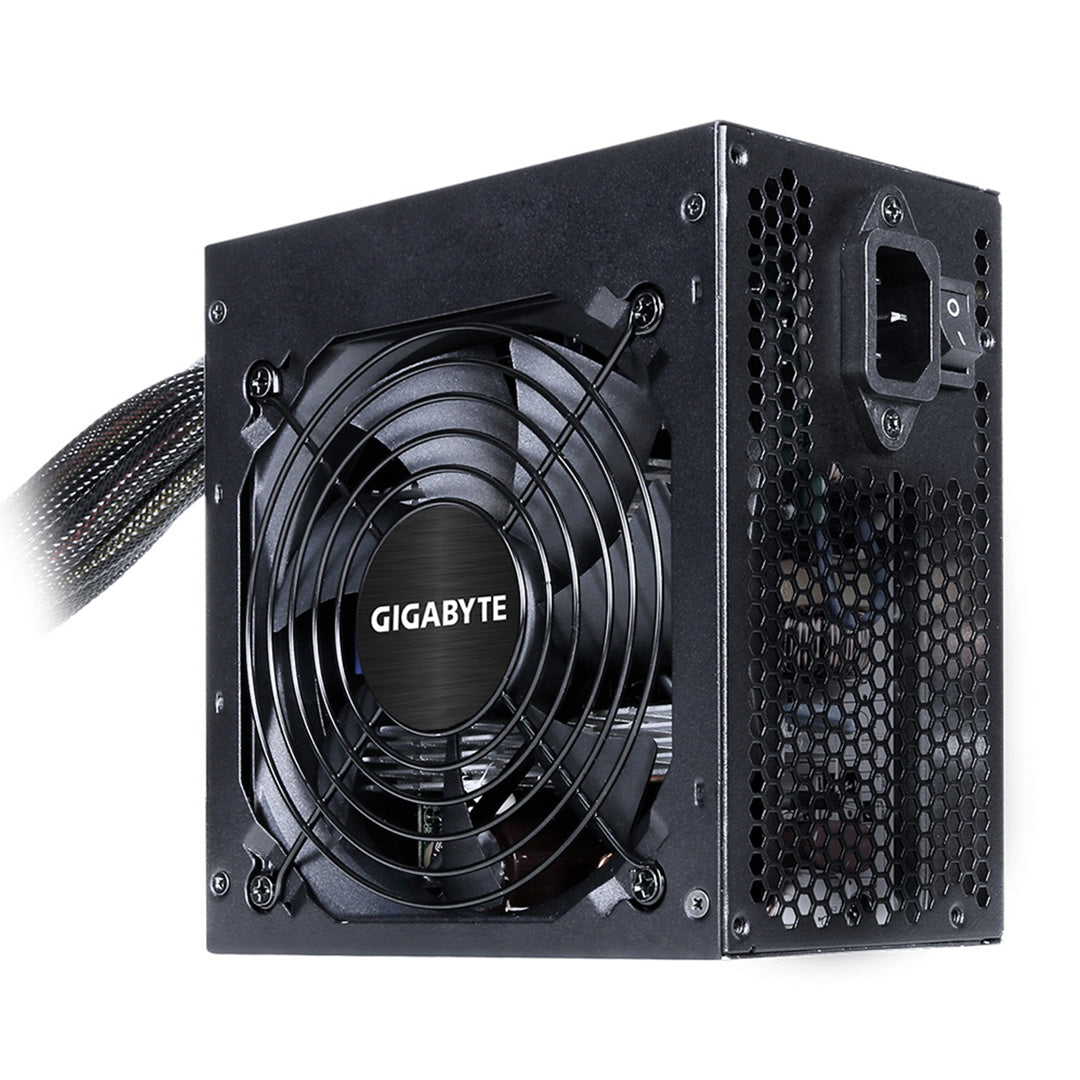

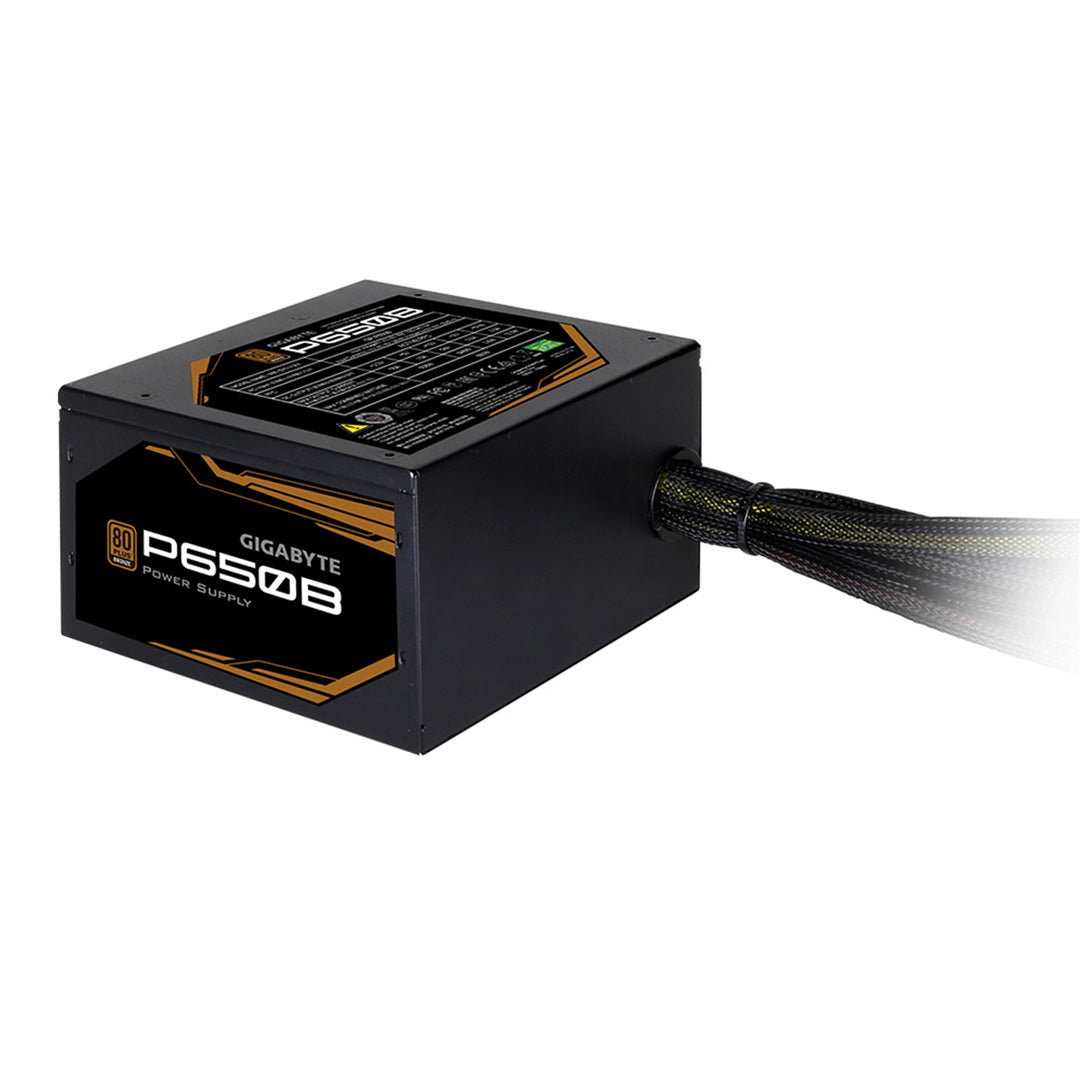

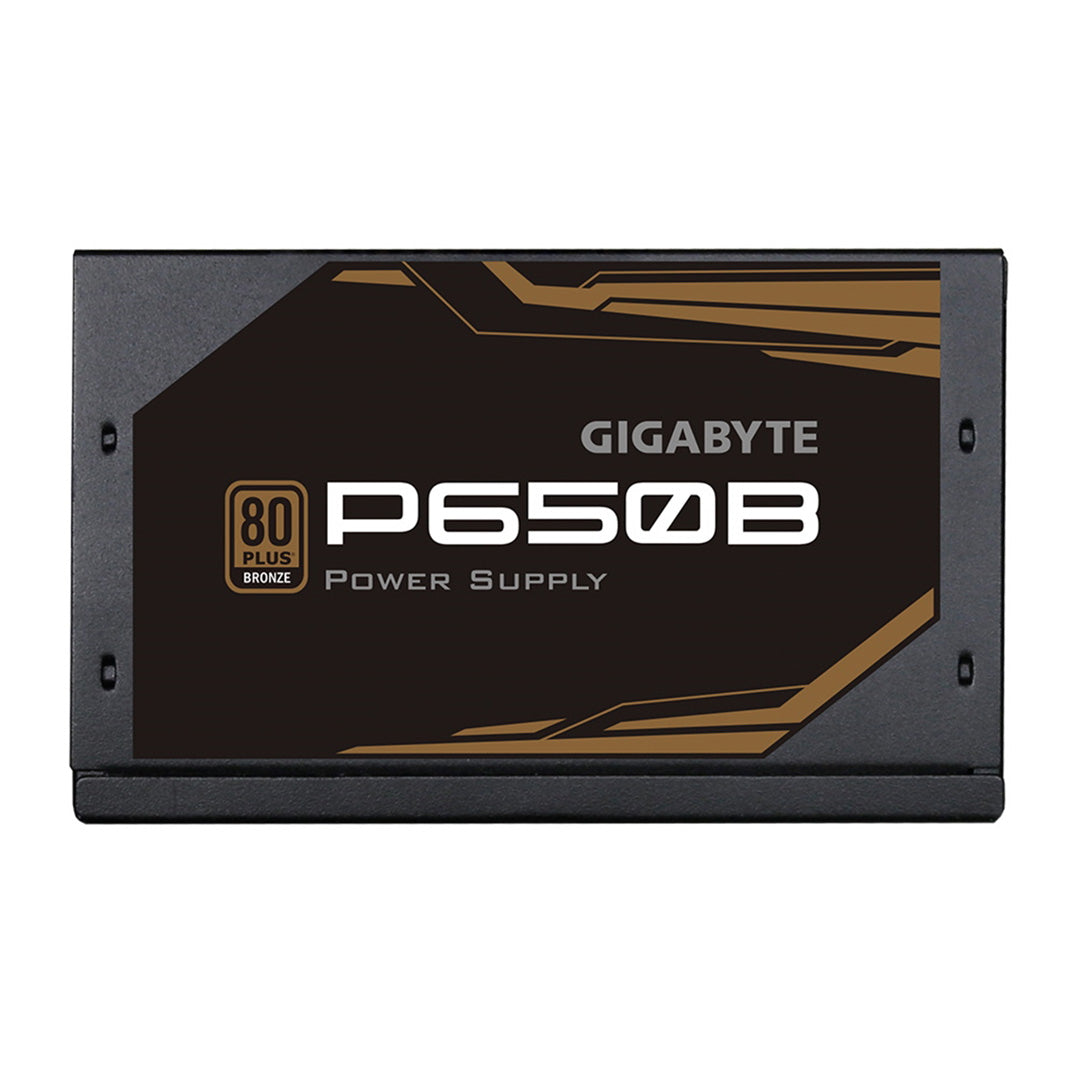

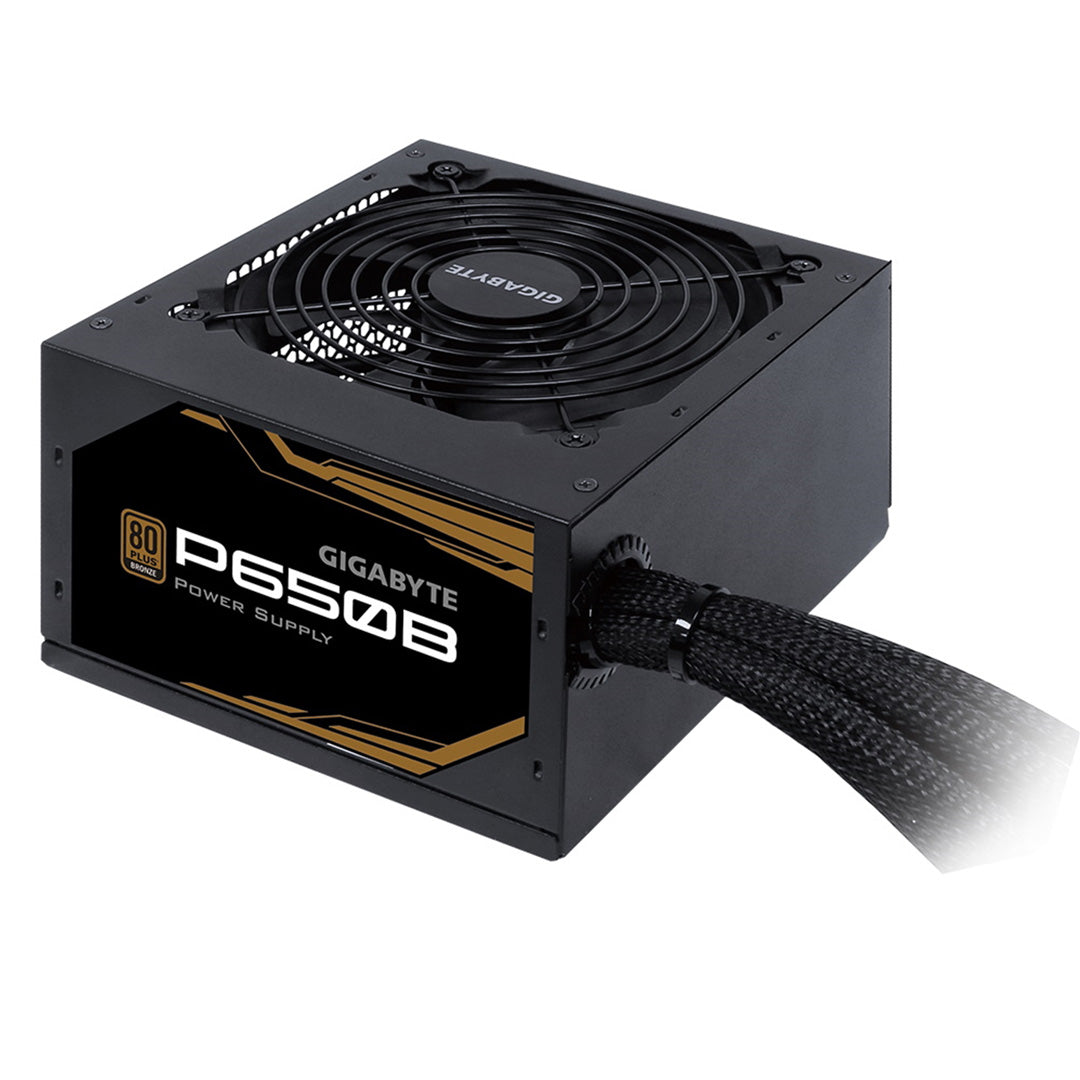

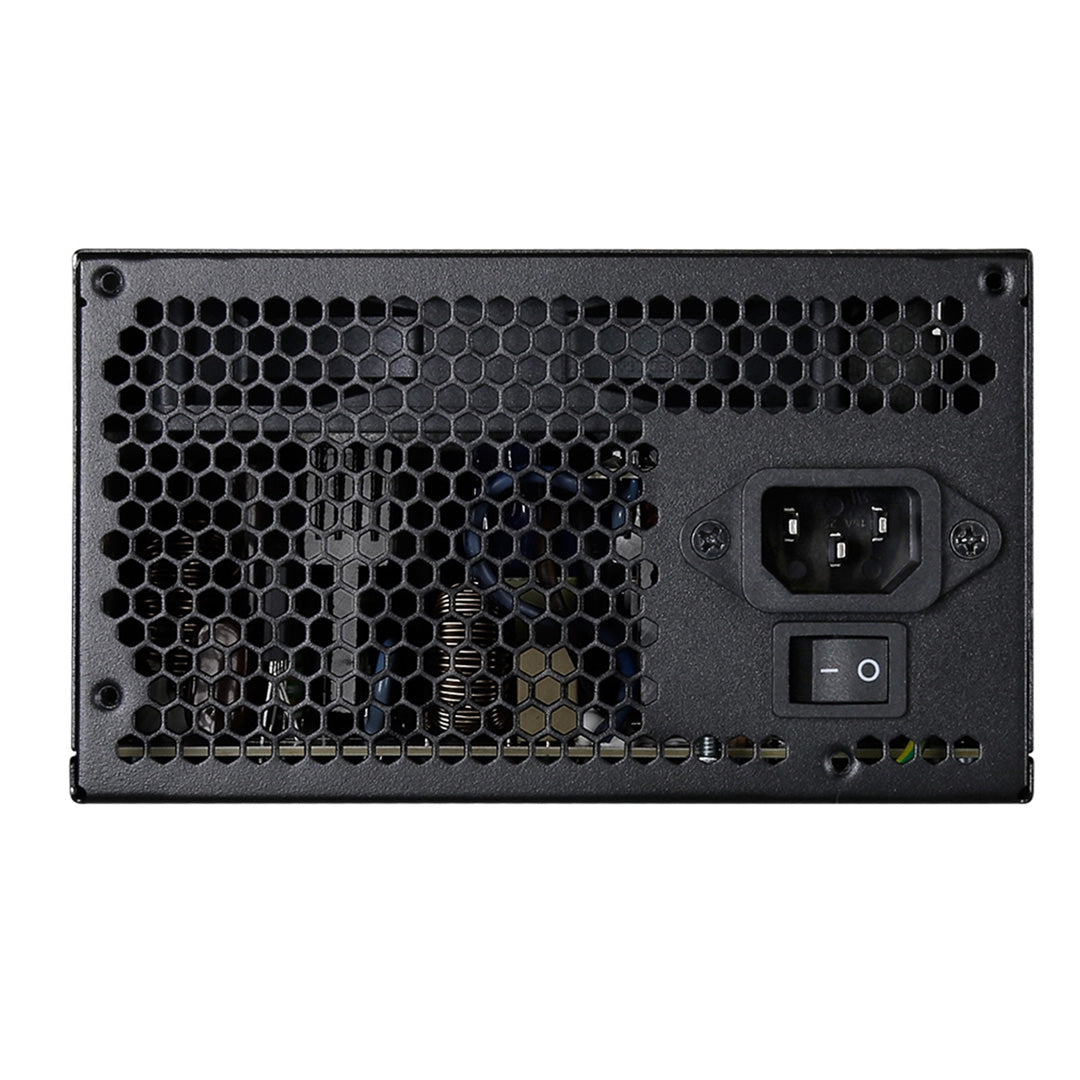

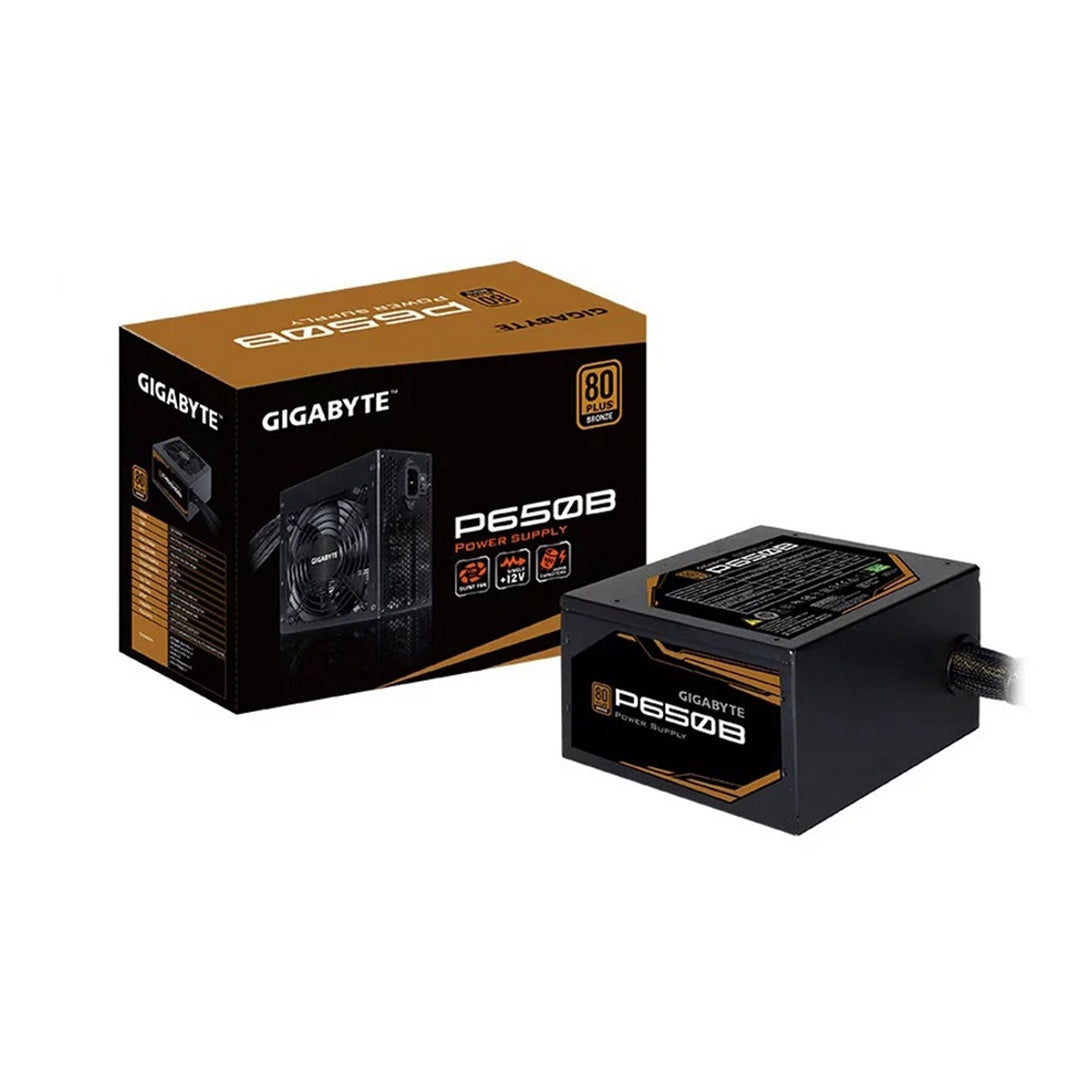

Gigabyte P650B 650W Power Supply

P650B
Power Supply

Features
- 80 PLUS bronze certified: up to 89% efficiency
- 100% Japanese Capacitors
- 120mm Hydraulic Bearing (HYB) Fan
- Single +12V rail
- Meet ErP LOT6 2013 (< 0.5W at standby mode)
- OPP/UVP/OVP/SCP/OCP protection
- 3 years warranty (Adjusted according to different regions)

80 Plus Bronze Certified
80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise. P650B can be up to 89% efficiency.

Reliable Mesh Braided Cable
P650B provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case.

100% Japanese Capacitors
All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

Single +12V Rail
Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation.

120mm Hydraulic Bearing (HYB) Fan
120mm Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.

Model
P650B

Type
Intel Form Factor ATX 12V v2.31

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)

Input Current
9A-4A

Input Frequency
50-60 Hz

Output Capacity
650W

Fan Type
120mm Hydraulic Bearing Fan

Efficiency
Up to 85% at typical load

MTBF
>100,000 hours

Protection
OPP/UVP/OVP/SCP/OCP

Regulatory
CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE

Connections
1 x ATX/MB 20+4 pins
1 x CPU/EPS 4+4 pins
4 x PCI-e 4+2 pins
6 x SATA
3 x Peripheral 4-pin
1 x Floppy 4-pin

Dimensions ( W x H x D )
140 x 86 x 150 mm
