Hyte PCIE40 4.0 Luxury Riser Cable - White

PCIE40 4.0 Luxury Riser Cable
A Luxury Aesthetic, High Performance Riser Cable

Why We Made This?
- Vertical graphics card
- EMI shielded, rigorously tested and built with high quality copper wires for ultimate - PCIE 4.0 x16 bandwidth performance.
- Half-height bracket, full-height bracket? Both options are included to allow for more case compatibility.
- Only aesthetic luxury PCIE 4.0 riser cable on the market that considers your new vertical GPU set up–now in all three canopy colors–just like the Y60!

Design

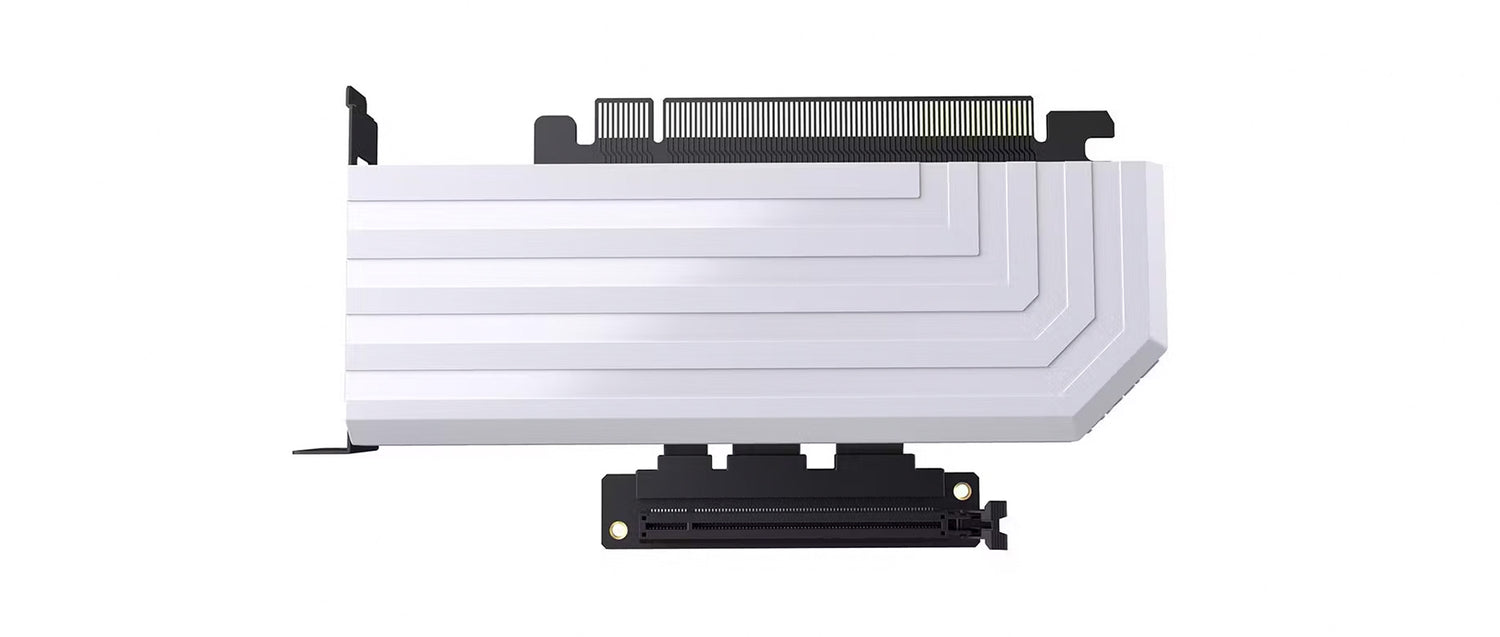

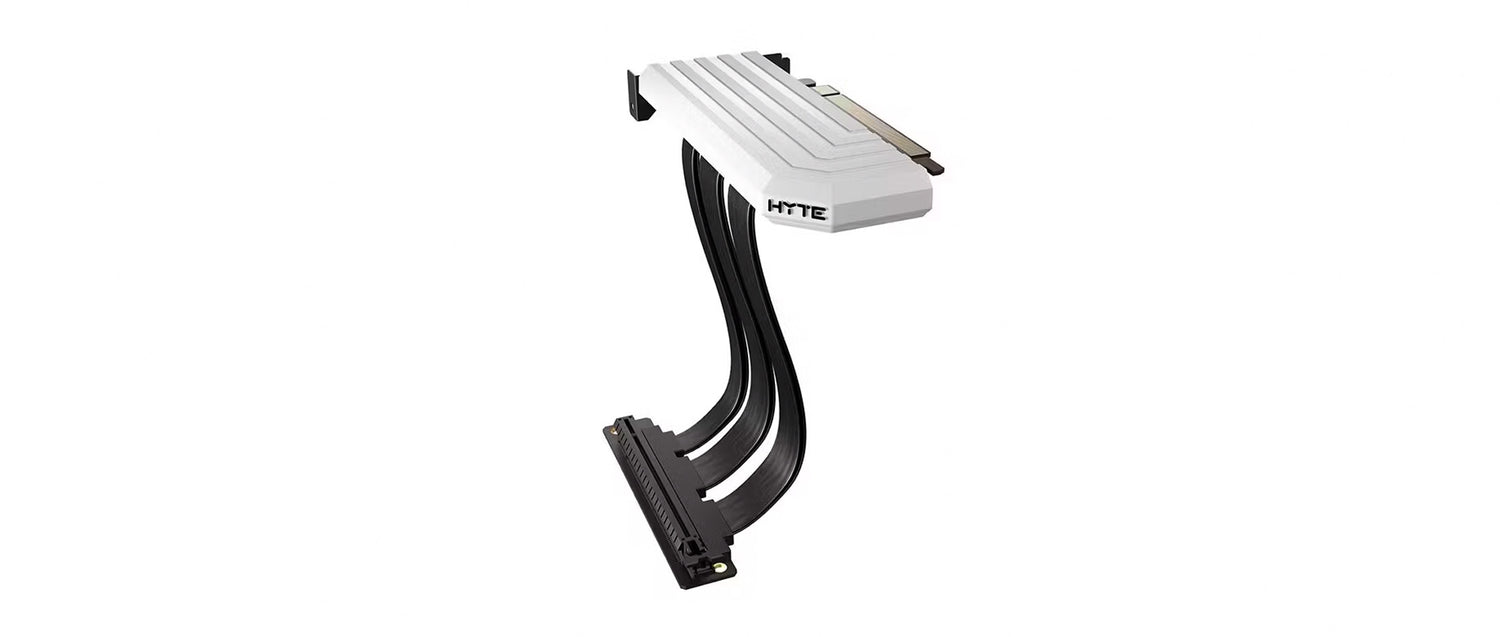

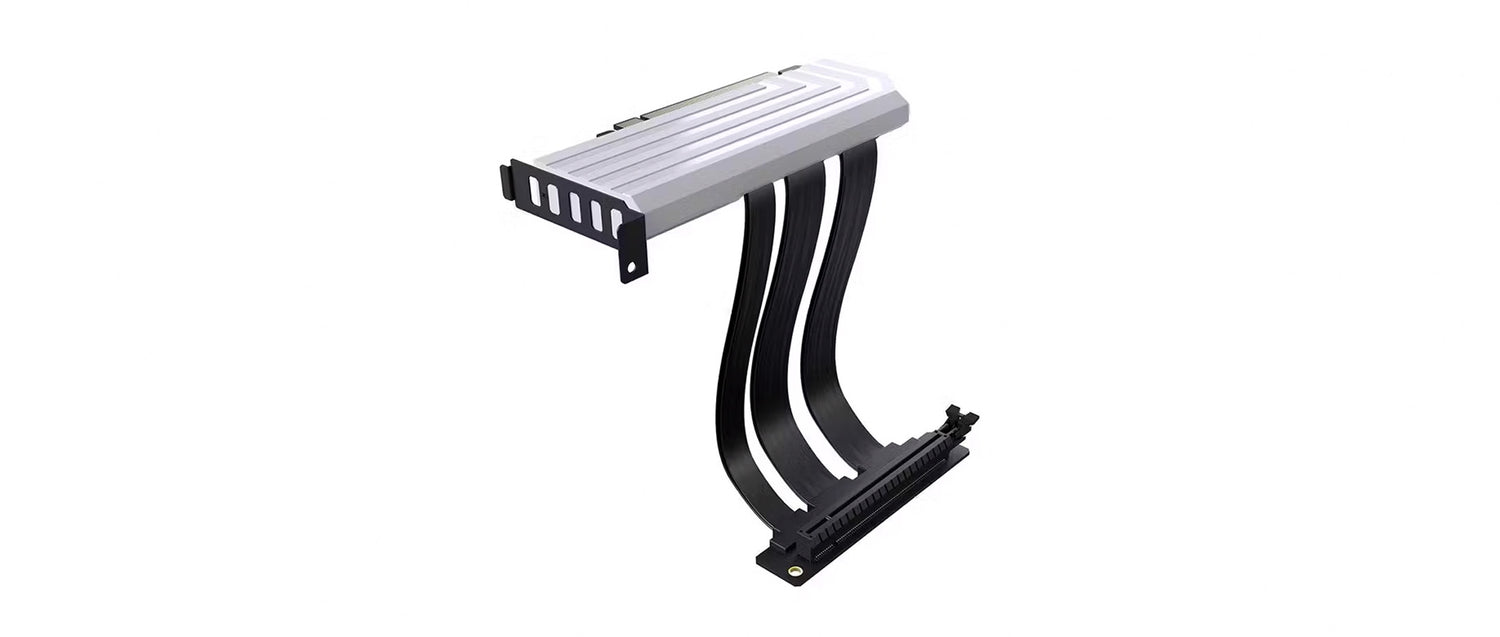

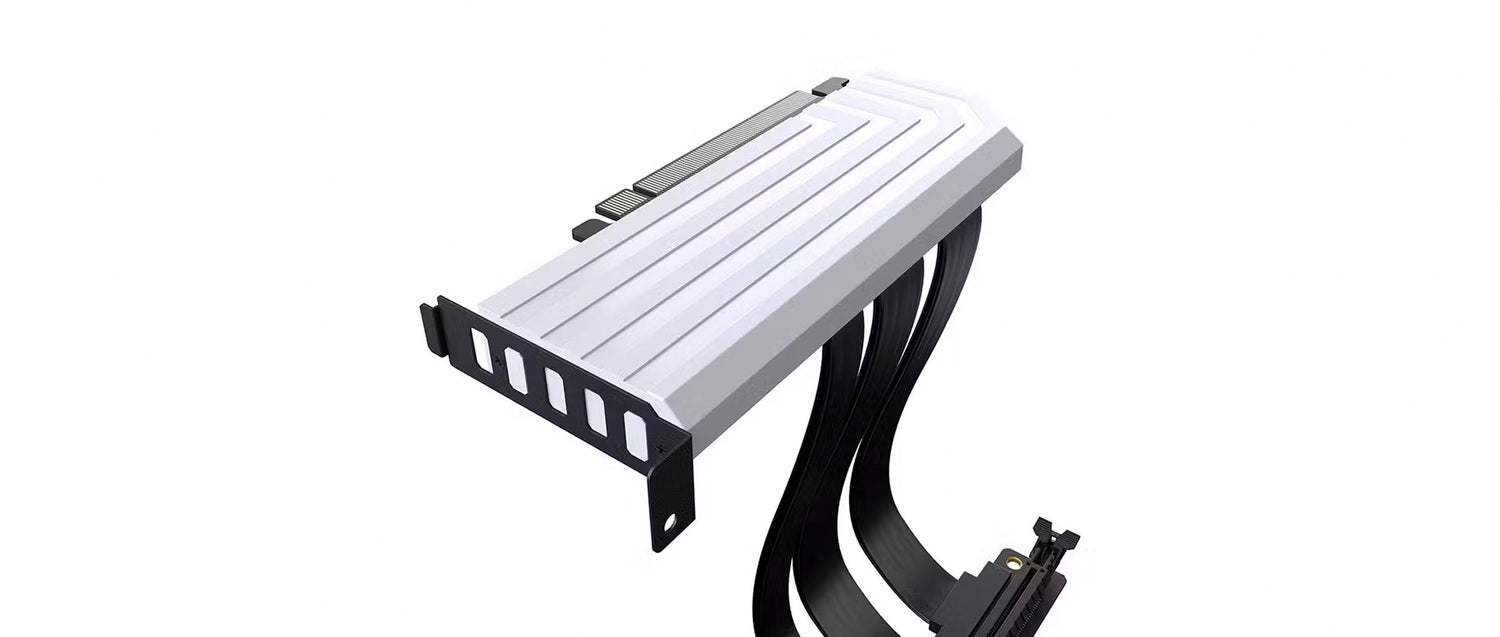

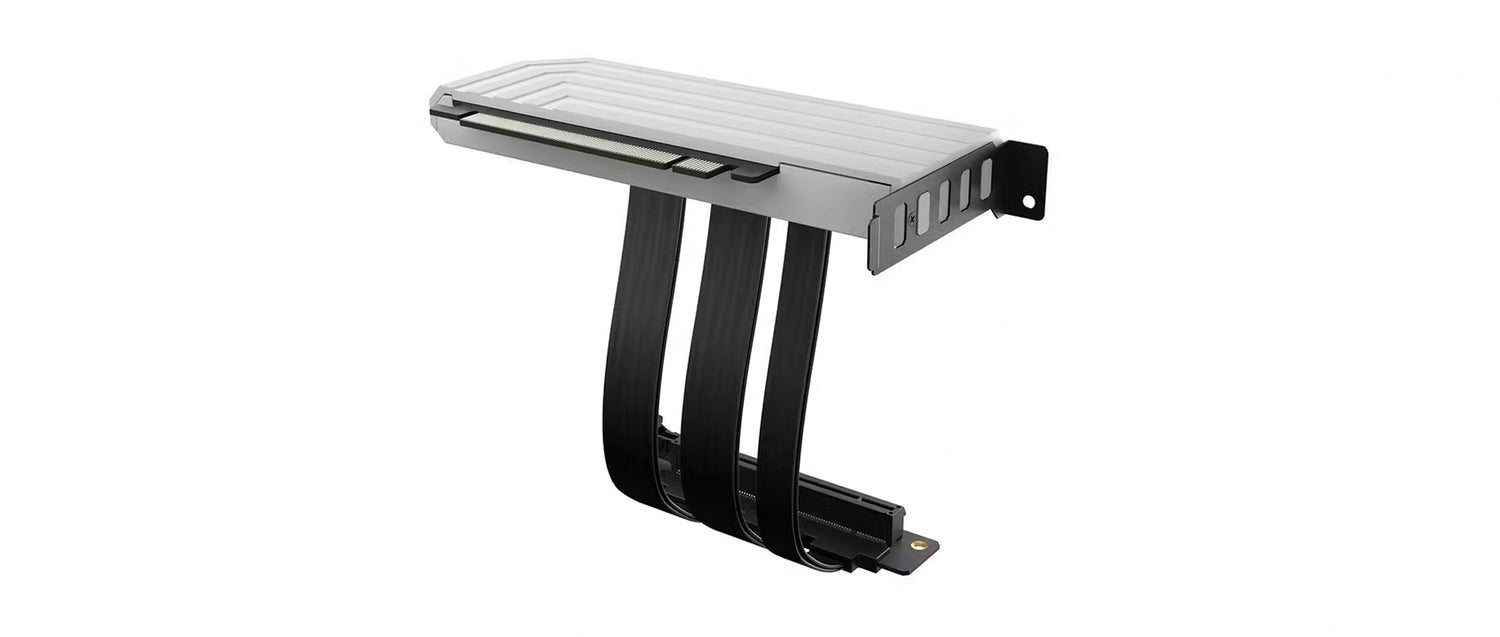

PCIE40 4.0 riser cable features a cover canopy available in 3 colors to add a premium look to vertical graphics compatible systems

Performance
Rigorously tested to comply with the PCI Express 4.0 standard, enjoy industry leading performance with full x16 bandwidth.

Stability
EMI shielded high quality copper wires guard against outside interference and crosstalk for a rock solid gaming experience.

Durability

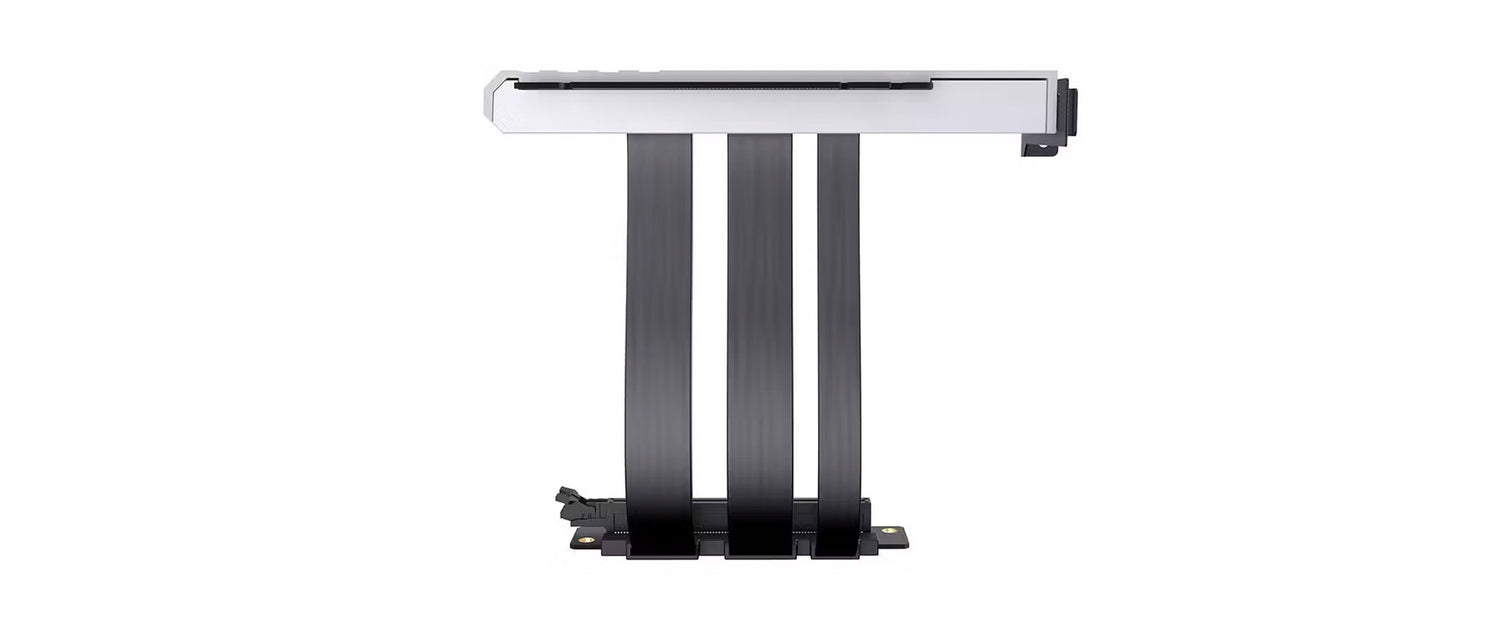

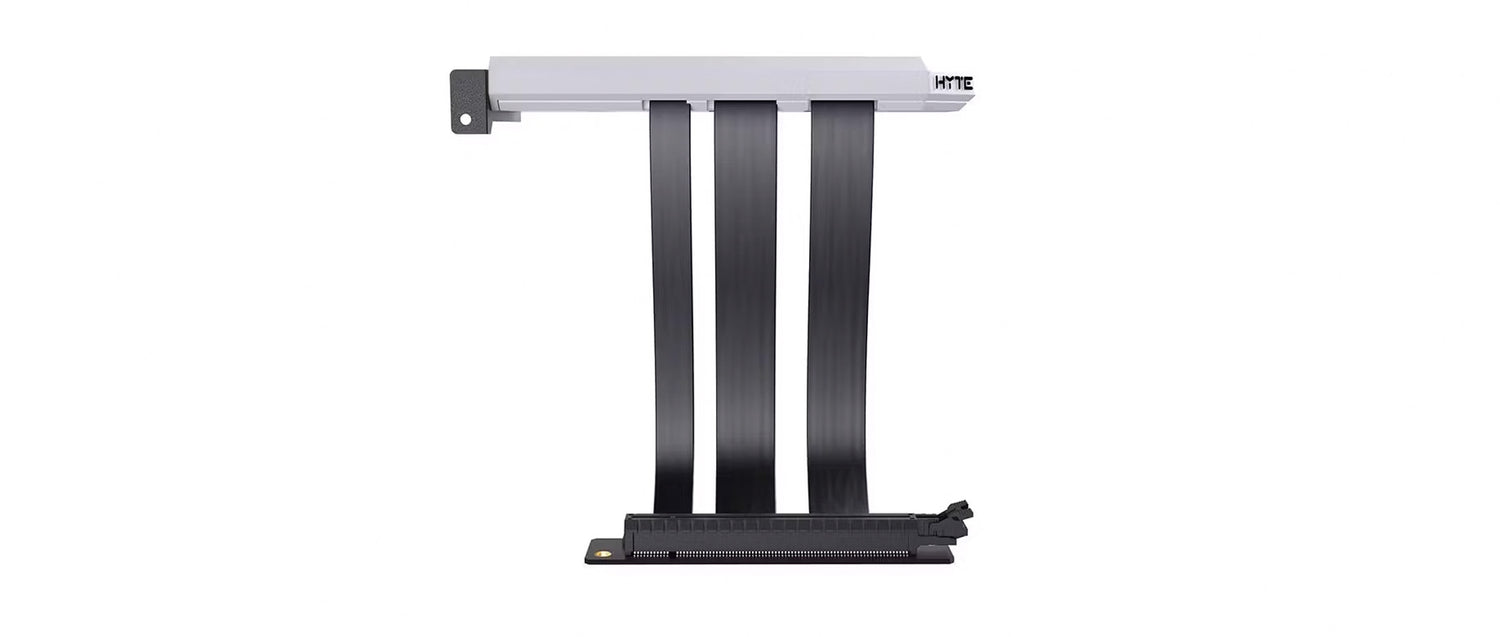

Highly flexible ribbons are protected from damage by a plastic coating and solder points are guarded by covers at both ends to avoid damage during installation.

Compatibility
With a total of 200mm of cable length and included full and half height pcie brackets, the PCIE40 is a breeze to install and compatible with a wide range of cases on the market.

PCI Express Generation
4.0 and older

PCI Express Lanes
16

Length
200mm

Conductor
30 AWG silver plated copper

Insulation
FEP

Ground Wire
32 AWG tinned copper

Pair Shield
Bottom, Side, Top

Pair Cover
Aluminum foil mylar tape

Outer Jacket
PET

Rated Voltage
PVC

Working Voltage and Current
30V 12V / 5A

- HYTE PCIE40 4.0 Riser Cable
- Full-height Bracket
- Half-height Bracket
- 6-32*6 Flat Head Screws x2
- M3*6 Self-tapping Screws x5
- Quick Start Guide
