MSI

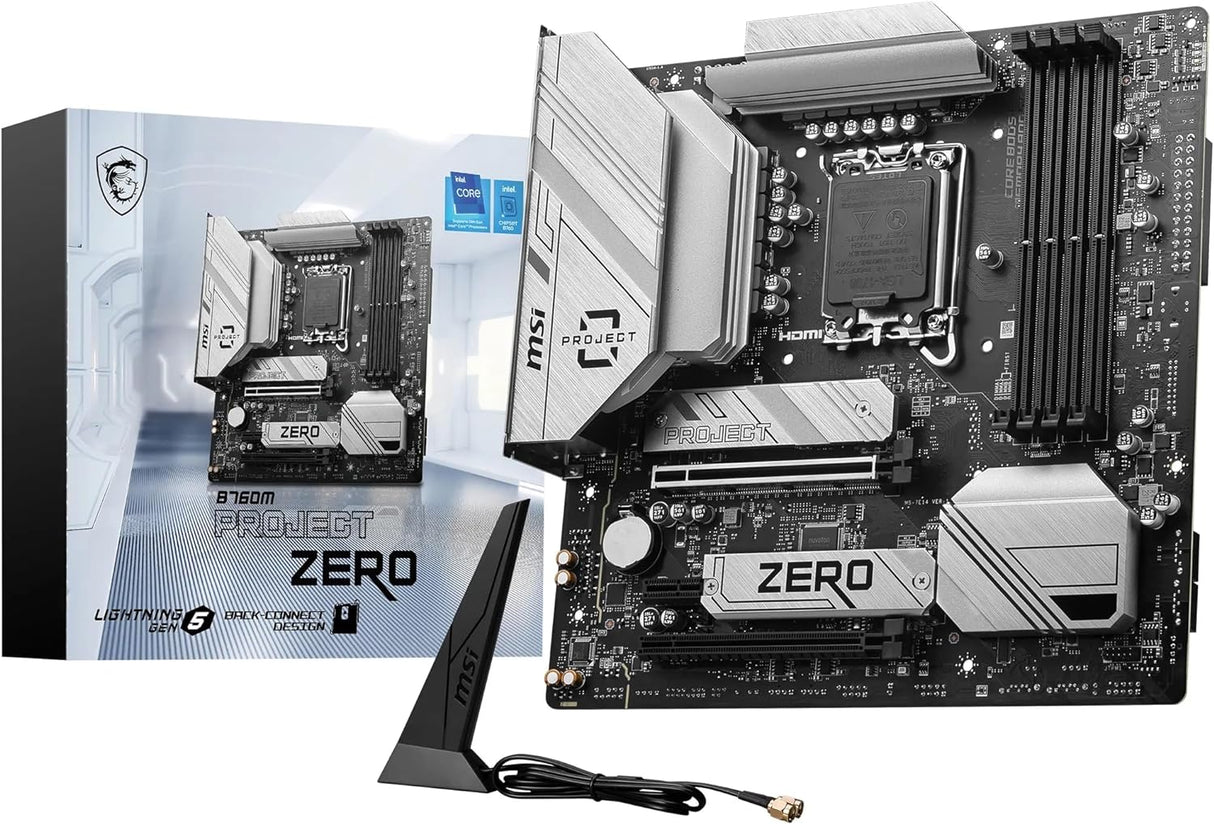

MSI B760M Project Zero Motherboard - Intel Socket 1700

Sold out
£229.00
⭐Earn 1603 TCG Points with this item⭐
  • Manufacturer: MSI
  • Product Type: Motherboard
  • Form Factor: MicroATX
  • Chipset: Intel B760
  • Socket: S1700
🚚 Delivery & Shipping

Delivery options are shown at checkout based on your basket, location and item size.

Most UK orders are sent with Royal Mail, DPD, Parcelforce or UPS. In-stock items are usually dispatched quickly on working days, but dispatch may take longer for pre-orders, back-orders, large items, mixed baskets, busy periods or orders requiring security checks.

Typical UK delivery aims:

  • Economy Delivery: 4–7 working days
  • Standard Delivery: 3–5 working days
  • Express Delivery: 1–3 working days
  • Large / heavy items: shown at checkout

Tracking details will be emailed once your order has been dispatched. Courier tracking may take a short time to update.

For urgent orders or release-day delivery questions, please contact us before ordering.

contact@thechelseagamer.email / 020 3141 3400

Description

B760M PROJECT ZERO
Absolute Simplicity
B760M PROJECT ZERO features the back-connect design, which allows for a cleaner front view and easier cable management, showcasing the beauty of simplicity.

  • Supports Intel Core 14th, 13th & 12th Gen Processors (LGA 1700)
  • 12 Phase Duet Rail Power System with 75A DrMOS
  • 4 x DDR5 DIMMs with Memory Boost: Dual Channel (192GB Max. / 7800MHz OC)
  • 1 x PCI-e 5.0 x16, 1 x PCI-e 4.0 x16, 1x PCIe 3.0 x1
  • Gen4 M.2 slots with M.2 Shield Frozr
  • 7.1 HD Audio with Audio Boost
  • USB 3.2 Gen 2x2 Type-C (20Gbps)
  • Realtek 2.5G LAN, Wi-Fi 6E & Bluetooth 5.3
Features

Cleaner Front View

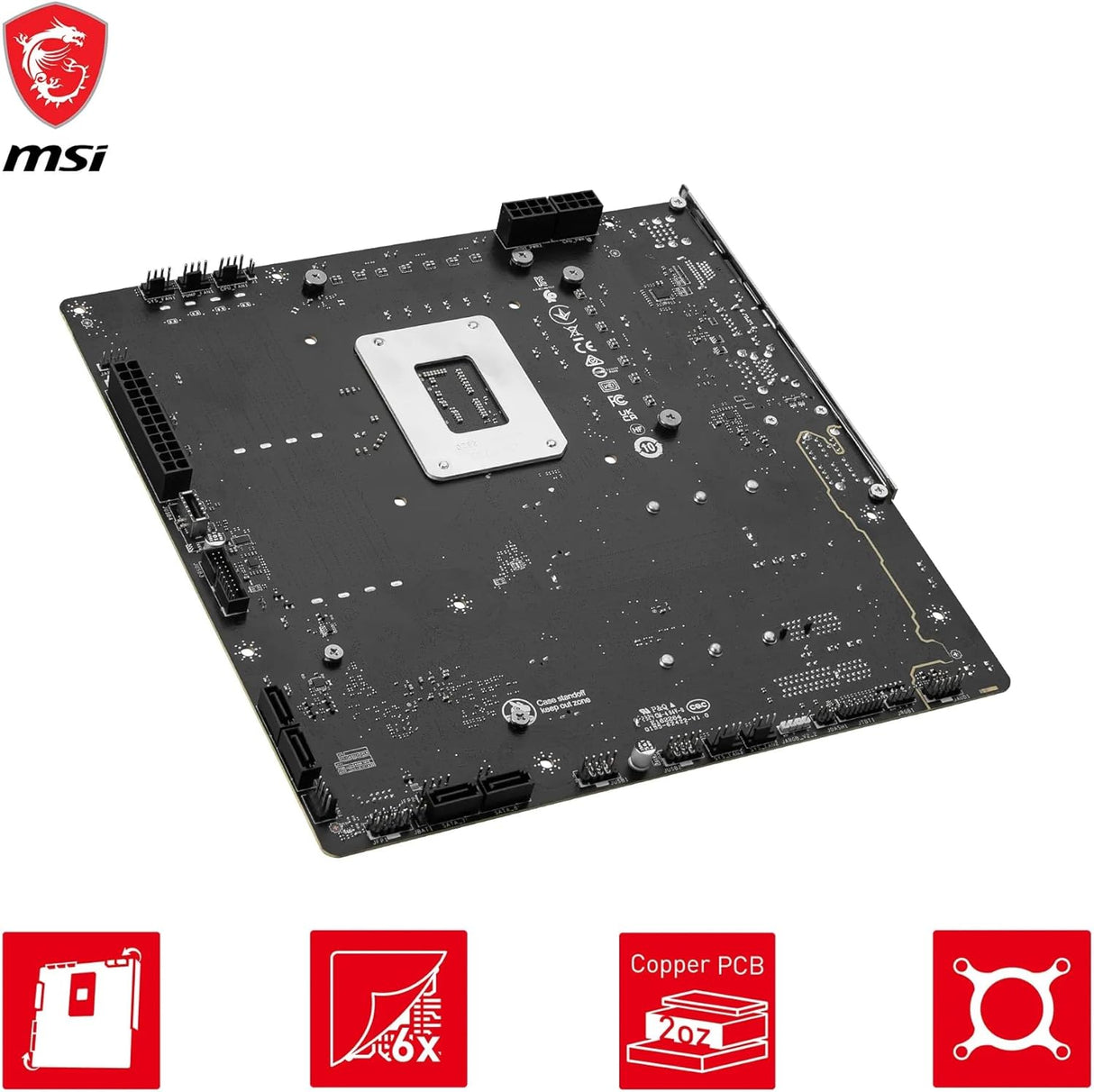

The B760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.

Back-Connect Design
Back-Connect Design: Moving the connectors to the back not only keeps the front clean but also makes connector access easier and more effortless.

Easy cable management: Eliminate the step of routing the cables from front to back to lower the difficulty of cable management.

Supports Intel Core 14th, 13th & 12th Gen Processors
The B760M PROJECT ZERO motherboard supports 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: Back-connect Micro-ATX*
Socket Type: LGA1700
Chipset: Intel B760

*Requires a compatible case.

12+1+1 Phase Duet Rail Power System with 75A DrMOS
With its dual 8 pin power connectors and exclusive Core Boost technology, the B760M PROJECT ZERO is able to sustain heavy CPU power loads to support system-demanding game settings:
1. Digital PWM IC
2. 12-Phase Duet Rail Power System (75A DrMOS)
3. 1-Phase GT Power
4. 1-Phase AUX Power

Integrated Cooling Features
VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

4 x DDR5 Dual Channel (7800+ MHz OC)*

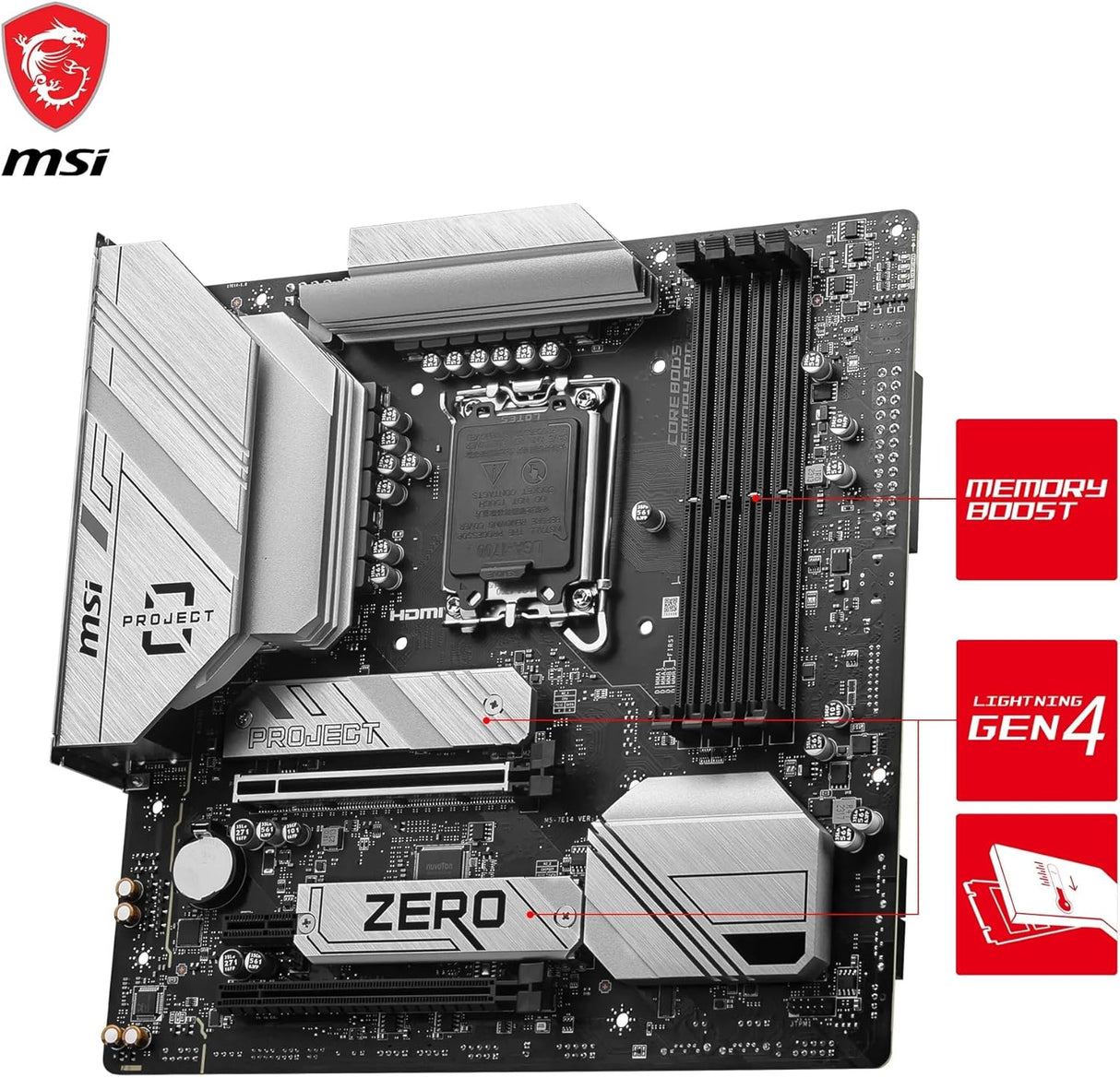

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 7800+ MHz, supports Intel XMP.

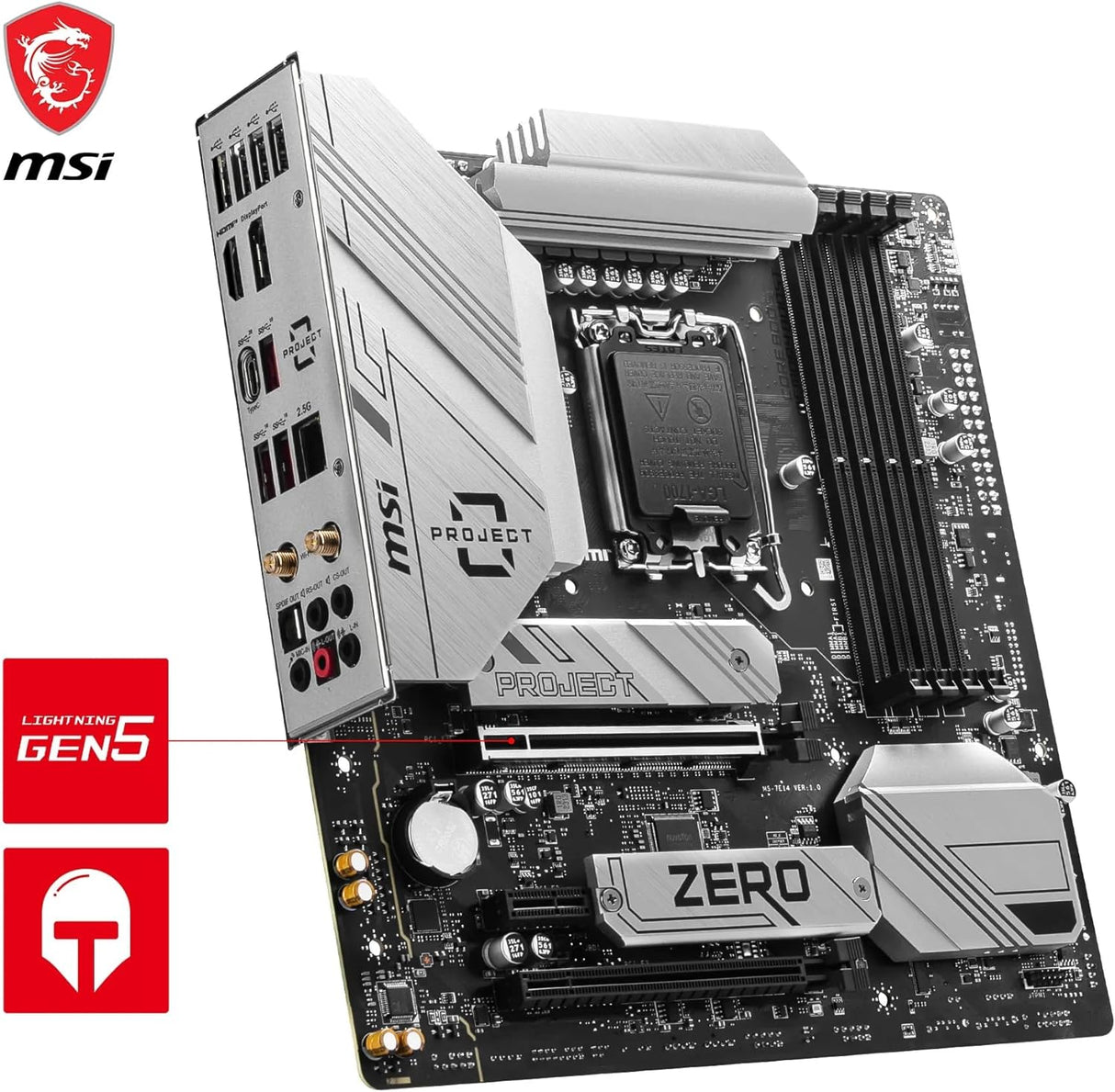

1 x Fortified PCI-e 5.0 x16 Slot
MSI PCI Express Steel Armor slot are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.

1 x PCI-e 5.0/4.0/3.0 x16 slot* (with Steel Armor**)

1 x PCI-e 4.0/3.0 x16 slot*

1 x PCI-e 3.0 x1 slot

*Supports x16/x4

**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen4 M.2 Connectors
The B760M PROJECT ZERO motherboard features MSI's Gen4 M.2 slots:
2 x Gen4 x4 64Gbps slots (with M.2 Shield Frozr)

Data Sheet

B760M PROJECT ZERO Data Sheet
