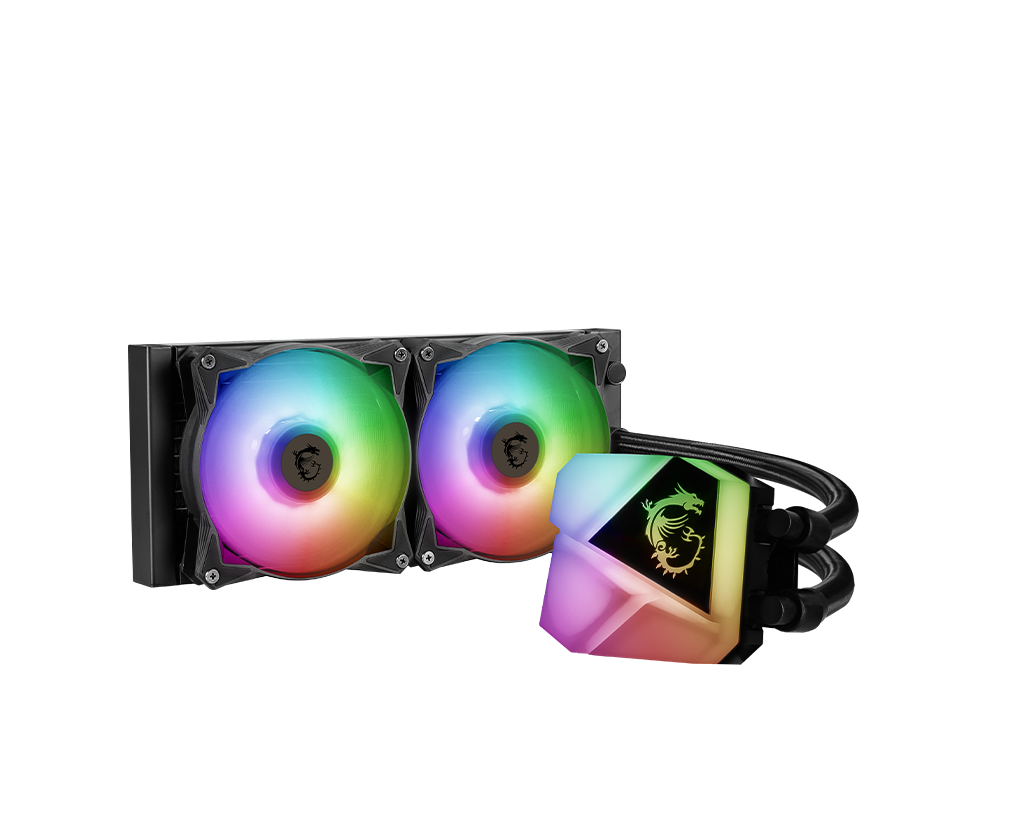

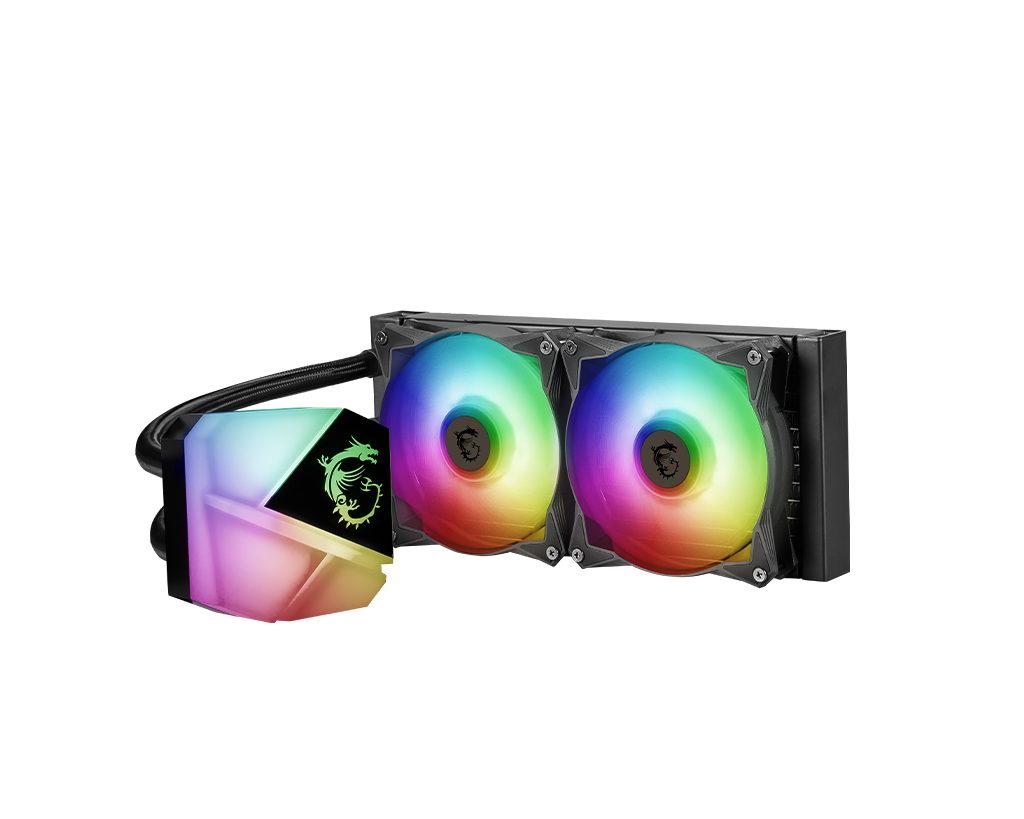

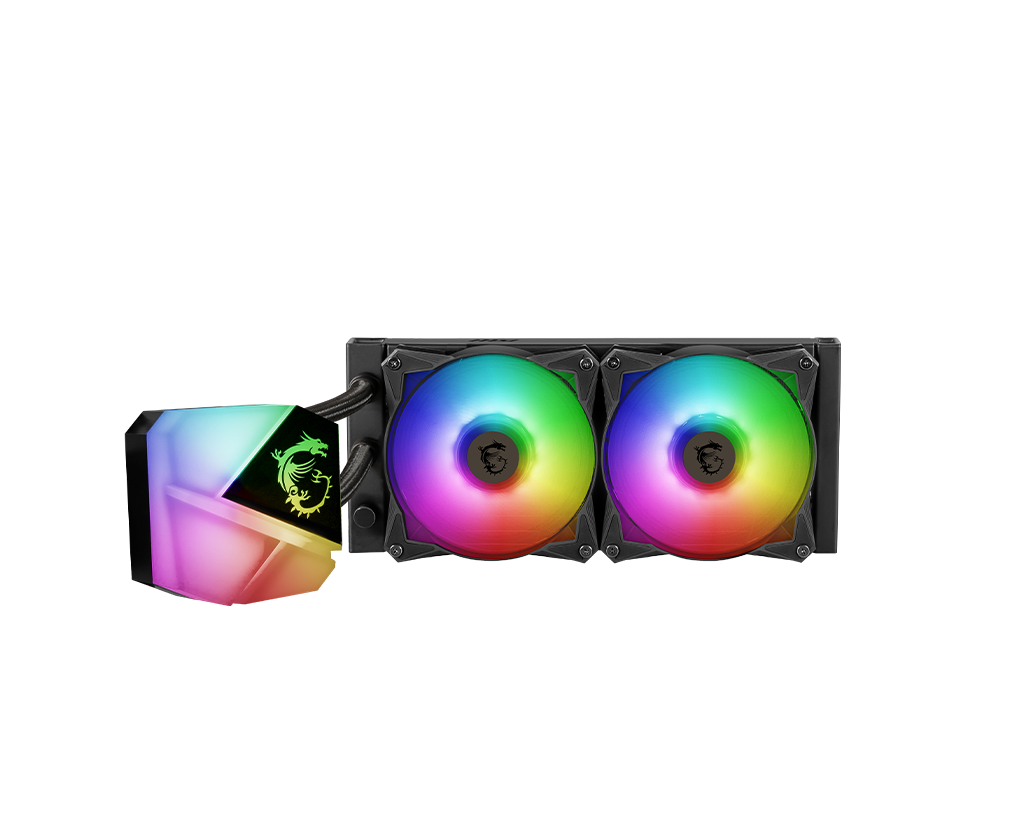

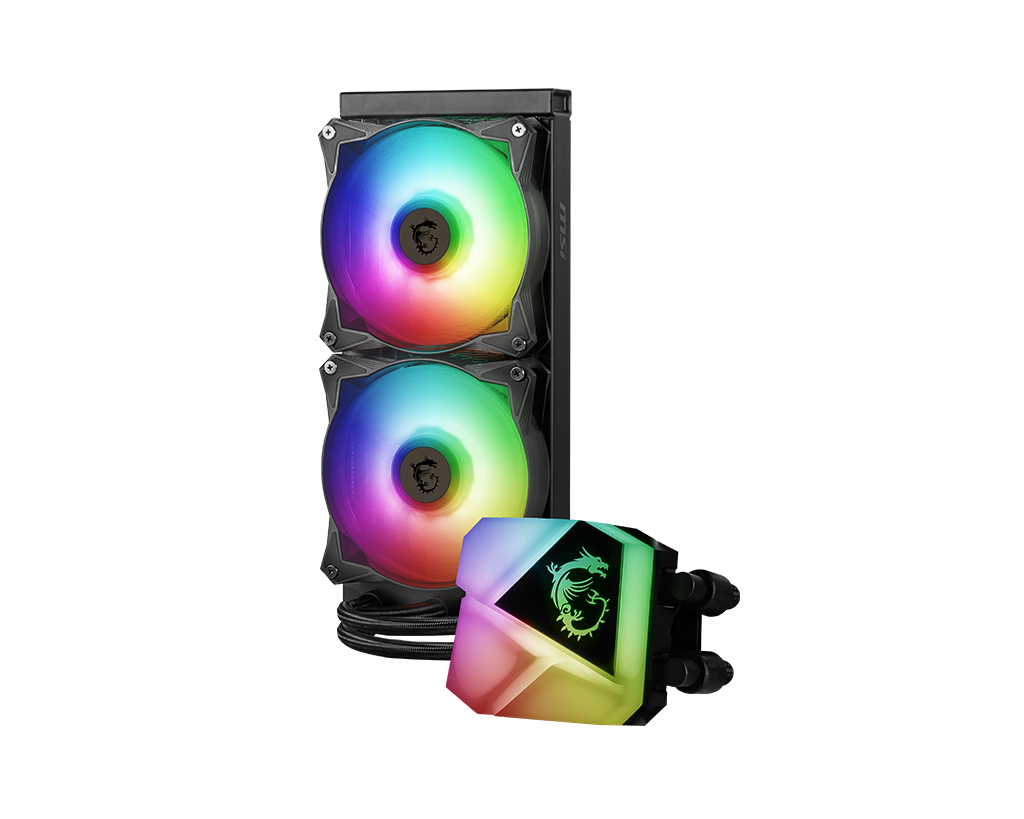

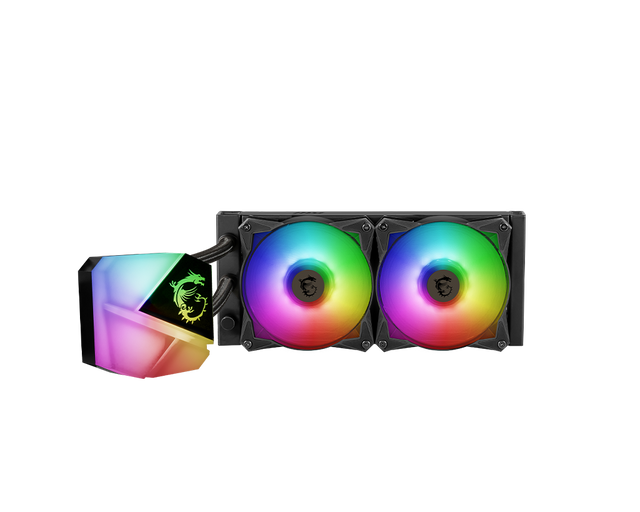

MSI MAG Coreliquid C240 - Liquid CPU Cooler

REBELLIOUS & DISTINCT
MSI MAG CORELIQUID C-Series AIO CPU liquid coolers combine vivid ARGB lighting with innovative design features.

• Distinct ARGB water block & radiator fans
• Pump-in-radiator design increases durability & dampens vibration
• 3-Phase pump motor eliminates undesirable resonance
• Split-flow radiator improves thermal dissipation
• Evaporation-proof tubing
• Mystic Light software supported (5V 3-pin)
• Compatible with Intel & AMD CPU sockets
• Compatible with Intel LGA 1700 sockets

Distinct ARGB Water Block
The water block features dazzling ARGB lighting split into four prismatic elements, one of which includes the MSI logo.

The ARGB water block & fan lighting effects can be further customized through MSI Mystic Light software*.

*Requires 5V ARGB motherboard header (3-Pin)

Integrated Pump
A radiator-mounted water pump helps dampen vibration and noise. Moreover, by moving the pump away from the primary heat source (the CPU), mechanical durability is significantly improved.

A robust 3-phase motor dramatically decreases motor resonance, which in turn reduces vibration and extends the pump lifespan to 100,000 hours.

Split-Flow Radiator
High thermal dissipation within the aluminium radiator is achieved via a split-flow design that divides incoming heated water into 2 separate cooling paths of 4 channels each.

Cooled water is subsequently recombined and pumped back to the compact water block (circular copper thermal-transfer plate, micro-channeled).

Evaporation-Proof Tubing
The 400mm water cooling tubes comprise of triple-layered netted plastic concealed beneath reinforced mesh sheathing to ensure that water stays inside the closed-loop system at all times.

Quiet Performance
The MAG CORELIQUID C360's noise levels are exceptionally low even under full-loading conditions.

Fan noise levels (PWM): 14.3 ~ 34.3 dBA

Pump noise level: 18 dBA

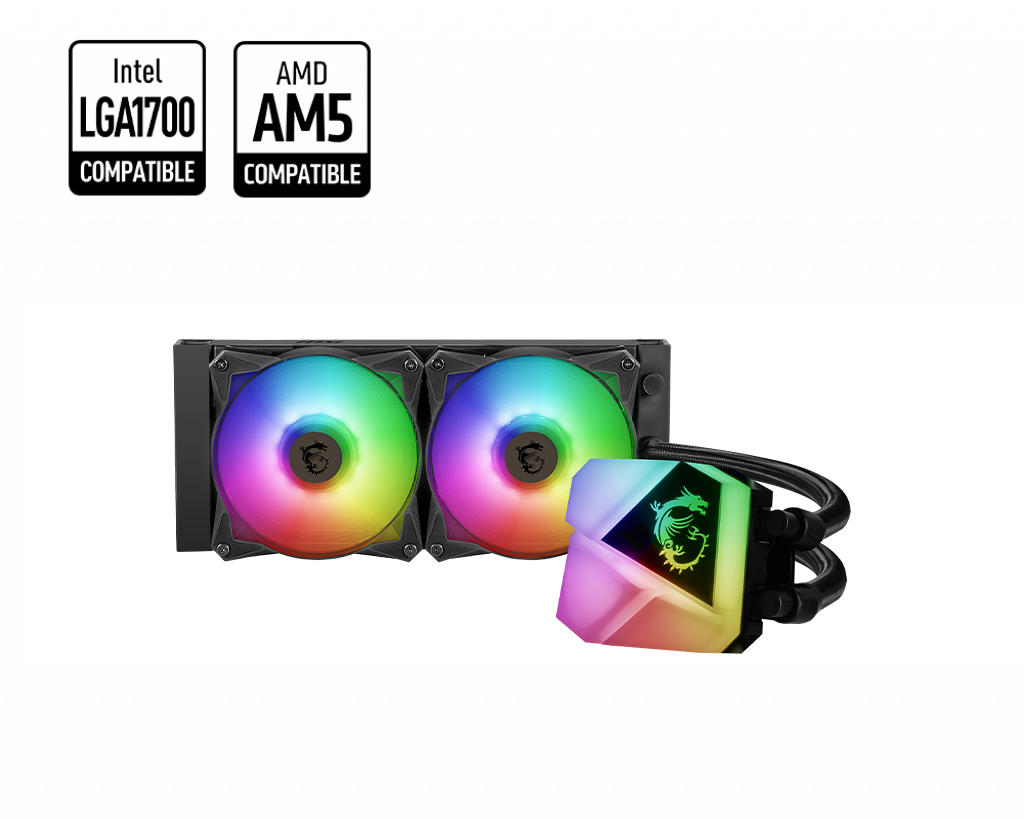

AMD & Intel CPU Socket Compatible

Intel CPU socket types supported:
LGA 1700
LGA 1150, 1151, 1155, 1156, 1200
LGA 1366, 2011, 2011-3, 2066

AMD CPU socket types supported:
AM4, AM3+, AM3, AM2+, AM2
FM2+, FM2, FM1
Includes thermal paste, mounting screws, and cabling.

NUMBER OF FANS - 2
FAN DIMENSIONS - 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches
FAN SPEED - 500 ~ 2000 RPM
FAN POWER CONSUMPTION - 1.8 W
FAN RATED CURRENT - 0.15 A
FAN RATED VOLTAGE - 12V DC
FAN LIFE EXPECTANCY - 70,000 hours
FAN BEARING - Two Ball Bearing
FAN NOISE LEVEL - 14.3 ~ 34.3 dBA
FAN AIR FLOW - 78.73 CFM
FAN LIGHTING - ARGB
PWM MODE - Yes
FAN CABLE LENGTH (5V ARGB / PWM CABLE) - 550 / 350mm; 21.65 / 13.78 inches
RADIATOR MATERIAL - Aluminum
RADIATOR DIMENSIONS - 276 x 120 x 27mm / 10.87 x 4.7 x 1.06 inches
PUMP LIFE EXPECTANCY - 100,000 hours
PUMP NOISE LEVEL - 18 dBA
PUMP SPEED - 4200±10%RPM
PUMP POWER CONSUMPTION - 4.08W
INTEL SOCKET - LGA 1150/1151/1155/1156/1200/1700/1366/2011/2011-3/2066
AMD SOCKET - AM5/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
ACCESSORIES - PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable x 1
