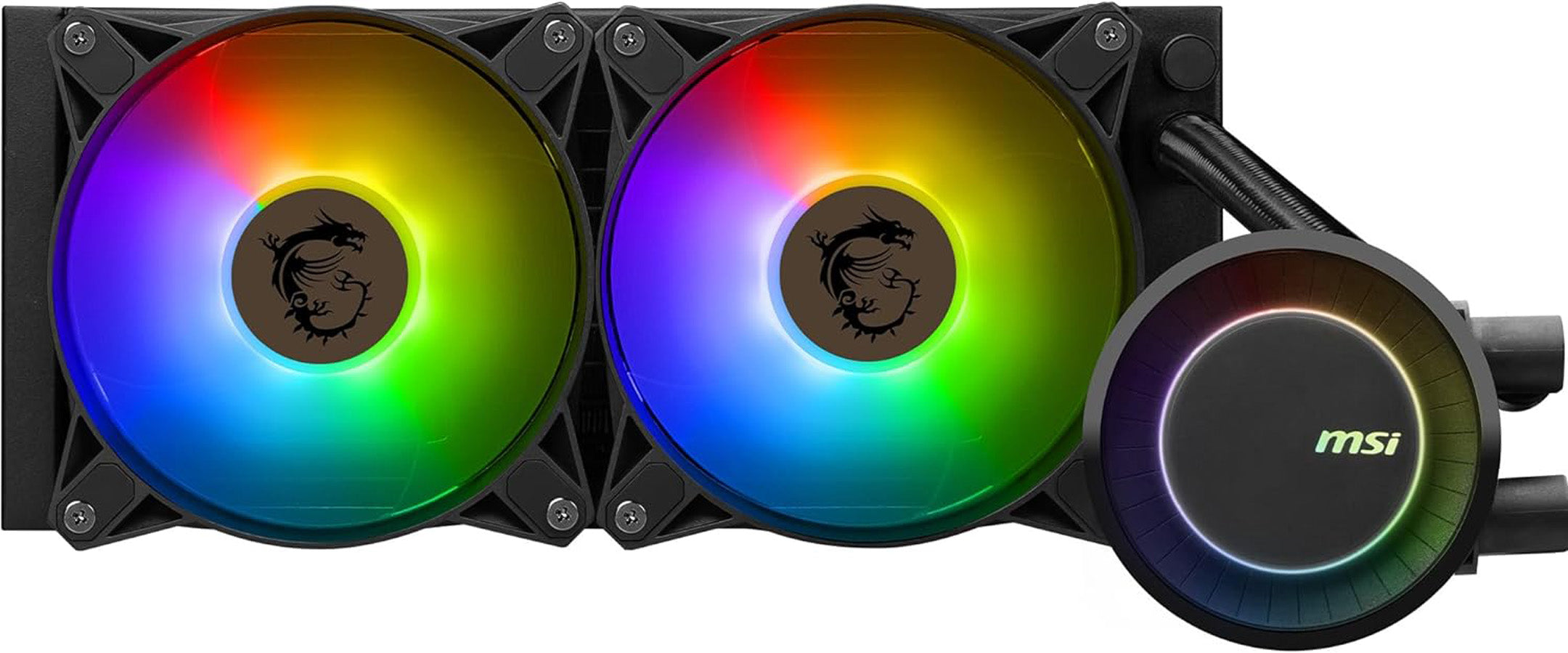

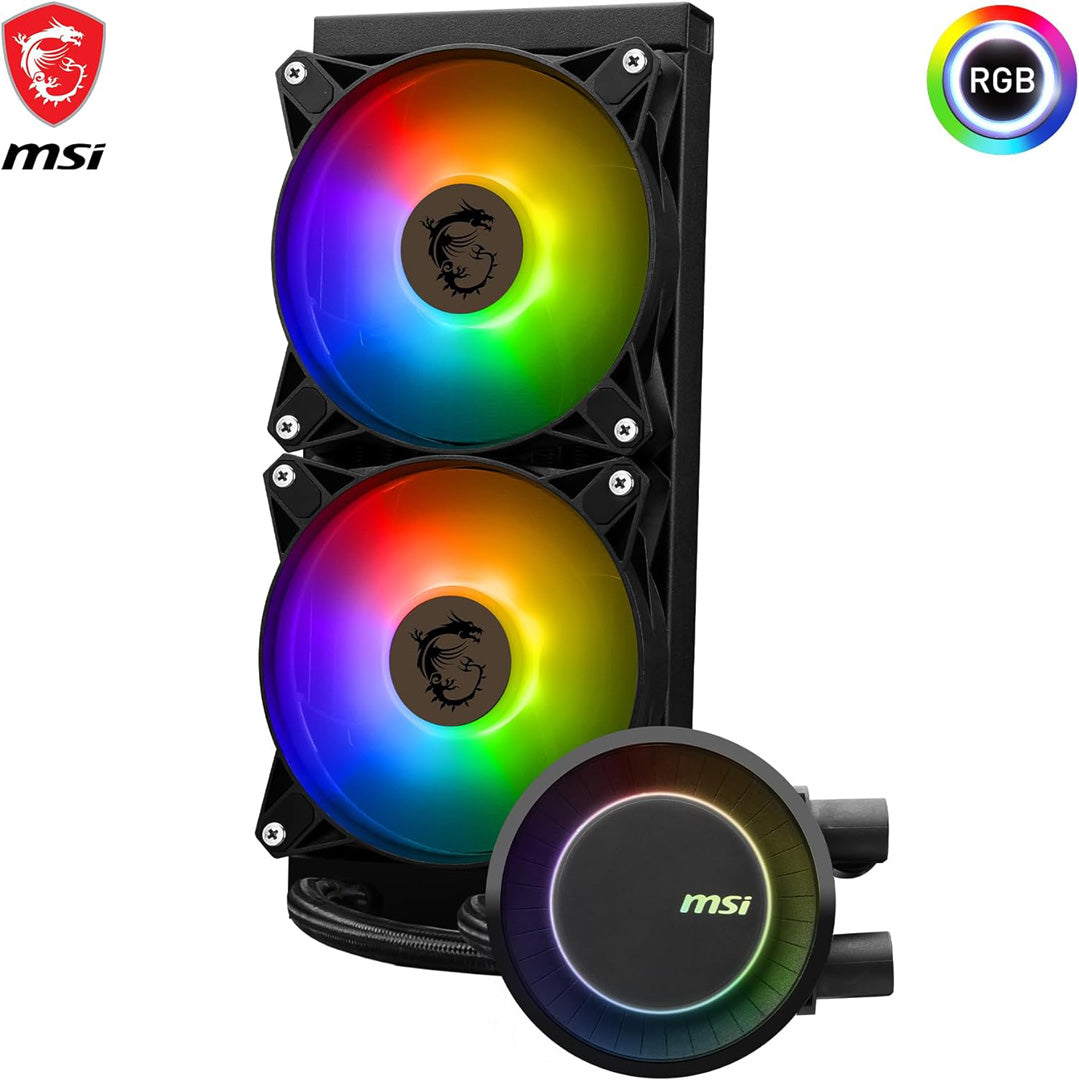

MSI MAG Coreliquid E240 - Liquid CPU Cooler

MAG CORELIQUID E240
The Colder, the Better
Visually inspired by the total solar eclipse, MAG CORELIQUID E-Series AIO CPU liquid coolers combine advanced cooling technology and spectacular Mystic Light ARGB aesthetics.

• Full CPU coverage cold plate
• Enhanced micro-channel surface area
• Dual-chamber coolant block
• Rotatable ARGB eclipse blockhead
• 12-channel split-flow radiator
• FDB fans with ARGB lighting
• Easy-to-use MSI Center cooling optimization (requires MSI motherboard)
• Compatible with Intel & AMD CPU sockets

Full CPU Coverage
With multi-die CPU layouts, notably AM5 processors, the hotspot can sometimes be off centre.
In response to this, the MAG CORELIQUID E-Series has an enlarged cold plate area.

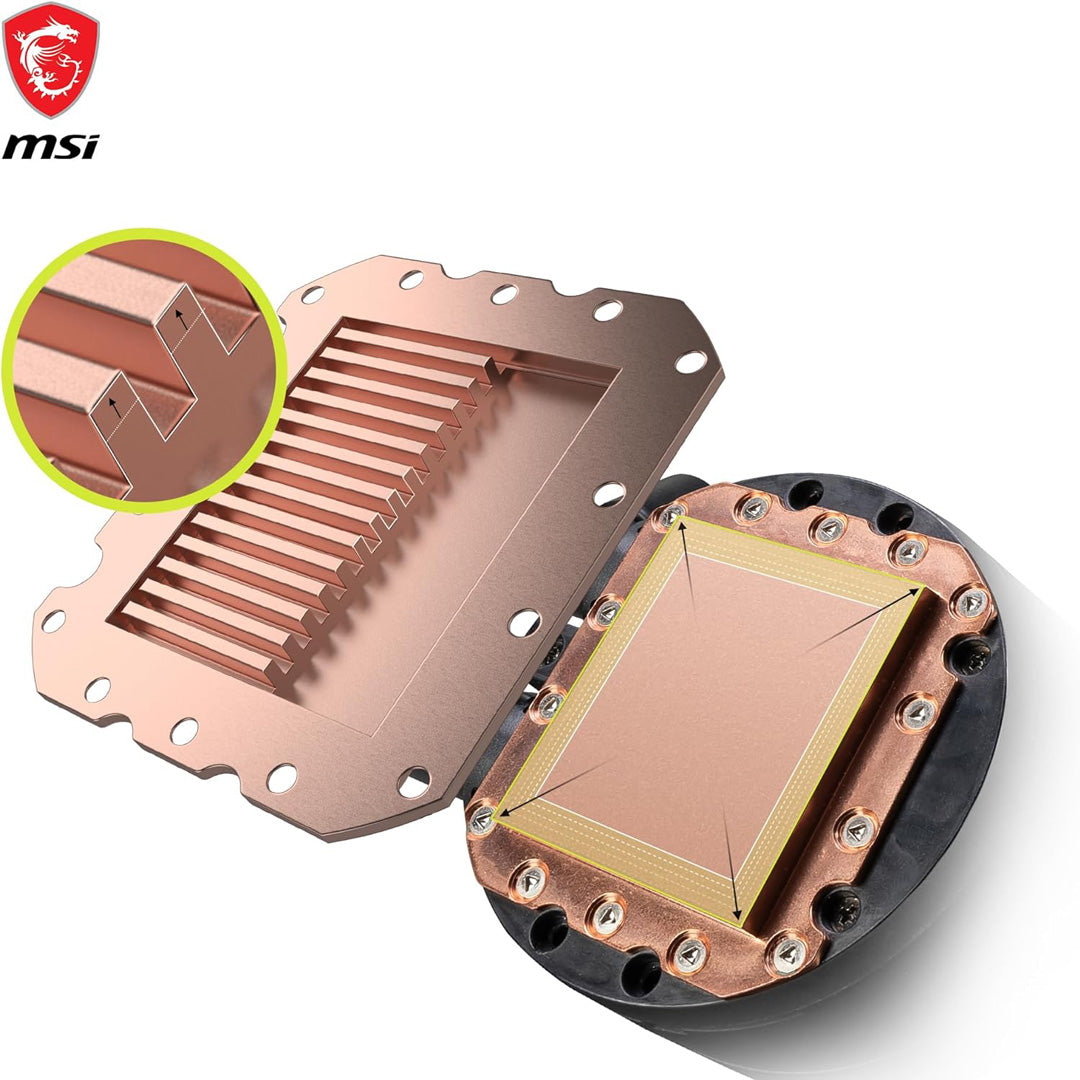

Enhanced Micro-Channels
The internal contact between the coolant and the copper cold plate features more micro-channels with deeper profiles.

These upgrades significantly increase the internal surface area, which in turn improves efficiency at the heart of the system.

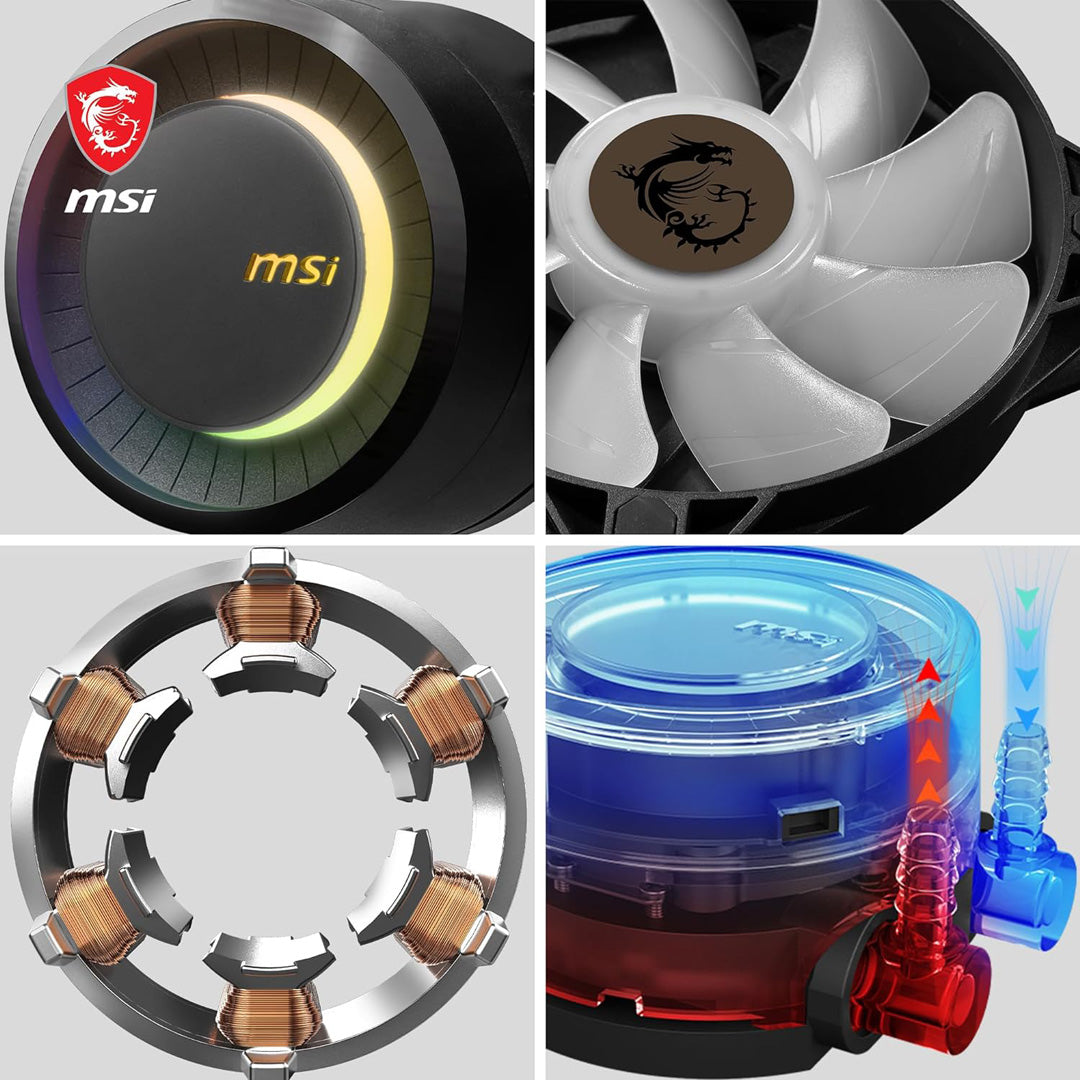

Dual-Chamber Design
The coolant block is separated into hot & cold chambers, which helps preserve the temperature difference (ΔT) for faster cooling.

A three-phase motor at the pump's core eliminates motor resonance to minimize vibration for improved durability.

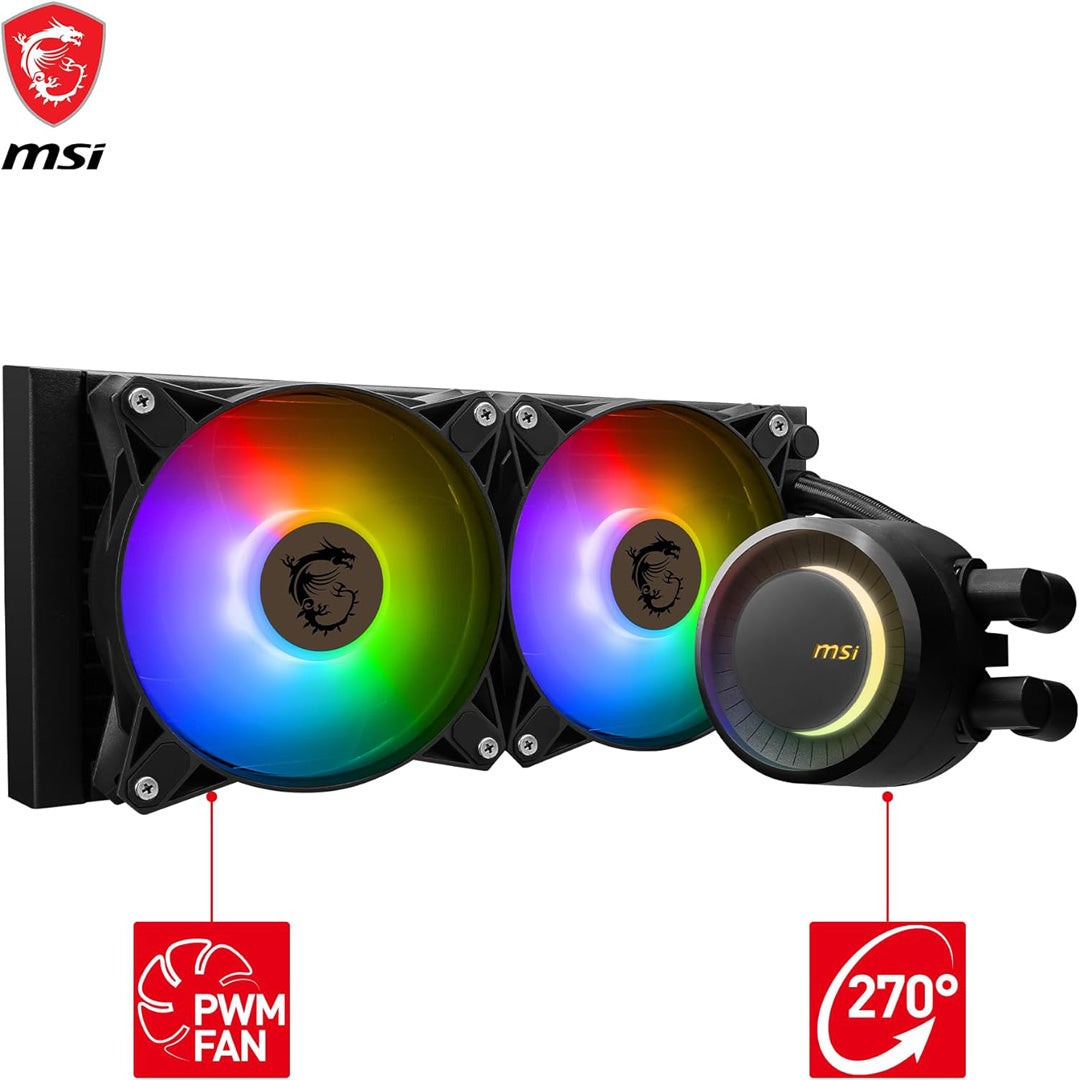

Rotatable Eclipse Blockhead
Inspired by the solar eclipse, the manually rotatable ARGB blockhead with MSI logo (up to 270°) can be aligned with any system orientation.

The ARGB blockhead & fan lighting effects can customized through the Mystic Light utility within MSI Center software.*

*Requires 5V ARGB MSI motherboard header (3-pin).

Split-Flow Radiator
The aluminum radiator employs a 12-channel, split-flow design that divides incoming heated water and outgoing cooled water into two 6-channel paths.

This improves thermal dissipation between coolant and fan-cooled air.

Tubing comprises of multi-layered netted plastic concealed beneath reinforced mesh sheathing to ensure that coolant stays inside the closed-loop system at all times.

FDB Fans
Fluid Dynamic Bearing (FDB) fans are widely recognized for their exceptional efficiency & durability, making them the premium choice for liquid cooling solutions.

The fan blades are made of high-purity acrylic for vivid light diffusion.

MSI Center Optimization
MSI Center software unlocks multiple cooling profiles as well as customizable fan curve settings through MSI motherboards:
Silent, Game Mode, and Balanced profiles
Customizable radiator fan speed curves
Customizable pump speed curves

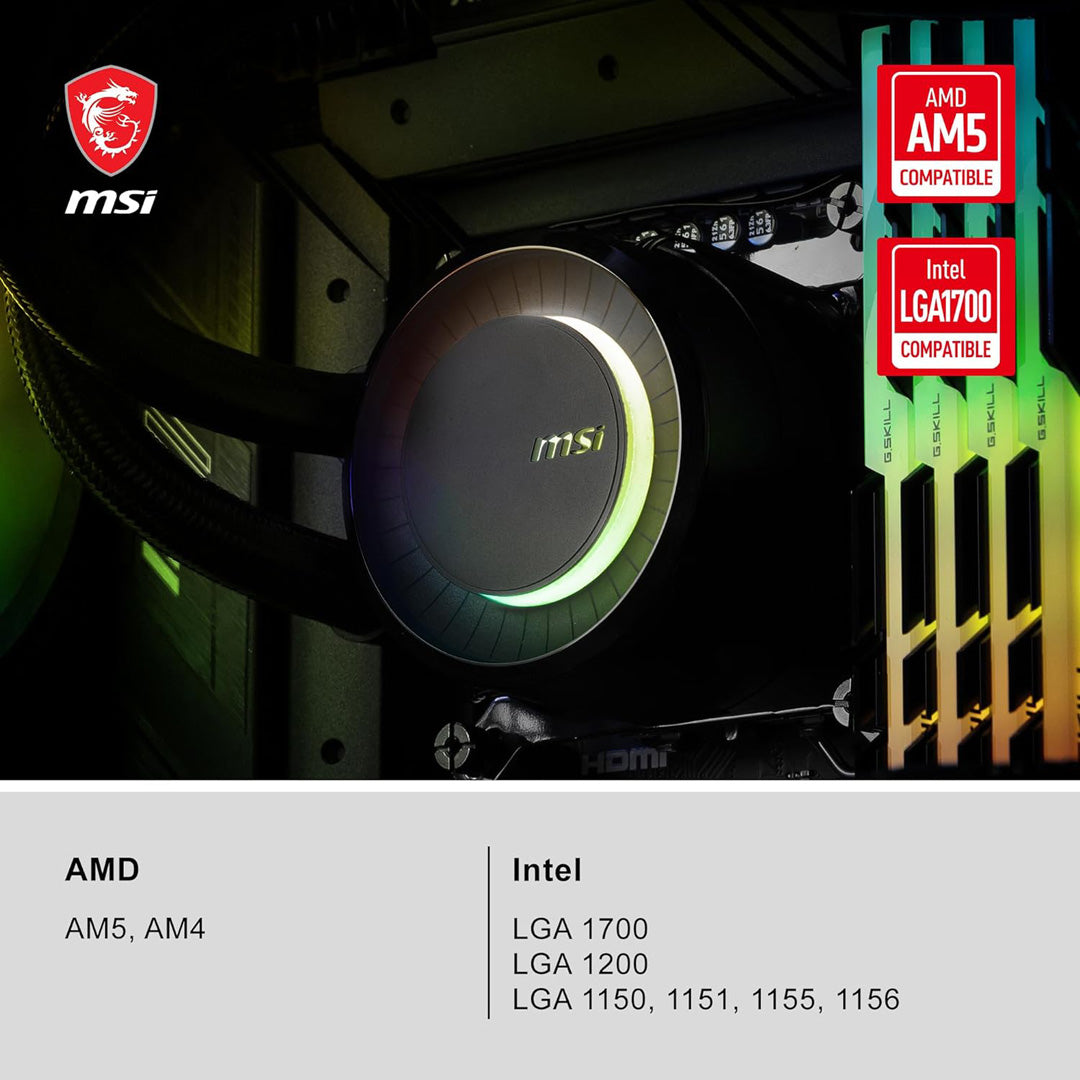

AMD & Intel Compatible
Supported Intel CPU socket types:
LGA 1700, 1200, 1156, 1155, 1151, 1150
Supported AMD CPU socket types:
AM5, AM4, TR4, sTRX4

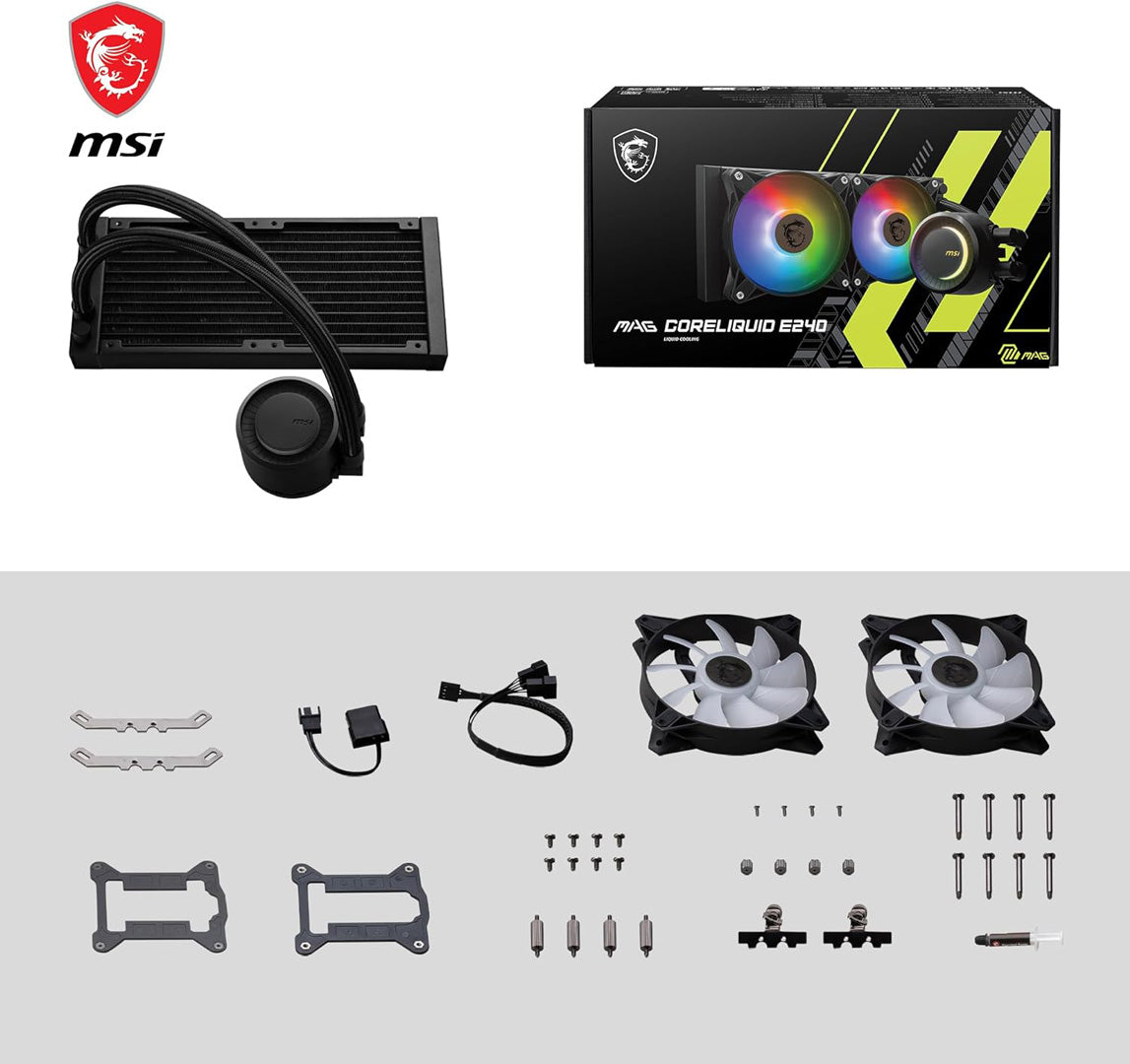

Includes thermal paste, mounting screws and cables.

NUMBER OF FANS - 2
FAN DIMENSIONS - 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches
FAN POWER CONSUMPTION - 3W(Max:4.8W)
FAN RATED CURRENT - 0.25A(Max:0.4A)
FAN LIFE EXPECTANCY - 50,000 hrs@40℃
FAN BEARING - Fluid Dynamic Bearing (FDB)
FAN AIR FLOW - 25.5~75.04 CFM
FAN LIGHTING - ARGB
WATER COOLING TUBE MATERIAL - Black Rubber
PWM MODE - Yes
FAN CABLE LENGTH (5V ARGB / PWM CABLE) - 550 / 500 mm; 21.65 / 19.69 inches
RADIATOR MATERIAL - Aluminum
RADIATOR DIMENSIONS - 394 x 119.2 x 27mm / 15.51 x 4.69 x 1.06 inches
PUMP LIFE EXPECTANCY - 200,000 hours in typical use
FAN CONNECTOR - 4-Pin
PUMP NOISE LEVEL - 20 dBA (avg.)
PUMP SPEED - 3000 RPM ± 10%
PUMP POWER CONSUMPTION - 3W (Max: 6W)
PUMP RATED CURRENT - 0.25A (Max: 0.5A)
PUMP CONNECTOR - 4-pin
BLOCK DIMENSIONS (WXDXH) - 41±0.2*47.6±0.2mm
INTEL SOCKET - LGA 1150/1151/1155/1156/1200/1700
AMD SOCKET - AM5/AM4
ACCESSORIES -
1 x 1 to 2 Fan PWM cable
1 x Molex 4-Pin to 4-Pin fan cable
1 x Thermal paste
RADIATOR SIZE - 240mm
COLD PLATE MATERIAL - Copper
