MSI MAG Z790 Tomahawk Max WIFI Motherboard - Intel Socket 1700

MAG Z790 TOMAHAWK MAX WIFI
Unite as One

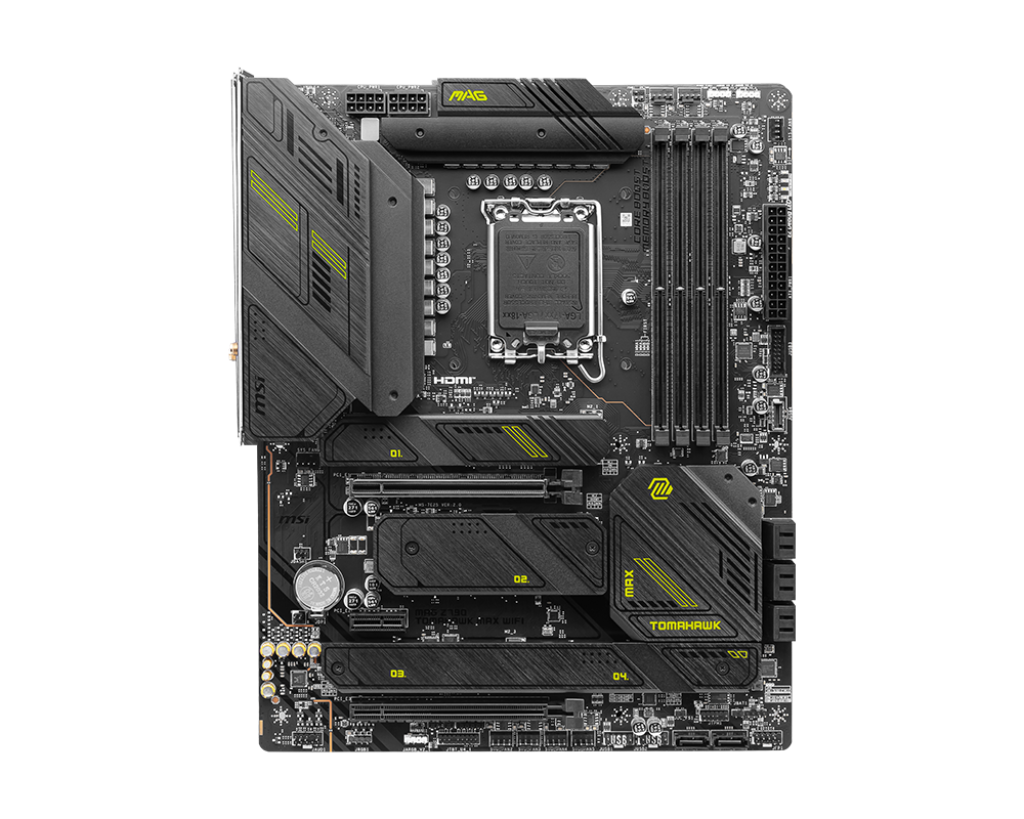

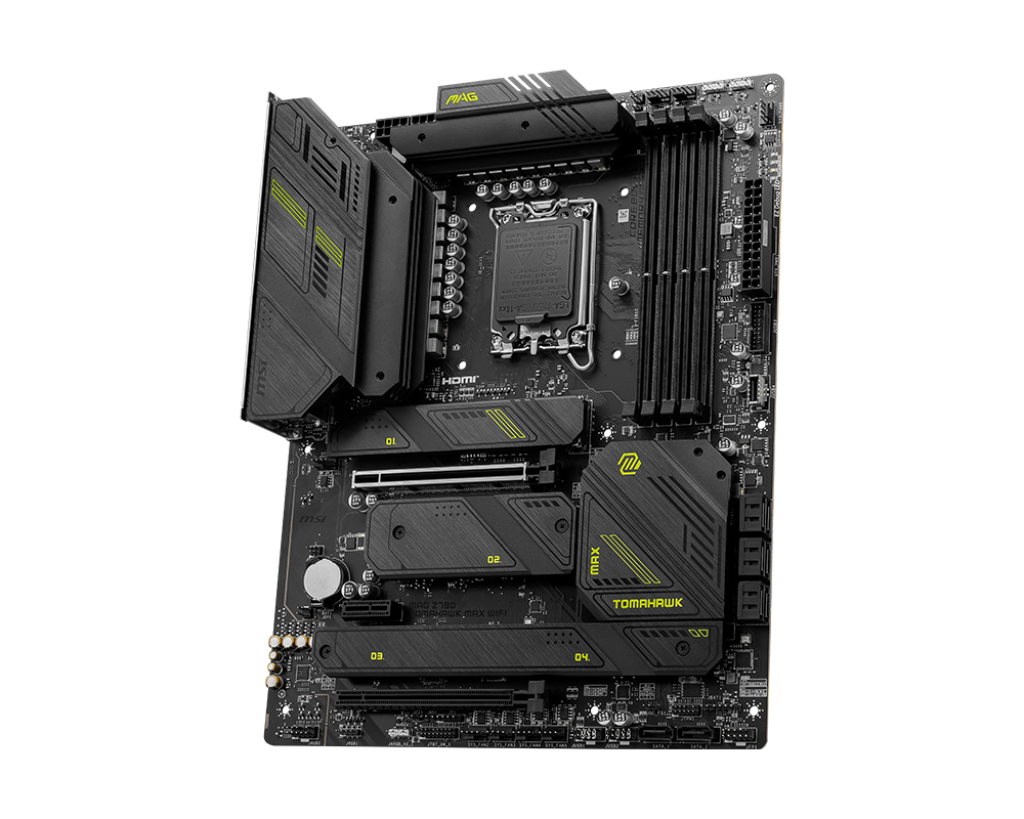

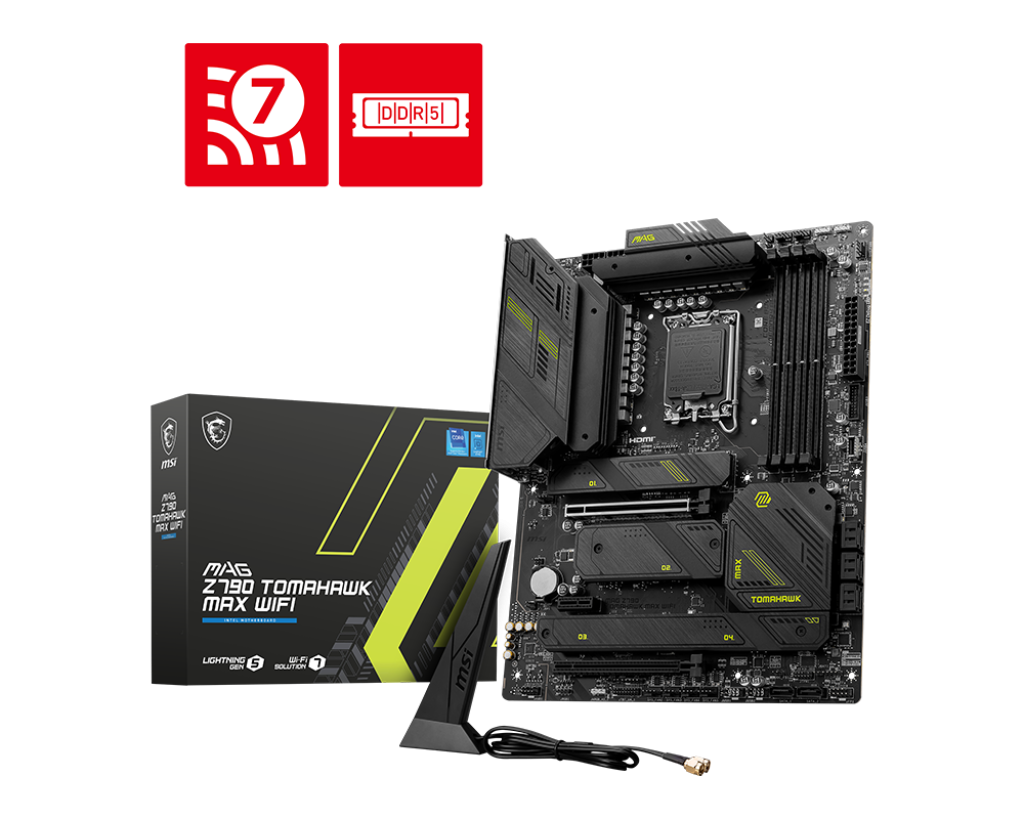

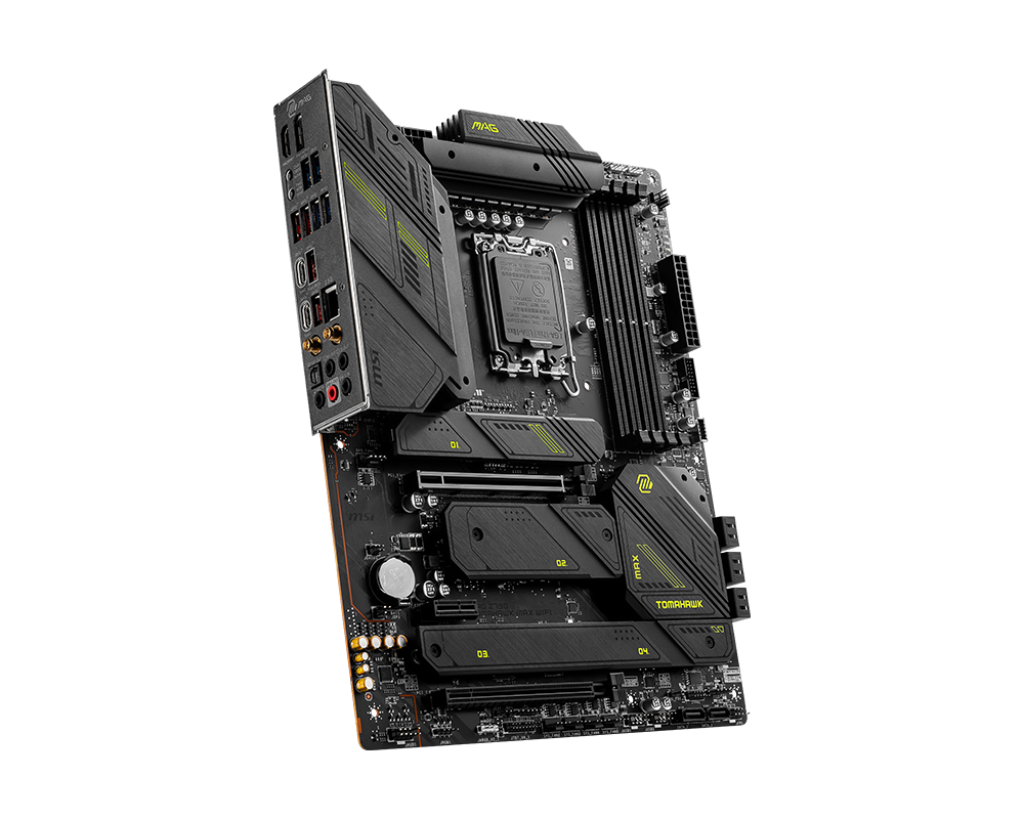

The MAG Z790 TOMAHAWK MAX WIFI is a gaming oriented ATX motherboard constructed around the latest Intel Z790 chipset that balances value with premium hardware.

• Supports Intel Core 12th & 13th Gen Processors (LGA 1700)
• 16 Mirrored Power Arrangement with 90A SPS
• 4 x DDR5 DIMMs with Memory Boost: Dual Channel (192B Max. / 7200MHz+ OC)
• 1 x PCI-e 5.0 x16 slot
• Lightning Gen5 M.2 & M.2 Shield Frozr
• USB 3.2 Gen 2x2 Type-C (20Gbps)
• 7.1 HD Audio with Audio Boost 5
• Intel 2.5G LAN, Wi-Fi 7 & Bluetooth 5.4

Supports Intel Core 12th & 13th Gen Processors
The MAG Z790 TOMAHAWK MAX WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: ATX
Socket Type: LGA 1700
Chipset: Intel Z790

16 Mirrored Power Arrangement
With its dual 8 pin power connectors and exclusive Core Boost technology, the Z790 TOMAHAWK MAX WIFI is able to sustain heavy CPU power loads to support system-demanding work settings:
- Digital PWM IC
- 16 Mirrored Power Arrangement with 90A SPS
- 1-Phase GT Power
- 1-Phase AUX Power

Integrated Cooling Features
VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

4 x DDR5 Dual Channel (7800+ MHz OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 7800+ MHz, supports Intel XMP.

1 x Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor)
1 x PCIe 4.0/3.0 x16 slot*
1 x PCIe 3.0 x1 slot
*Supports x4

Gen5 & Gen4 M.2 Connectors
The MAG Z790 TOMAHAWK MAX WIFI motherboard features the latest M.2 slots:
1 x Gen5 x4 128Gbps slot*
3 x Gen4 x4 64Gbps slots*
*with M.2 Shield Frozr

M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

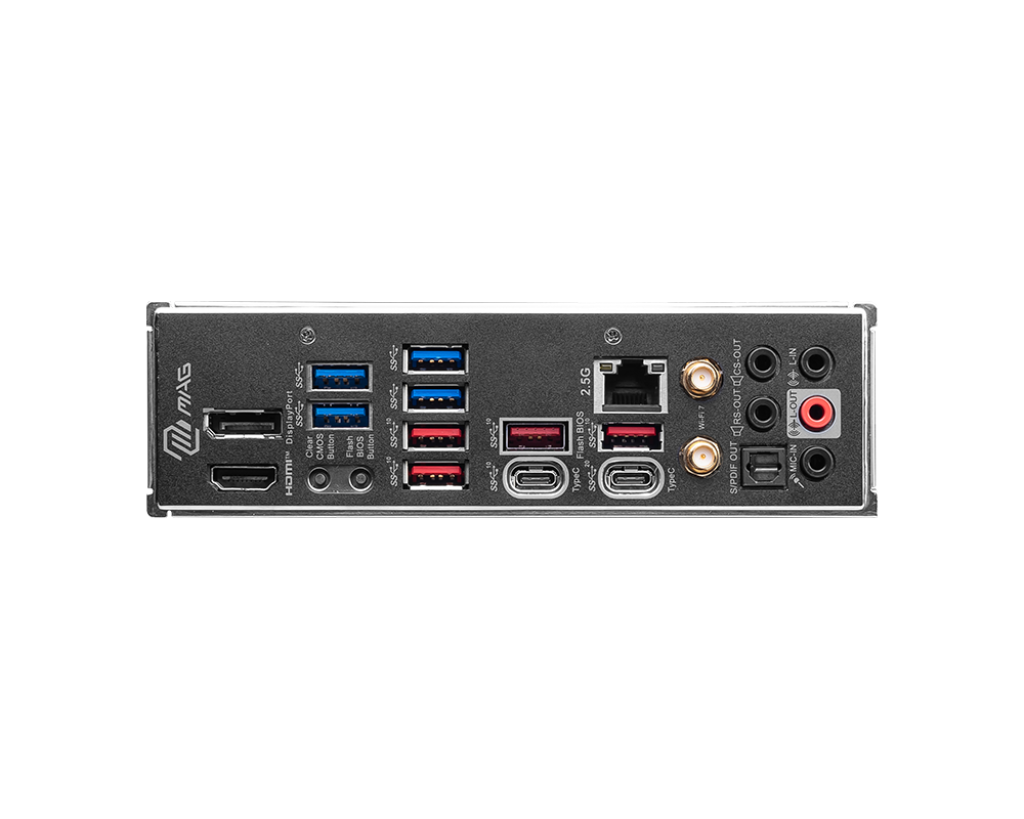

Wi-Fi 7 & Bluetooth 5.4
2.5G LAN: An Intel 2.5Gbps LAN controller delivers a premium network gaming experience.

USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps.

Wi-Fi 7: Features the latest Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.

HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output.

MAG Z790 TOMAHAWK MAX WIFI Data Sheet
