MSI

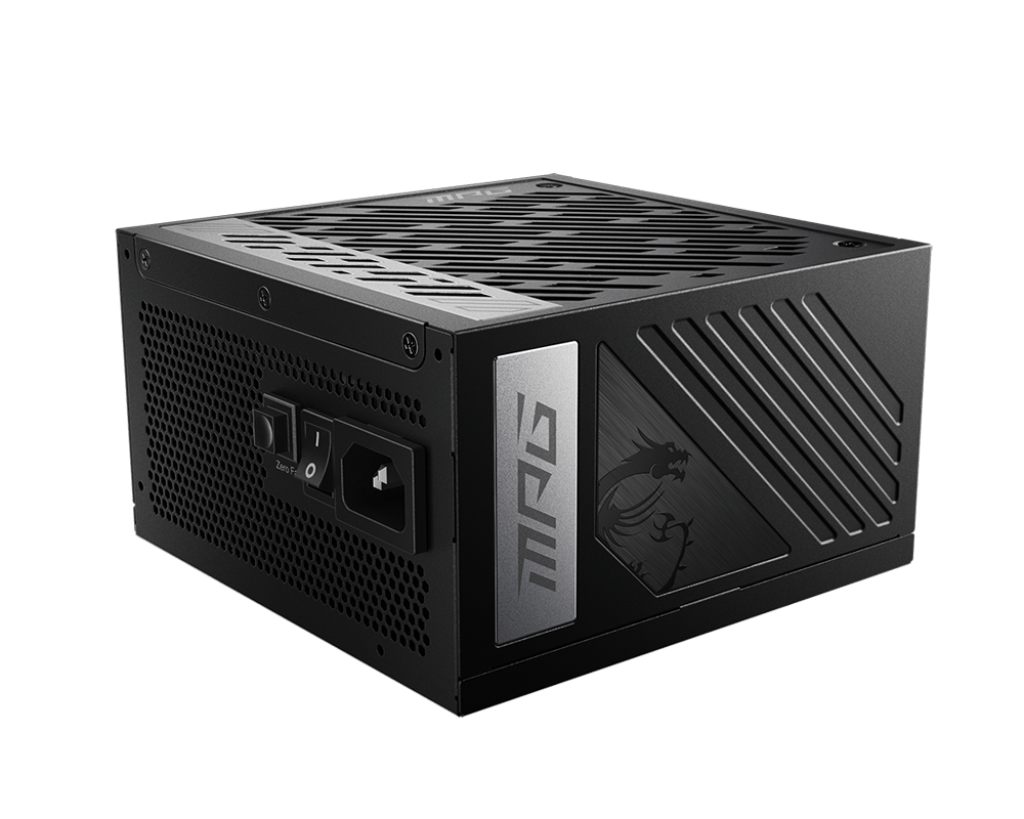

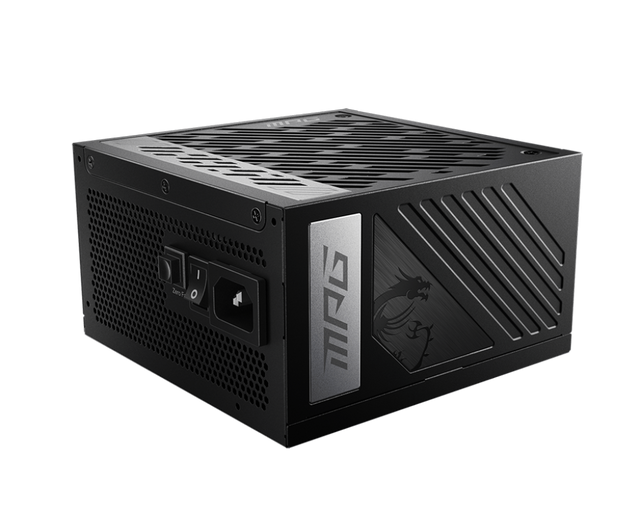

MSI MPG Ai1000G PCIE5 - 1000W Power Supply

Sold out
£181.95
⭐Earn 1267 TCG Points with this item⭐
  • Manufacturer: MSI
  • Product Type: Power Supply
  • Form Factor: ATX
  • Modular: Full
  • Certification: 80 PLUS® Gold
  • Wattage: 1000W
  • Supports Nvidia® GeForce RTX™ 40 Series graphics card
  • Full modular design
  • 100% all Japanese 105oC capacitor
🚚 Delivery & Shipping

Delivery options are shown at checkout based on your basket, location and item size.

Most UK orders are sent with Royal Mail, DPD, Parcelforce or UPS. In-stock items are usually dispatched quickly on working days, but dispatch may take longer for pre-orders, back-orders, large items, mixed baskets, busy periods or orders requiring security checks.

Typical UK delivery aims:

  • Economy Delivery: 4–7 working days
  • Standard Delivery: 3–5 working days
  • Express Delivery: 1–3 working days
  • Large / heavy items: shown at checkout

Tracking details will be emailed once your order has been dispatched. Courier tracking may take a short time to update.

For urgent orders or release-day delivery questions, please contact us before ordering.

contact@thechelseagamer.email / 020 3141 3400

Description

MPG A1000G PCIE5
Overflow with Power
The MPG A PCIE5 power supplies provide 80 PLUS Gold-certified power efficiency, ATX 3.0 compatibility, PCIe 5.0 GPU support (up to 600W), and a fluid dynamic bearing (FDM) fan with 0% RPM Mode for a superior in-game experience.

Designed for up-to-date flexibility, refined aesthetics, and incredible durability, the MPG A PCIE5 series is the ultimate gaming-oriented PSU.

  • 80 PLUS Gold certified
  • Full modular cable design, ATX 3.0 ready
  • PCIe 5.0 GPU ready (16-pin 12VHPWR connector)
  • Zero RPM mode button
  • LLC Half Bridge Topology, DC-to-DC module, Japanese 105°C capacitors
  • Active PFC design (OVP, OCP, OPP, OTP, SCP, UVP)
  • FDB fan
  • Flat black cables with storage bag
Features

80 PLUS Gold
The efficiency of a power supply directly influences system performance and power consumption.

An 80 PLUS Gold certified rating means higher efficiency (up to 90%) and reduces internal thermal loading.

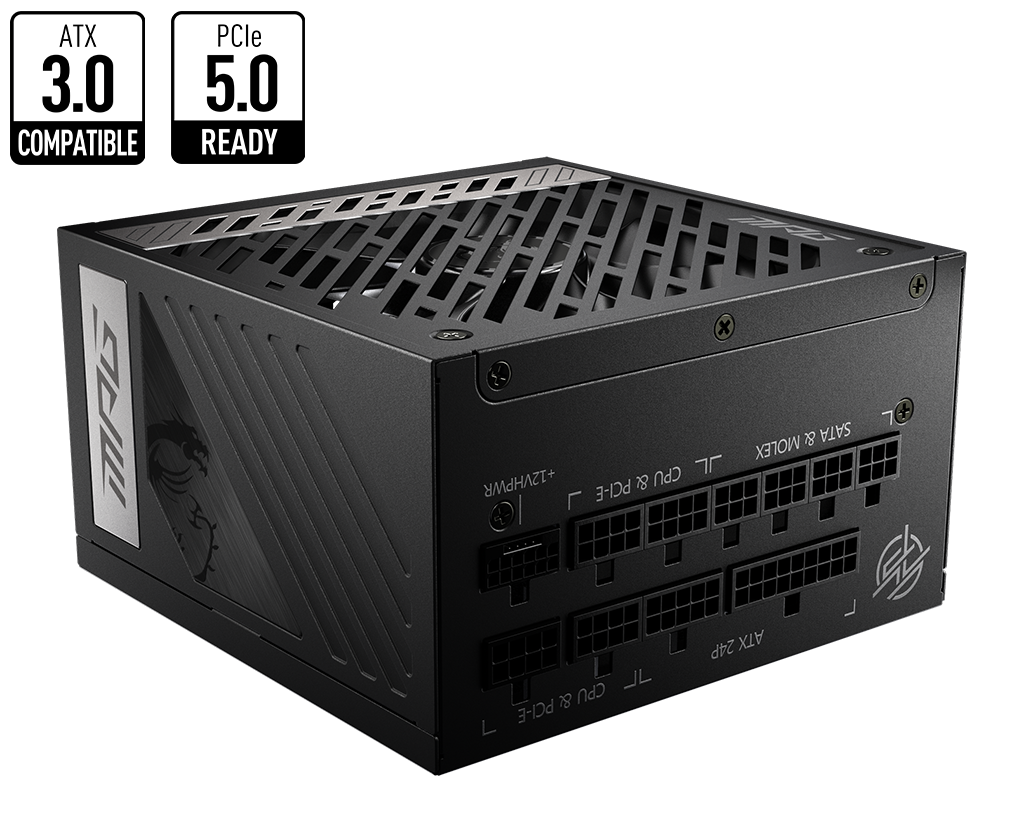

ATX 3.0 Ready, Full Modular
Being ATX 3.0 compatible, MPG A PCIE5 power supplies can handle up to 2x total power excursions and 3x GPU power excursions.

A fully modular design means that only the connectors required by the build are used. This significantly reduces cable clutter, simplifying the overall build and improving airflow.

PCIe 5.0 GPU Supported
MSI MPG A PCIE5 PSUs feature extra GPU power feeds (3 x 8-pin VGA connectors) to support a broad array of NVIDIA and AMD graphics cards.

Alternatively, through the native 16-pin (12VHPWR) PCIe connector, the PSU can provide up to 600W of power to a PCIe 5.0 GPU.

Zero RPM Mode
The 0% RPM Mode turns off the fan whenever loading is under 40% TDP to minimize power usage and noise. The default mode can be turned off via a "Zero Fan" button.

100% Japanese Capacitors
The single-rail design is outfitted with high-stability Japanese 105°C capacitors.

A half-bridge LLC with DC-to-DC converter includes an active PFC design (OCP, OVP, OPP, OTP, SCP, UVP protections).

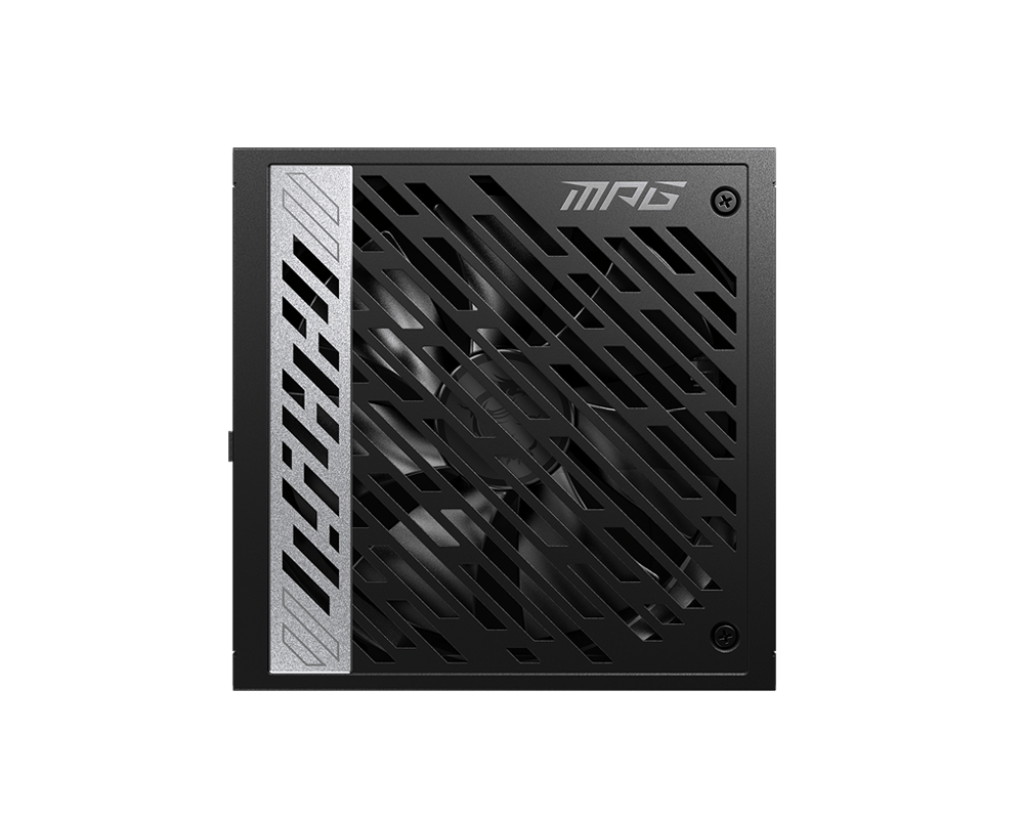

Fluid-Dynamic Bearing Fan
A 135mm Fluid-Dynamic Bearing fan, designed for quiet and stable performance, keeps both noise and temperatures to a minimum.

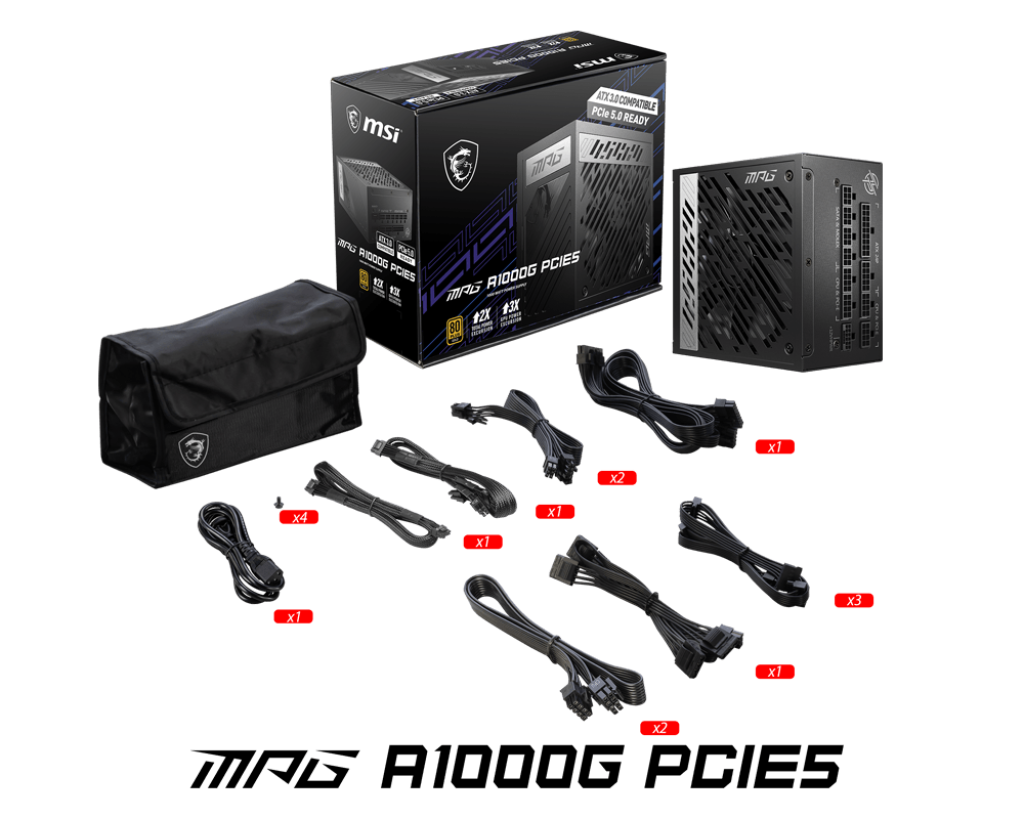

Premium Cables
The MPG A PCIE5 series come with flat black cables help reduce clutter, improve airflow, and create a cleaner build. Keep the extra cables in an included storage bag.

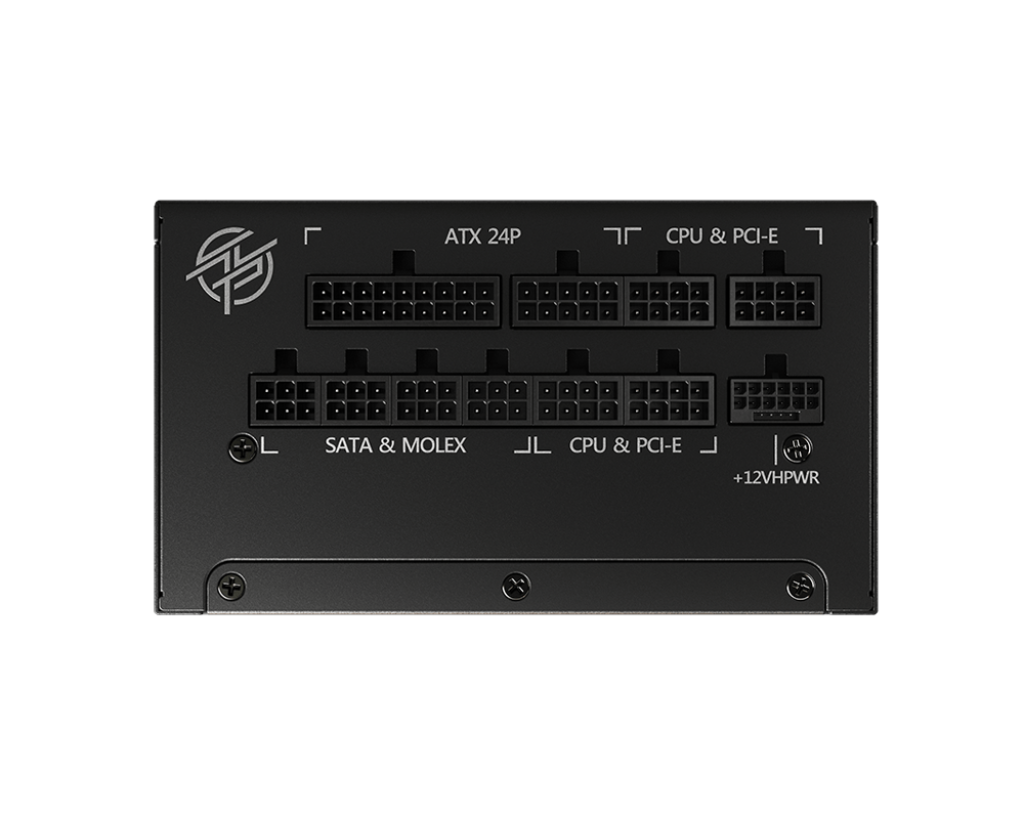

Stay connected with a broad array of modular cables: ATX x 1, EPS x 2, PCI-e 5.0 x 1, PCI-e x 6, SATA x 12, Molex x 4.

Output Specifications
Robust internals support a wide range of AC inputs, while delivering stable output for high performance components.

A compact 150mm-long and 150mm-wide ATX form factor ensures a comfortable and easy fit in most PC cases. This frees up more space for cable management and airflow to the rest of the system.

Specifications

POWER SUPPLY - Standard ATX
EFFICIENCY RATING - 80 PLUS Gold (up to 90%)
MODULAR - Yes (fully modular)
PRODUCT NAME - MPG A1000G PCIE5
FAN BEARING - Fluid Dynamic Bearing
PSU FORM FACTOR - ATX
POWER WATT - 1000W
POWER EXCURSION - 2000W (*up to 200% of the PSU's rated power for 100μs)
INPUT VOLTAGE - 100~240 VAC
INPUT FREQUENCY RANGE - 50~60 Hz
ATX (24 PIN) - 1
EPS (4+4 PIN) - 2
FAN SIZE - 135 mm
PCI-E 5.0 (16 PIN) - 1 (600W)
DIMENSION - 150 x 150 x 86 mm
PCI-E (6+2 PIN) - 6
PFC TYPE - Active PFC
SATA (15 PIN) - 12
PROTECTION - OCP / OVP / OPP / OTP / SCP / UVP
MOLEX (4 PIN) - 4
FDD (4 PIN) - 1
