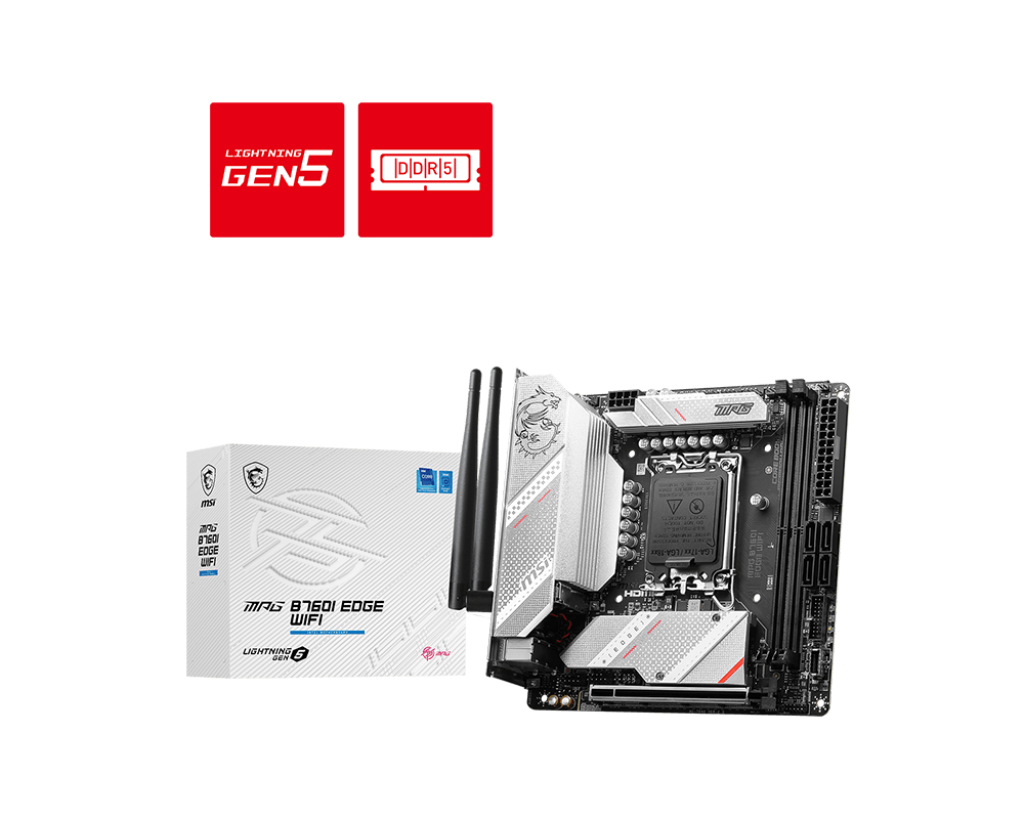

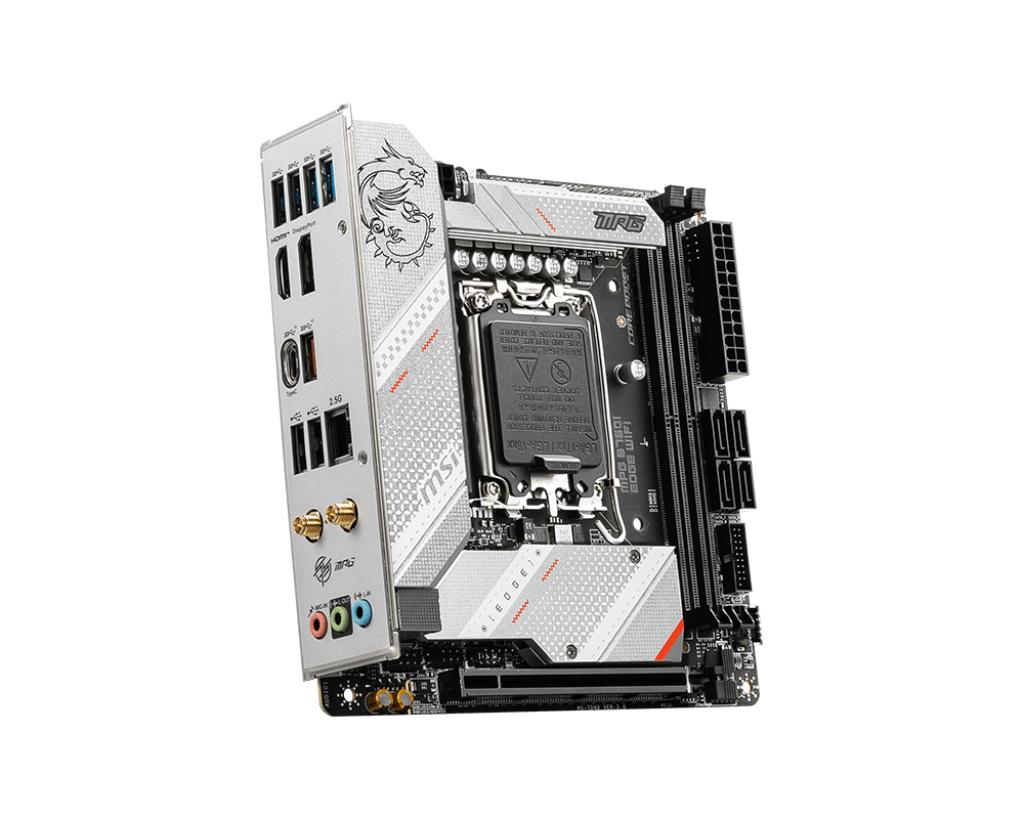

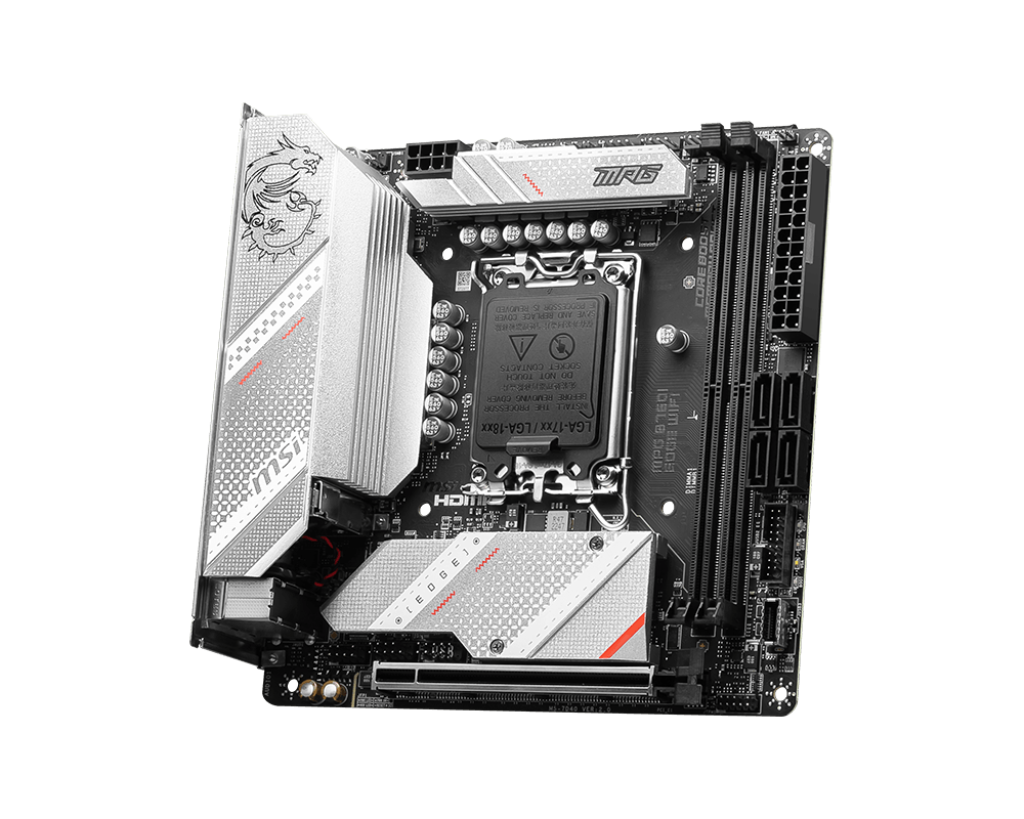

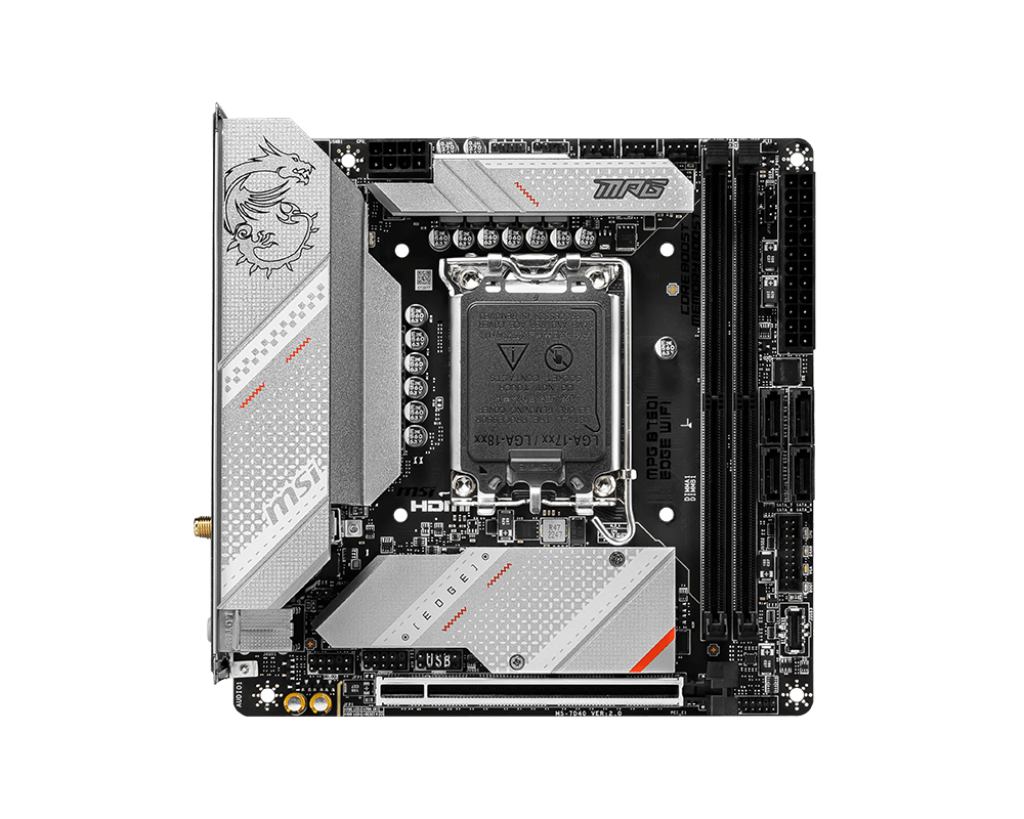

MSI MPG B760I Edge WIFI Motherboard - Intel Socket 1700

MPG B760I EDGE WIFI
Perform in Style
The MPG B760I EDGE WIFI is a gaming-oriented Mini-ITX motherboard based on the latest Intel B760 chipset.

• Supports Intel Core processors of the 12th and 13th Generation (LGA 1700)
• 8-phase direct CPU power with 90A DrMOS
• 1 x PCIe 5.0 x16 slot
• 2 x DDR5 DIMMs with memory boost: Dual Channel (96GB Max. / 7200 MHz OC)
• Lightning Gen4 M.2 & M.2 Shield Frozr
• 7.1 HD Audio with Audio Boost
• Realtek 2.5G LAN, Intel Wi-Fi 6E & Bluetooth 5.3

Supports Intel Core processors of the 12th and 13th generation
The MPG B760I EDGE WiFi motherboard supports Intel Core, Pentium Gold and Celeron processors of the 12th and 13th generation.
Form factor: Mini-ITX
Base Type: LGA 1700
Chipset: Intel B760

Direct 8+1+1 phase VRM performance with 90A DrMOS
Thanks to the exclusive Core Boost technology, the MPG B760I EDGE WIFI is able to deliver a high CPU load. This maintains high performance in demanding gaming settings:

Digital PWM-IC 8-phase direct CPU power (DrMOS / 90A) 1-phase GT power supply 1-phase AUX power

Integrated cooling functions
VRM cooling: Features an extended heatsink and 7W/mK thermal pads as well as additional throttle thermal pads.

PCB cooling: High quality 8-ply server-grade PCB design with 2 oz. Thickened copper improves heat dissipation and reliability.

SSD cooling: M.2 Shield Frozr prevents thermal throttling of SSDs.

System cooling: Connect and sync cooling via strategically placed pin headers - including a dedicated pump fan strip.

Reinforced PCIe 5.0 x16
MSI PCI Express Steel Armor slots are attached to the motherboard with additional solder points to support the weight of heavy graphics cards. In addition, the contact point is shielded from electromagnetic interference.

1 x PCIe 5.0/4.0/3.0 x16 slot (with steel armor)

2 x DDR5 Dual Channel (7200+ MHz OC)*
Memory boost: A fully isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

MSI OC LAB-optimized XMP profiles in MSI BIOS can be easily activated with automatic power settings for optimized memory speed and stability.

*1DPC 1R Max. Overclocking frequency 7200+ MHz, support Intel XMP

Gen4 M.2 Slots
The MPG B760I EDGE WiFi motherboard has MSIs Gen4 M.2 slots:
2 x Gen4 x4 64Gbps slots*
*1 with M.2 Shield Frozr

M.2 Shield Frozr
Even the fastest SSDs in the world automatically slow down when the firmware detects too high temperatures and throttles performance.

M.2 Shield Frozr is MSI's most advanced thermal solution, providing the best possible protection to ensure maximum SSD transfer speeds.

Wi-Fi 6E & Bluetooth 5.3

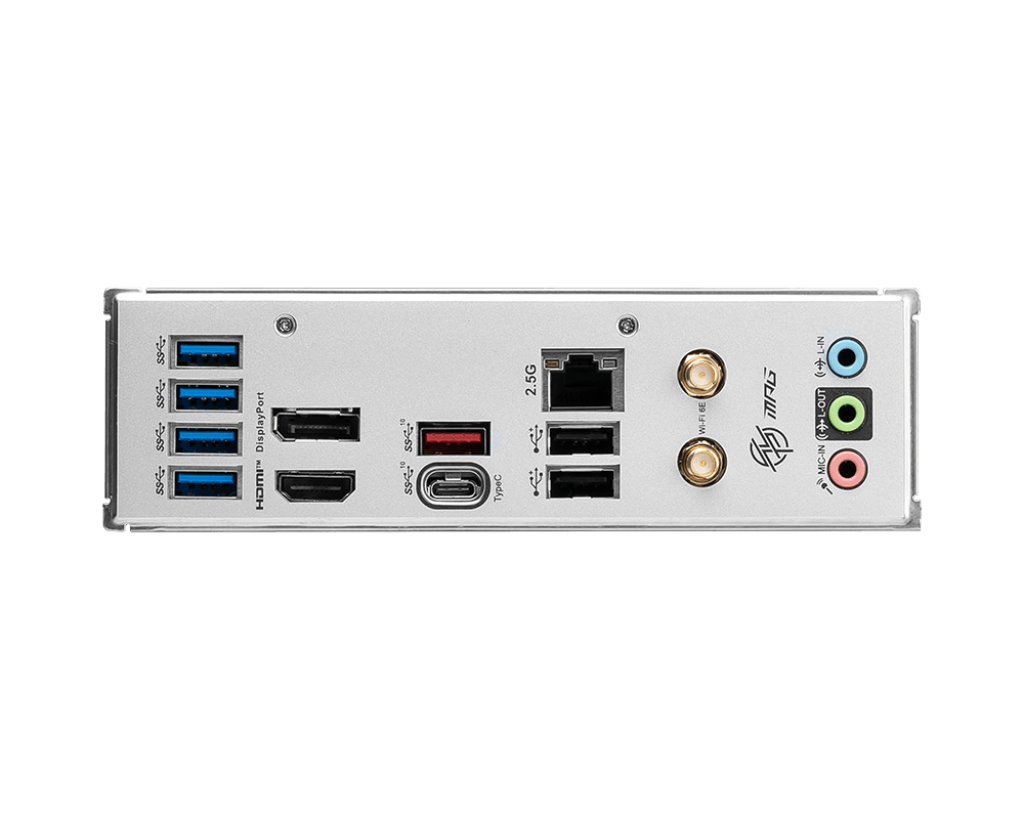

2.5G LAN: A Realtek 2.5Gbps LAN controller ensures a premium network gaming experience.

Wi-Fi 6E: With the latest Intel Wi-Fi 6E module (ultra-low latency, high bandwidth) and Bluetooth 5.3 technology.

USB 3.2 Gen 2 Type-C : Connect to devices and transfer files with high bandwidths of up to 10Gb/s.

HD Audio: 7.1-channel high definition audio with audio boost

MPG B760I EDGE WIFI - Data Sheet
