MSI MPG Velox 100P Airflow - Mid Tower PC Case

MSI MPG VELOX 100P AIRFLOW Mid-Tower PC Case
Unmatched Power
The MSI MPG VELOX 100P AIRLFOW PC Case is geared for maximum front-intake ventilation and features racing-inspired aesthetics, exceptional internal capacity, a hinged side-door, and top-shelf USB connectivity.

• Open mesh front panel & tempered glass side door
• 4 x 120mm case fans (1 ARGB), 3 lighting strips, and on-board controller
• Can house E-ATX, ATX, Micro-ATX, Mini-ITX form factor motherboards
• Supports 2 x 360mm radiators (front & top panels)
• Accommodates large GPUs (max. 380mm) & CPU coolers (max. 175mm)
• Optional vertical GPU mount included
• Side ventilation configurable
• USB 3.2 Gen 2x2 (20Gbps) I/O port (top panel)

Tempered Glass Panels
The tempered-glass front panel provides an unobstructed view of its 3 ARGB intake fans and employs cunningly detailed corner inlets to draw air inside.

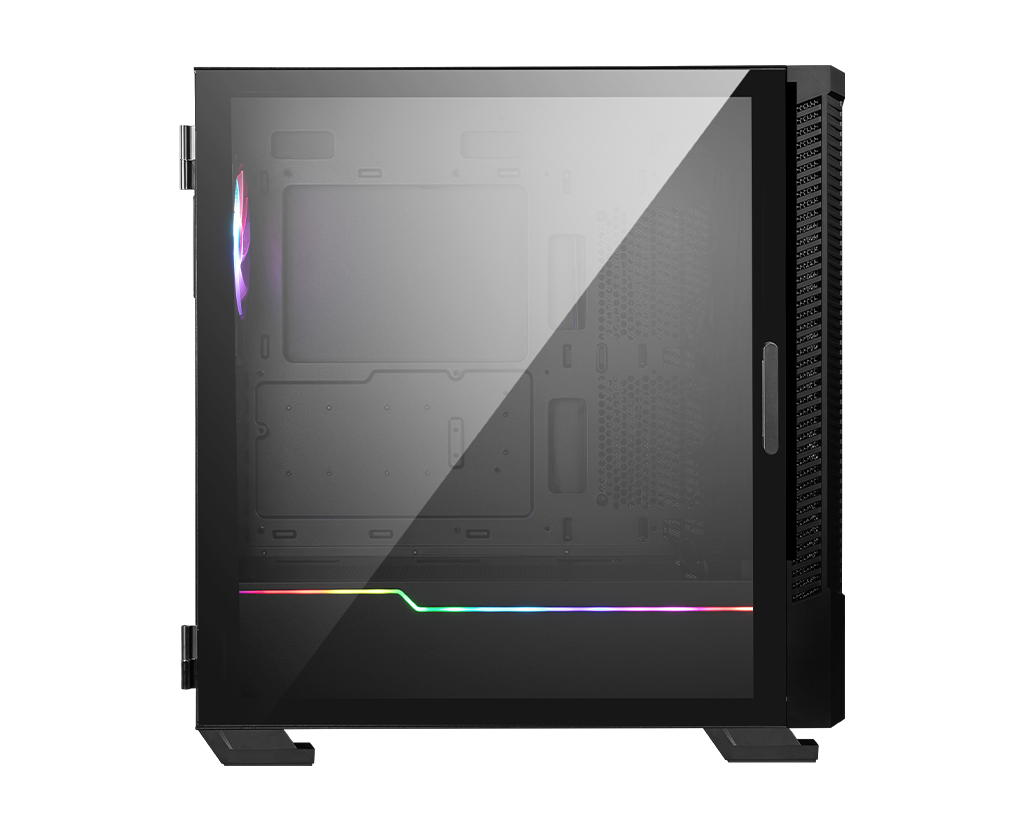

A 3mm tempered-glass hinged side panel is ideal for showcasing system builds with durability and accessibility in mind.

ARGB Lighting
The MPG VELOX 100P AIRFLOW includes system-wide ARGB lighting effects:
A pre-installed 120mm ARGB case fan (rear)
3 ARGB lighting strips
A 1-to-6 ARGB control board (internal)
A manual LED cycling button on the top I/O panel for pre-set lighting
MSI Mystic Light software support for advanced effects

Vertical GPU Mount
The MPG VELOX 100P AIRFLOW includes an optional vertical GPU bracket for users looking to highlight their system graphics card*.
*PCI-e x16 riser cable not included.

Airflow Options
Although optimized for a front-panel airflow intake configuration, the MPG VELOX 100P AIRFLOW also supports a side-panel intake configuration with a 120 x 240mm vent adjacent to the motherboard.

Mid-Tower: E-ATX Support
Despite its compact mid-tower form factor MPG VELOX 100 Series can accommodate E-ATX, ATX, M-ATX, and Mini-ITX motherboards.

Internal clearances:
GPU(s): Max. length 380mm
CPU Cooler: Max. height 175mm
ATX Standard PSU: Max. length 220mm*
*Without 3.5" HDD Tray

Fan Support
The MPG VELOX 100P AIRFLOW includes 4 pre-installed 120mm fans, and can mount up to 7:

• Front: 120/140mm x 3
• Top: 120mm x 3 or 140mm x 2
• Rear: 120mm x 1
• Side: 120mm x 2*

Top (magnetic), side, bottom dust filters included.

*Installing extra side fans/radiator requires the front fans be repositioned forward with no space for a front radiator.

Radiator Support
MPG VELOX 100 Series can support dual 360mm radiators for water-cooled systems:

• Front: 120/140/240/280/360mm
• Top: 120/140/240/280/360mm
• Rear: 120mm
• Side: 120/240mm*

*Installing extra side fans/radiator requires the front fans be repositioned forward with no space for a front radiator.

USB Gen 3.2 2x2 Type-C
The top I/O panel features an LED cycling button as well as the latest USB Gen 3.2 2x2 Type-C port for outstanding data transfer speeds:

• 1 x USB 3.2 Gen 2x2 Type-C (20Gbps)
• 2 x USB 3.2 Gen 1 Type-A (5Gbps)
• 1 x Audio-Out Jack
• 1 x Mic-In Jack

FORM FACTOR - Mid-Tower
PRODUCT NAME - MPG VELOX 100P AIRFLOW
DIMENSIONS - 474 x 231 x 490 mm / 18.7 x 9.1 x 19.3 inches
WEIGHT - 8.7 kg / 19.18 lbs
I/O PORTS -
2 x USB 3.2 Gen 1 Type-A (5Gbps)
1 x USB 3.2 Gen 2x2 Type-C (20Gbps)
1 x Audio-out
1 x Mic-in
DRIVER BAYS - 2 x 2.5” / 2 x 3.5”
CASE EXPANSION SLOTS - 7
PRE-INSTALL FAN -
Front: 3 x 120 mm
Rear: 1 x 120 mm
FAN SIZE SUPPORT -
Front: 3 x 120 mm / 3 x 140 mm
Top: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Side: 2 x 120 mm / 2 x 140 mm
MAXIMUM PSU LENGTH - 220 mm / 8.66 inches
MAXIMUM GPU LENGTH - 380 mm / 15 inches
MAXIMUM CPU COOLER LENGTH - 175 mm / 6.89 inches
RADIATOR LAYOUT -
Front: 120 / 140 / 240 / 280 / 360 mm
Top: 120 / 140 / 240 / 280 / 360 mm
Rear: 120 mm
Side: 120 / 240 mm
LIGHTNING -
Front: 3 x Non LED Fan
Rear: 1 x ARGB Fan
POWER SUPPLY - ATX
GROSS WEIGHT - 10.34 kg / 22.79 lbs
