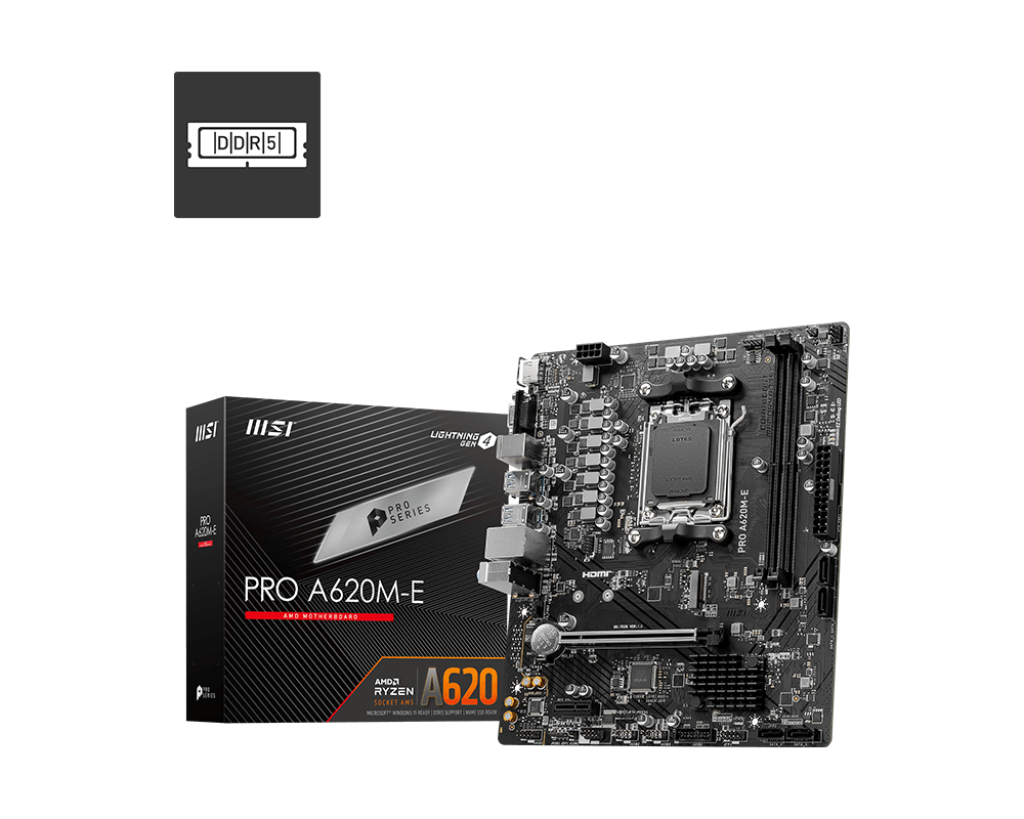

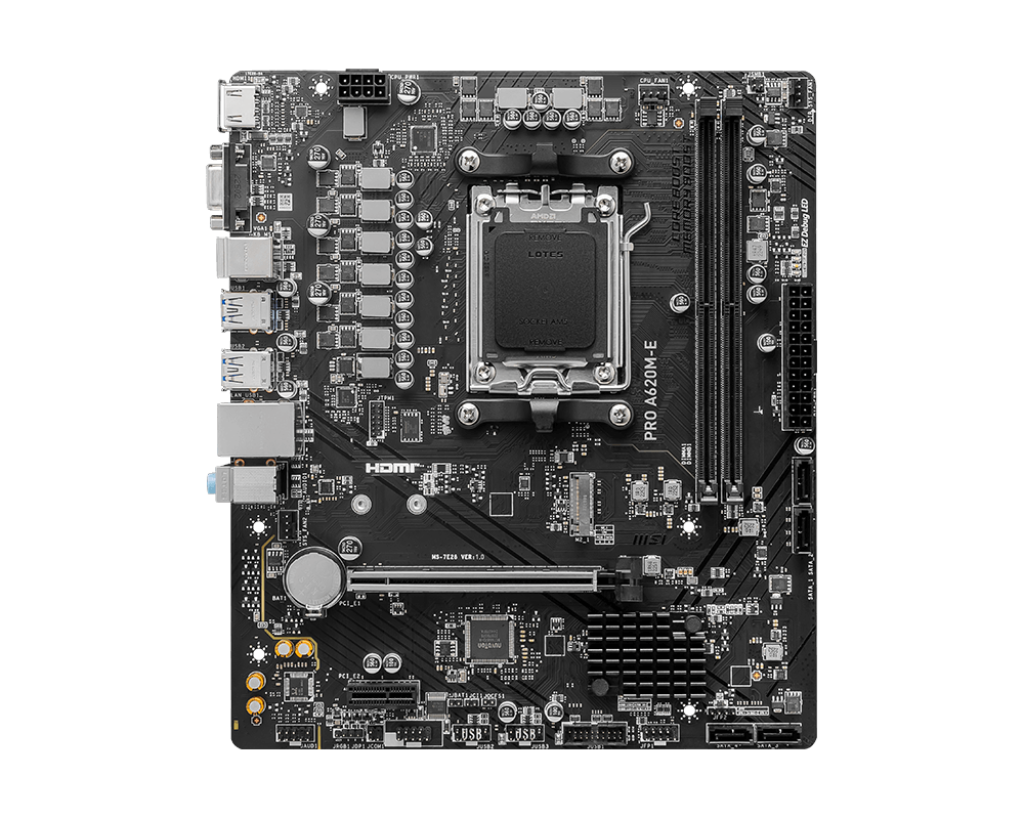

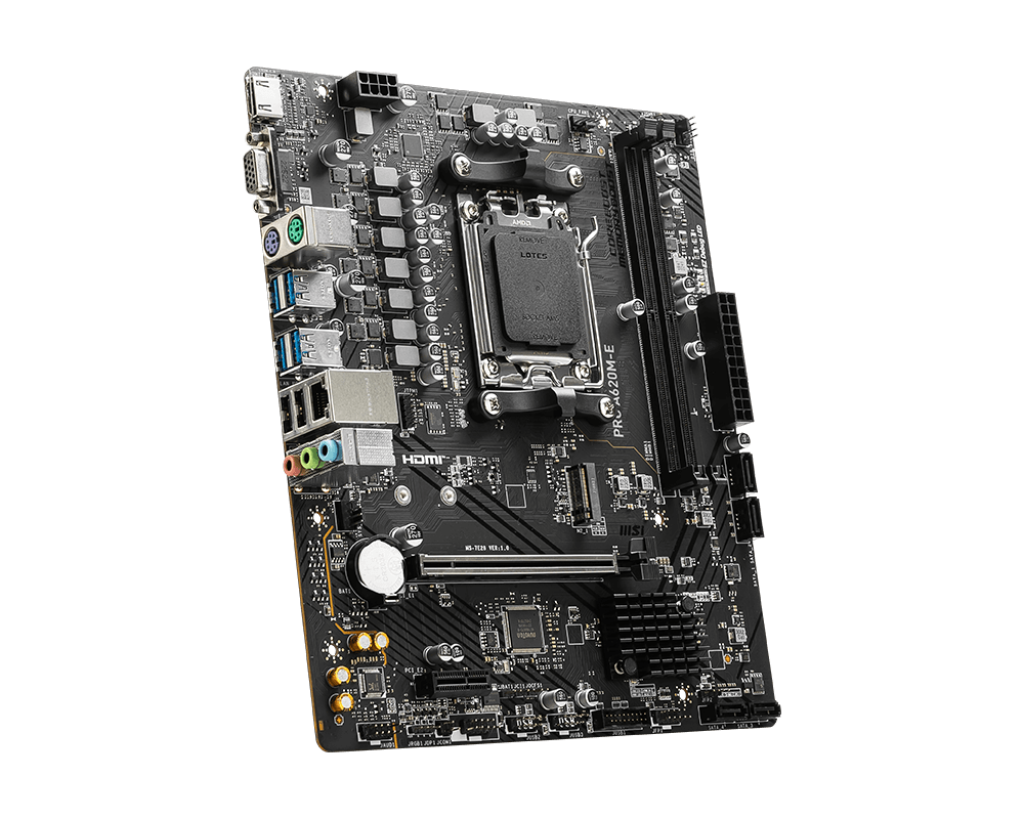

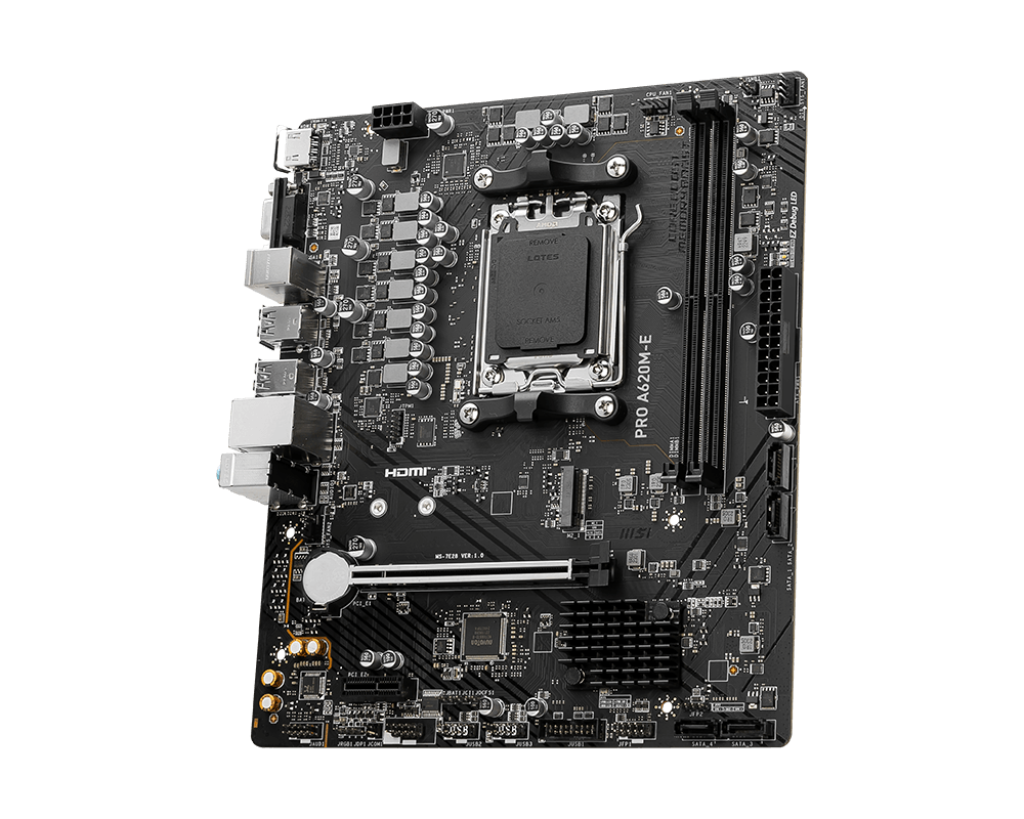

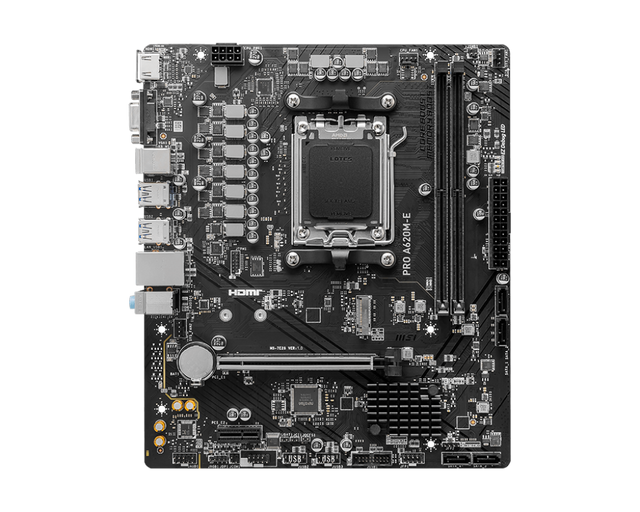

MSI Pro A620M-E Motherboard - Socket AM5

PRO A620M-E
Business Elegance
The PRO A620M-E is a business-oriented Micro-ATX motherboard featuring the latest AMD A620 chipset that fulfils business needs.

• Supports AMD Ryzen 7000 Processors (Zen 4, AM5)
• 2 x DDR5 DIMMs with Memory Boost: Dual Channel (64GB Max. / 6400MHz OC)
• 1 x PCI-e 4.0 x16 slot
• Lightning Gen4 M.2
• HDMI & VGA display outputs
• 7.1 HD Audio with Audio Boost

Supports AMD Ryzen 7000 Processors
The PRO A620M-E motherboard supports AMD Ryzen 7000 processors.
Form Factor: Micro-ATX
Socket Type: AM5
Chipset: AMD A620

Integrated Cooling Features
Chipset Heatsink: Provides passive cooling

Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.

2 x DDR5 Dual Channel (6400+ MHz OC)
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 6400 MHz, supports AMD EXPO.

Fortified PCI-e 4.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCIe 4.0/3.0 x16 slot (with Steel Armor)
1 x PCIe 3.0 x1 slot

Gen4 M.2 Connector
The PRO A620M-E motherboard features MSI's Gen4 M.2 slot:
1 x Gen4 x4 64Gbps slot

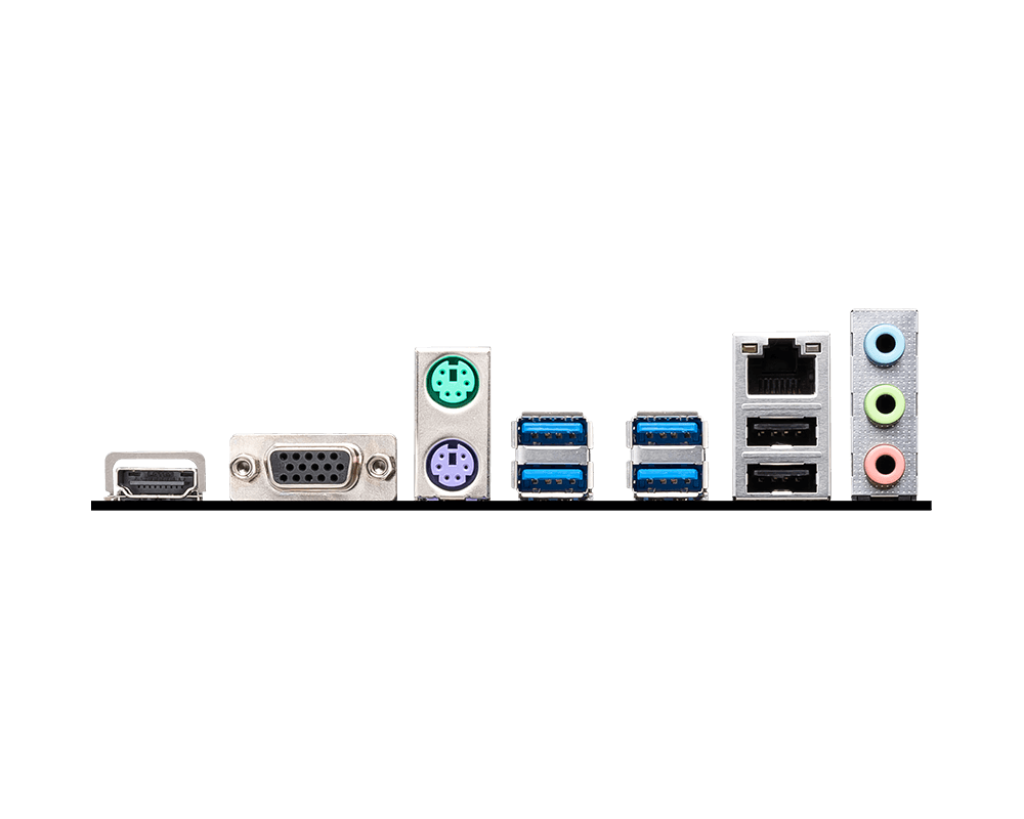

Connectivity
1G LAN: A Realtek 1Gbps LAN controller delivers a premium network experience.

USB 3.2 Gen 1 Type-A: Connect to devices and transfer files at high bandwidth rates: 5Gbps.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

Display Outputs: Include HDMI 2.1 (4K/60Hz) and legacy VGA.

PRO A620M-E Data Sheet
