MSI PRO B760M-P Motherboard - Intel Socket 1700

PRO B760M-P
Business Elegance

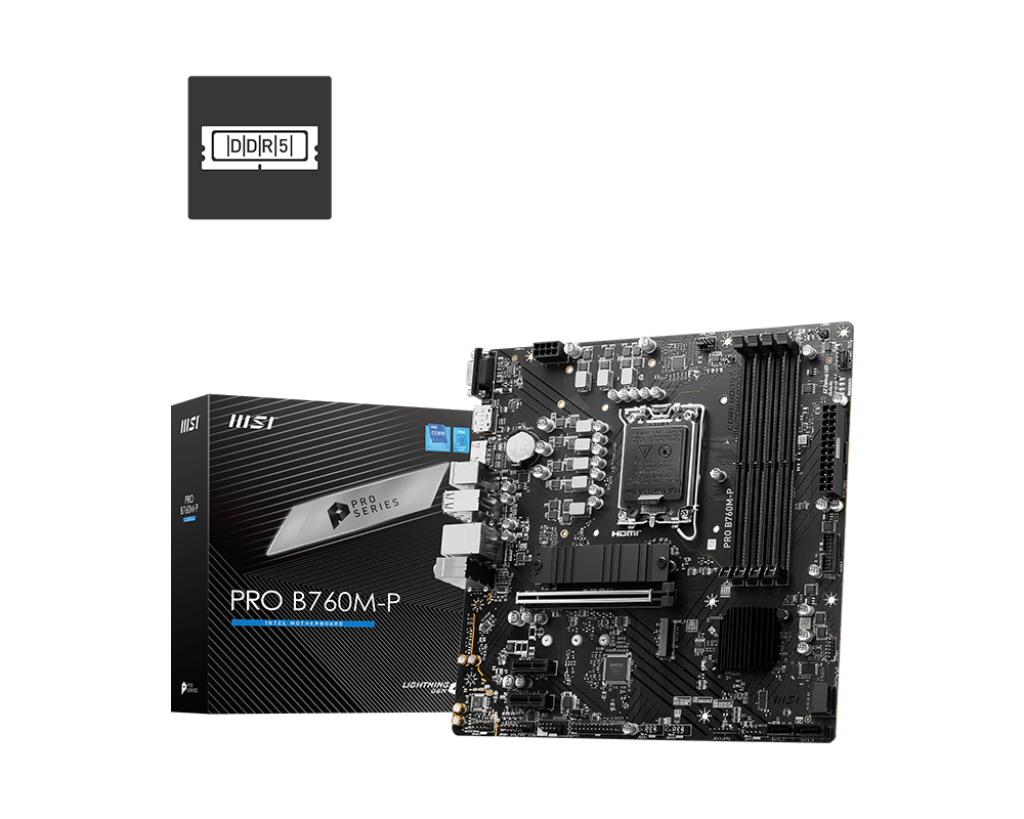

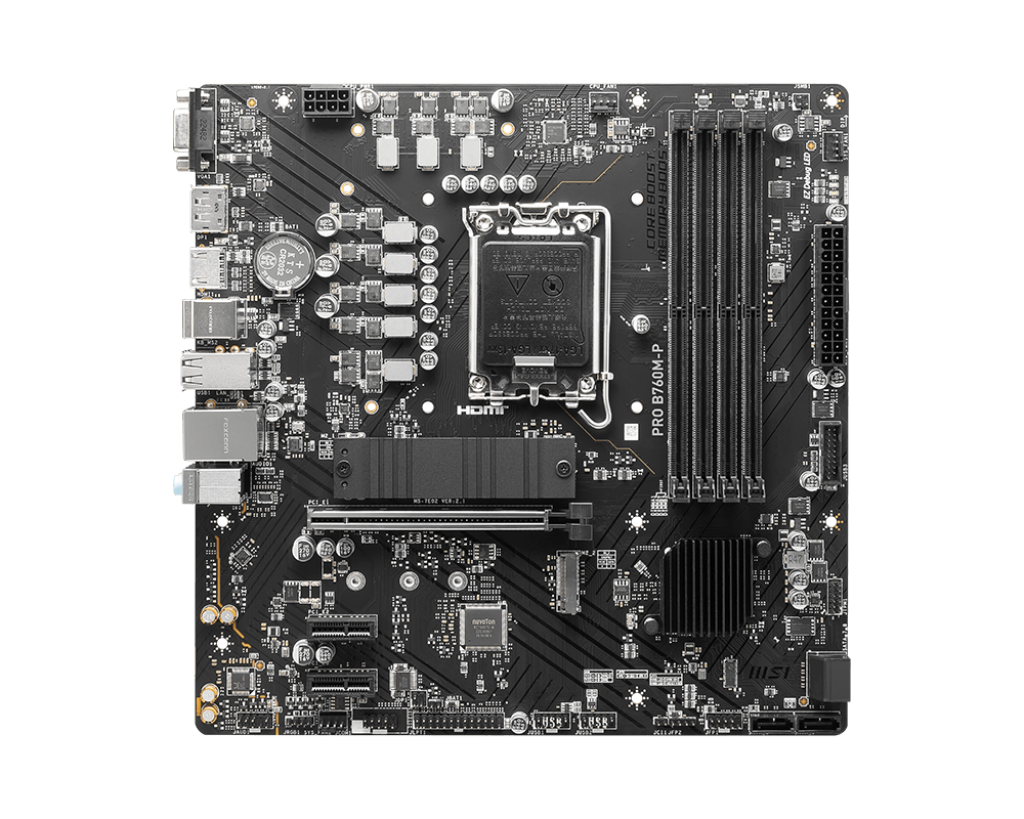

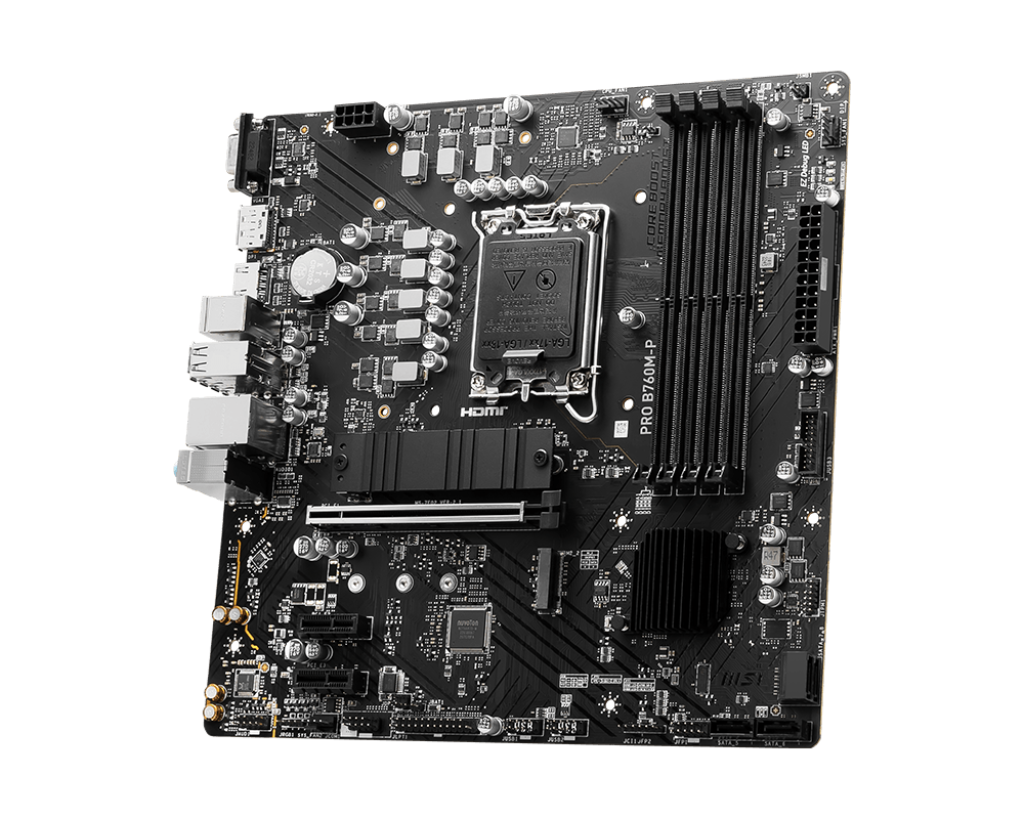

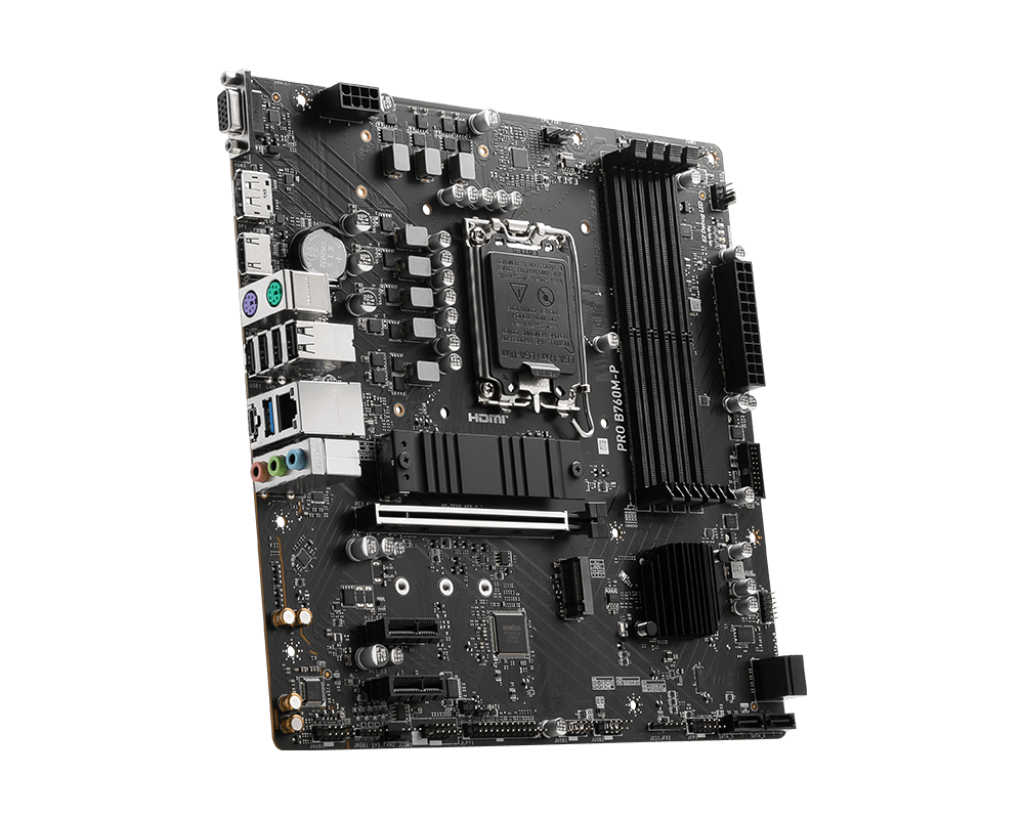

The PRO B760M-P is a business-oriented Micro-ATX motherboard featuring the latest Intel B760 chipset that supports ample RAM capacity.

• Supports Intel Core 12th & 13th Gen Processors (LGA 1700)
• 4 x DDR5 DIMMs with Memory Boost: Dual Channel (128GB Max. / 6800MHz OC)
• 1 x PCIe 4.0 x16 slot
• Lightning Gen4 M.2 & M.2 Shield Frozr
• USB 3.2 Gen 2 Type-C (10Gbps)
• 7.1 HD Audio with Audio Boost

Supports Intel Core 12th & 13th Gen Processors
The PRO B760M-P motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: Micro-ATX
Socket Type: LGA 1700
Chipset: Intel B760

Integrated Cooling Features
Chipset Heatsink: Provides passive cooling.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.

4 x DDR5 Dual Channel (6800 MHz OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 6800+ MHz, supports Intel XMP.

Fortified PCIe 4.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCIe 4.0/3.0 x16 slot (with Steel Armor)
2 x PCIe 4.0/3.0 x1 slots

M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Gen4 M.2 Connectors
The PRO B760M-P motherboard features MSI's Gen4 M.2 slots:
2 x Gen4 x4 64Gbps slots*
*1 with M.2 Shield Frozr

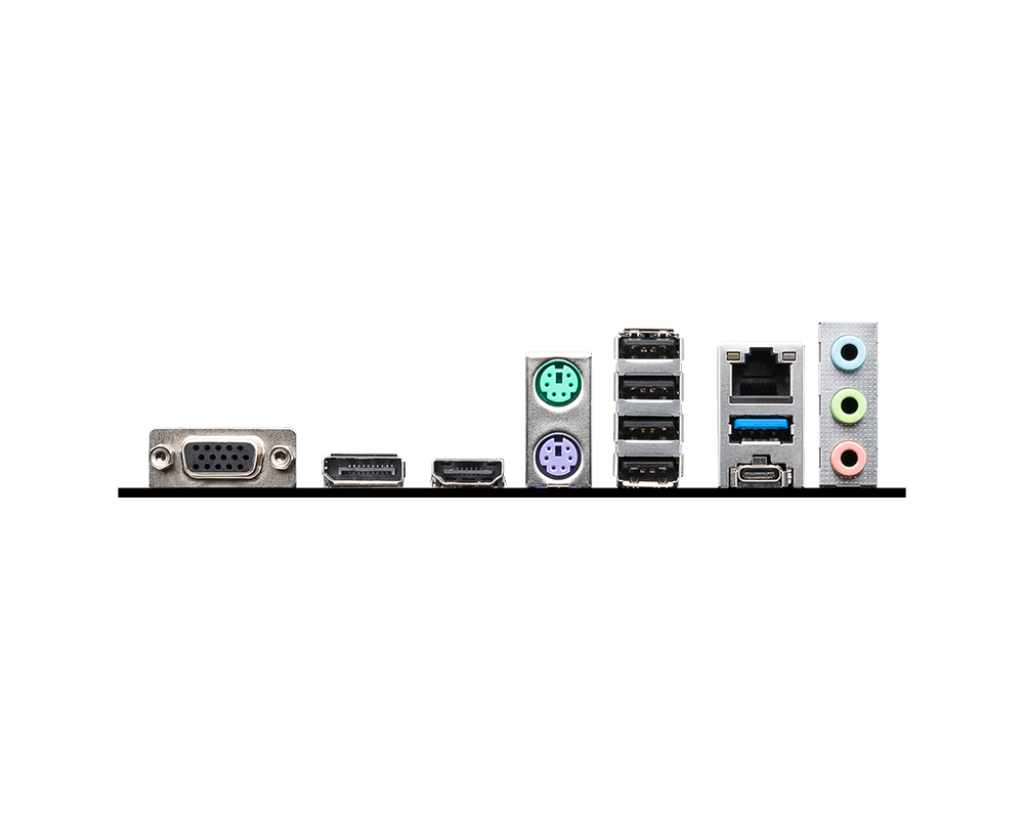

Connectivity
1G LAN: A 1Gbps LAN controller delivers a premium network experience.

USB 3.2 Gen 2 Type-C: Connect to devices and transfer files at high bandwidth rates: 10Gbps.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

Display Outputs: Include HDMI 1.4 (4K/30Hz), DisplayPort 1.4 (4K/60Hz) and legacy VGA.

PRO B760M-P - Data Sheet
