Supports Intel Core processors of the 12th & 13.

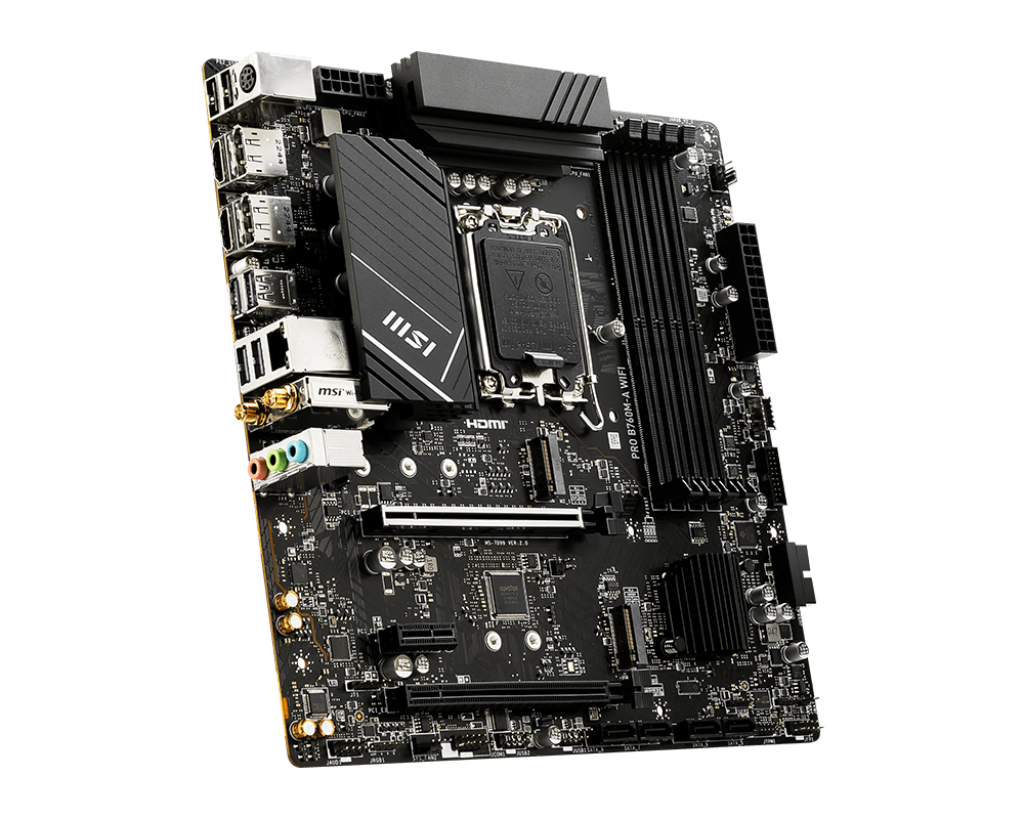

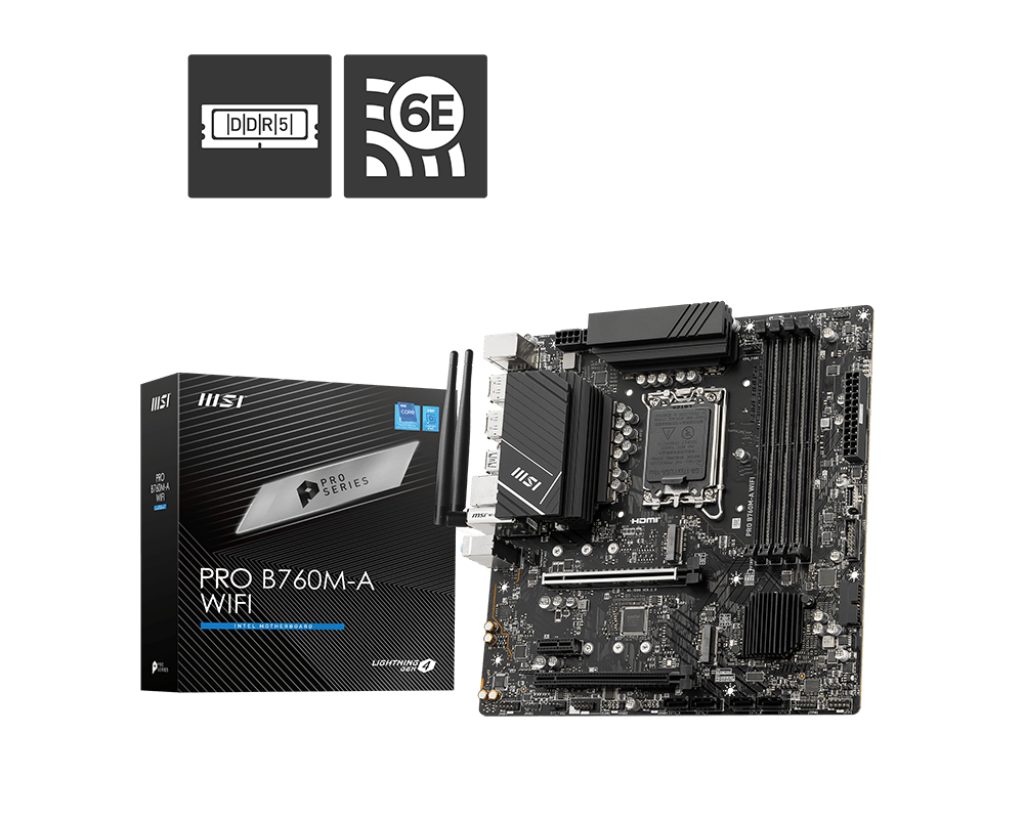

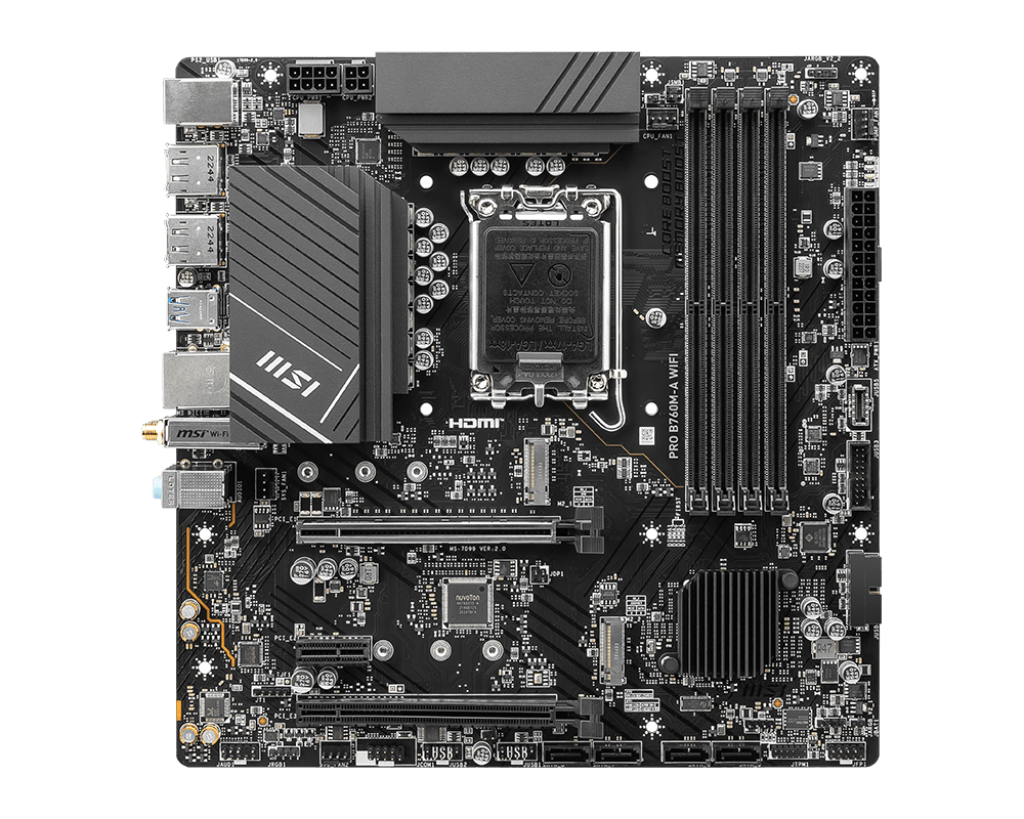

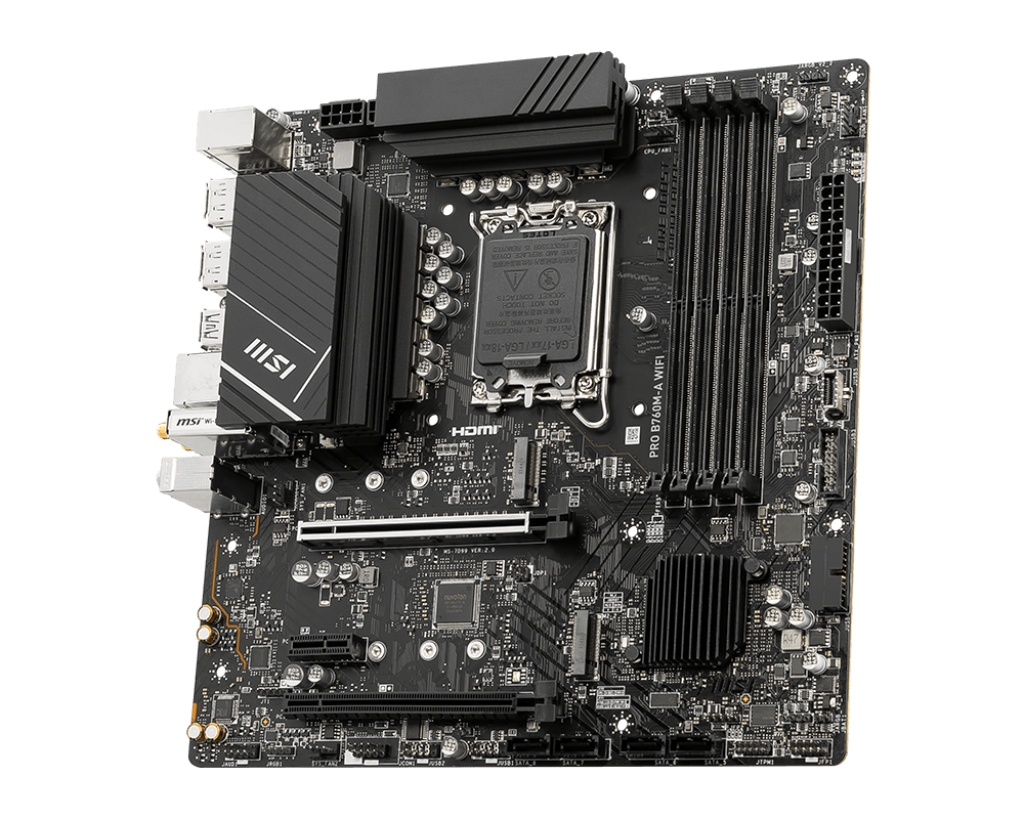

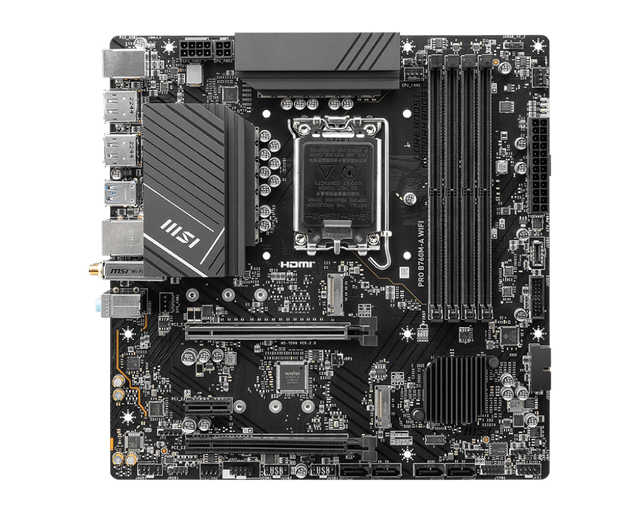

The PRO B760M-A WIFI DDR4 motherboard supports Intel Core, Pentium Gold & Celeron processors of the 12th & 13. generation.
Form factor: Micro ATX
Socket type: LGA 1700
Chipset: Intel B760
12+1 Duet Rail Power System with P-PAK
With its 8-pin + 4-pin power connectors and exclusive Core Boost technology, the PRO B760M-A WIFI DDR5 is able to maintain high CPU power loads to support demanding work settings:
Digital PWM IC12-phase Duet Rail CPU power supply (P-PAK)Single-phase GT power supplySingle-phase AUX power supply
Integrated cooling features
VRM Cooling: Features an extended heat sink, 7W/mK MOSFET thermal pads & additional throttle thermal pads for improved heat dissipation.
PCB Cooling: High quality 6 layer PCB design with 2 oz. Thickened copper improves heat dissipation and reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
Frozr AI cooling: Automatically adjusts system fan settings to CPU & GPU temperatures.
4 x DDR5 Dual Channel (6800MHz OC)
Memory Boost: A fully isolated DDR circuit delivers pure data signals for optimal gaming & overclocking performance.
The XMP profiles in MSI BIOS are MSI OC LAB optimised and can be easily activated with automatic power settings for optimised storage speed & stability.
*1DPC 1R Max. Overclocking frequency 6800+ MHz, supports Intel XMP.
Amplified PCIe 4.0 x16
MSI PCI Express Steel Armor slots are attached to the motherboard with additional soldering points to support the weight of heavy graphics cards. When every advantage in gaming counts, Steel Armor protects the contact point from electromagnetic interference:
2 x PCIe 4.0/3.0 x16 slots* (first slot with steel armor)1 x PCIe 3.0 x1 slot
*Supports x16/x4
M.2 Shield Frozr
Even the fastest SSDs in the world automatically slow down when the thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI most advanced thermal solution providing the best possible protection to ensure maximum SSD transfer speed.
Gen4 M.2 connectors
The PRO B760M-A WIFI DDR4 motherboard has MSIs Gen4 M.2 slots:
2 x Gen4 x4 64Gbis slots*
*1 with M.2 Shield Frozr
Wi-Fi 6E & Bluetooth 5.3
2.5G LAN: A Realtek 2.5Gbits LAN controller ensures a first-class network experience.
Wi-Fi 6E: Equipped with the latest Intel Wi-Fi 6E module (extremely low latency, high bandwidth) & Bluetooth 5.3 technology.
USB 3.2 Gen 2 Type-A: Connect to devices and transfer high bandwidth files: 10Gbits.
HD Audio: 7.1 channel high definition audio with audio boost.
