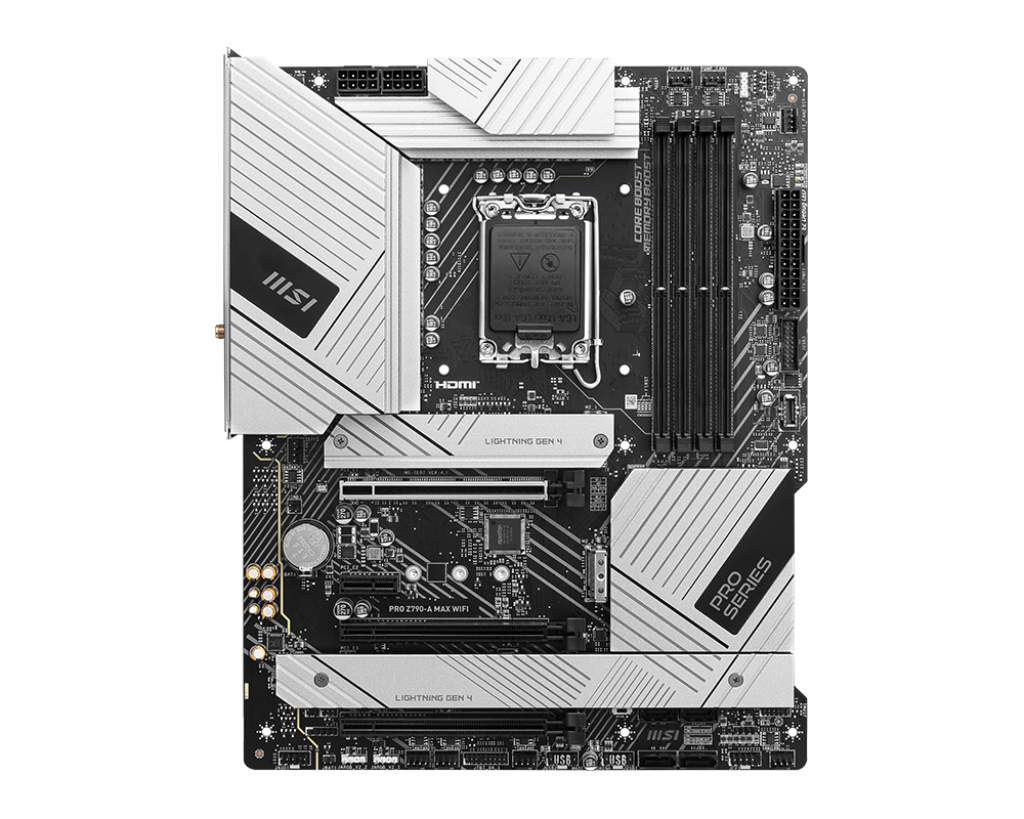

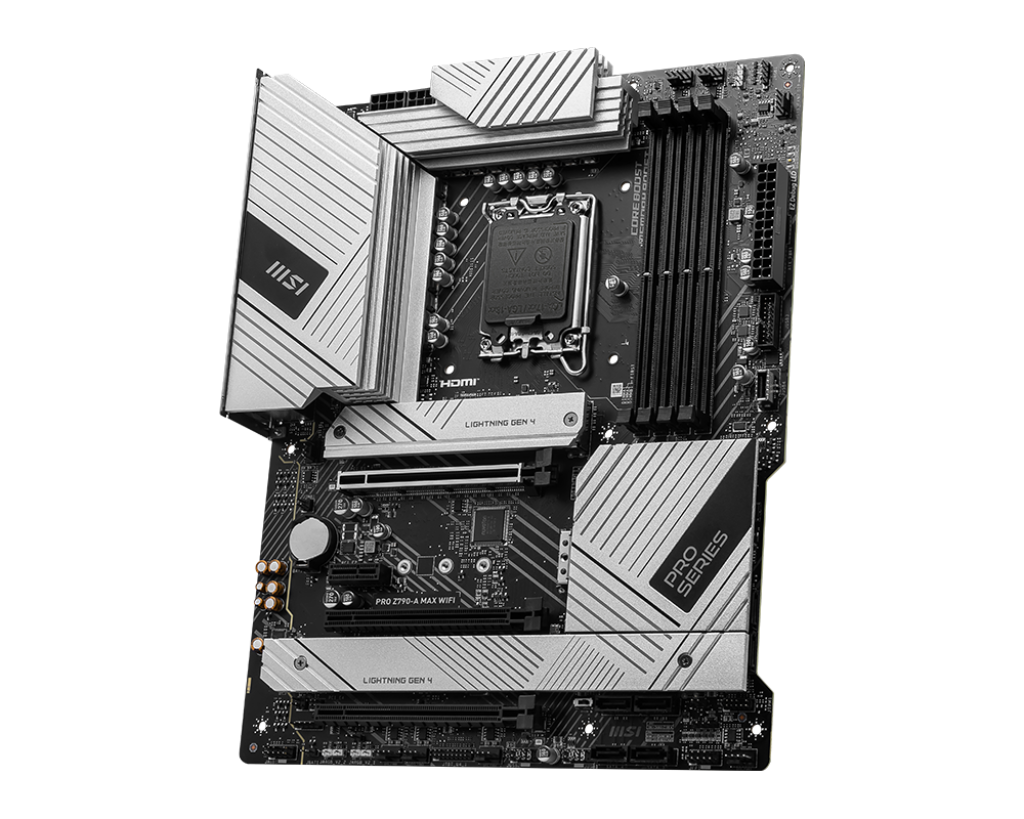

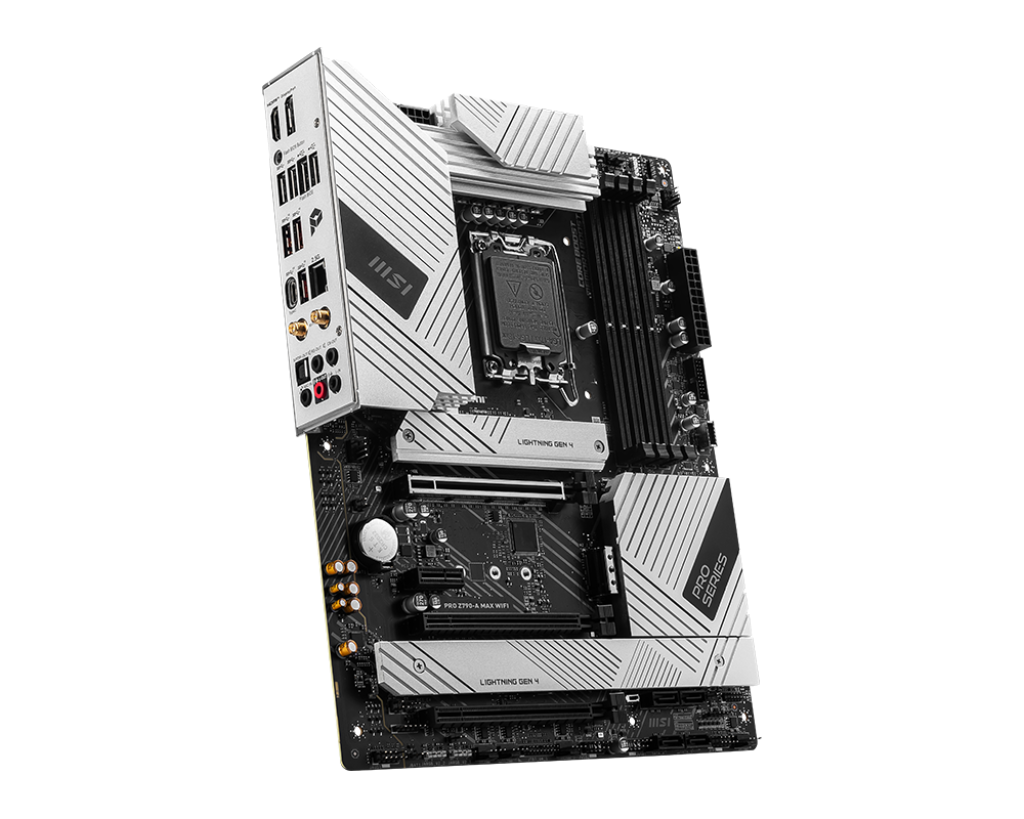

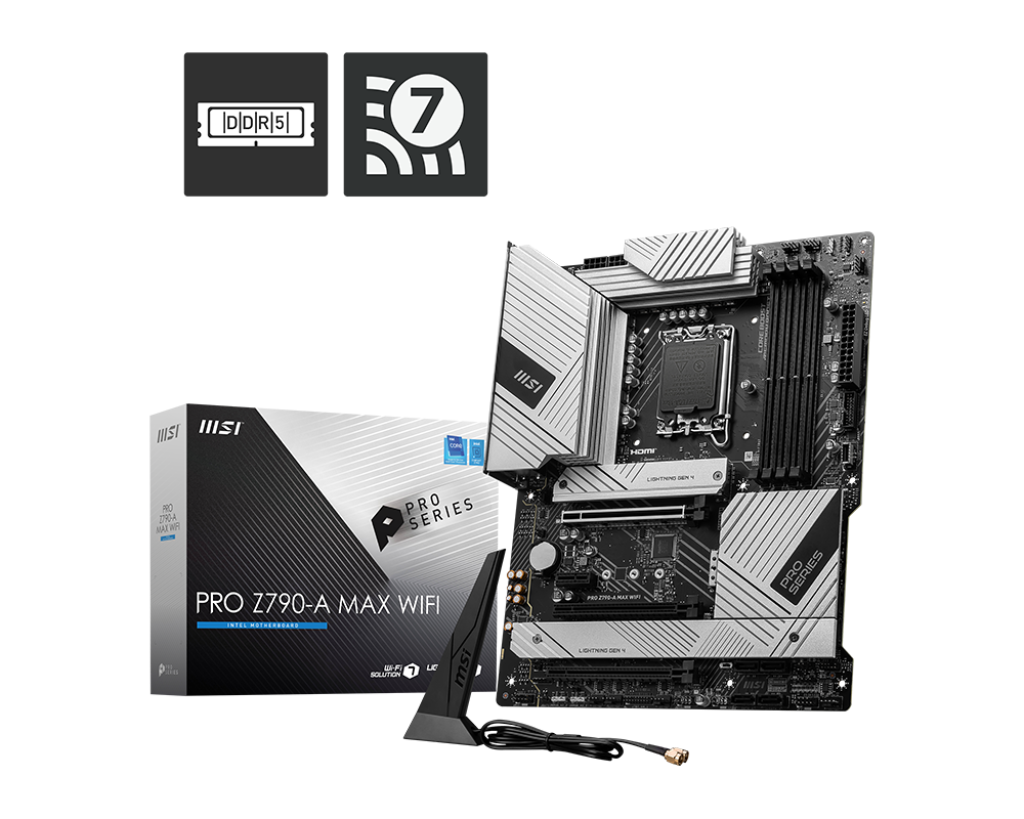

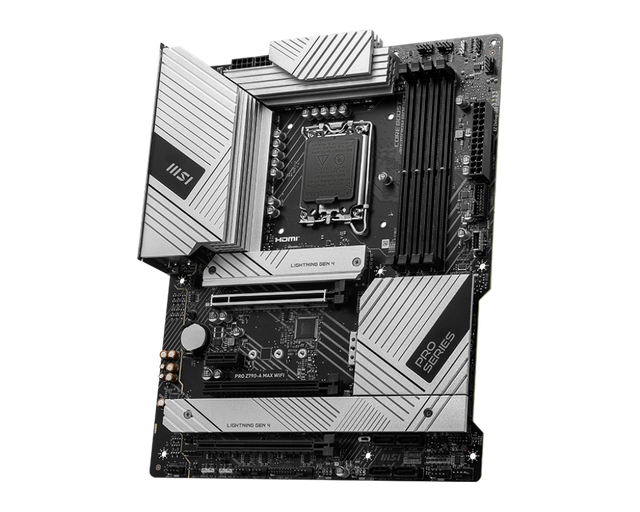

MSI PRO Z790-A MAX WIFI Motherboard - Intel Socket 1700

PRO Z790-A MAX WIFI
Business Elegance
For creative professionals looking to increase productivity and improve efficiency, the MSI PRO Z790-A MAX WIFI offers a quality platform with the capacity to support a broad spectrum of both cutting-edge and innovative hardware.

• Supports Intel Core 14th, 13th & 12th Gen Processors (LGA 1700)
• 16 Duet Rail Power System with 80A Smart Power Stage
• 4 x DDR5 DIMMs with Memory Boost: Dual Channel (192GB Max. / 7800MHz OC)
• 1 x PCIe 5.0 x16 slot & 1x PCIe 4.0 x16 slot
• Lightning Gen4 M.2 & M.2 Shield Frozr
• USB 3.2 Gen 2x2 Type-C (20Gbps)
• Intel 2.5G LAN, Wi-Fi 7 & Bluetooth 5.4
• 7.1-Channel USB High Performance Audio with Audio Boost 5

Supports Intel Core 14th, 13th & 12th Gen Processors
The PRO Z790-A MAX WIFI motherboard supports 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: ATX
Socket Type: LGA 1700
Chipset: Intel Z790

16 Duet Rail Power System with 80A Smart Power Stage
With its dual 8-pin power connectors and exclusive Core Boost technology, the PRO Z790-A MAX WIFI is able to sustain heavy CPU power loads to support system-demanding work settings:
1. Digital PWM IC
2. 16 Duet Rail CPU Power System with 80A SPS
3. 1-Phase GT Power
4. 1-Phase AUX Power

Integrated Cooling Features
VRM Cooling: Features an extended heatsink, 7W/mK MOSFET thermal pads and additional choke thermal pads for improved thermal dissipation.

PCB Cooling: A 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & performance.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

4 x DDR5 Dual Channel (7800 MHz OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 7800+ MHz, supports Intel XMP.

Fortified PCIe 5.0 x16 slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor**)
1 x PCIe 4.0/3.0 x16 slot*
*Supports x16/x4
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Lightning Gen4 M.2 Connectors
The PRO Z790-A MAX WIFI motherboard features MSI's Gen4 M.2 slots:
4 x Gen4 x4 64Gbps slots*
*3 x M.2 Shield Frozr

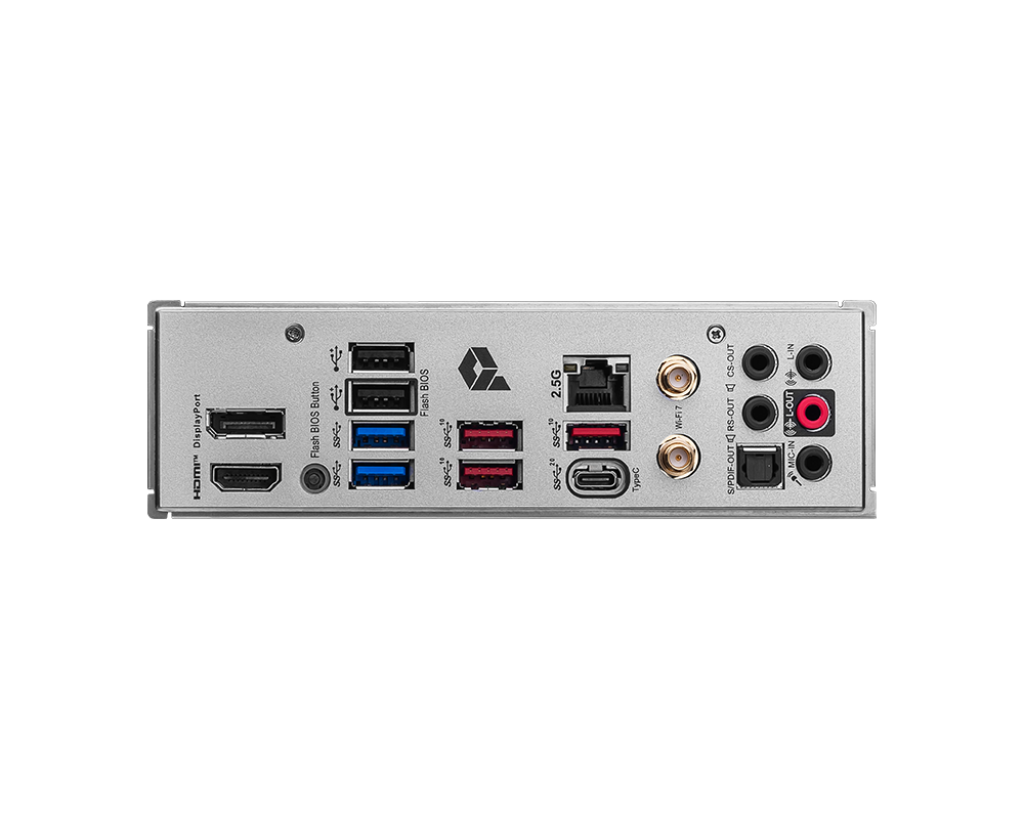

Connectivity
2.5G LAN: An Intel 2.5Gbps LAN controller delivers a premium network experience.

USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.

Wi-Fi 7: Features the latest Wi-Fi 7 module (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.

HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output.
